![Alcatel 1B (2020)](http://wmstatic.global.ssl.fastly.net/ml/7070823-f-98a51c92-122e-4c2e-8cbe-ff01eb633afb.png?width=150&height=320)
Alcatel 1B (2020)
Android 10.0 (Go edition)
1. Find "Access Point Names"
Slide two fingers downwards starting from the top of the screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7070823-f-a6e5f4a8-c023-4979-b305-6d88a03f03ff.png?width=206&height=412)
Press the settings icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7070823-f-e2862964-0b75-48ec-93ed-bf86b51359d0.png?width=206&height=412)

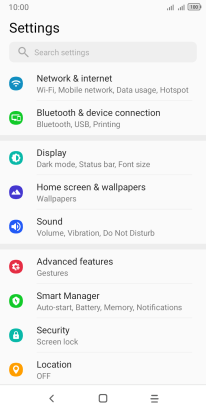

Press Network & internet.
![](http://wmstatic.global.ssl.fastly.net/ml/7070823-f-791d1e4b-8905-4699-95ea-4ccfb703245b.png?width=206&height=412)

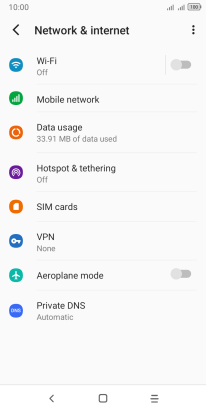

Press Mobile network.
![](http://wmstatic.global.ssl.fastly.net/ml/7070823-f-bff44bae-053c-449f-9dfe-ba765174c265.png?width=206&height=412)
Press the required SIM.
![](http://wmstatic.global.ssl.fastly.net/ml/7070823-f-f52b7ecf-467e-4cf6-b248-fcfa1f33f1cf.png?width=206&height=412)

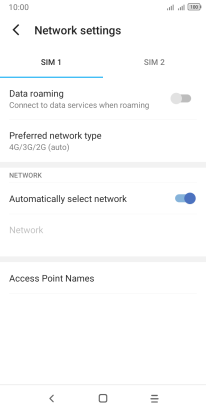

Press Access Point Names.
![](http://wmstatic.global.ssl.fastly.net/ml/7070823-f-f52b7ecf-467e-4cf6-b248-fcfa1f33f1cf.png?width=206&height=412)
2. Create new data connection

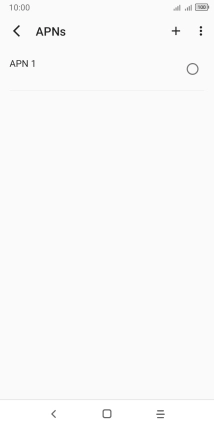

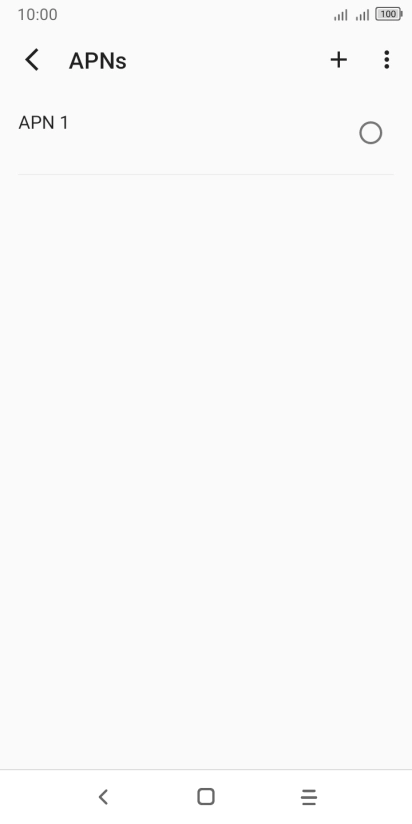

Press the add icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7070823-f-f7b60bfb-a425-4071-aa29-00e08239743e.png?width=206&height=412)

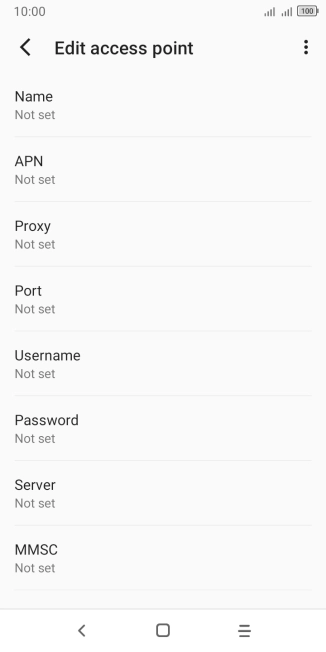

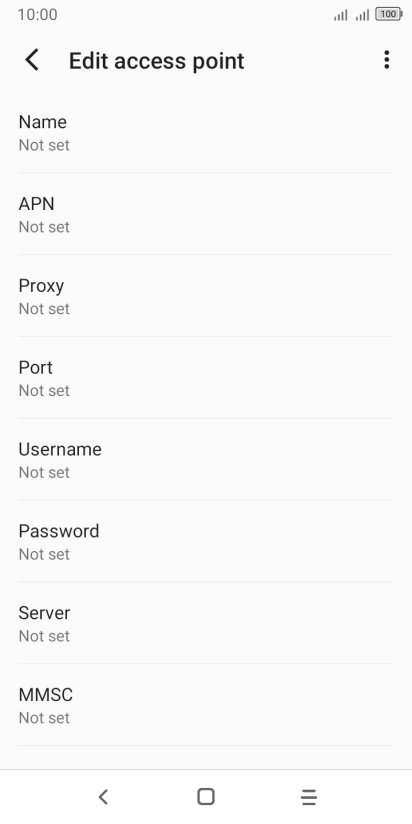

Press Name.
![](http://wmstatic.global.ssl.fastly.net/ml/7070823-f-000550b8-b395-4bfe-99c1-c6efbdb6a806.png?width=206&height=412)
Key in Vodafone MMS and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7070823-f-fef1ddcf-706d-4135-bf31-19df2d581e5e.png?width=206&height=412)
Vodafone MMS
3. Enter APN
Press APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7070823-f-000550b8-b395-4bfe-99c1-c6efbdb6a806.png?width=206&height=412)

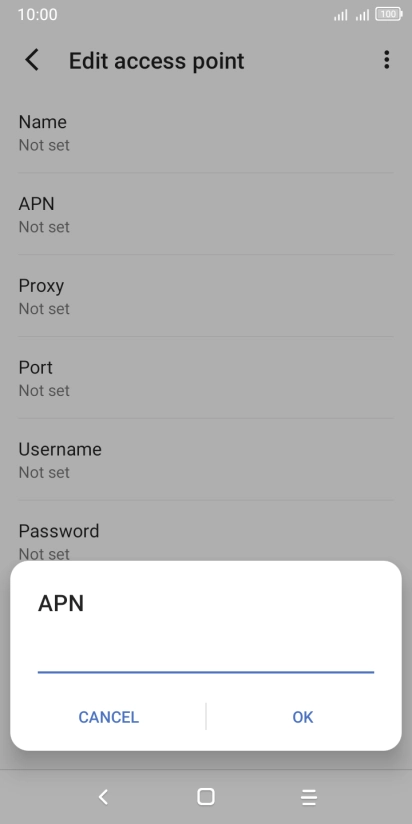

Key in wap.vodafone.co.uk and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7070823-f-9bf35d5f-7055-4691-b415-0449c29d4905.png?width=206&height=412)
wap.vodafone.co.uk
4. Enter username
Press Username.
![](http://wmstatic.global.ssl.fastly.net/ml/7070823-f-000550b8-b395-4bfe-99c1-c6efbdb6a806.png?width=206&height=412)

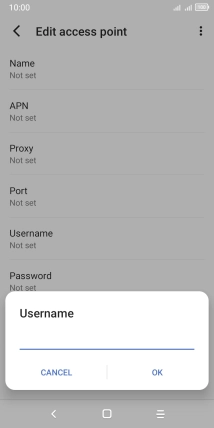

Key in wap and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7070823-f-980e2d79-3409-4d54-a265-9924d2548a7b.png?width=206&height=412)
wap
5. Enter password
Press Password.
![](http://wmstatic.global.ssl.fastly.net/ml/7070823-f-000550b8-b395-4bfe-99c1-c6efbdb6a806.png?width=206&height=412)

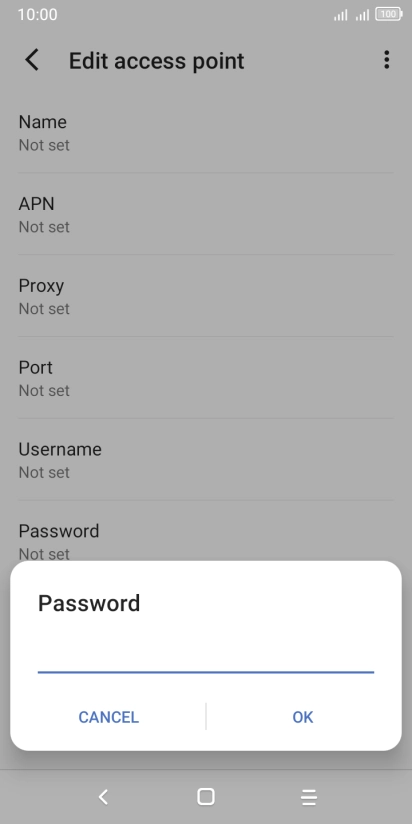

Key in wap and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7070823-f-6abc5feb-6461-4df2-ab60-460efd227743.png?width=206&height=412)
wap
6. Enter MMSC
Press MMSC.
![](http://wmstatic.global.ssl.fastly.net/ml/7070823-f-000550b8-b395-4bfe-99c1-c6efbdb6a806.png?width=206&height=412)

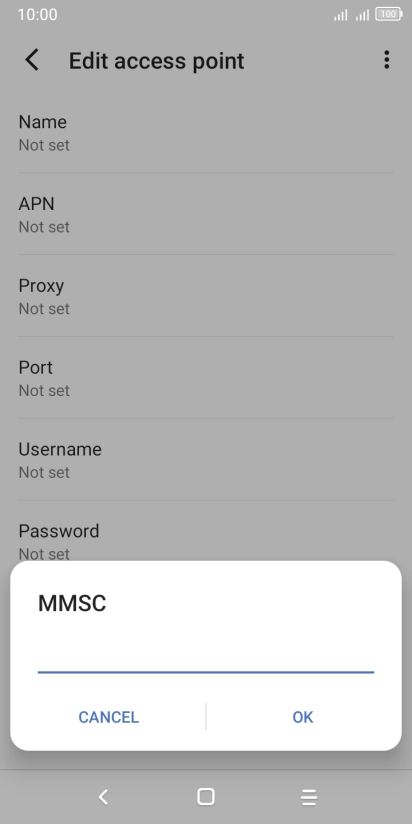

Key in http://mms.vodafone.co.uk/servlets/mms and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7070823-f-8f3100d6-3e20-4e4a-97e5-9d176875edea.png?width=206&height=412)
http://mms.vodafone.co.uk/servlets/mms
7. Enter IP address

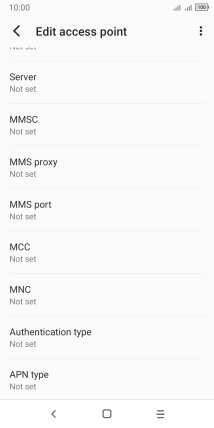

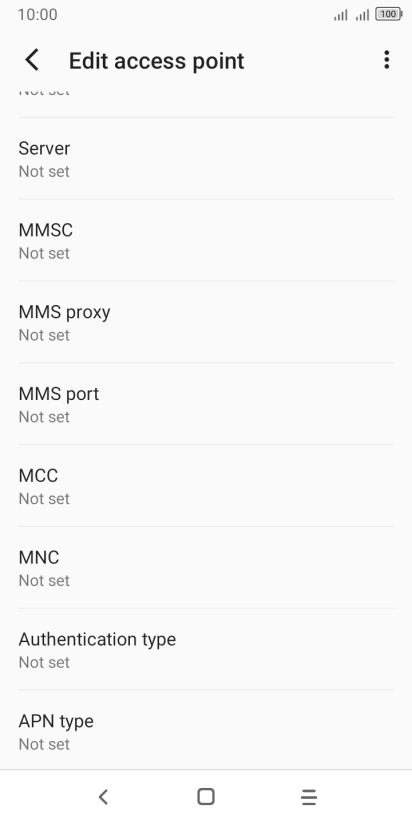

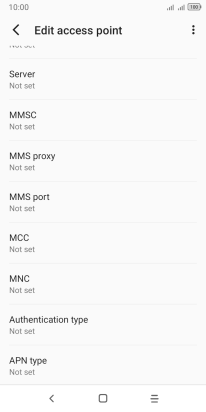

Press MMS proxy.
![](http://wmstatic.global.ssl.fastly.net/ml/7070823-f-d2a3ea12-0abf-40b7-a1a9-3c520ef80535.png?width=206&height=412)
Key in 212.183.137.012 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7070823-f-524dbb43-38e8-4a57-a25e-59d48eacf62e.png?width=206&height=412)
212.183.137.012
8. Enter port number
Press MMS port.
![](http://wmstatic.global.ssl.fastly.net/ml/7070823-f-d2a3ea12-0abf-40b7-a1a9-3c520ef80535.png?width=206&height=412)

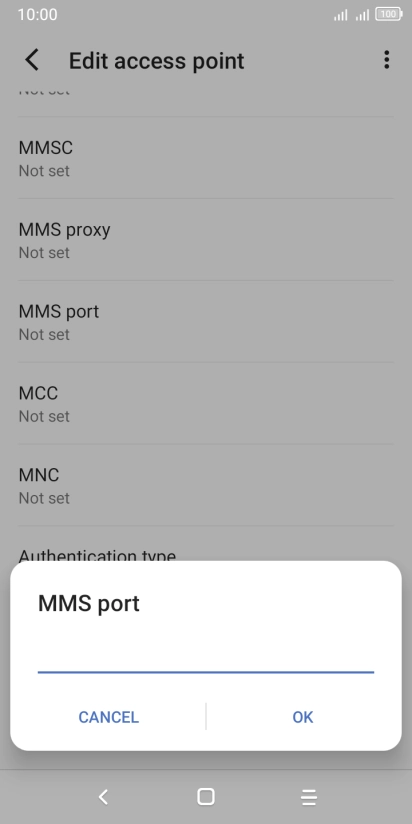

Key in 8799 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7070823-f-447aa097-1309-46b0-b0a9-c8c4e1d1d5be.png?width=206&height=412)
8799
9. Enter country code
Press MCC.
![](http://wmstatic.global.ssl.fastly.net/ml/7070823-f-d2a3ea12-0abf-40b7-a1a9-3c520ef80535.png?width=206&height=412)

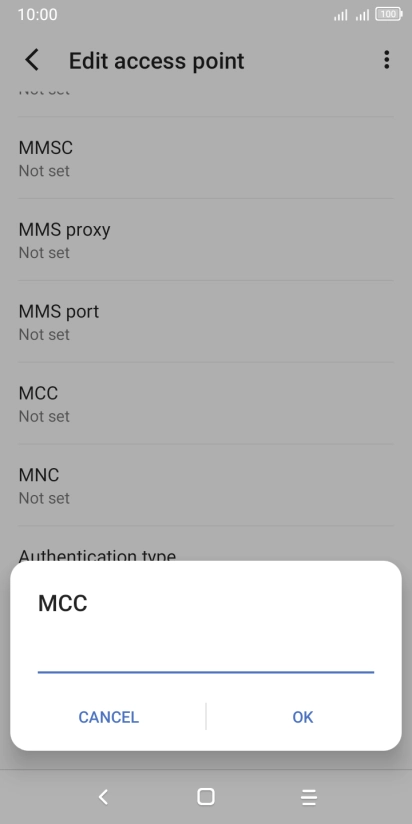

Key in 234 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7070823-f-94fe0753-e239-4768-9f8d-977f71d282d0.png?width=206&height=412)
234
10. Enter network code
Press MNC.
![](http://wmstatic.global.ssl.fastly.net/ml/7070823-f-d2a3ea12-0abf-40b7-a1a9-3c520ef80535.png?width=206&height=412)

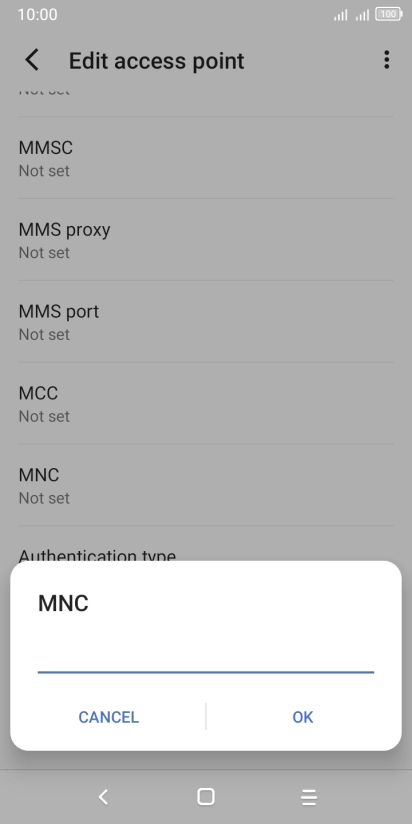

Key in 15 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7070823-f-20ecf317-79a2-425d-849a-fef6848583f6.png?width=206&height=412)
15
11. Select authentication type

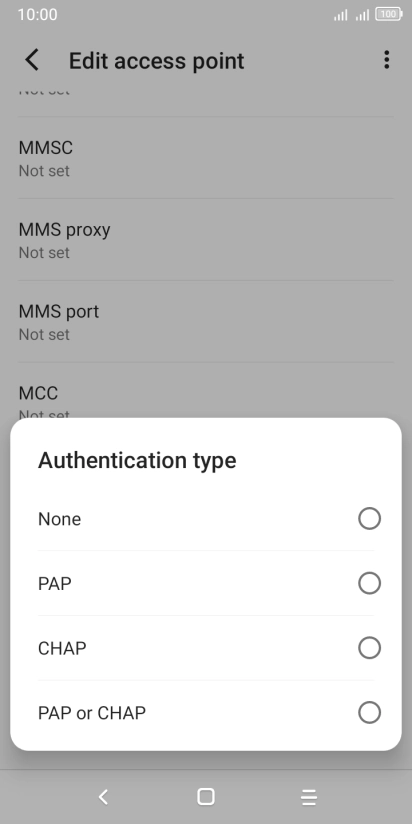

Press Authentication type.
![](http://wmstatic.global.ssl.fastly.net/ml/7070823-f-d2a3ea12-0abf-40b7-a1a9-3c520ef80535.png?width=206&height=412)
Press None.
![](http://wmstatic.global.ssl.fastly.net/ml/7070823-f-54eb2ce6-5019-4f08-8eb1-829bda5471af.png?width=206&height=412)
12. Enter APN type

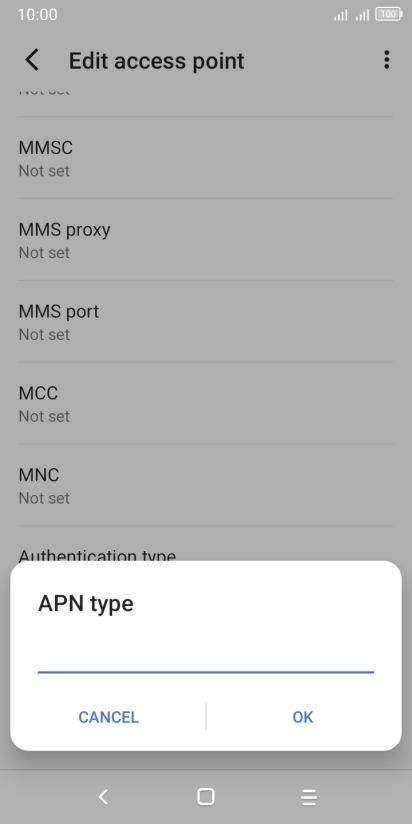

Press APN type.
![](http://wmstatic.global.ssl.fastly.net/ml/7070823-f-d2a3ea12-0abf-40b7-a1a9-3c520ef80535.png?width=206&height=412)
Key in mms and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7070823-f-60b1262b-3fa6-40a6-ad0d-061def4bd5c5.png?width=206&height=412)
mms
13. Save data connection
Press the menu icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7070823-f-d2a3ea12-0abf-40b7-a1a9-3c520ef80535.png?width=206&height=412)

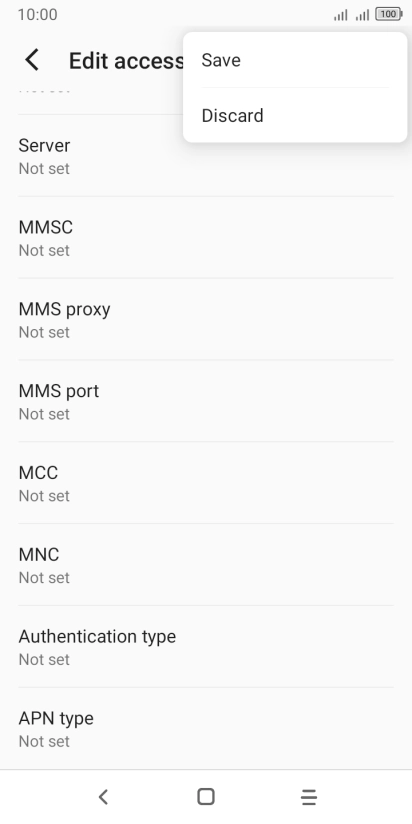

Press Save.
![](http://wmstatic.global.ssl.fastly.net/ml/7070823-f-97474a0d-55ca-47cd-9714-54e2e4689597.png?width=206&height=412)
14. Return to the home screen
Press the Home key to return to the home screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7070823-f-f363593c-17b7-4934-afb7-8e2926fa2f4c.png?width=206&height=412)
