Doro Liberto 820 Mini

Doro Liberto 820 Mini

Android 4.4.2

Set up your Doro Liberto 820 Mini Android 4.4.2 for picture messaging

Read help info

A picture message is a message which can contain pictures and other media files and can be sent to other mobile phones. You can send and receive picture messages as soon as you've inserted your SIM. If this isn't the case, you can set up your phone for picture messaging manually.

Step 1 of 36

Find "Access Point Names"

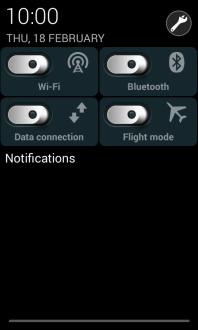

Slide your finger downwards starting from the top of the screen.

Step 2 of 36

Find "Access Point Names"

Press the settings icon.

Step 3 of 36

Find "Access Point Names"

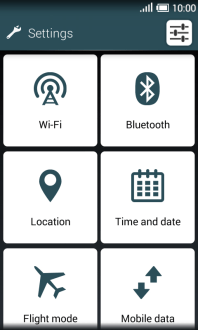

Press the settings icon at the top of the screen.

Step 4 of 36

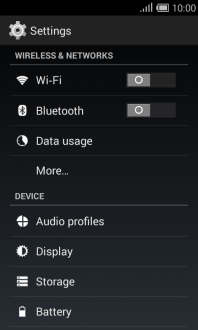

Find "Access Point Names"

Press More....

Step 5 of 36

Find "Access Point Names"

Press Mobile networks.

Step 6 of 36

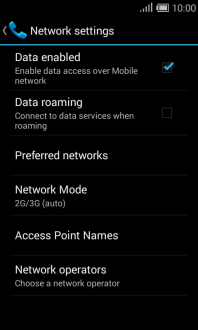

Find "Access Point Names"

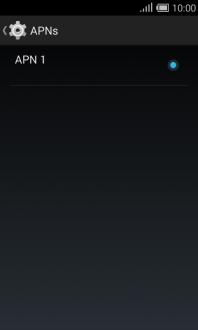

Press Access Point Names.

Step 7 of 36

Create new data connection

Press the Menu key.

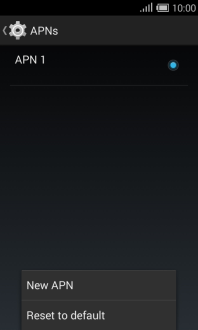

Step 8 of 36

Create new data connection

Press New APN.

Step 9 of 36

Create new data connection

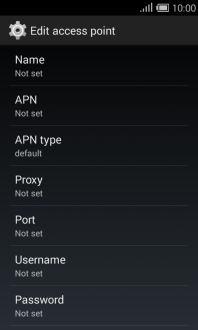

Press Name.

Vodafone MMS

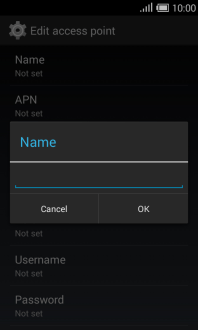

Step 10 of 36

Create new data connection

Key in Vodafone MMS and press OK.

Step 11 of 36

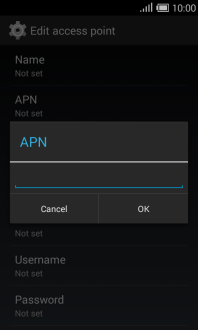

Enter APN

Press APN.

wap.vodafone.co.uk
Step 12 of 36

Enter APN

If you're on a pay monthly price plan, key in wap.vodafone.co.uk and press OK.

pp.vodafone.co.uk
Step 13 of 36

Enter APN

If you're on a pay as you go or VOXI price plan, key in pp.vodafone.co.uk and press OK.

Step 14 of 36

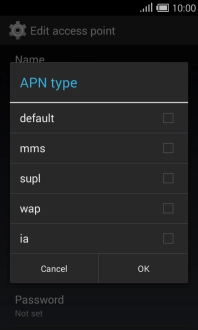

Select APN type

Press APN type.

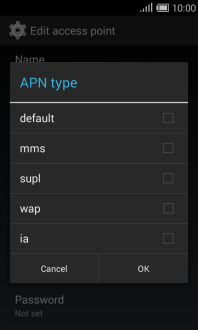

Step 15 of 36

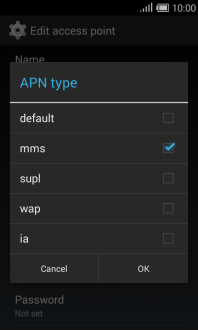

Select APN type

Press default to turn it off.

Step 16 of 36

Select APN type

Press mms.

Step 17 of 36

Select APN type

Press OK.

Step 18 of 36

Enter username

Press Username.

wap

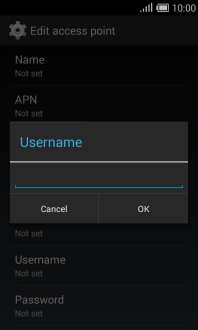

Step 19 of 36

Enter username

Key in wap and press OK.

Step 20 of 36

Enter password

Press Password.

wap
Step 21 of 36

Enter password

Key in wap and press OK.

Step 22 of 36

Enter MMSC

Press MMSC.

http://mms.vodafone.co.uk/servlets/mms
Step 23 of 36

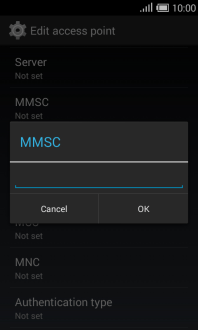

Enter MMSC

Key in http://mms.vodafone.co.uk/servlets/mms and press OK.

Step 24 of 36

Enter IP address

Press MMS proxy.

212.183.137.012

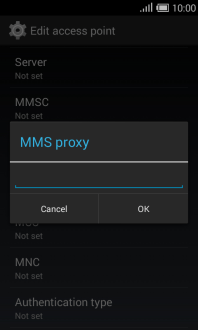

Step 25 of 36

Enter IP address

Key in 212.183.137.012 and press OK.

Step 26 of 36

Enter port number

Press MMS port.

8799
Step 27 of 36

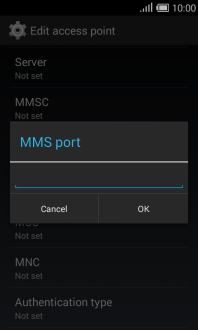

Enter port number

Key in 8799 and press OK.

Step 28 of 36

Enter country code

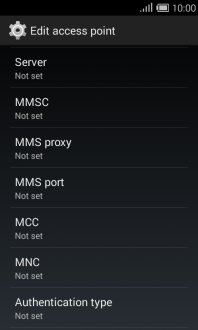

Press MCC.

234
Step 29 of 36

Enter country code

Key in 234 and press OK.

Step 30 of 36

Enter network code

Press MNC.

15

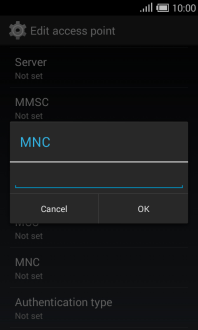

Step 31 of 36

Enter network code

Key in 15 and press OK.

Step 32 of 36

Select authentication type

Press Authentication type.

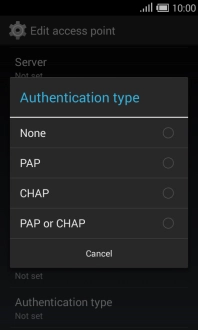

Step 33 of 36

Select authentication type

Press None.

Step 34 of 36

Save data connection

Press the Menu key.

Step 35 of 36

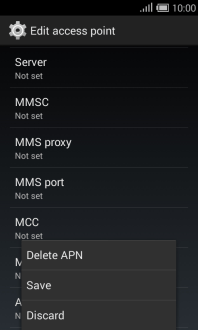

Save data connection

Press Save.

Step 36 of 36

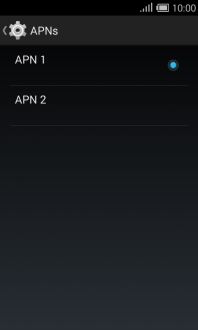

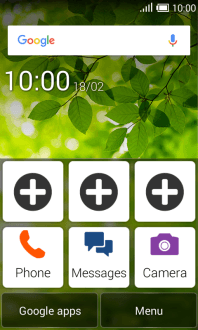

Return to the home screen

Press the Home key to return to the home screen.

1. Find "Access Point Names"

Slide your finger downwards starting from the top of the screen.
Press the settings icon.
Press the settings icon at the top of the screen.
Press More....
Press Mobile networks.
Press Access Point Names.

2. Create new data connection

Press the Menu key.
Press New APN.
Press Name.
Key in Vodafone MMS and press OK.
Vodafone MMS

3. Enter APN

Press APN.
If you're on a pay monthly price plan, key in wap.vodafone.co.uk and press OK.
wap.vodafone.co.uk
If you're on a pay as you go or VOXI price plan, key in pp.vodafone.co.uk and press OK.
pp.vodafone.co.uk

4. Select APN type

Press APN type.
Press default to turn it off.
Press mms.
Press OK.

5. Enter username

Press Username.
Key in wap and press OK.
wap

6. Enter password

Press Password.
Key in wap and press OK.
wap

7. Enter MMSC

Press MMSC.
Key in http://mms.vodafone.co.uk/servlets/mms and press OK.
http://mms.vodafone.co.uk/servlets/mms

8. Enter IP address

Press MMS proxy.
Key in 212.183.137.012 and press OK.
212.183.137.012

9. Enter port number

Press MMS port.
Key in 8799 and press OK.
8799

10. Enter country code

Press MCC.
Key in 234 and press OK.
234

11. Enter network code

Press MNC.
Key in 15 and press OK.
15

12. Select authentication type

Press Authentication type.
Press None.

13. Save data connection

Press the Menu key.
Press Save.

14. Return to the home screen

Press the Home key to return to the home screen.
