![FAIRPHONE Fairphone 3](http://wmstatic.global.ssl.fastly.net/ml/7070823-f-bc4e5db4-1b2d-4578-aa59-32ec03b82649.png?width=150&height=320)
FAIRPHONE Fairphone 3
Android 9.0
1. Find "Access Point Names"
Slide two fingers downwards starting from the top of the screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7070823-f-d0310aab-55d7-4c46-b4c5-d08f2f15f264.png?width=196&height=392)
Press the settings icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7070823-f-e4c8adee-fe29-4bed-96d1-aefcfb4c510c.png?width=196&height=392)
Press Network & Internet.
![](http://wmstatic.global.ssl.fastly.net/ml/7070823-f-93f75d07-9262-48ac-a445-903a476b10a0.png?width=196&height=392)

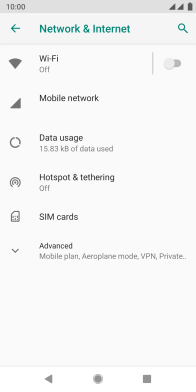

Press Mobile network.
![](http://wmstatic.global.ssl.fastly.net/ml/7070823-f-8638ceef-e045-47d1-ac69-4c268cdc9b4e.png?width=196&height=392)

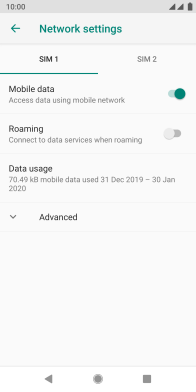

Press the required SIM.
![](http://wmstatic.global.ssl.fastly.net/ml/7070823-f-57729c7e-44e5-442e-8c4c-9154108ac049.png?width=196&height=392)
Press Advanced.
![](http://wmstatic.global.ssl.fastly.net/ml/7070823-f-57729c7e-44e5-442e-8c4c-9154108ac049.png?width=196&height=392)

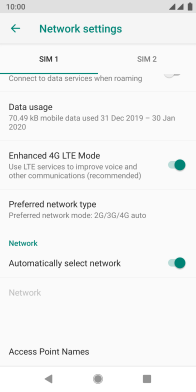

Press Access Point Names.
![](http://wmstatic.global.ssl.fastly.net/ml/7070823-f-e3f97910-c1af-46d2-87b4-c350e5b6204f.png?width=196&height=392)
2. Create new data connection

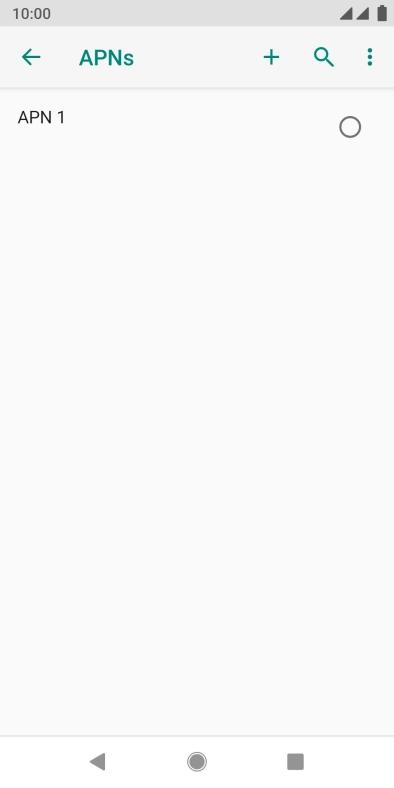

Press the new data connection icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7070823-f-ed6ea502-a0c1-42a1-bd2b-37db8f027b97.png?width=196&height=392)
3. Enter a name for the connection

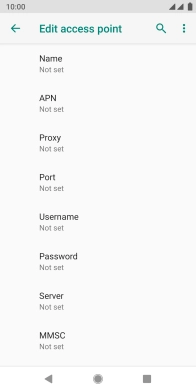

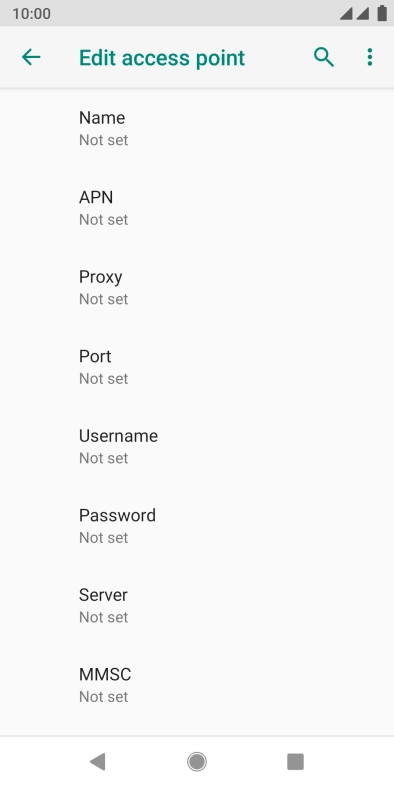

Press Name.
![](http://wmstatic.global.ssl.fastly.net/ml/7070823-f-31820d8f-687f-474d-8096-9636832abd54.png?width=196&height=392)

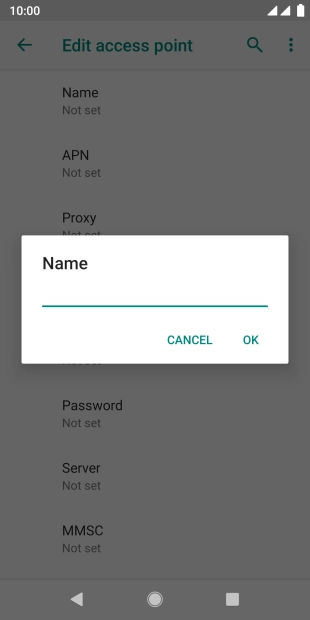

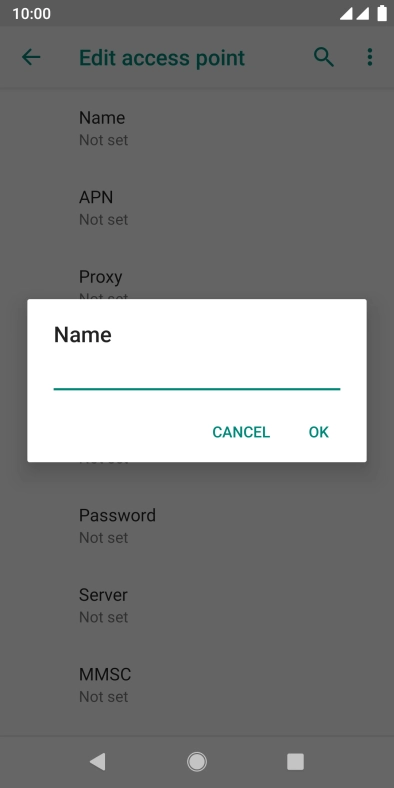

Key in Vodafone MMS and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7070823-f-7b19f6cf-c827-4714-b21f-966b7b69114d.png?width=196&height=392)
Vodafone MMS
4. Enter APN

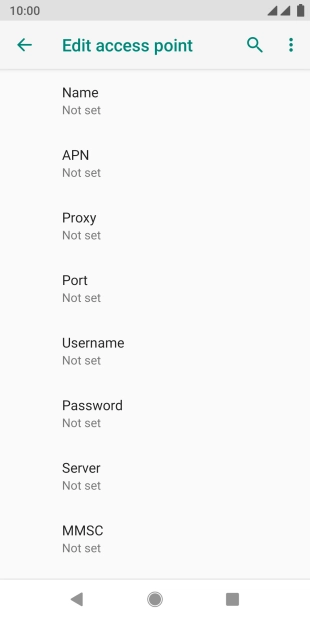

Press APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7070823-f-31820d8f-687f-474d-8096-9636832abd54.png?width=196&height=392)
Key in wap.vodafone.co.uk and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7070823-f-56ed9f12-a466-4475-9f5f-d84ea11ec192.png?width=196&height=392)
wap.vodafone.co.uk
5. Enter username
Press Username.
![](http://wmstatic.global.ssl.fastly.net/ml/7070823-f-31820d8f-687f-474d-8096-9636832abd54.png?width=196&height=392)

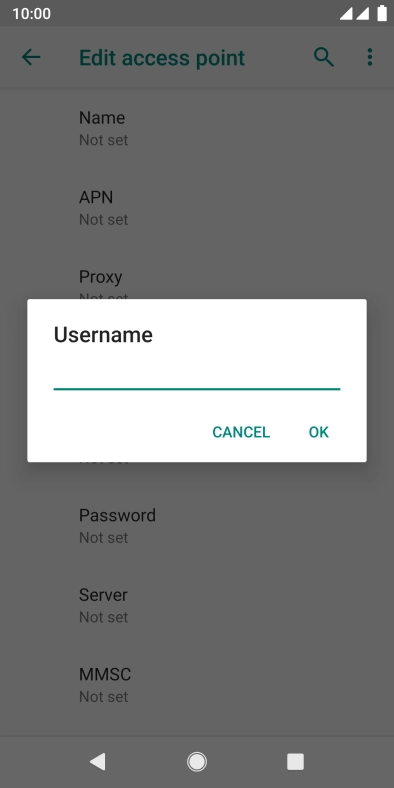

Key in wap and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7070823-f-deb03fe0-a651-4c18-9cf2-06a33e5a8d2a.png?width=196&height=392)
wap
6. Enter password
Press Password.
![](http://wmstatic.global.ssl.fastly.net/ml/7070823-f-31820d8f-687f-474d-8096-9636832abd54.png?width=196&height=392)

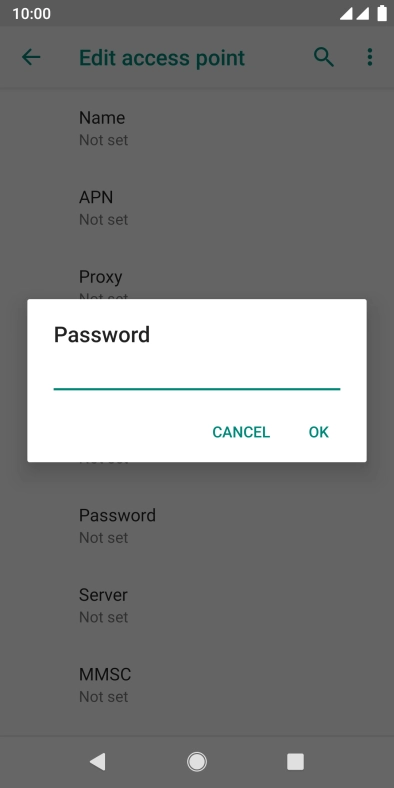

Key in wap and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7070823-f-952b5b31-2be8-442e-828a-16ab63ee6868.png?width=196&height=392)
wap
7. Enter MMSC
Press MMSC.
![](http://wmstatic.global.ssl.fastly.net/ml/7070823-f-31820d8f-687f-474d-8096-9636832abd54.png?width=196&height=392)

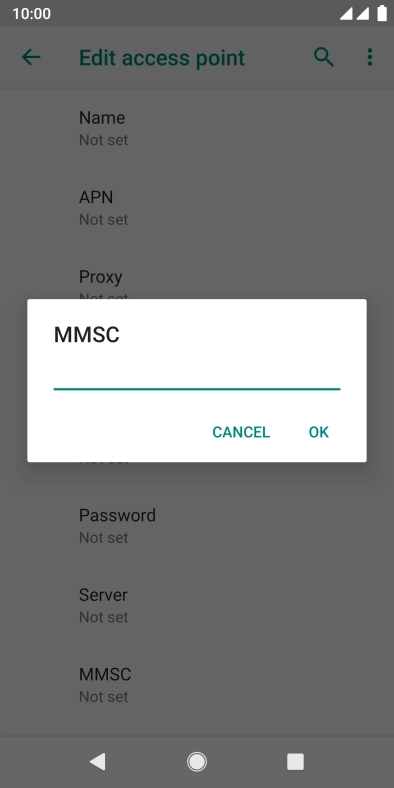

Key in http://mms.vodafone.co.uk/servlets/mms and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7070823-f-b35f1783-f822-4aac-8e95-fa1cf23d9a41.png?width=196&height=392)
http://mms.vodafone.co.uk/servlets/mms
8. Enter IP address

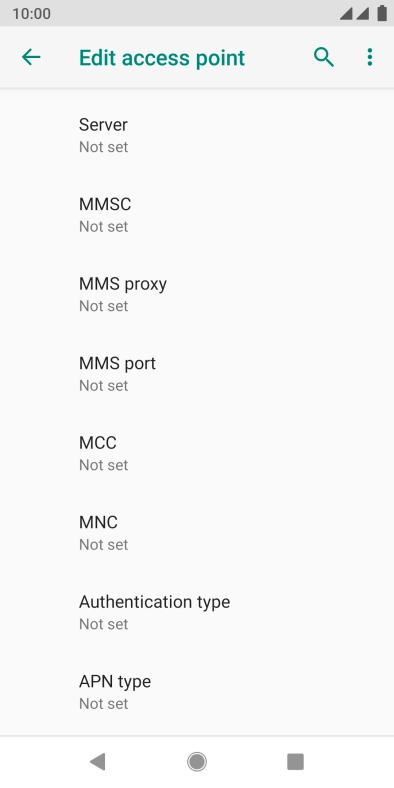

Press MMS proxy.
![](http://wmstatic.global.ssl.fastly.net/ml/7070823-f-4acb948f-24e9-4e16-a0ed-f15bfd140e4c.png?width=196&height=392)

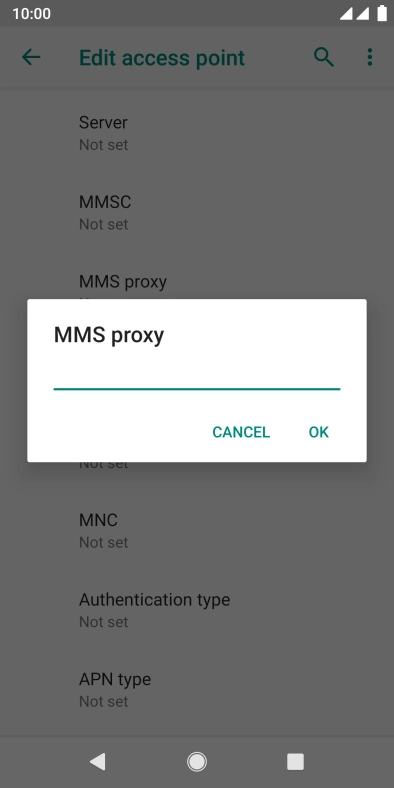

Key in 212.183.137.012 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7070823-f-113b59e9-d841-4656-8d4e-9b336619691b.png?width=196&height=392)
212.183.137.012
9. Enter port number
Press MMS port.
![](http://wmstatic.global.ssl.fastly.net/ml/7070823-f-4acb948f-24e9-4e16-a0ed-f15bfd140e4c.png?width=196&height=392)

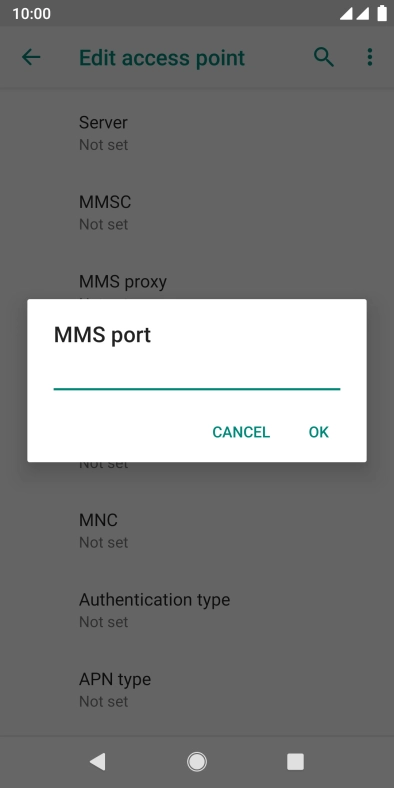

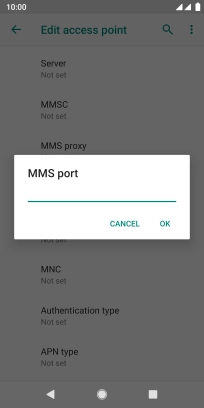

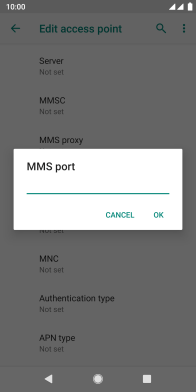

Key in 8799 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7070823-f-408bdd0e-7311-44ec-8bae-800170d441ab.png?width=196&height=392)
8799
10. Enter country code
Press MCC.
![](http://wmstatic.global.ssl.fastly.net/ml/7070823-f-4acb948f-24e9-4e16-a0ed-f15bfd140e4c.png?width=196&height=392)

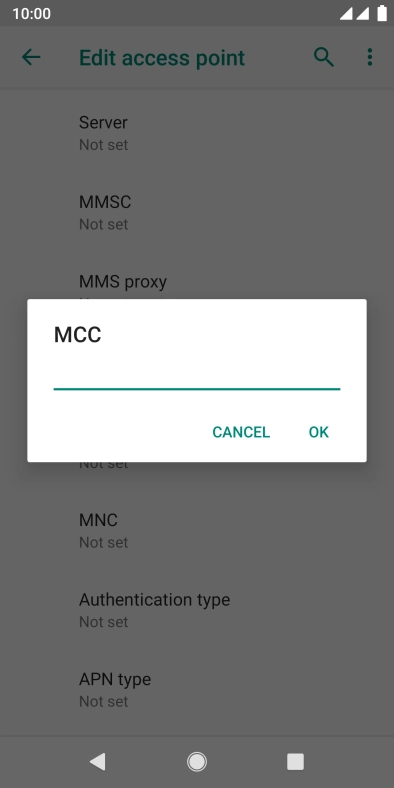

Key in 234 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7070823-f-c78d91d6-f3c6-4602-8e03-3dbae7524e91.png?width=196&height=392)
234
11. Enter network code
Press MNC.
![](http://wmstatic.global.ssl.fastly.net/ml/7070823-f-4acb948f-24e9-4e16-a0ed-f15bfd140e4c.png?width=196&height=392)

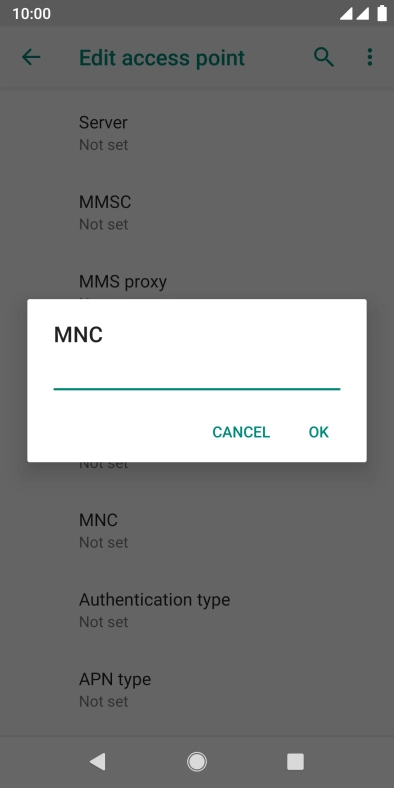

Key in 15 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7070823-f-92ce410a-21ab-4812-a026-a4e7d810c492.png?width=196&height=392)
15
12. Select authentication type
Press Authentication type.
![](http://wmstatic.global.ssl.fastly.net/ml/7070823-f-4acb948f-24e9-4e16-a0ed-f15bfd140e4c.png?width=196&height=392)

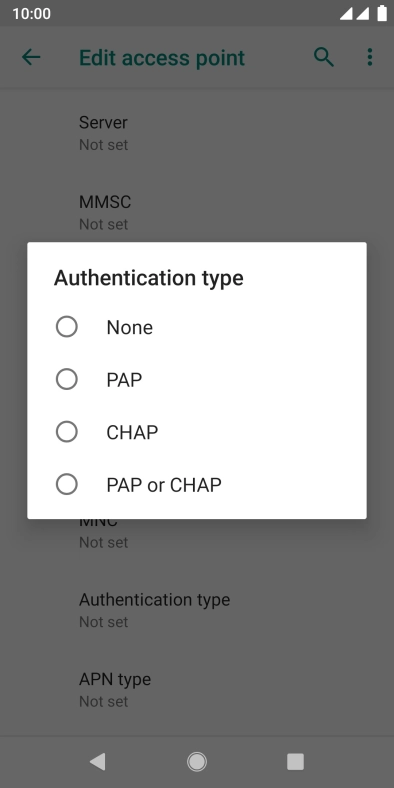

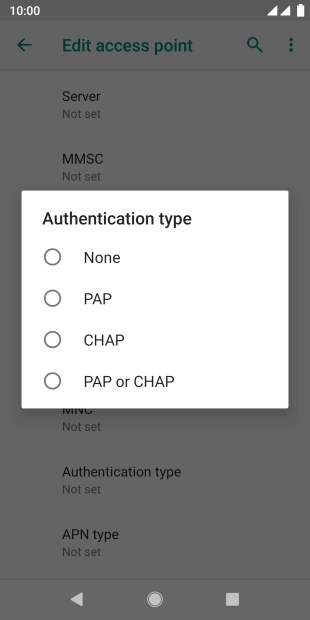

Press None.
![](http://wmstatic.global.ssl.fastly.net/ml/7070823-f-9dc44bdf-13ef-4dac-9d6f-5735fbd23323.png?width=196&height=392)
13. Enter APN type
Press APN type.
![](http://wmstatic.global.ssl.fastly.net/ml/7070823-f-4acb948f-24e9-4e16-a0ed-f15bfd140e4c.png?width=196&height=392)

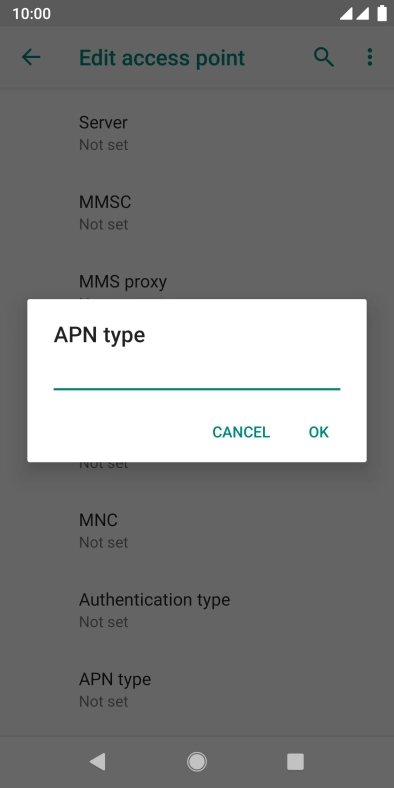

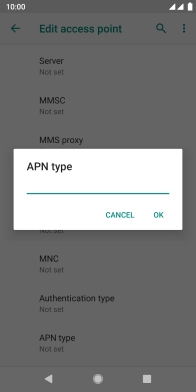

Key in mms and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7070823-f-c772b12d-86fb-4b0b-8c8e-8f60f1eb1843.png?width=196&height=392)
mms
14. Save data connection
Press the menu icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7070823-f-4acb948f-24e9-4e16-a0ed-f15bfd140e4c.png?width=196&height=392)

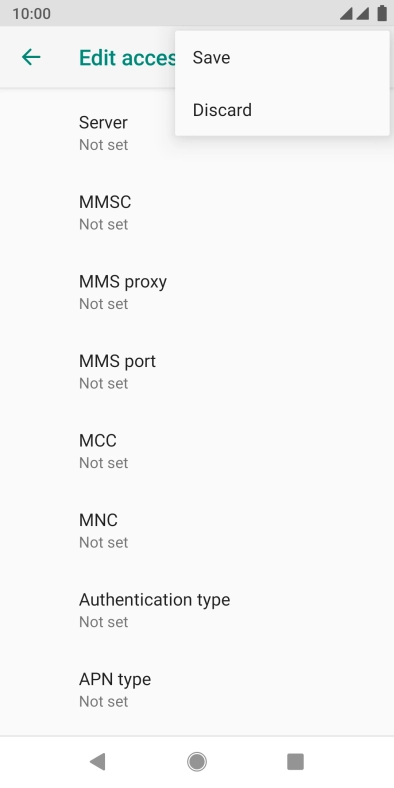

Press Save.
![](http://wmstatic.global.ssl.fastly.net/ml/7070823-f-2e3187dc-067d-44ad-b188-29e7f520fdaa.png?width=196&height=392)
15. Return to the home screen
Press the Home key to return to the home screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7070823-f-2aa95b84-12ab-4842-90de-135e78353816.png?width=196&height=392)
