Set up your Microsoft Lumia 950 Windows Phone 10.0 for picture messaging

Read help info

A picture message is a message which can contain pictures and other media files and can be sent to other mobile phones. You can send and receive picture messages as soon as you've inserted your SIM. If this isn't the case, you can set up your phone for picture messaging manually.

Step 1 of 18

Find "Add an MMS APN"

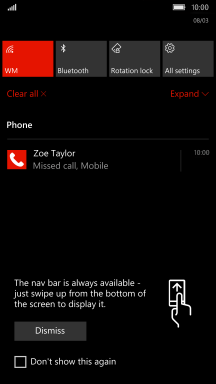

Slide your finger downwards starting from the top of the screen.

Step 2 of 18

Find "Add an MMS APN"

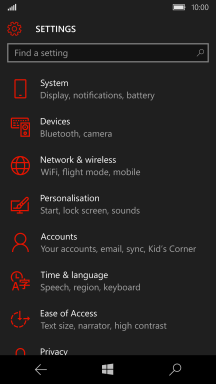

Press All settings.

Step 3 of 18

Find "Add an MMS APN"

Press Network & wireless.

Step 4 of 18

Find "Add an MMS APN"

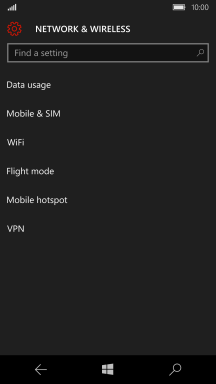

Press Mobile & SIM.

Step 5 of 18

Find "Add an MMS APN"

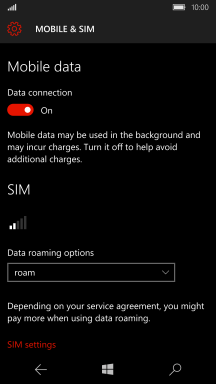

Press SIM settings.

Step 6 of 18

Find "Add an MMS APN"

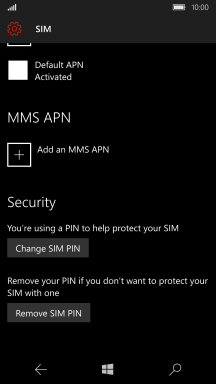

Press Add an MMS APN.

wap.vodafone.co.uk
Step 7 of 18

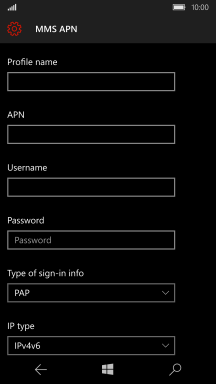

Enter APN

If you're on a pay monthly price plan, press the field below "APN" and key in wap.vodafone.co.uk.

pp.vodafone.co.uk
Step 8 of 18

Enter APN

If you're on a pay as you go or VOXI price plan, press the field below "APN" and key in pp.vodafone.co.uk.

wap
Step 9 of 18

Enter username

Press the field below "Username" and key in wap.

wap
Step 10 of 18

Enter password

Press the field below "Password" and key in wap.

Step 11 of 18

Select authentication type

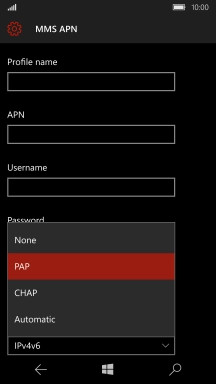

Press the drop down list below "Type of sign-in info".

Step 12 of 18

Select authentication type

Press None.

212.183.137.012
Step 13 of 18

Enter IP address

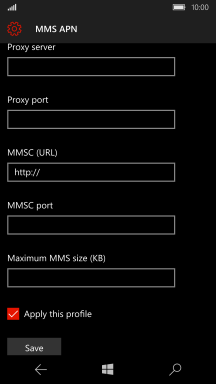

Press the field below "Proxy server" and key in 212.183.137.012.

8799
Step 14 of 18

Enter port number

Press the field below "Proxy port" and key in 8799.

http://mms.vodafone.co.uk/servlets/mms
Step 15 of 18

Enter MMSC

Press the field below "MMSC (URL)" and key in http://mms.vodafone.co.uk/servlets/mms.

Step 16 of 18

Save data connection

Press Save.

Step 17 of 18

Save data connection

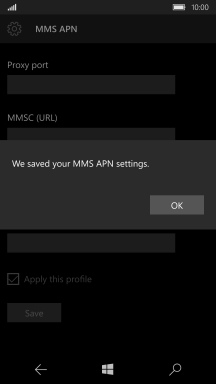

Press OK.

Step 18 of 18

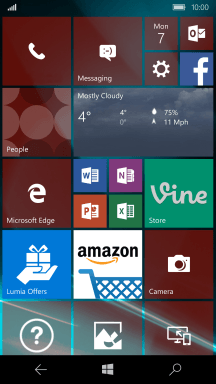

Return to the home screen

Press the Home key to return to the home screen.

1. Find "Add an MMS APN"

Slide your finger downwards starting from the top of the screen.
Press All settings.
Press Network & wireless.
Press Mobile & SIM.
Press SIM settings.
Press Add an MMS APN.

2. Enter APN

If you're on a pay monthly price plan, press the field below "APN" and key in wap.vodafone.co.uk.
wap.vodafone.co.uk
If you're on a pay as you go or VOXI price plan, press the field below "APN" and key in pp.vodafone.co.uk.
pp.vodafone.co.uk

3. Enter username

Press the field below "Username" and key in wap.
wap

4. Enter password

Press the field below "Password" and key in wap.
wap

5. Select authentication type

Press the drop down list below "Type of sign-in info".
Press None.

6. Enter IP address

Press the field below "Proxy server" and key in 212.183.137.012.
212.183.137.012

7. Enter port number

Press the field below "Proxy port" and key in 8799.
8799

8. Enter MMSC

Press the field below "MMSC (URL)" and key in http://mms.vodafone.co.uk/servlets/mms.
http://mms.vodafone.co.uk/servlets/mms

9. Save data connection

Press Save.
Press OK.

10. Return to the home screen

Press the Home key to return to the home screen.
