![Motorola Moto E7](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-98a9227d-982a-4b9b-aaac-0219bd3abe3b.png?width=150&height=320)

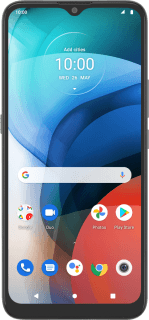

Motorola Moto E7
Android 10.0
1. Find "Access point names"

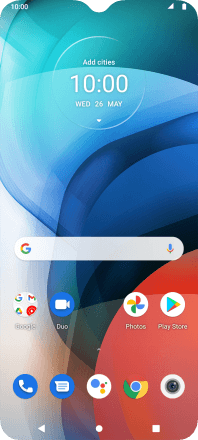

Slide two fingers downwards starting from the top of the screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-95aebe1d-1a9e-4bc5-8ed1-61082c43ad8c.png?width=198&height=444)

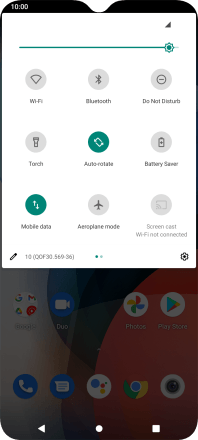

Press the settings icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-6c0c1bcc-4041-42df-8928-84094fb386be.png?width=198&height=444)

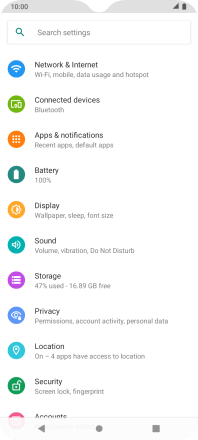

Press Network & Internet.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-3904058f-5296-49fd-97ba-389e1137cc10.png?width=198&height=444)

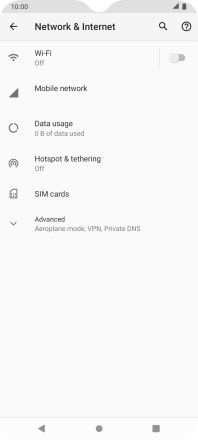

Press Mobile network.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-35e102ca-7783-44a9-b46b-cc5a834a8f40.png?width=198&height=444)

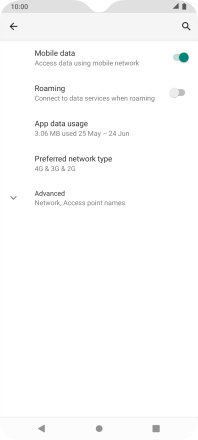

Press Advanced.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-2afb17df-3483-4ca2-ac5f-dc65eb1dc31b.png?width=198&height=444)

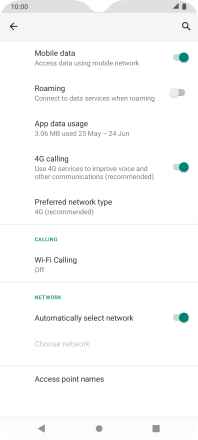

Press Access point names.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-d60f7ccb-f950-4d96-bcfe-bcdc817b7555.png?width=198&height=444)
2. Create new data connection

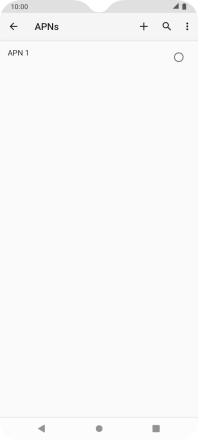

Press the new data connection icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-027baec0-e200-4b9e-b0ad-a9d07cd0638a.png?width=198&height=444)
3. Enter a name for the connection

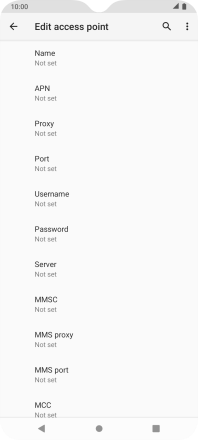

Press Name.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-d9d30091-6e78-445e-ad7b-0293f2f08c70.png?width=198&height=444)
Key in Vodafone MMS and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-5e6bd9bf-9f07-41c0-8cc0-b45e03911d3c.png?width=198&height=444)
Vodafone MMS
4. Enter APN
Press APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-d9d30091-6e78-445e-ad7b-0293f2f08c70.png?width=198&height=444)

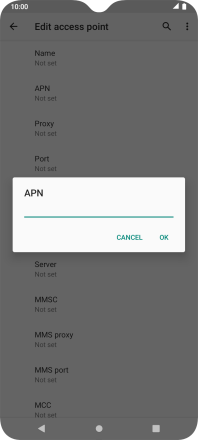

Key in wap.vodafone.co.uk and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-909fa5a3-0adc-4b1d-a0f7-35402b70e6b4.png?width=198&height=444)
wap.vodafone.co.uk
5. Enter username
Press Username.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-d9d30091-6e78-445e-ad7b-0293f2f08c70.png?width=198&height=444)

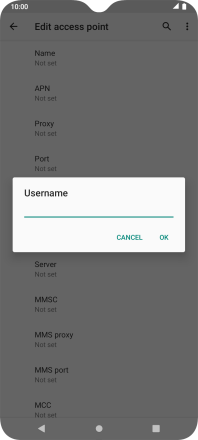

Key in wap and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-826873f1-ac28-439f-a30c-9f4676f4b2cc.png?width=198&height=444)
wap
6. Enter password
Press Password.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-d9d30091-6e78-445e-ad7b-0293f2f08c70.png?width=198&height=444)
Key in wap and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-c2a2763e-d1d3-49a7-882b-d0f18d56ad19.png?width=198&height=444)
wap
7. Enter MMSC
Press MMSC.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-d9d30091-6e78-445e-ad7b-0293f2f08c70.png?width=198&height=444)

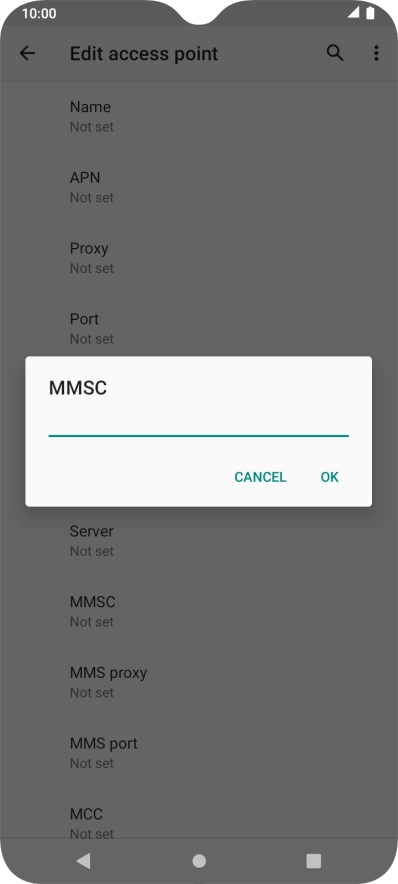

Key in http://mms.vodafone.co.uk/servlets/mms and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-5303d9e3-e27a-441d-a6fa-86a9b94f9358.png?width=198&height=444)
http://mms.vodafone.co.uk/servlets/mms
8. Enter IP address
Press MMS proxy.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-d9d30091-6e78-445e-ad7b-0293f2f08c70.png?width=198&height=444)

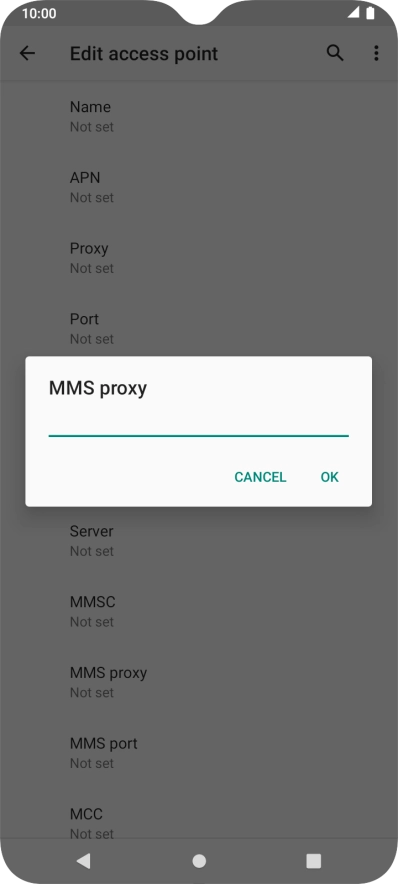

Key in 212.183.137.012 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-1da0228e-c3f0-4ee1-b6f7-1bb16679c759.png?width=198&height=444)
212.183.137.012
9. Enter port number
Press MMS port.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-d9d30091-6e78-445e-ad7b-0293f2f08c70.png?width=198&height=444)

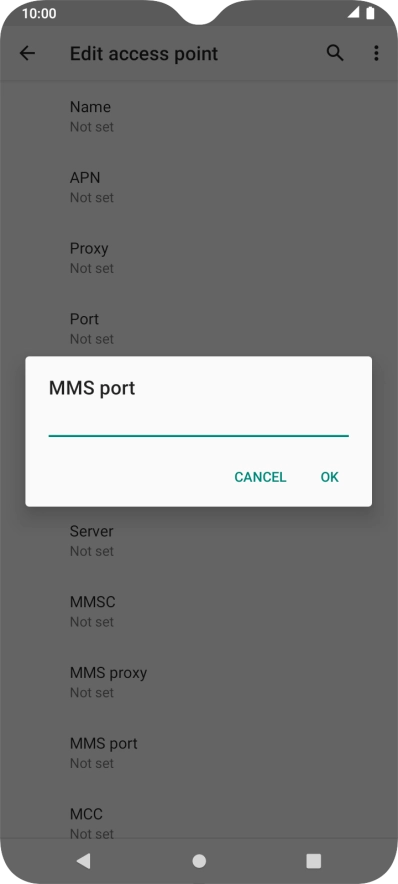

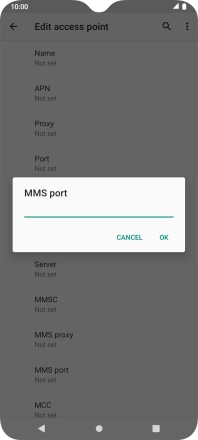

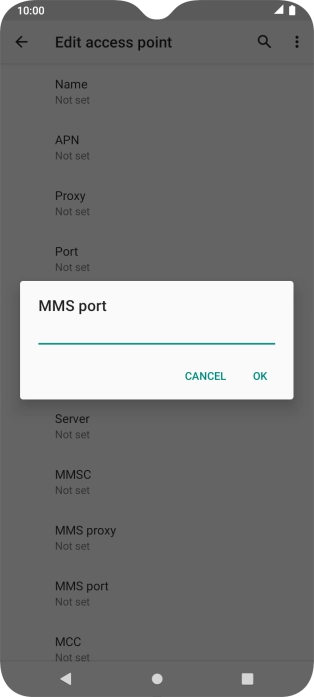

Key in 8799 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-a912b939-7010-40cc-9512-e57853c541d2.png?width=198&height=444)
8799
10. Enter country code

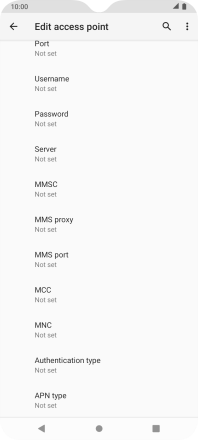

Press MCC.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-67b28a12-26f8-4623-9ccb-b153182c0b66.png?width=198&height=444)
Key in 234 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-6114a76d-65f3-454d-b2b7-943bf2152548.png?width=198&height=444)
234
11. Enter network code
Press MNC.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-67b28a12-26f8-4623-9ccb-b153182c0b66.png?width=198&height=444)

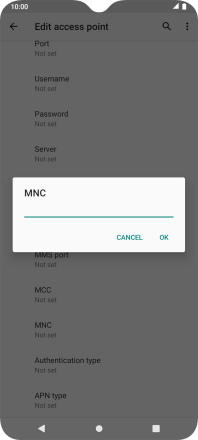

Key in 15 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-a27fac4c-5102-4bda-a718-42c9a8d8b659.png?width=198&height=444)
15
12. Select authentication type
Press Authentication type.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-67b28a12-26f8-4623-9ccb-b153182c0b66.png?width=198&height=444)

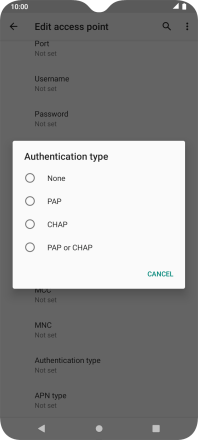

Press None.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-e557a9ff-7230-44d9-a920-14a9da884b0f.png?width=198&height=444)
13. Enter APN type
Press APN type.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-67b28a12-26f8-4623-9ccb-b153182c0b66.png?width=198&height=444)

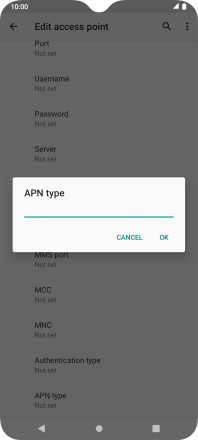

Key in mms and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-f07db4dd-6b61-43b0-a95e-0d43f53b6896.png?width=198&height=444)
mms
14. Save data connection
Press the menu icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-67b28a12-26f8-4623-9ccb-b153182c0b66.png?width=198&height=444)

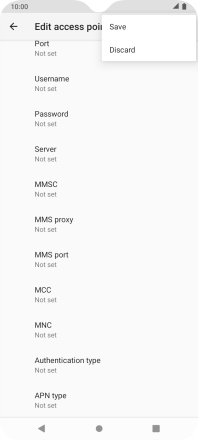

Press Save.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-9d5afafd-1a40-445e-b5c8-c80e4c61a704.png?width=198&height=444)
15. Return to the home screen

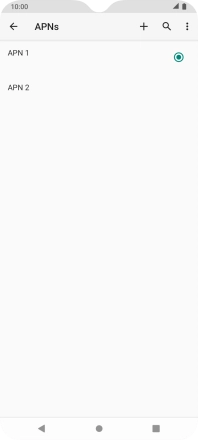

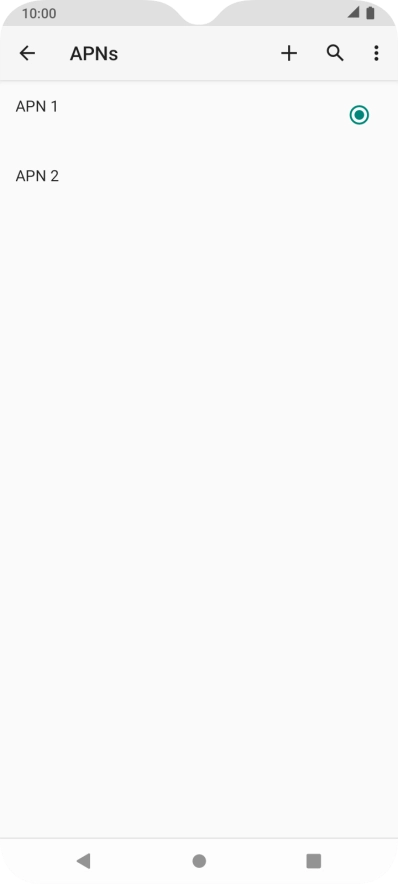

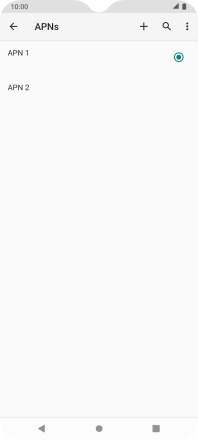

Press the Home key to return to the home screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-6bfca73a-3013-44b8-81b4-28e10ea76677.png?width=198&height=444)
