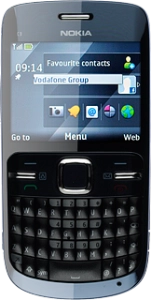

Nokia C3

Nokia C3

Set up your phone for picture messaging - Nokia C3

Read help info

Follow these instructions to set up your phone for picture messaging.

Step 1 of 56

Find "Personal settings"

Press the Navigation key.

Step 2 of 56

Find "Personal settings"

Scroll to Settings and press the Navigation key.

Step 3 of 56

Find "Personal settings"

Scroll to Configuration and press the Navigation key.

Step 4 of 56

Find "Personal settings"

Scroll to Personal settings and press the Navigation key.

Step 5 of 56

Create new data connection

If no data connections have been created:
Press the Navigation key.

Step 6 of 56

Create new data connection

Scroll to Multimedia msg. and press the Navigation key.

Step 7 of 56

Create new data connection

If data connections have been created already:
Press Options.

Step 8 of 56

Create new data connection

Scroll to Add new and press the Navigation key.

Step 9 of 56

Create new data connection

Scroll to Multimedia mgs. and press the Navigation key.

Step 10 of 56

Enter data connection name

Scroll to Account name and press the Navigation key.

Step 11 of 56

Enter data connection name

Key in Vodafone MMS and press the Navigation key.

Step 12 of 56

Enter picture messaging server

Scroll to Server address and press the Navigation key.

Step 13 of 56

Enter picture messaging server

Key in http://mms.vodafone.co.uk/servlets/mms and press the Navigation key.

Step 14 of 56

Turn off default data connection

Scroll to Use preferred access pt. and press the Navigation key.

Step 15 of 56

Turn off default data connection

Scroll to No and press the Navigation key.

Step 16 of 56

Enable proxy

Scroll to Access point settings and press the Navigation key.

Step 17 of 56

Enable proxy

Scroll to Proxy and press the Navigation key.

Step 18 of 56

Enable proxy

Scroll to Enable and press the Navigation key.

Step 19 of 56

Enter IP address

Scroll to Proxy address and press the Navigation key.

Step 20 of 56

Enter IP address

Key in 212.183.137.012 and press the Navigation key.

Step 21 of 56

Enter port

Scroll to Proxy port and press the Navigation key.

Step 22 of 56

Enter port

Key in 8799 and press the Navigation key.

Step 23 of 56

Edit bearer settings

Scroll to Bearer settings and press the Navigation key.

Step 24 of 56

Enter APN

Scroll to Packet data access pt. and press the Navigation key.

Step 25 of 56

Enter APN

If you're on a pay monthly price plan:
Key in wap.vodafone.co.uk
If you're on a pay as you go or VOXI price plan
Key in pp.vodafone.co.uk
Press the Navigation key.

Step 26 of 56

Select authentication type

Scroll to Authentication type and press the Navigation key.

Step 27 of 56

Select authentication type

Scroll to Normal and press the Navigation key.

Step 28 of 56

Enter username

Scroll to User name and press the Navigation key.

Step 29 of 56

Enter username

Key in wap and press the Navigation key.

Step 30 of 56

Enter password

Scroll to Password and press the Navigation key.

Step 31 of 56

Enter password

Key in wap and press the Navigation key.

Step 32 of 56

Enter password

Key in wap again and press the Navigation key.

Step 33 of 56

Activate data connection

Press Back three times to save the settings and return to the list of data connections.

Step 34 of 56

Activate data connection

Scroll to Vodafone MMS and press Options.

Step 35 of 56

Activate data connection

Scroll to Activate and press the Navigation key.

Step 36 of 56

Activate data connection

Press Disconnect to return to standby mode.

Step 37 of 56

Find "General settings"

Press the Navigation key.

Step 38 of 56

Find "General settings"

Scroll to Messaging and press the Navigation key.

Step 39 of 56

Find "General settings"

Scroll to More and press the Navigation key.

Step 40 of 56

Find "General settings"

Scroll to Message settings and press the Navigation key.

Step 41 of 56

Find "General settings"

Scroll to General settings and press the Navigation key.

Step 42 of 56

Turn request for delivery reports on or off

Scroll to Delivery reports and press the Navigation key.

If you turn on request for delivery reports, you'll be notified when your message has been delivered. This requires that sending of delivery reports has been turned on by the recipient.
This setting applies to both text messages and picture messages.
Step 43 of 56

Turn request for delivery reports on or off

To turn on delivery reports:
Highlight Embedded or Show note and press the Navigation key.

If you turn on request for delivery reports, you'll be notified when your message has been delivered. This requires that sending of delivery reports has been turned on by the recipient.
This setting applies to both text messages and picture messages.
Step 44 of 56

Turn request for delivery reports on or off

To turn off delivery reports:
Press Off and press the Navigation key.

If you turn on request for delivery reports, you'll be notified when your message has been delivered. This requires that sending of delivery reports has been turned on by the recipient.
This setting applies to both text messages and picture messages.
Step 45 of 56

Turn request for delivery reports on or off

Press Back.

If you turn on request for delivery reports, you'll be notified when your message has been delivered. This requires that sending of delivery reports has been turned on by the recipient.
This setting applies to both text messages and picture messages.
Step 46 of 56

Select settings for picture message download

Scroll to Multimedia messages and press the Navigation key.

If you select Automatic, you'll receive all picture messages.
If you select Autom. in home nw., you'll be notified before you receive picture messages when you're out of range of your home network.
If you select Manual, you'll always be notified before you receive picture messages.
If you select Off, only headers are retrieved. You then have to retrieve the picture message manually.
Step 47 of 56

Select settings for picture message download

Scroll to MMS reception and press the Navigation key.

If you select Automatic, you'll receive all picture messages.
If you select Autom. in home nw., you'll be notified before you receive picture messages when you're out of range of your home network.
If you select Manual, you'll always be notified before you receive picture messages.
If you select Off, only headers are retrieved. You then have to retrieve the picture message manually.
Step 48 of 56

Select settings for picture message download

Scroll to Automatic and press the Navigation key.

If you select Automatic, you'll receive all picture messages.
If you select Autom. in home nw., you'll be notified before you receive picture messages when you're out of range of your home network.
If you select Manual, you'll always be notified before you receive picture messages.
If you select Off, only headers are retrieved. You then have to retrieve the picture message manually.
Step 49 of 56

Select data connection

Scroll to Configuration settings and press the Navigation key.

Step 50 of 56

Select data connection

Scroll to Configuration and press the Navigation key.

Step 51 of 56

Select data connection

Scroll to Personal config. and press the Navigation key.

Step 52 of 56

Select data connection

Scroll to Account and press the Navigation key.

Step 53 of 56

Select data connection

Scroll to Vodafone MMS and press the Navigation key.

Step 54 of 56

Select data connection

Press Back.

Step 55 of 56

Save and exit

Press Back twice to save the settings.

Step 56 of 56

Save and exit

Press Disconnect to return to standby mode.

1. Find "Personal settings"

Press the Navigation key.
Scroll to Settings and press the Navigation key.
Scroll to Configuration and press the Navigation key.
Scroll to Personal settings and press the Navigation key.

2. Create new data connection

If no data connections have been created:
Press the Navigation key.
Scroll to Multimedia msg. and press the Navigation key.
If data connections have been created already:
Press Options.
Scroll to Add new and press the Navigation key.
Scroll to Multimedia mgs. and press the Navigation key.

3. Enter data connection name

Scroll to Account name and press the Navigation key.
Key in Vodafone MMS and press the Navigation key.

4. Enter picture messaging server

Scroll to Server address and press the Navigation key.
Key in http://mms.vodafone.co.uk/servlets/mms and press the Navigation key.

5. Turn off default data connection

Scroll to Use preferred access pt. and press the Navigation key.
Scroll to No and press the Navigation key.

6. Enable proxy

Scroll to Access point settings and press the Navigation key.
Scroll to Proxy and press the Navigation key.
Scroll to Enable and press the Navigation key.

7. Enter IP address

Scroll to Proxy address and press the Navigation key.
Key in 212.183.137.012 and press the Navigation key.

8. Enter port

Scroll to Proxy port and press the Navigation key.
Key in 8799 and press the Navigation key.

9. Edit bearer settings

Scroll to Bearer settings and press the Navigation key.

10. Enter APN

Scroll to Packet data access pt. and press the Navigation key.
If you're on a pay monthly price plan:
Key in wap.vodafone.co.uk
If you're on a pay as you go or VOXI price plan
Key in pp.vodafone.co.uk
Press the Navigation key.

11. Select authentication type

Scroll to Authentication type and press the Navigation key.
Scroll to Normal and press the Navigation key.

12. Enter username

Scroll to User name and press the Navigation key.
Key in wap and press the Navigation key.

13. Enter password

Scroll to Password and press the Navigation key.
Key in wap and press the Navigation key.
Key in wap again and press the Navigation key.

14. Activate data connection

Press Back three times to save the settings and return to the list of data connections.
Scroll to Vodafone MMS and press Options.
Scroll to Activate and press the Navigation key.
Press Disconnect to return to standby mode.

15. Find "General settings"

Press the Navigation key.
Scroll to Messaging and press the Navigation key.
Scroll to More and press the Navigation key.
Scroll to Message settings and press the Navigation key.
Scroll to General settings and press the Navigation key.

16. Turn request for delivery reports on or off

Scroll to Delivery reports and press the Navigation key.
If you turn on request for delivery reports, you'll be notified when your message has been delivered. This requires that sending of delivery reports has been turned on by the recipient.
This setting applies to both text messages and picture messages.
To turn on delivery reports:
Highlight Embedded or Show note and press the Navigation key.
If you turn on request for delivery reports, you'll be notified when your message has been delivered. This requires that sending of delivery reports has been turned on by the recipient.
This setting applies to both text messages and picture messages.
To turn off delivery reports:
Press Off and press the Navigation key.
If you turn on request for delivery reports, you'll be notified when your message has been delivered. This requires that sending of delivery reports has been turned on by the recipient.
This setting applies to both text messages and picture messages.
Press Back.
If you turn on request for delivery reports, you'll be notified when your message has been delivered. This requires that sending of delivery reports has been turned on by the recipient.
This setting applies to both text messages and picture messages.

17. Select settings for picture message download

Scroll to Multimedia messages and press the Navigation key.
If you select Automatic, you'll receive all picture messages.
If you select Autom. in home nw., you'll be notified before you receive picture messages when you're out of range of your home network.
If you select Manual, you'll always be notified before you receive picture messages.
If you select Off, only headers are retrieved. You then have to retrieve the picture message manually.
Scroll to MMS reception and press the Navigation key.
If you select Automatic, you'll receive all picture messages.
If you select Autom. in home nw., you'll be notified before you receive picture messages when you're out of range of your home network.
If you select Manual, you'll always be notified before you receive picture messages.
If you select Off, only headers are retrieved. You then have to retrieve the picture message manually.
Scroll to Automatic and press the Navigation key.
If you select Automatic, you'll receive all picture messages.
If you select Autom. in home nw., you'll be notified before you receive picture messages when you're out of range of your home network.
If you select Manual, you'll always be notified before you receive picture messages.
If you select Off, only headers are retrieved. You then have to retrieve the picture message manually.

18. Select data connection

Scroll to Configuration settings and press the Navigation key.
Scroll to Configuration and press the Navigation key.
Scroll to Personal config. and press the Navigation key.
Scroll to Account and press the Navigation key.
Scroll to Vodafone MMS and press the Navigation key.
Press Back.

19. Save and exit

Press Back twice to save the settings.
Press Disconnect to return to standby mode.
