![OPPO A72](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-a84b7dd2-fee1-4d44-8e6b-3d456654fb19.png?width=150&height=320)
OPPO A72
Android 10.0
1. Find "Access Point Name"
Slide two fingers downwards starting from the top of the screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-facf3558-7b28-4c5f-88a4-667a7893c56e.png?width=202&height=448)
Press the settings icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-4046c4ee-029f-4a97-84b5-3fb11213af3f.png?width=202&height=448)

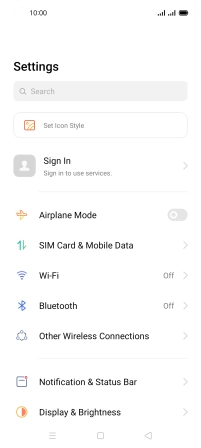

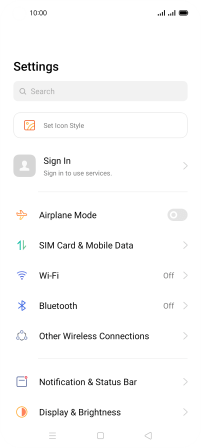

Press SIM Card & Mobile Data.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-3c5dd9d4-564f-4036-9598-5fd2ddf70e18.png?width=202&height=448)

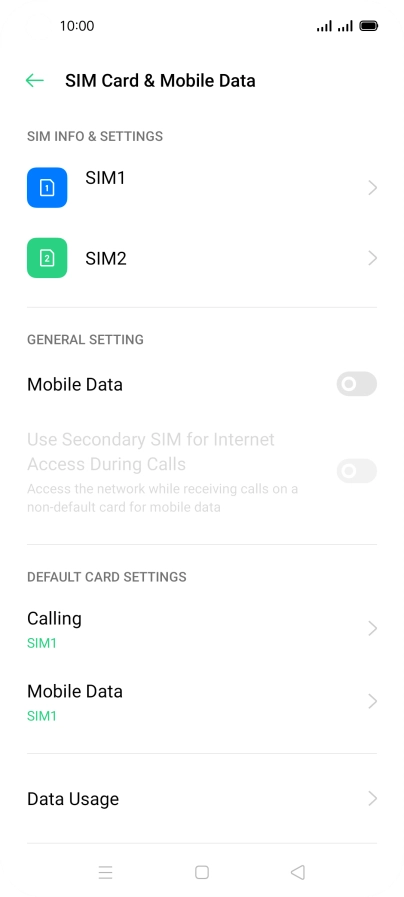

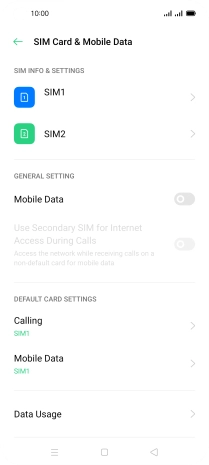

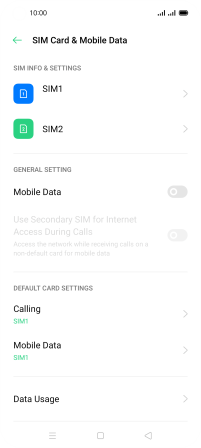

Press the required SIM.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-4ab1b90f-ccf2-4ae4-8e86-ea094e42c7cd.png?width=202&height=448)

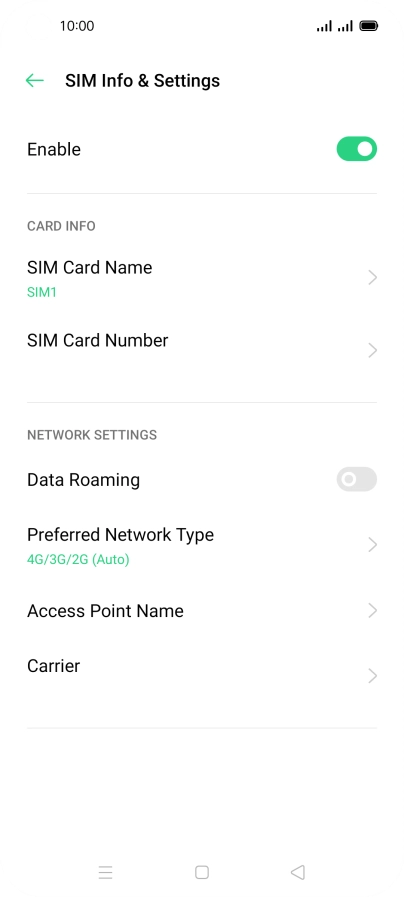

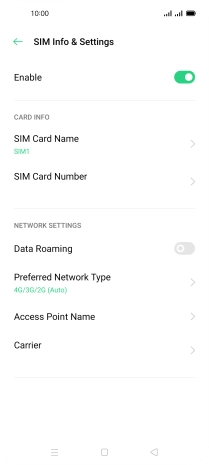

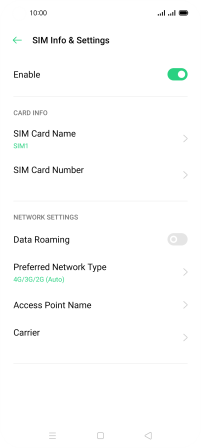

Press Access Point Name.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-011524d0-e07d-4643-a975-51c86e810981.png?width=202&height=448)
2. Create new data connection

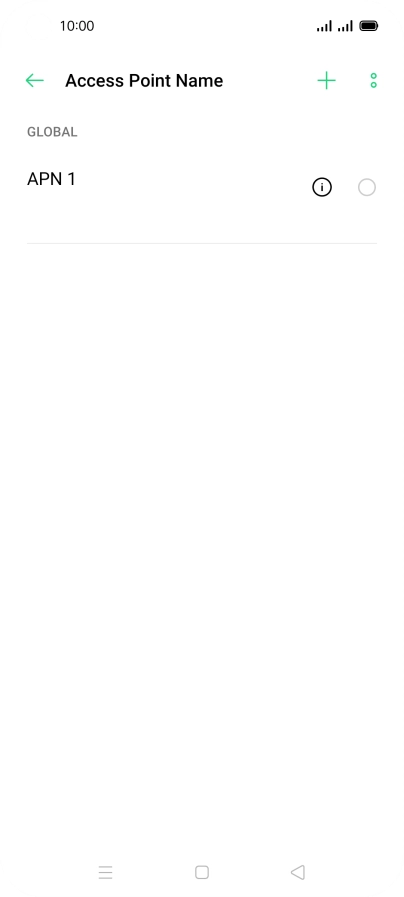

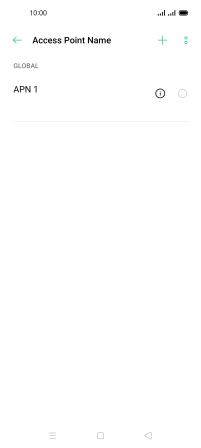

Press the add icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-2fd57056-c009-4b07-baed-f9ca54963cd7.png?width=202&height=448)

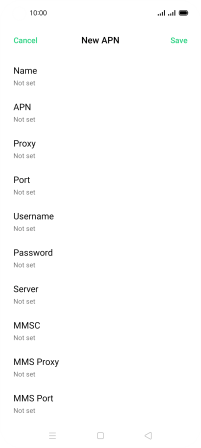

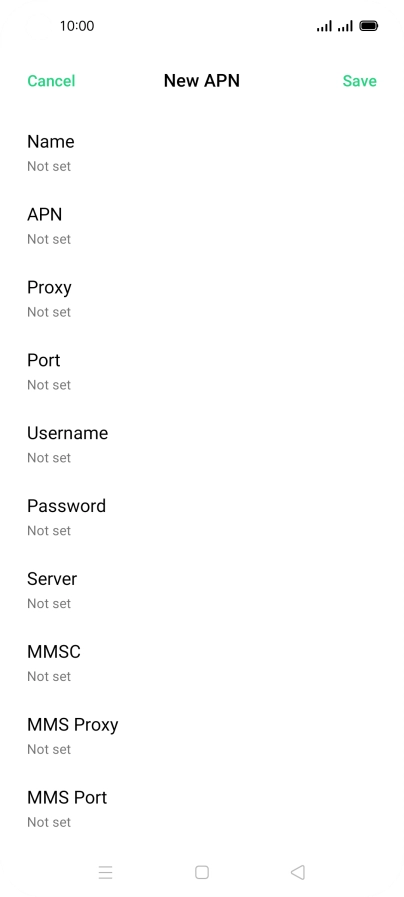

Press Name.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-b4a696d1-df0f-496c-9763-05d73dcc2367.png?width=202&height=448)

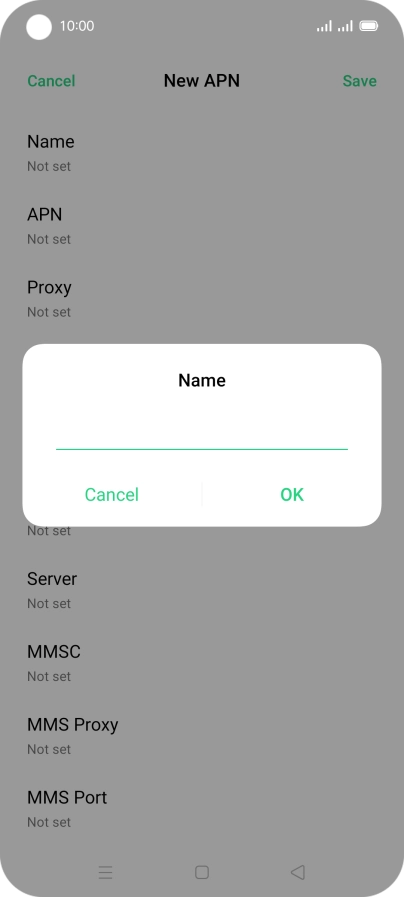

Key in Vodafone MMS and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-4a2949da-1608-43e9-b012-d8e6752ef001.png?width=202&height=448)
Vodafone MMS
3. Enter APN
Press APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-b4a696d1-df0f-496c-9763-05d73dcc2367.png?width=202&height=448)
Key in wap.vodafone.co.uk and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-331e2a62-f33f-45f4-bb3e-551cba13a9aa.png?width=202&height=448)
wap.vodafone.co.uk
4. Enter username
Press Username.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-b4a696d1-df0f-496c-9763-05d73dcc2367.png?width=202&height=448)
Key in wap and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-f38d1efb-0c3a-45fc-ae6a-72b7f39f7bfa.png?width=202&height=448)
wap
5. Enter password
Press Password.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-b4a696d1-df0f-496c-9763-05d73dcc2367.png?width=202&height=448)
Key in wap and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-2830cee1-b560-467d-838c-b826fd76036c.png?width=202&height=448)
wap
6. Enter MMSC

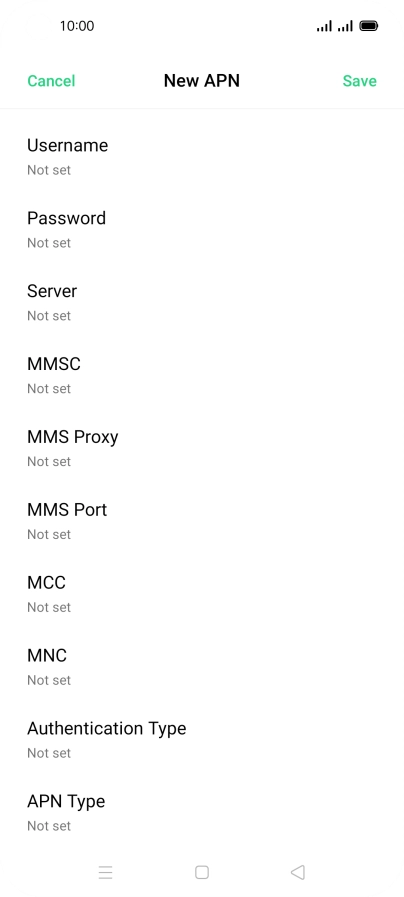

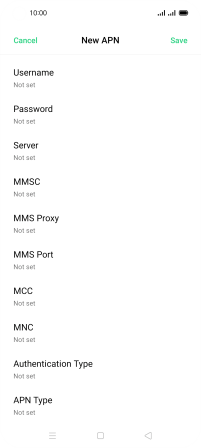

Press MMSC.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-c5477bbb-2c55-4716-bfe3-0a39bad7f6ed.png?width=202&height=448)

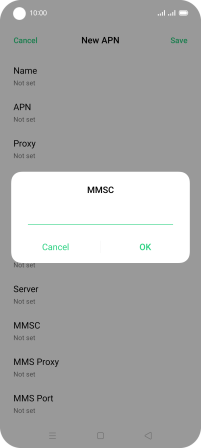

Key in http://mms.vodafone.co.uk/servlets/mms and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-3644b972-e782-4454-994b-5d32c8aa01b3.png?width=202&height=448)
http://mms.vodafone.co.uk/servlets/mms
7. Enter IP address
Press MMS Proxy.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-c5477bbb-2c55-4716-bfe3-0a39bad7f6ed.png?width=202&height=448)

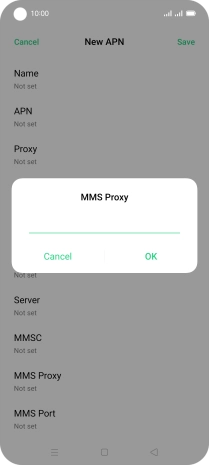

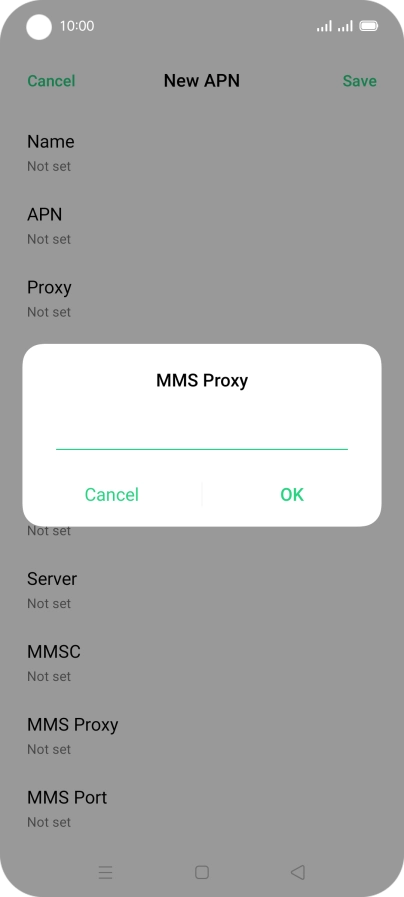

Key in 212.183.137.012 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-5dc9b0d8-48df-4f20-9926-df5b229e084e.png?width=202&height=448)
212.183.137.012
8. Enter port number
Press MMS Port.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-c5477bbb-2c55-4716-bfe3-0a39bad7f6ed.png?width=202&height=448)
Key in 8799 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-7c398d41-5a63-45fc-941e-a093f69458eb.png?width=202&height=448)
8799
9. Enter country code
Press MCC.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-c5477bbb-2c55-4716-bfe3-0a39bad7f6ed.png?width=202&height=448)

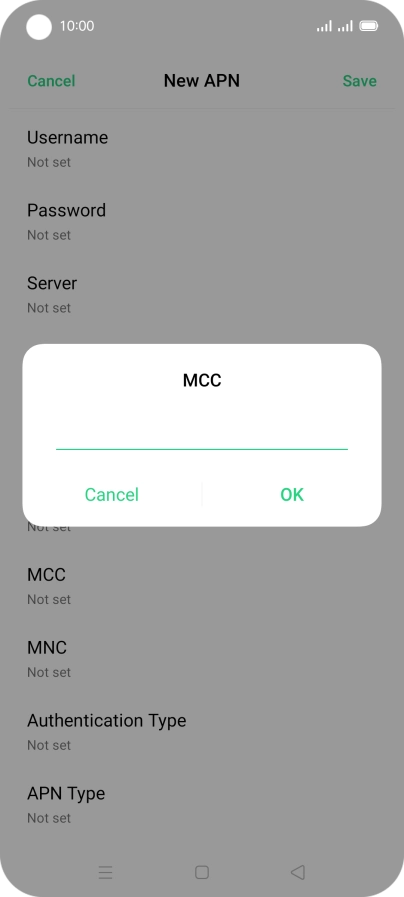

Key in 234 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-6f1af03f-1893-4ac5-9d85-12deeed1e0a7.png?width=202&height=448)
234
10. Enter network code
Press MNC.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-c5477bbb-2c55-4716-bfe3-0a39bad7f6ed.png?width=202&height=448)

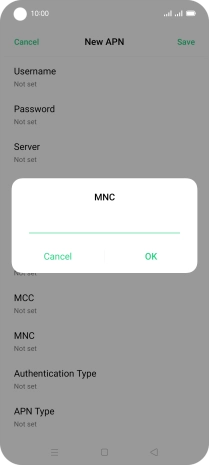

Key in 15 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-e45266c1-4c34-4713-be7d-20c2a74b4995.png?width=202&height=448)
15
11. Select authentication type

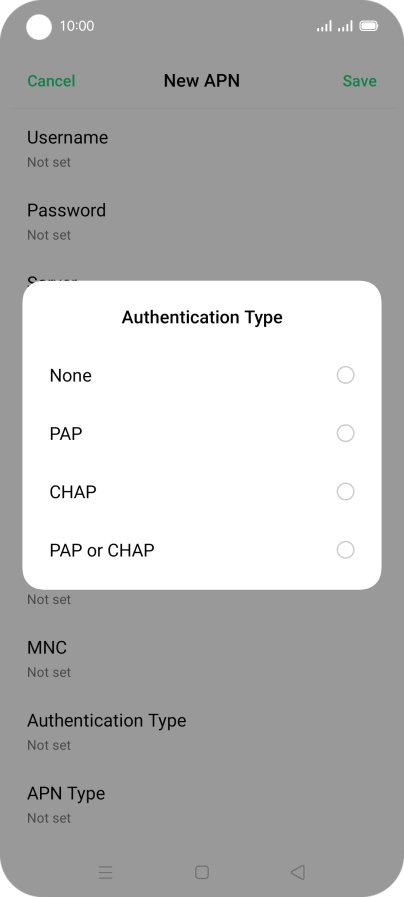

Press Authentication Type.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-c5477bbb-2c55-4716-bfe3-0a39bad7f6ed.png?width=202&height=448)

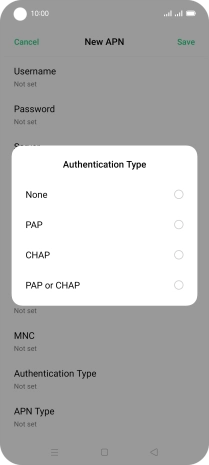

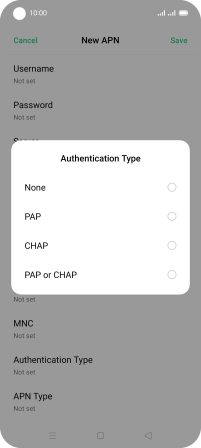

Press None.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-db92a516-ff64-47a5-aa0f-8feb1f18b189.png?width=202&height=448)
12. Enter APN type

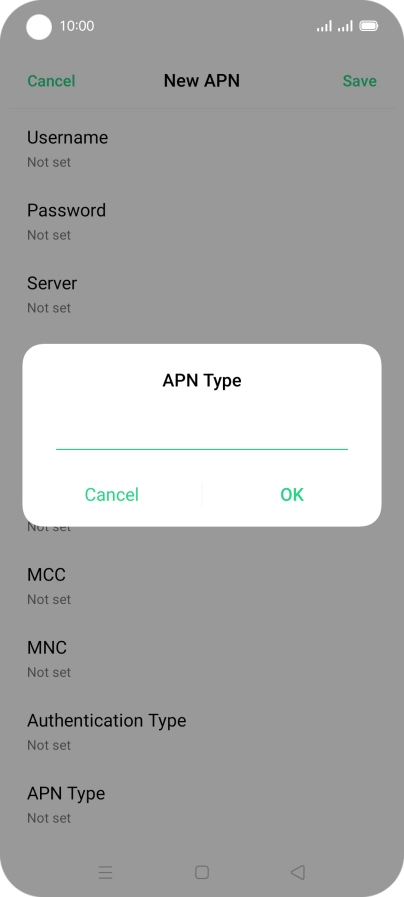

Press APN Type.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-c5477bbb-2c55-4716-bfe3-0a39bad7f6ed.png?width=202&height=448)

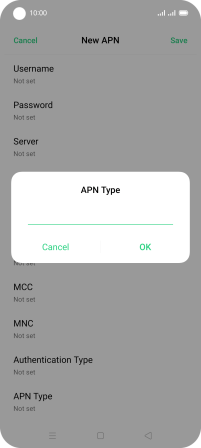

Key in mms and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-9fbb93ac-bc37-4fdb-a2f5-d26615210bca.png?width=202&height=448)
mms
13. Save data connection
Press Save.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-c5477bbb-2c55-4716-bfe3-0a39bad7f6ed.png?width=202&height=448)
14. Return to the home screen

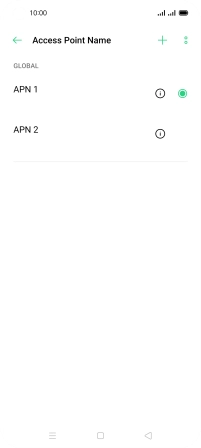

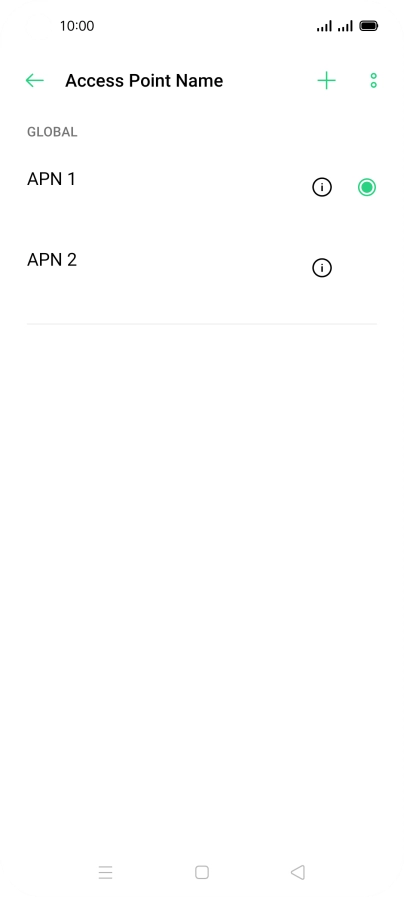

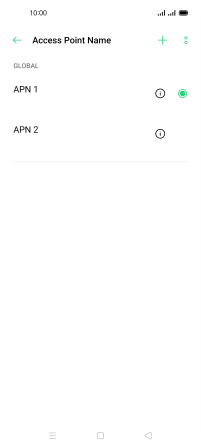

Press the Home key to return to the home screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-a1d46a1b-c9b0-447e-9888-c3f2b4deff68.png?width=202&height=448)
