![OPPO Find X2 Pro](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-06e41a65-49a8-498b-8695-8a80e8df4261.png?width=150&height=320)
OPPO Find X2 Pro
Android 10.0
1. Find "Access Point Name"
Slide two fingers downwards starting from the top of the screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-8aa806e4-26ed-46c8-b9ba-e1555d9e2d54.png?width=206&height=452)
Press the settings icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-069ad644-a25b-4a17-9f02-06f10f510626.png?width=206&height=452)
Press SIM Card & Mobile Data.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-43deda0f-d5bc-4330-b6b4-fb3240760c28.png?width=206&height=452)
Press the name of the SIM.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-902eef5a-708e-4f23-ae84-4283b72b1477.png?width=206&height=452)
Press Access Point Name.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-7a10bb12-48b7-4c70-8a90-de6aff057314.png?width=206&height=452)
2. Create new data connection

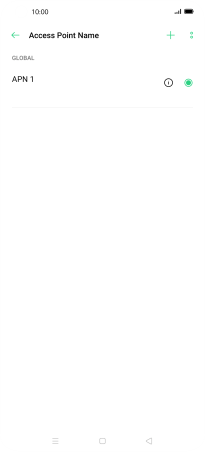

Press the add icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-ce25bb4a-3c2d-42fe-863b-9ab0f1dce8f6.png?width=206&height=452)

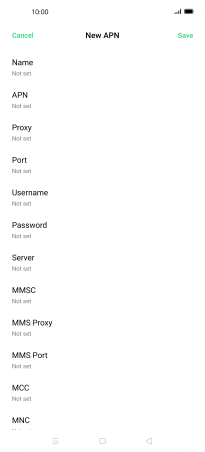

Press Name.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-d6ae1004-eb85-4114-aea7-ba0dee84008b.png?width=206&height=452)
Key in Vodafone MMS and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-9372e5da-acb8-4aa0-ab39-4ab6fdde80da.png?width=206&height=452)
Vodafone MMS
3. Enter APN
Press APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-d6ae1004-eb85-4114-aea7-ba0dee84008b.png?width=206&height=452)
Key in wap.vodafone.co.uk and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-aec23a42-3451-4fb1-a850-48db6cd98a8f.png?width=206&height=452)
wap.vodafone.co.uk
4. Enter username
Press Username.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-d6ae1004-eb85-4114-aea7-ba0dee84008b.png?width=206&height=452)
Key in wap and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-ab8ec622-8109-431d-ac73-c46d6c36efac.png?width=206&height=452)
wap
5. Enter password
Press Password.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-d6ae1004-eb85-4114-aea7-ba0dee84008b.png?width=206&height=452)
Key in wap and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-e2d50e78-a6fd-419a-a12f-4d664cfb5e0a.png?width=206&height=452)
wap
6. Enter MMSC
Press MMSC.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-d6ae1004-eb85-4114-aea7-ba0dee84008b.png?width=206&height=452)
Key in http://mms.vodafone.co.uk/servlets/mms and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-7415c564-157b-4b8d-8247-6914d5a9a081.png?width=206&height=452)
http://mms.vodafone.co.uk/servlets/mms
7. Enter IP address

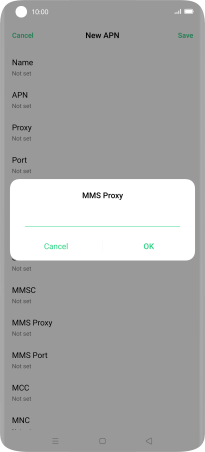

Press MMS Proxy.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-d6ae1004-eb85-4114-aea7-ba0dee84008b.png?width=206&height=452)
Key in 212.183.137.012 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-90380cf0-2564-47eb-8ba1-aec5c4f31422.png?width=206&height=452)
212.183.137.012
8. Enter port number
Press MMS Port.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-d6ae1004-eb85-4114-aea7-ba0dee84008b.png?width=206&height=452)
Key in 8799 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-4082ae01-c548-4cb6-acd1-ef507fa9779b.png?width=206&height=452)
8799
9. Enter country code

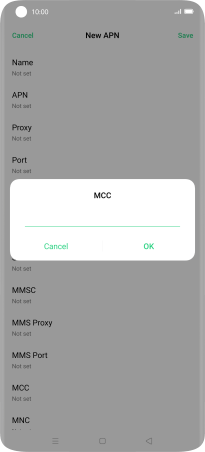

Press MCC.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-d6ae1004-eb85-4114-aea7-ba0dee84008b.png?width=206&height=452)
Key in 234 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-457df350-be78-477d-96b8-9652afce9e2d.png?width=206&height=452)
234
10. Enter network code

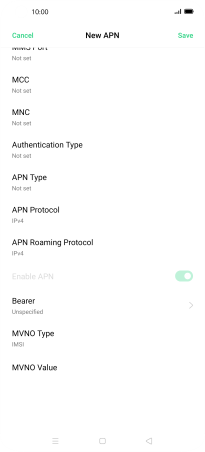

Press MNC.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-32cc7f85-a696-465d-ab5f-b9eb9b0c9262.png?width=206&height=452)
Key in 15 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-0b2f2e9e-9dbd-483d-9047-ce3f0926d171.png?width=206&height=452)
15
11. Select authentication type

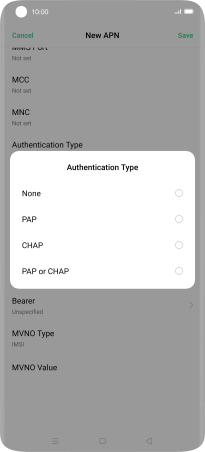

Press Authentication Type.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-32cc7f85-a696-465d-ab5f-b9eb9b0c9262.png?width=206&height=452)
Press None.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-d35984c1-8551-40a6-b437-826238f2a606.png?width=206&height=452)
12. Enter APN type

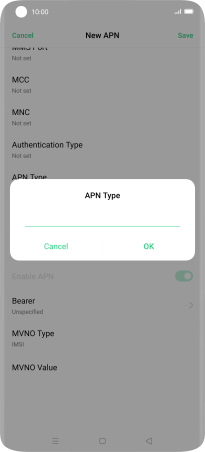

Press APN Type.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-32cc7f85-a696-465d-ab5f-b9eb9b0c9262.png?width=206&height=452)
Key in mms and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-275c0934-3a95-43f8-9d50-9fce03eb1ba2.png?width=206&height=452)
mms
13. Save data connection
Press Save.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-32cc7f85-a696-465d-ab5f-b9eb9b0c9262.png?width=206&height=452)
14. Return to the home screen

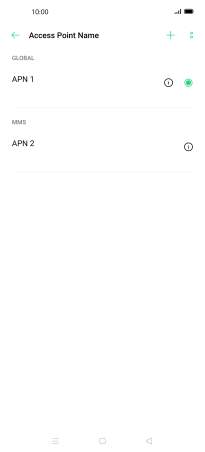

Press the Home key to return to the home screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-3ea62e84-7a11-4e3b-ae28-52c4bba5d4b6.png?width=206&height=452)
