![Samsung Galaxy A10](http://wmstatic.global.ssl.fastly.net/ml/7210224-f-6248f388-e078-4451-9f37-19a35bc19c81.png?width=150&height=320)
Samsung Galaxy A10
Android 9.0
1. Find "Access Point Names"
Slide two fingers downwards starting from the top of the screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7210224-f-a0f60644-259e-4ec9-b831-c6e9840ff83c.png?width=208&height=442)
Press the settings icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7210224-f-a2401774-ee35-425c-9a4a-14175ad8dfb2.png?width=208&height=442)
Press Connections.
![](http://wmstatic.global.ssl.fastly.net/ml/7210224-f-20b35e86-e61d-4269-b35e-a4a5e59e017a.png?width=208&height=442)
Press Mobile networks.
![](http://wmstatic.global.ssl.fastly.net/ml/7210224-f-341b3af3-8671-4b46-a5ba-0ce241649e97.png?width=208&height=442)
Press Access Point Names.
![](http://wmstatic.global.ssl.fastly.net/ml/7210224-f-b3376a20-8b7a-4d0f-8c61-c036999ab5fe.png?width=208&height=442)
2. Create new data connection

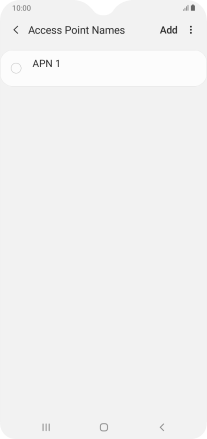

Press Add.
![](http://wmstatic.global.ssl.fastly.net/ml/7210224-f-490f76ad-1aef-443d-a80c-e712e4254249.png?width=208&height=442)

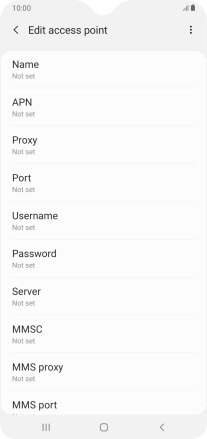

Press Name.
![](http://wmstatic.global.ssl.fastly.net/ml/7210224-f-6572c727-dd54-468a-a4e0-6335a6697e03.png?width=208&height=442)

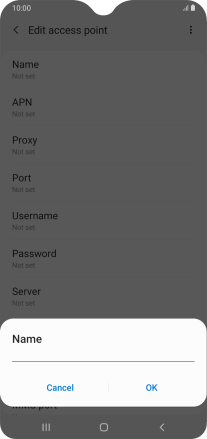

Key in Vodafone MMS and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7210224-f-ff244ffb-0b5a-4f7b-a8d2-6a1470494dfa.png?width=208&height=442)
Vodafone MMS
3. Enter APN
Press APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7210224-f-6572c727-dd54-468a-a4e0-6335a6697e03.png?width=208&height=442)

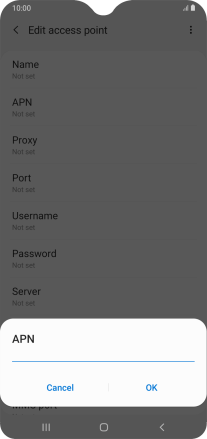

Key in wap.vodafone.co.uk and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7210224-f-5bfc82c5-0b74-4b84-9ed7-127178d30f76.png?width=208&height=442)
wap.vodafone.co.uk
4. Enter username
Press Username.
![](http://wmstatic.global.ssl.fastly.net/ml/7210224-f-6572c727-dd54-468a-a4e0-6335a6697e03.png?width=208&height=442)

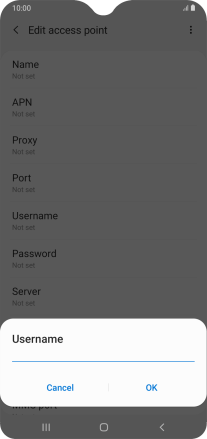

Key in wap and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7210224-f-13cfe060-f58c-4c9d-9f8d-11dfc97df8af.png?width=208&height=442)
wap
5. Enter password
Press Password.
![](http://wmstatic.global.ssl.fastly.net/ml/7210224-f-6572c727-dd54-468a-a4e0-6335a6697e03.png?width=208&height=442)

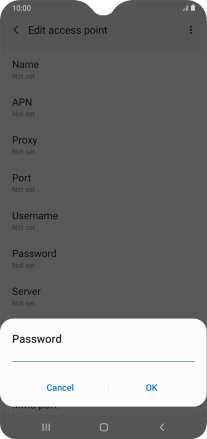

Key in wap and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7210224-f-8f49fa1b-0bed-4fcc-b127-06c4a90bd381.png?width=208&height=442)
wap
6. Enter MMSC
Press MMSC.
![](http://wmstatic.global.ssl.fastly.net/ml/7210224-f-6572c727-dd54-468a-a4e0-6335a6697e03.png?width=208&height=442)

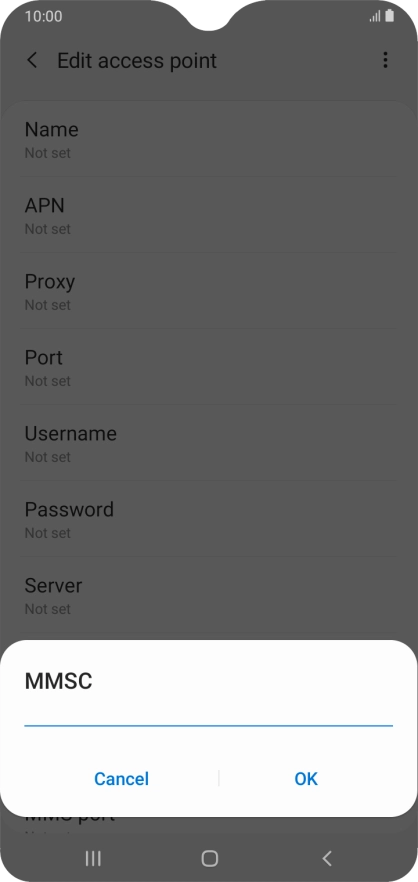

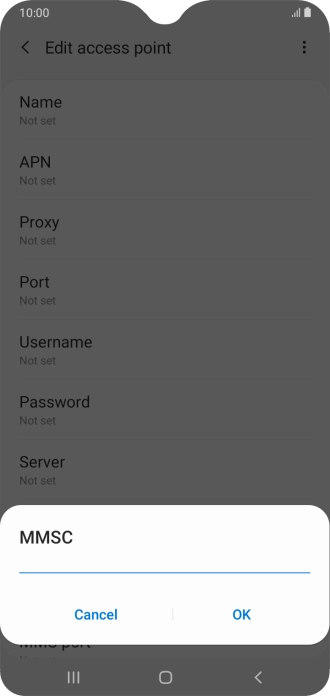

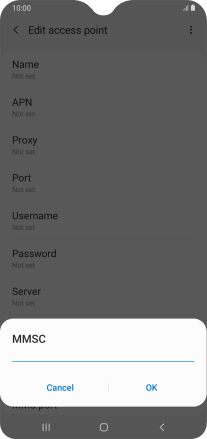

Key in http://mms.vodafone.co.uk/servlets/mms and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7210224-f-33cf40e1-3da3-473a-8b7b-8201933968e4.png?width=208&height=442)
http://mms.vodafone.co.uk/servlets/mms
7. Enter IP address
Press MMS proxy.
![](http://wmstatic.global.ssl.fastly.net/ml/7210224-f-6572c727-dd54-468a-a4e0-6335a6697e03.png?width=208&height=442)

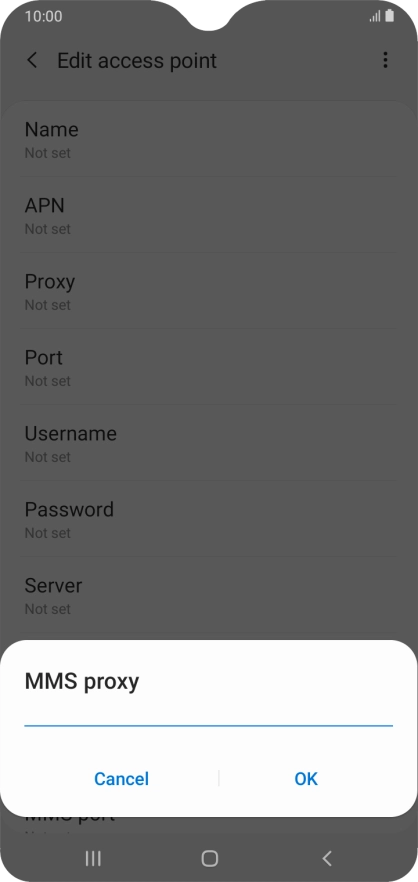

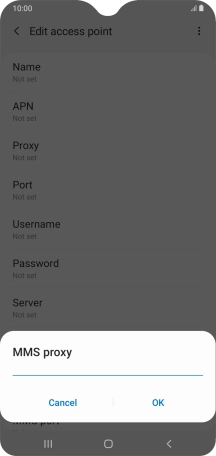

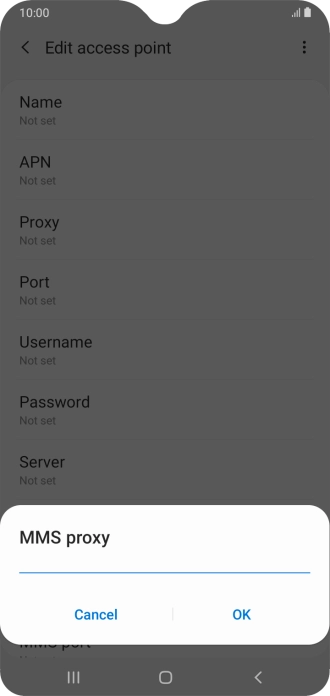

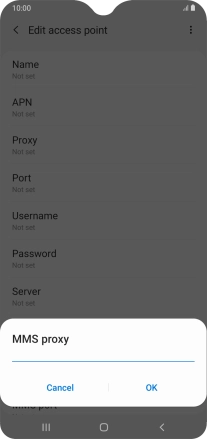

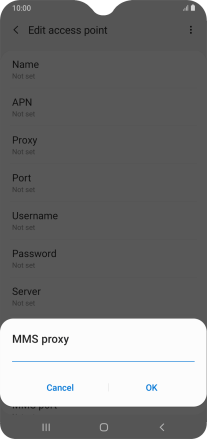

Key in 212.183.137.012 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7210224-f-e5238144-671b-462c-a6ab-9c6dba9abf50.png?width=208&height=442)
212.183.137.012
8. Enter port number

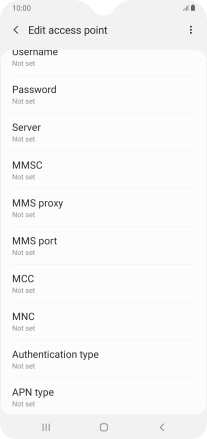

Press MMS port.
![](http://wmstatic.global.ssl.fastly.net/ml/7210224-f-88fca161-3dfd-4e71-98f2-3036a10b9f56.png?width=208&height=442)
Key in 8799 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7210224-f-a9d6d21b-b551-46a2-9c87-950f7b2ac326.png?width=208&height=442)
8799
9. Enter country code
Press MCC.
![](http://wmstatic.global.ssl.fastly.net/ml/7210224-f-88fca161-3dfd-4e71-98f2-3036a10b9f56.png?width=208&height=442)

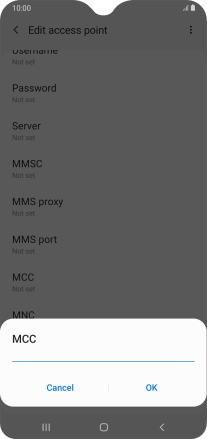

Key in 234 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7210224-f-fb3412ec-87be-4f97-a945-8391b1321904.png?width=208&height=442)
234
10. Enter network code
Press MNC.
![](http://wmstatic.global.ssl.fastly.net/ml/7210224-f-88fca161-3dfd-4e71-98f2-3036a10b9f56.png?width=208&height=442)

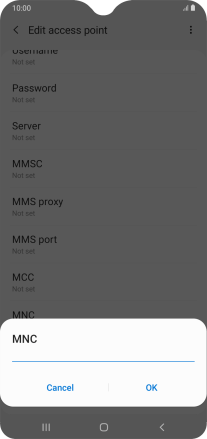

Key in 15 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7210224-f-a311f60e-b7a1-4e7f-89cf-9c4b8f57ad36.png?width=208&height=442)
15
11. Select authentication type
Press Authentication type.
![](http://wmstatic.global.ssl.fastly.net/ml/7210224-f-88fca161-3dfd-4e71-98f2-3036a10b9f56.png?width=208&height=442)

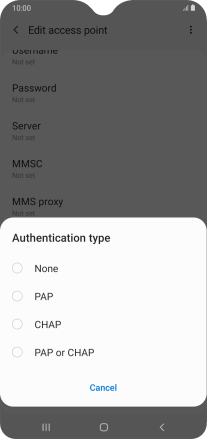

Press None.
![](http://wmstatic.global.ssl.fastly.net/ml/7210224-f-1aefd604-7fb2-434b-a102-58078a6ede08.png?width=208&height=442)
12. Enter APN type
Press APN type.
![](http://wmstatic.global.ssl.fastly.net/ml/7210224-f-88fca161-3dfd-4e71-98f2-3036a10b9f56.png?width=208&height=442)

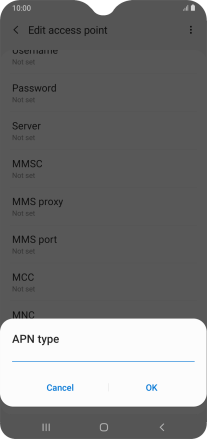

Key in mms and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7210224-f-9567b18c-fc1b-407f-9def-ed4712b2be76.png?width=208&height=442)
mms
13. Save data connection
Press the menu icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7210224-f-88fca161-3dfd-4e71-98f2-3036a10b9f56.png?width=208&height=442)

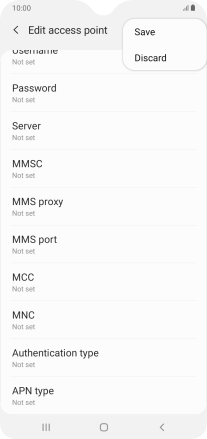

Press Save.
![](http://wmstatic.global.ssl.fastly.net/ml/7210224-f-c2a6ed29-f175-4b7a-bd22-5f071959549d.png?width=208&height=442)
14. Return to the home screen

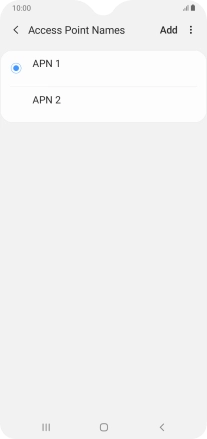

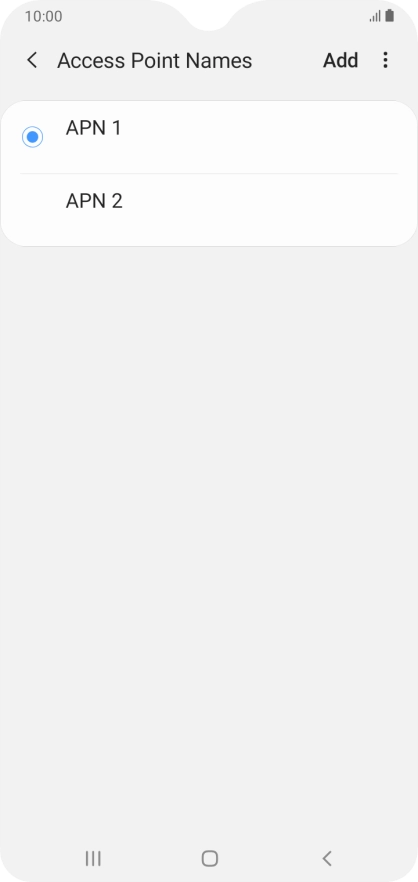

Press the Home key to return to the home screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7210224-f-f3439289-2043-4d8e-9d5b-6ccfb7c5fcc0.png?width=208&height=442)
