![Samsung Galaxy Note20 Ultra 5G](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-3c7da728-564a-4cb8-87b3-55acb9a0813b.png?width=150&height=320)
Samsung Galaxy Note20 Ultra 5G
Android 10.0
1. Find "Access Point Names"
Slide two fingers downwards starting from the top of the screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-89840720-d5c5-4b5e-b11a-db6001afe8c5.png?width=214&height=458)
Press the settings icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-cc025760-b7e2-465e-ac67-e59310dd57b0.png?width=214&height=458)
Press Connections.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-221413c6-15b0-4d3e-b434-1b2aa443022c.png?width=214&height=458)
Press Mobile networks.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-156e895e-c06c-4dd4-9549-54ae2529cc04.png?width=214&height=458)

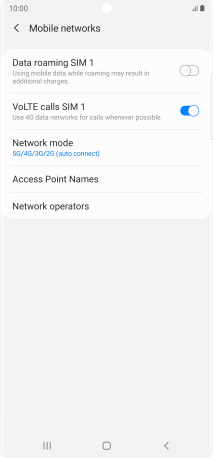

Press Access Point Names.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-d72ca38a-dec9-49b1-bac0-750e4d1d1966.png?width=214&height=458)
2. Create new data connection

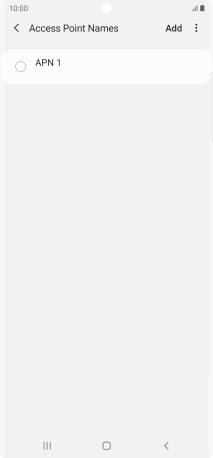

Press Add.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-901d4568-e41f-49b2-820b-9ae59bd275b8.png?width=214&height=458)
3. Enter a name for the connection

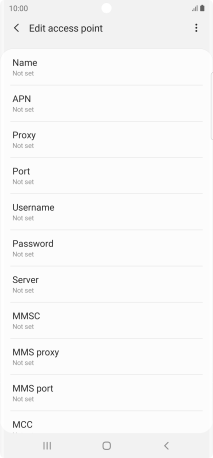

Press Name.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-56209bb0-7129-449c-8dd8-730d73375c9a.png?width=214&height=458)

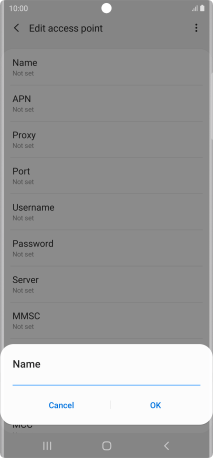

Key in Vodafone MMS and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-82898db7-1f73-4dcf-9865-20c167404e93.png?width=214&height=458)
Vodafone MMS
4. Enter APN
Press APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-56209bb0-7129-449c-8dd8-730d73375c9a.png?width=214&height=458)

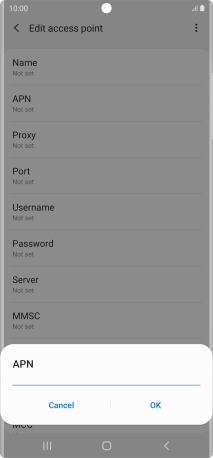

Key in wap.vodafone.co.uk and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-13425025-31ba-4b5e-9d1b-119d177d438a.png?width=214&height=458)
wap.vodafone.co.uk
5. Enter username
Press Username.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-56209bb0-7129-449c-8dd8-730d73375c9a.png?width=214&height=458)
Key in wap and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-a9538ae5-0428-489a-8407-13cec410fcf9.png?width=214&height=458)
wap
6. Enter password
Press Password.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-56209bb0-7129-449c-8dd8-730d73375c9a.png?width=214&height=458)
Key in wap and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-216825b4-d65a-4283-8644-d171fd003a16.png?width=214&height=458)
wap
7. Enter MMSC
Press MMSC.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-56209bb0-7129-449c-8dd8-730d73375c9a.png?width=214&height=458)

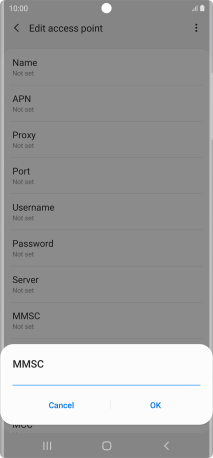

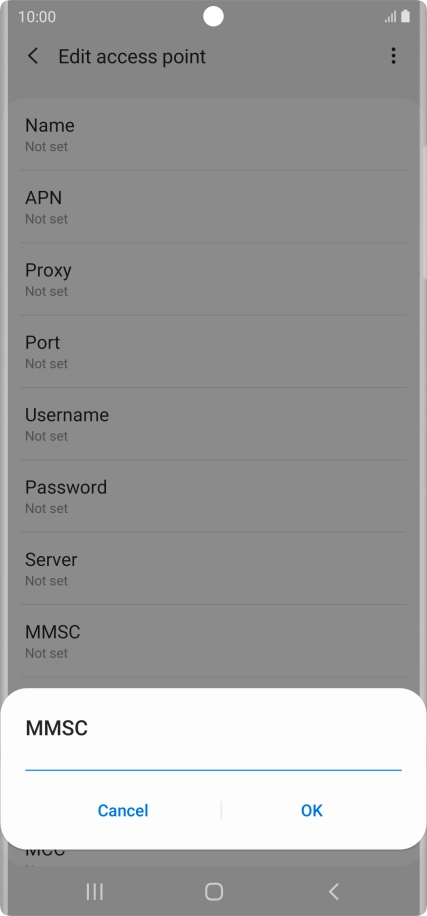

Key in http://mms.vodafone.co.uk/servlets/mms and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-0ade0efa-6407-4e6f-a71d-6dc28d769cee.png?width=214&height=458)
http://mms.vodafone.co.uk/servlets/mms
8. Enter IP address
Press MMS proxy.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-56209bb0-7129-449c-8dd8-730d73375c9a.png?width=214&height=458)

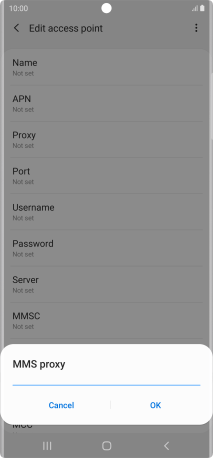

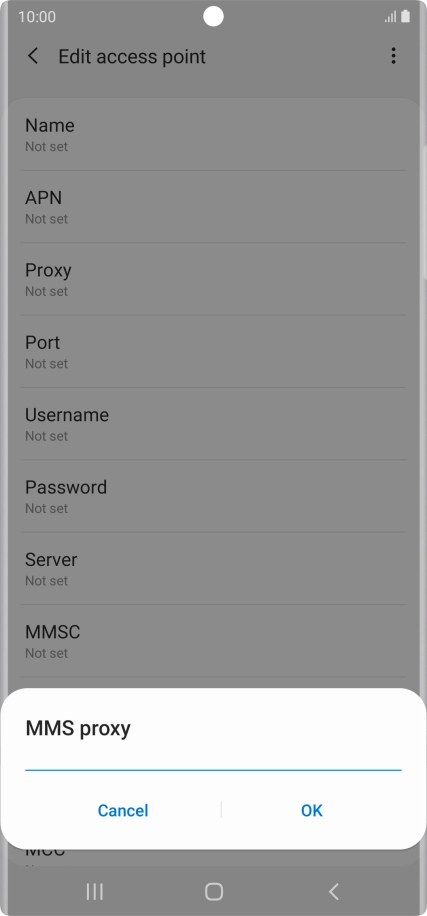

Key in 212.183.137.012 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-a9b6c8ea-def1-4916-81ca-7eff3661b822.png?width=214&height=458)
212.183.137.012
9. Enter port number
Press MMS port.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-56209bb0-7129-449c-8dd8-730d73375c9a.png?width=214&height=458)

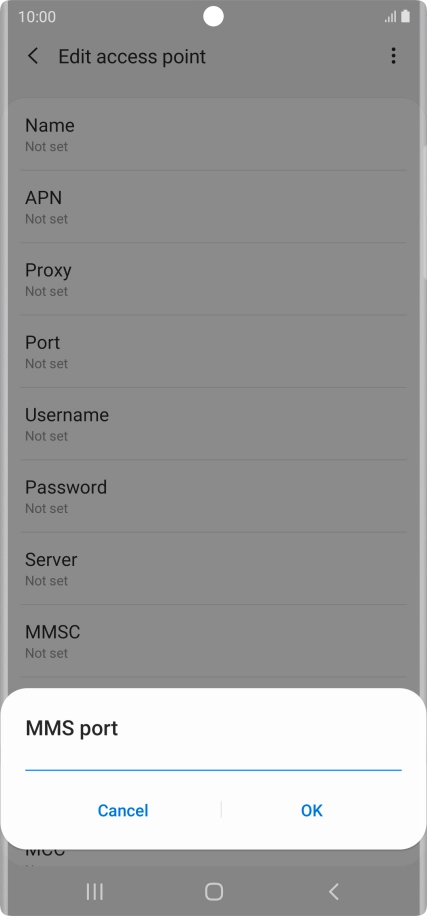

Key in 8799 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-f50423ef-69cd-4ad6-9d6c-c40271086b6c.png?width=214&height=458)
8799
10. Enter country code

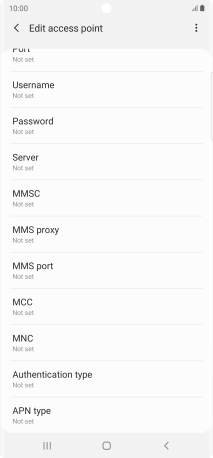

Press MCC.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-86c61c90-724b-4c02-af77-a4087b40a370.png?width=214&height=458)

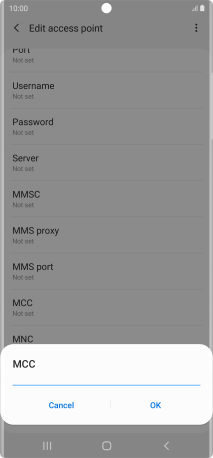

Key in 234 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-e8e919e3-21aa-4a9a-93b4-31cab95dd8c1.png?width=214&height=458)
234
11. Enter network code
Press MNC.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-86c61c90-724b-4c02-af77-a4087b40a370.png?width=214&height=458)

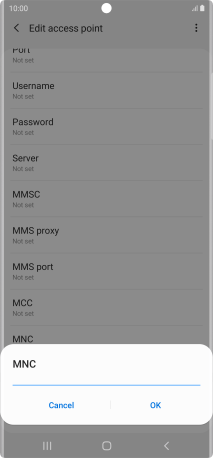

Key in 15 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-31c0ba76-78e8-44e6-be74-78ae21e65028.png?width=214&height=458)
15
12. Select authentication type
Press Authentication type.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-86c61c90-724b-4c02-af77-a4087b40a370.png?width=214&height=458)

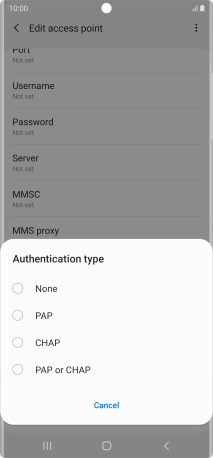

Press None.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-57e61416-8fed-43cd-af14-5177c250ce53.png?width=214&height=458)
13. Enter APN type
Press APN type.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-86c61c90-724b-4c02-af77-a4087b40a370.png?width=214&height=458)

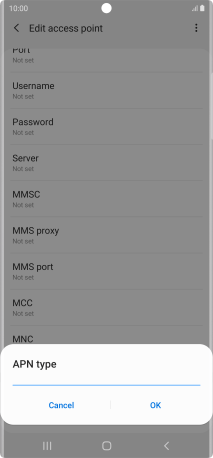

Key in mms and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-17b37fb7-8dec-46ca-b95c-655444ee0896.png?width=214&height=458)
mms
14. Save data connection
Press the menu icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-86c61c90-724b-4c02-af77-a4087b40a370.png?width=214&height=458)

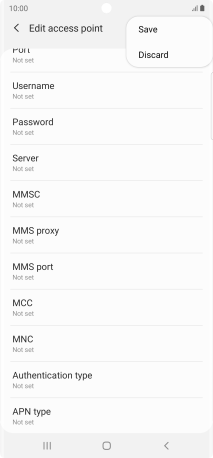

Press Save.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-bebc3a15-6d2a-4423-9160-1d2429666cb1.png?width=214&height=458)
15. Return to the home screen

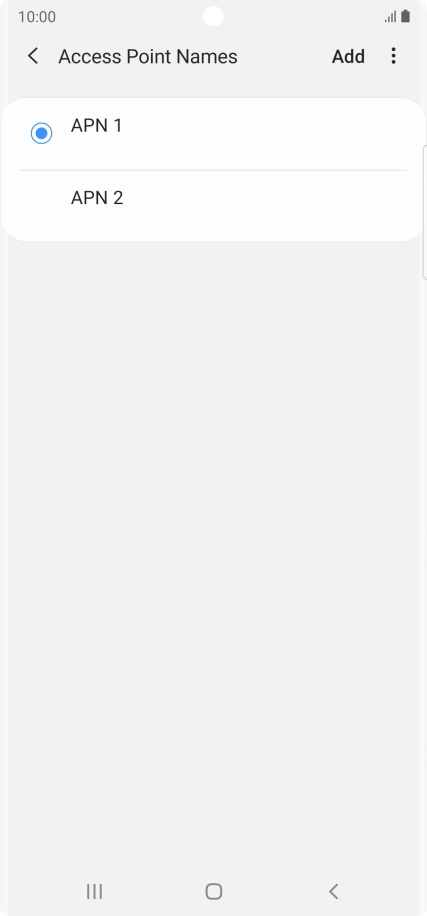

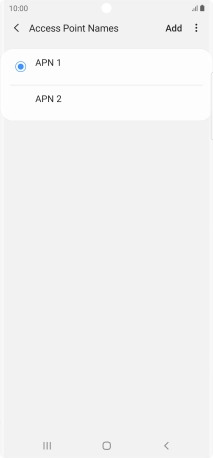

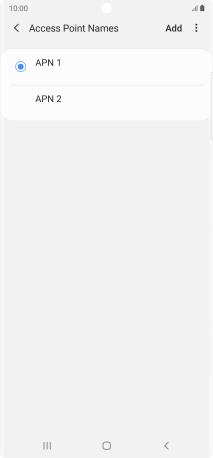

Press the Home key to return to the home screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-40f33298-f8a5-4e6f-b493-29877387214b.png?width=214&height=458)
