Samsung Galaxy Note8

Samsung Galaxy Note8

Android 7.1

Set up your Samsung Galaxy Note8 Android 7.1 for internet

Read help info

The internet connection is shared by many functions on your phone such as internet browsing, receiving email messages and installing apps. You can access the internet as soon as you've inserted your SIM. If this isn't the case, you can set up your phone for internet manually.

Step 1 of 27

Find "Access Point Names"

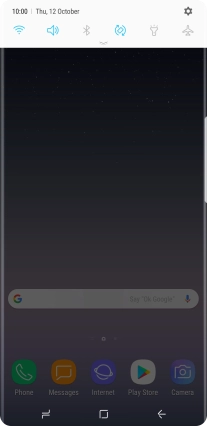

Slide your finger downwards starting from the top of the screen.

Step 2 of 27

Find "Access Point Names"

Press the settings icon.

Step 3 of 27

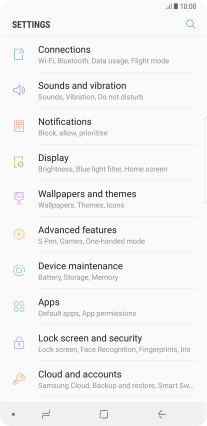

Find "Access Point Names"

Press Connections.

Step 4 of 27

Find "Access Point Names"

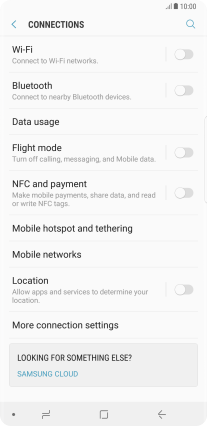

Press Mobile networks.

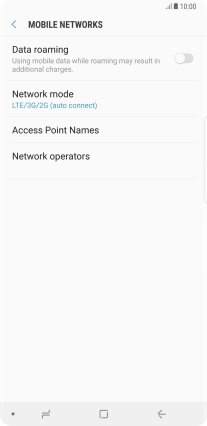

Step 5 of 27

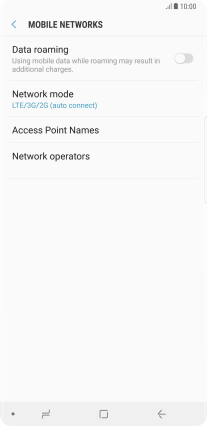

Find "Access Point Names"

Press Access Point Names.

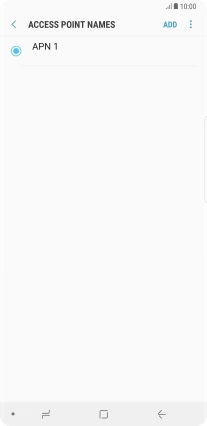

Step 6 of 27

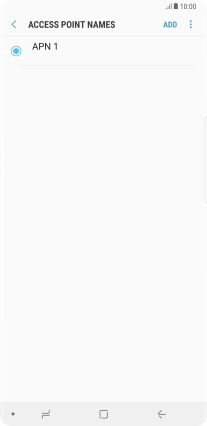

Create new data connection

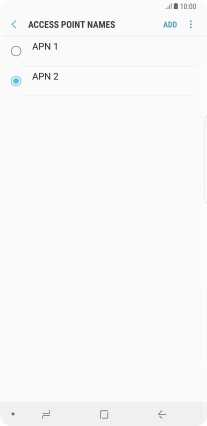

Press ADD.

Step 7 of 27

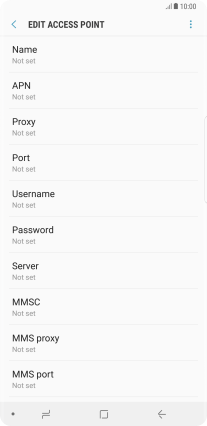

Create new data connection

Press Name.

Vodafone Internet
Step 8 of 27

Create new data connection

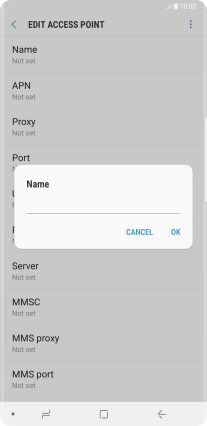

Key in Vodafone Internet and press OK.

Step 9 of 27

Enter APN

Press APN.

wap.vodafone.co.uk
Step 10 of 27

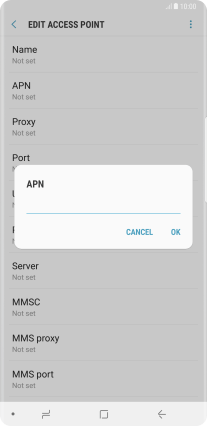

Enter APN

If you're on a pay monthly price plan, key in wap.vodafone.co.uk and press OK.

pp.vodafone.co.uk
Step 11 of 27

Enter APN

If you're on a pay as you go or VOXI price plan, you need to key in pp.vodafone.co.uk and press OK.

Step 12 of 27

Enter username

Press Username.

wap
Step 13 of 27

Enter username

Key in wap and press OK.

Step 14 of 27

Enter password

Press Password.

wap
Step 15 of 27

Enter password

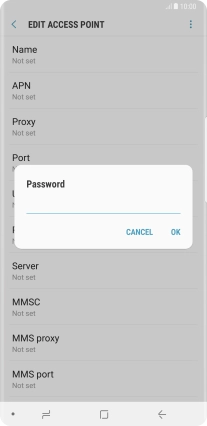

Key in wap and press OK.

Step 16 of 27

Enter country code

Press MCC.

234
Step 17 of 27

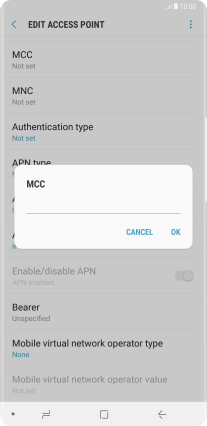

Enter country code

Key in 234 and press OK.

Step 18 of 27

Enter network code

Press MNC.

15
Step 19 of 27

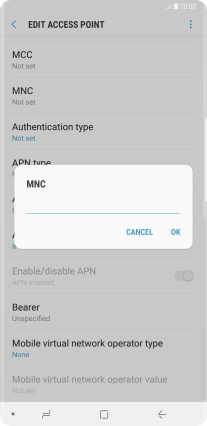

Enter network code

Key in 15 and press OK.

Step 20 of 27

Select authentication type

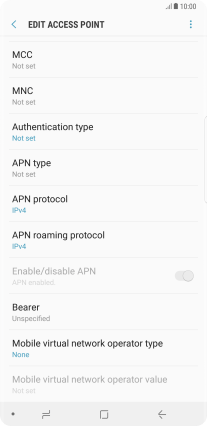

Press Authentication type.

Step 21 of 27

Select authentication type

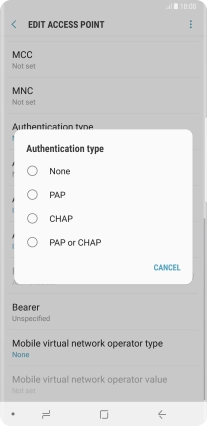

Press None.

Step 22 of 27

Select APN type

Press APN type.

default
Step 23 of 27

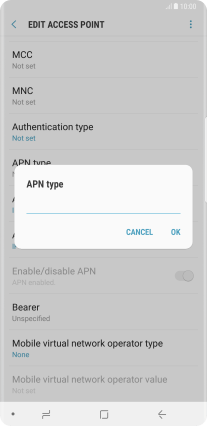

Select APN type

Key in default and press OK.

Step 24 of 27

Save data connection

Press the menu icon.

Step 25 of 27

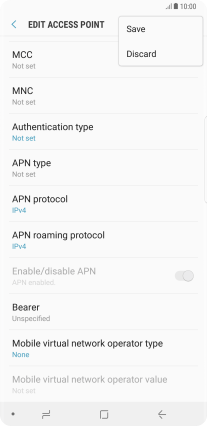

Save data connection

Press Save.

Step 26 of 27

Save data connection

Press the field next to the data connection to activate it.

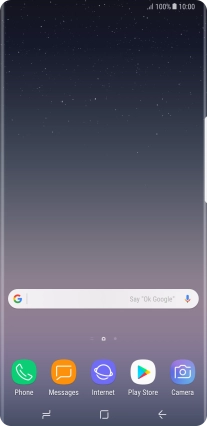

Step 27 of 27

Return to the home screen

Press the Home key to return to the home screen.

1. Find "Access Point Names"

Slide your finger downwards starting from the top of the screen.
Press the settings icon.
Press Connections.
Press Mobile networks.
Press Access Point Names.

2. Create new data connection

Press ADD.
Press Name.
Key in Vodafone Internet and press OK.
Vodafone Internet

3. Enter APN

Press APN.
If you're on a pay monthly price plan, key in wap.vodafone.co.uk and press OK.
wap.vodafone.co.uk
If you're on a pay as you go or VOXI price plan, you need to key in pp.vodafone.co.uk and press OK.
pp.vodafone.co.uk

4. Enter username

Press Username.
Key in wap and press OK.
wap

5. Enter password

Press Password.
Key in wap and press OK.
wap

6. Enter country code

Press MCC.
Key in 234 and press OK.
234

7. Enter network code

Press MNC.
Key in 15 and press OK.
15

8. Select authentication type

Press Authentication type.
Press None.

9. Select APN type

Press APN type.
Key in default and press OK.
default

10. Save data connection

Press the menu icon.
Press Save.
Press the field next to the data connection to activate it.

11. Return to the home screen

Press the Home key to return to the home screen.
