Samsung Galaxy S10 Lite
Android 10.0
1. Find "Access Point Names"
Slide two fingers downwards starting from the top of the screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-c21ee7c6-3bbf-4556-948a-08905d88f36b.png?width=206&height=456)
Press the settings icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-3c5e37ad-bb0e-40e8-8edf-8ddc5ee5b2d3.png?width=206&height=456)

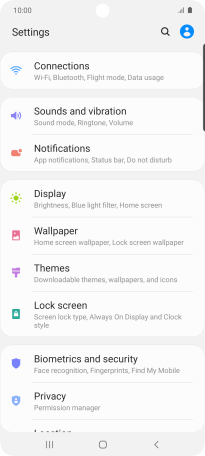

Press Connections.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-b8e65353-b1f4-4d83-a2e6-ed7beb8417df.png?width=206&height=456)

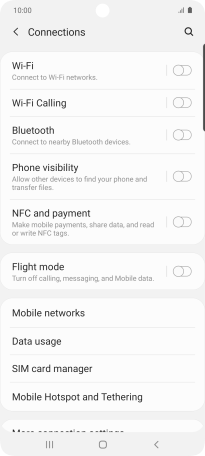

Press Mobile networks.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-e4a07474-5a4e-4059-b5f7-cebb9a685b01.png?width=206&height=456)

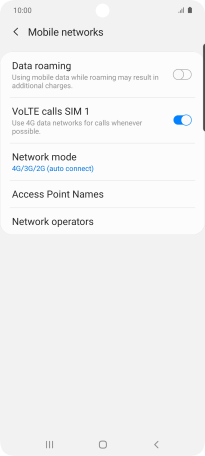

Press Access Point Names.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-383f27d6-3aa6-485f-bd29-26e86e573278.png?width=206&height=456)
2. Create new data connection

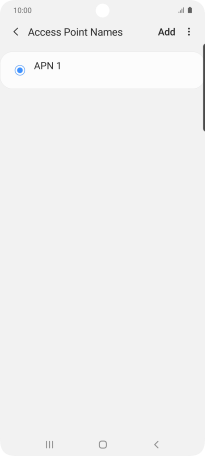

Press Add.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-632ab5e4-db62-4841-ae81-52c78f31543c.png?width=206&height=456)

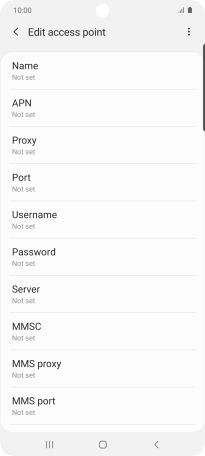

Press Name.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-c9e1d365-930d-4fb2-b00d-94ee1450f62e.png?width=206&height=456)

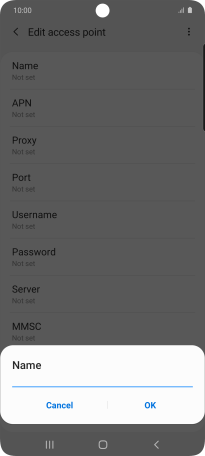

Key in Vodafone MMS and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-6badc786-25c3-4965-be9b-b14e66dc2781.png?width=206&height=456)
Vodafone MMS
3. Enter APN
Press APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-c9e1d365-930d-4fb2-b00d-94ee1450f62e.png?width=206&height=456)

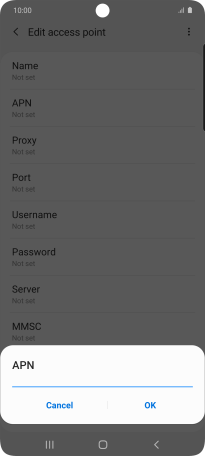

Key in wap.vodafone.co.uk and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-1a117d66-ef0b-4e55-aeb3-d2899b3671df.png?width=206&height=456)
wap.vodafone.co.uk
4. Enter username
Press Username.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-c9e1d365-930d-4fb2-b00d-94ee1450f62e.png?width=206&height=456)

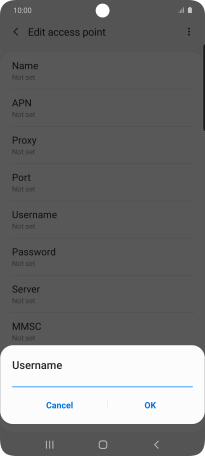

Key in wap and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-04b8ead3-b3cd-4d10-a480-126d7589e64c.png?width=206&height=456)
wap
5. Enter password
Press Password.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-c9e1d365-930d-4fb2-b00d-94ee1450f62e.png?width=206&height=456)

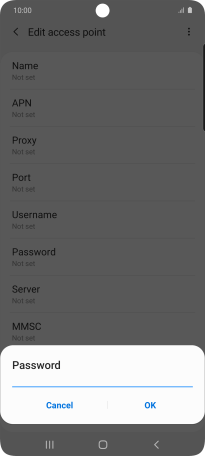

Key in wap and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-79643966-39e6-4aed-9d0e-1a3b51849ea4.png?width=206&height=456)
wap
6. Enter MMSC
Press MMSC.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-c9e1d365-930d-4fb2-b00d-94ee1450f62e.png?width=206&height=456)

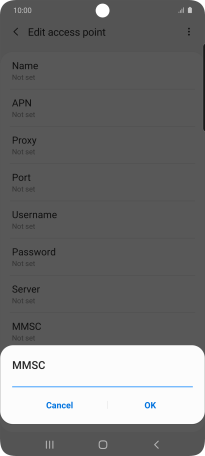

Key in http://mms.vodafone.co.uk/servlets/mms and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-a1efe49d-bad0-493f-87e5-15bd43a79bbc.png?width=206&height=456)
http://mms.vodafone.co.uk/servlets/mms
7. Enter IP address
Press MMS proxy.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-c9e1d365-930d-4fb2-b00d-94ee1450f62e.png?width=206&height=456)

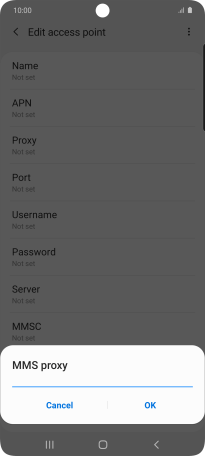

Key in 212.183.137.012 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-6d6db09f-d8d2-447b-a77e-9f2e88539ae5.png?width=206&height=456)
212.183.137.012
8. Enter port number
Press MMS port.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-c9e1d365-930d-4fb2-b00d-94ee1450f62e.png?width=206&height=456)

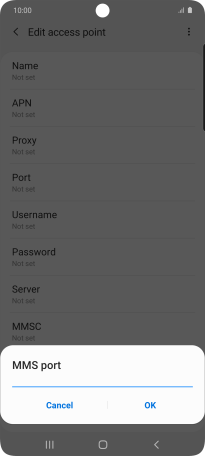

Key in 8799 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-6cd26f1a-0a4c-4bc5-8b89-1e65eb7129ef.png?width=206&height=456)
8799
9. Enter country code

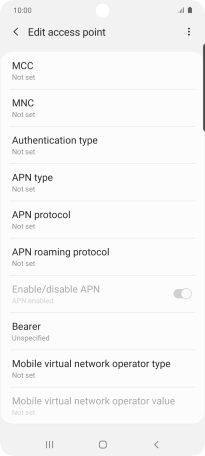

Press MCC.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-25a2fd66-bf99-4661-a0ea-e306aff4669a.png?width=206&height=456)

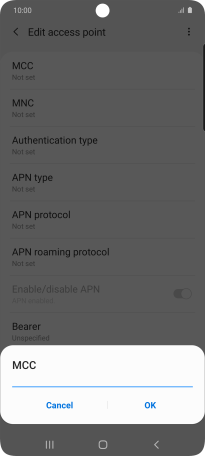

Key in 234 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-87d1de24-f209-440f-b9ef-1662fda9b56a.png?width=206&height=456)
234
10. Enter network code
Press MNC.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-25a2fd66-bf99-4661-a0ea-e306aff4669a.png?width=206&height=456)
Key in 15 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-5c49b728-6b63-4315-a731-0d42b56a8b32.png?width=206&height=456)
15
11. Select authentication type
Press Authentication type.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-25a2fd66-bf99-4661-a0ea-e306aff4669a.png?width=206&height=456)

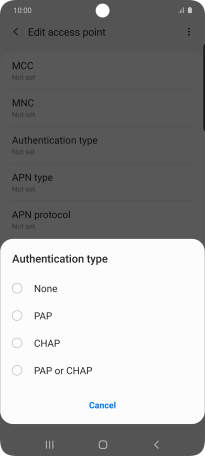

Press None.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-e172739f-671a-4cc9-aac0-9393c6726aac.png?width=206&height=456)
12. Enter APN type
Press APN type.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-25a2fd66-bf99-4661-a0ea-e306aff4669a.png?width=206&height=456)

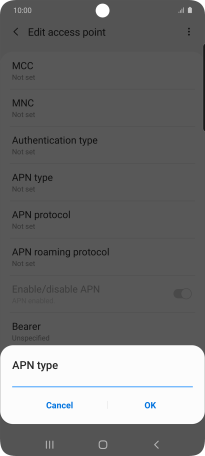

Key in mms and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-b1a332d5-f96c-4513-b2b1-da63fb088da2.png?width=206&height=456)
mms
13. Save data connection
Press the menu icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-25a2fd66-bf99-4661-a0ea-e306aff4669a.png?width=206&height=456)

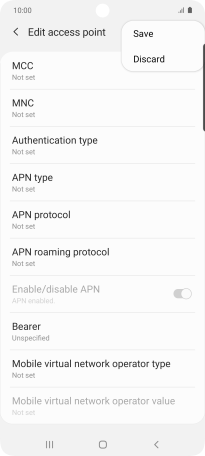

Press Save.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-cde82985-6b8e-4f21-ac39-50d556ff8fb7.png?width=206&height=456)
14. Return to the home screen

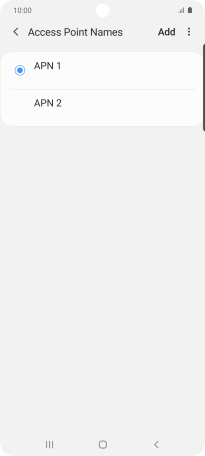

Press the Home key to return to the home screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-20aecb70-e6a7-4126-a5e9-b361f38c2cfe.png?width=206&height=456)
