![Samsung Galaxy S20 Ultra 5G](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-3cb91ddb-c165-4fa1-a78b-2e45ebf86257.png?width=150&height=320)
Samsung Galaxy S20 Ultra 5G
Android 10.0
1. Find "Access Point Names"
Slide two fingers downwards starting from the top of the screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-956db39b-641d-4aef-b316-5bfd39d6f957.png?width=206&height=456)
Press the settings icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-4f847bae-2241-40db-ae57-1271e6419e2e.png?width=206&height=456)
Press Connections.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-20643f80-8903-416f-99a4-48067e63ab63.png?width=206&height=456)
Press Mobile networks.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-de6853f4-c686-4d6e-a1f4-bfaff42041f7.png?width=206&height=456)

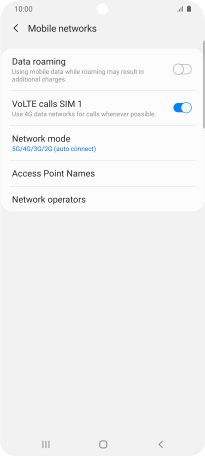

Press Access Point Names.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-f2e3ddf3-322b-4097-a2a2-6ff141275f8d.png?width=206&height=456)
2. Create new data connection

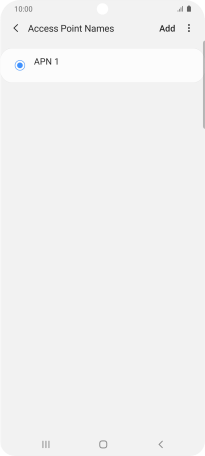

Press Add.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-d69fca6f-1981-4d49-bfe1-8d5cf46d3b52.png?width=206&height=456)

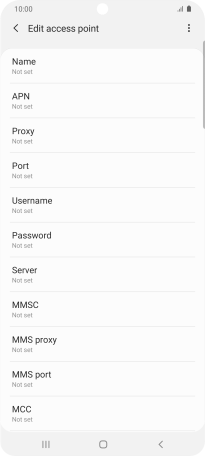

Press Name.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-85cb22e9-0562-4540-87ed-a9961531ec92.png?width=206&height=456)

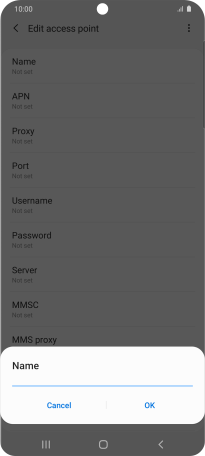

Key in Vodafone MMS and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-409a8091-f4d3-4a94-a3b6-225a1357cd97.png?width=206&height=456)
Vodafone MMS
3. Enter APN
Press APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-85cb22e9-0562-4540-87ed-a9961531ec92.png?width=206&height=456)

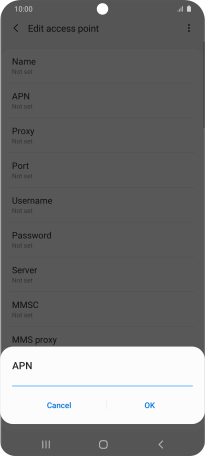

Key in wap.vodafone.co.uk and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-5c7a01f1-a4bf-4be1-a4e9-cc5ec0f81c31.png?width=206&height=456)
wap.vodafone.co.uk
4. Enter username
Press Username.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-85cb22e9-0562-4540-87ed-a9961531ec92.png?width=206&height=456)
Key in wap and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-5930ae53-2143-4f21-8d14-9aff00a2f330.png?width=206&height=456)
wap
5. Enter password
Press Password.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-85cb22e9-0562-4540-87ed-a9961531ec92.png?width=206&height=456)
Key in wap and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-f7de0cbf-d38d-423c-a540-fe0a801bab80.png?width=206&height=456)
wap
6. Enter MMSC
Press MMSC.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-85cb22e9-0562-4540-87ed-a9961531ec92.png?width=206&height=456)

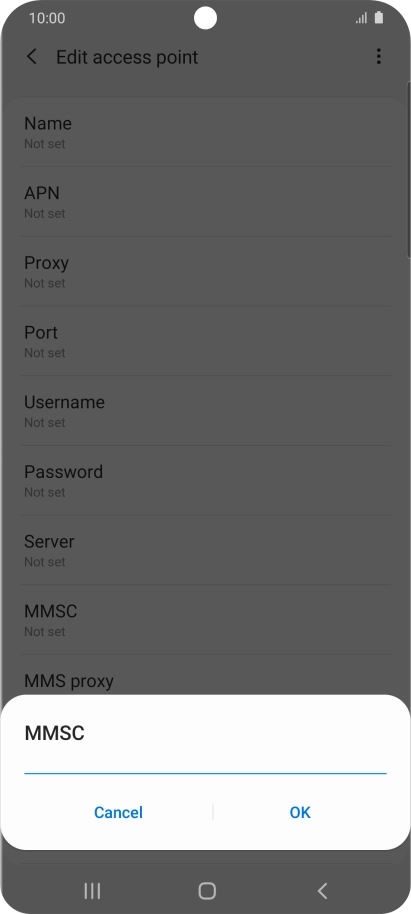

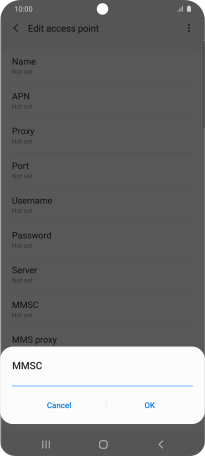

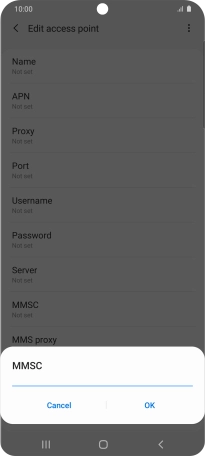

Key in http://mms.vodafone.co.uk/servlets/mms and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-6e6cd0d8-642d-43dc-87c9-3bdbbd4983b8.png?width=206&height=456)
http://mms.vodafone.co.uk/servlets/mms
7. Enter IP address
Press MMS proxy.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-85cb22e9-0562-4540-87ed-a9961531ec92.png?width=206&height=456)

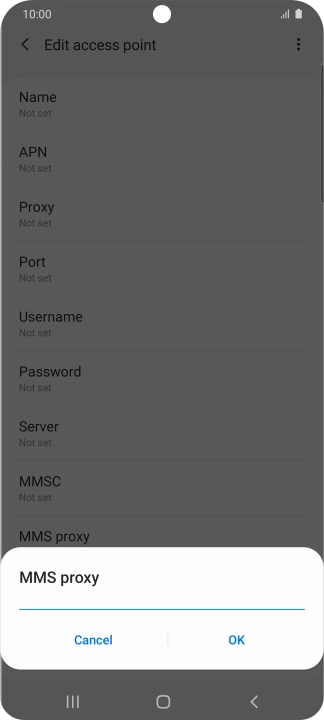

Key in 212.183.137.012 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-e9e2a358-f32f-4a3e-bea8-e121da5c6659.png?width=206&height=456)
212.183.137.012
8. Enter port number
Press MMS port.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-85cb22e9-0562-4540-87ed-a9961531ec92.png?width=206&height=456)

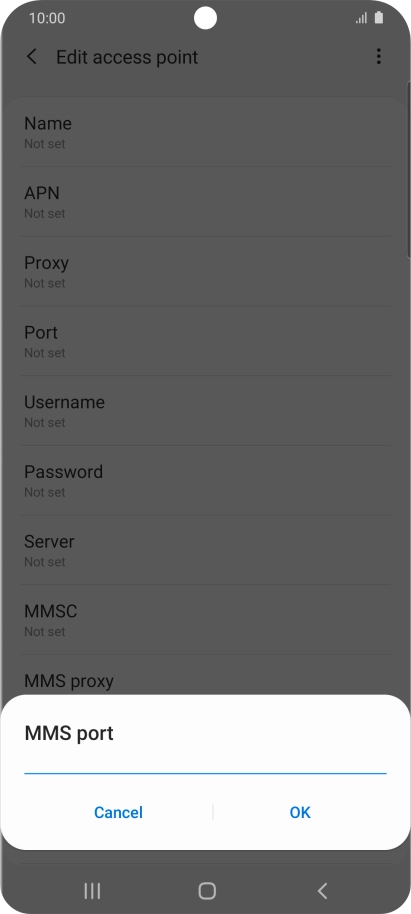

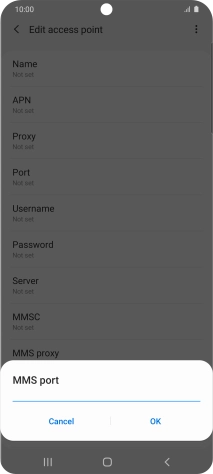

Key in 8799 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-918b188d-1055-418d-9bfd-ac9d9dc2d9b1.png?width=206&height=456)
8799
9. Enter country code
Press MCC.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-85cb22e9-0562-4540-87ed-a9961531ec92.png?width=206&height=456)

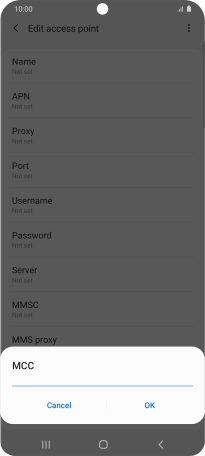

Key in 234 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-dc6d3a4e-539e-413d-832b-4151ba39c633.png?width=206&height=456)
234
10. Enter network code

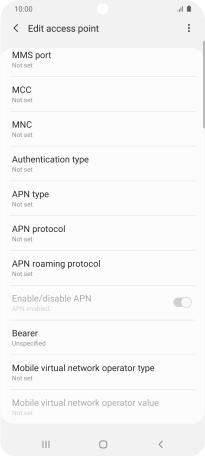

Press MNC.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-e242246b-6543-4efb-95ae-791bde7fceb3.png?width=206&height=456)

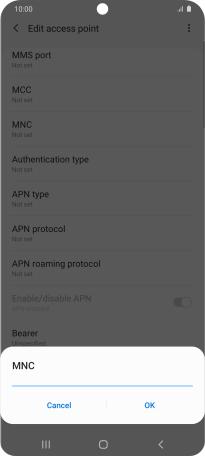

Key in 15 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-ef0c900f-b3c3-42f0-94fb-dc24918dee19.png?width=206&height=456)
15
11. Select authentication type
Press Authentication type.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-e242246b-6543-4efb-95ae-791bde7fceb3.png?width=206&height=456)

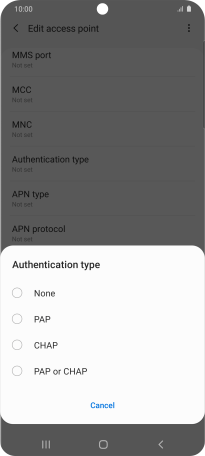

Press None.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-05817084-9709-48e9-93a8-313f9ce85b0a.png?width=206&height=456)
12. Enter APN type

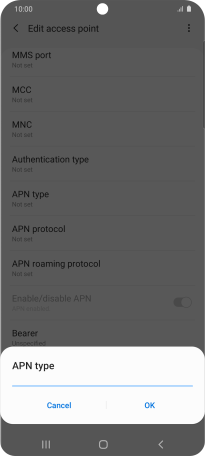

Press APN type.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-e242246b-6543-4efb-95ae-791bde7fceb3.png?width=206&height=456)
Key in mms and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-59729187-d780-41b6-90bf-7ac5e0cd5979.png?width=206&height=456)
mms
13. Save data connection
Press the menu icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-e242246b-6543-4efb-95ae-791bde7fceb3.png?width=206&height=456)

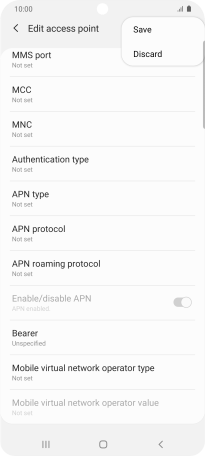

Press Save.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-a0f78321-0981-411c-b380-88112f6310ef.png?width=206&height=456)
14. Return to the home screen

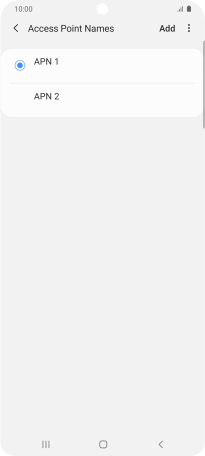

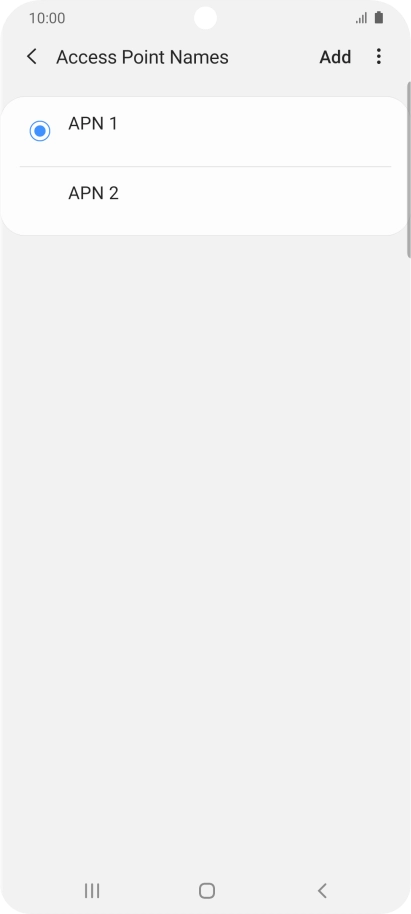

Press the Home key to return to the home screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-b2981bad-6ea0-4473-9b89-1c6060c8388b.png?width=206&height=456)
