![Sony Xperia 5 II 5G](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-bce83a3a-2312-4ef1-a0e1-f563e8fcbd36.png?width=150&height=320)
Sony Xperia 5 II 5G
Android 11.0
1. Find "Access point names"
Slide two fingers downwards starting from the top of the screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-473f09b5-aa42-42e4-891d-23d0c20b945b.png?width=184&height=428)
Press the settings icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-0e866170-586a-4886-b7a2-8593a1b2272f.png?width=184&height=428)
Press Network and Internet.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-1e3c359d-14cd-43bc-8c5f-80b446659f3b.png?width=184&height=428)
Press Mobile network.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-fd4ca50e-0138-4093-af7a-27280cf1b87f.png?width=184&height=428)
Press Advanced.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-f8f06e8c-8968-4427-8f19-dd9f625e1468.png?width=184&height=428)

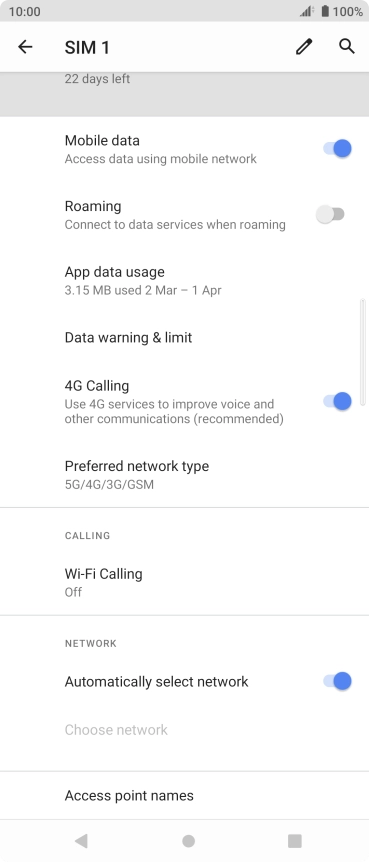

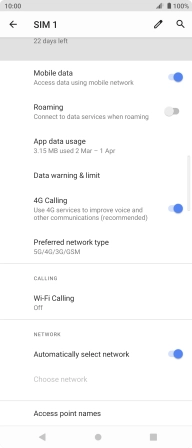

Press Access point names.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-4f4d9337-627c-4802-9c80-f594f47aaac2.png?width=184&height=428)
2. Create new data connection

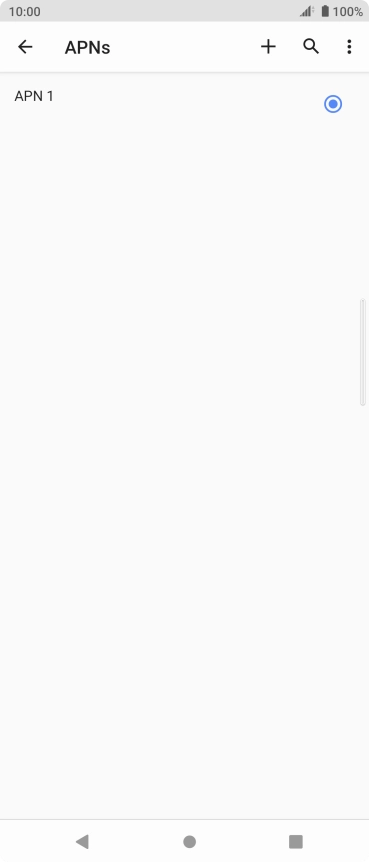

Press the new data connection icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-f982a341-7cee-4970-b7f9-df65da7debb7.png?width=184&height=428)

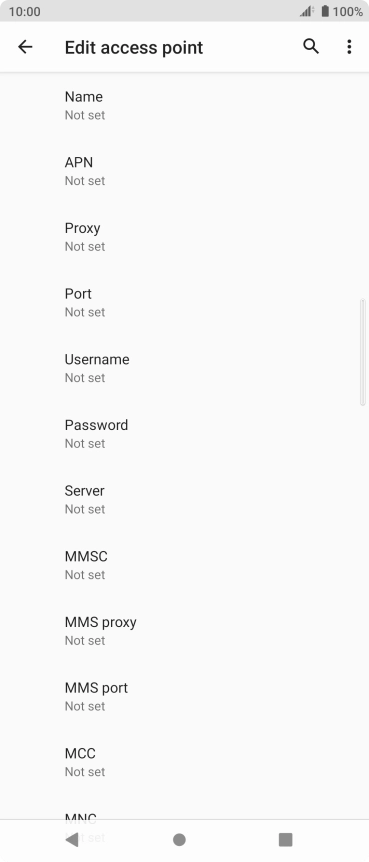

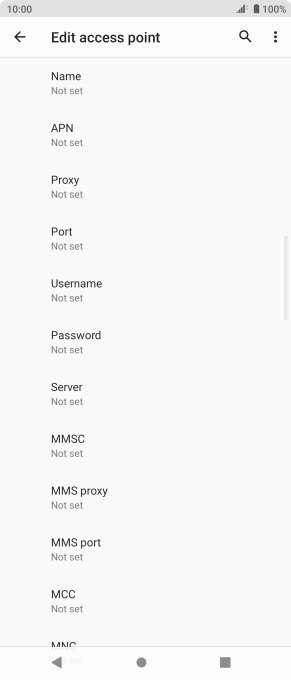

Press Name.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-be49a5b3-e290-486d-9fcb-9cc8dea833a3.png?width=184&height=428)

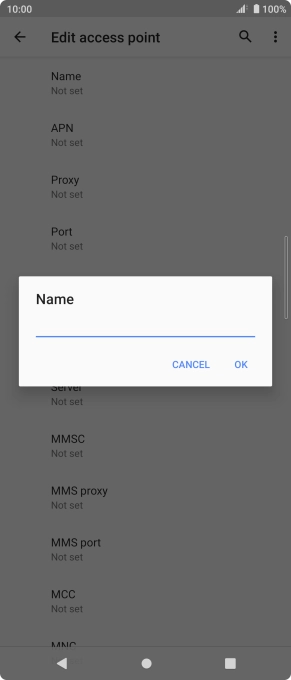

Key in Vodafone MMS and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-f898aa0d-05b4-4020-a004-0a9af4237f22.png?width=184&height=428)
Vodafone MMS
3. Enter APN
Press APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-be49a5b3-e290-486d-9fcb-9cc8dea833a3.png?width=184&height=428)

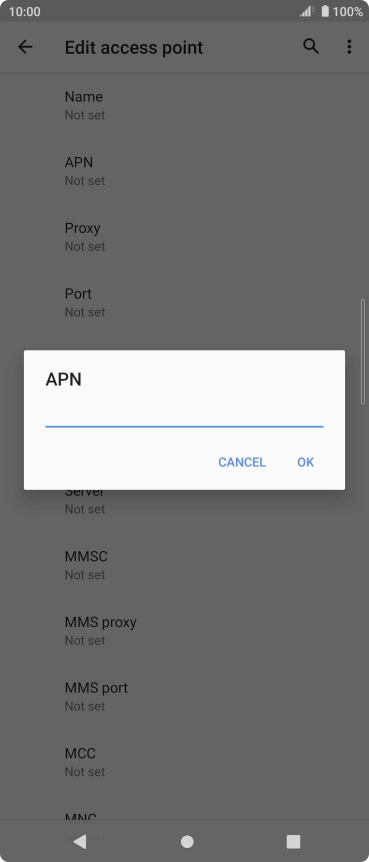

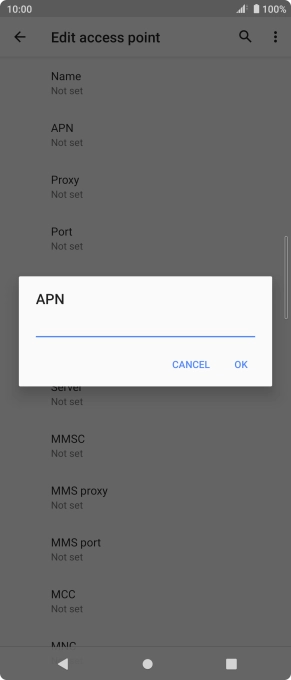

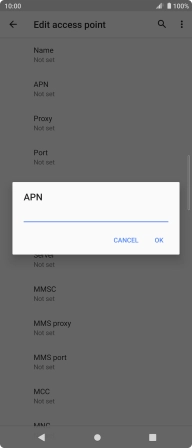

Key in wap.vodafone.co.uk and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-14ce795e-6a55-4f83-ba42-ffe6519d6db3.png?width=184&height=428)
wap.vodafone.co.uk
4. Enter username
Press Username.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-be49a5b3-e290-486d-9fcb-9cc8dea833a3.png?width=184&height=428)

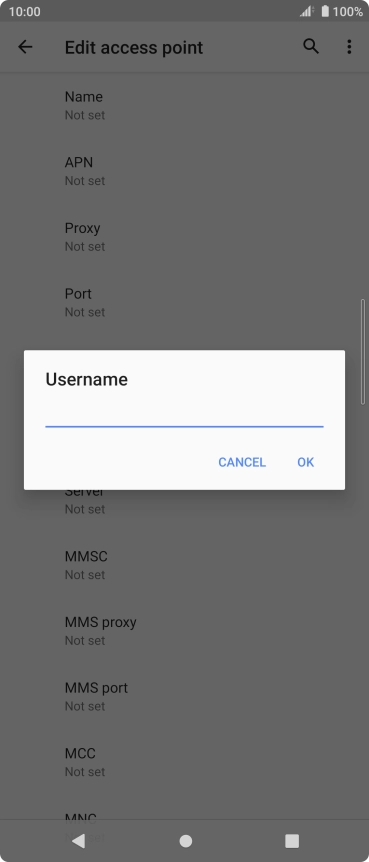

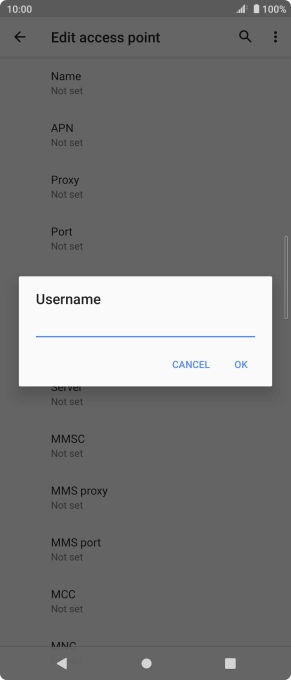

Key in wap and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-926ebc07-060c-45a4-9535-107de8fabfe9.png?width=184&height=428)
wap
5. Enter password
Press Password.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-be49a5b3-e290-486d-9fcb-9cc8dea833a3.png?width=184&height=428)

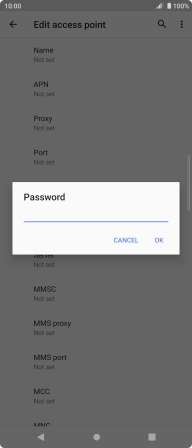

Key in wap and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-7fcca44a-c8ea-4925-9337-bf677e913632.png?width=184&height=428)
wap
6. Enter MMSC
Press MMSC.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-be49a5b3-e290-486d-9fcb-9cc8dea833a3.png?width=184&height=428)
Key in http://mms.vodafone.co.uk/servlets/mms and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-dde8c672-3b8c-4501-ac0b-ceaa5622fb32.png?width=184&height=428)
http://mms.vodafone.co.uk/servlets/mms
7. Enter IP address
Press MMS proxy.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-be49a5b3-e290-486d-9fcb-9cc8dea833a3.png?width=184&height=428)

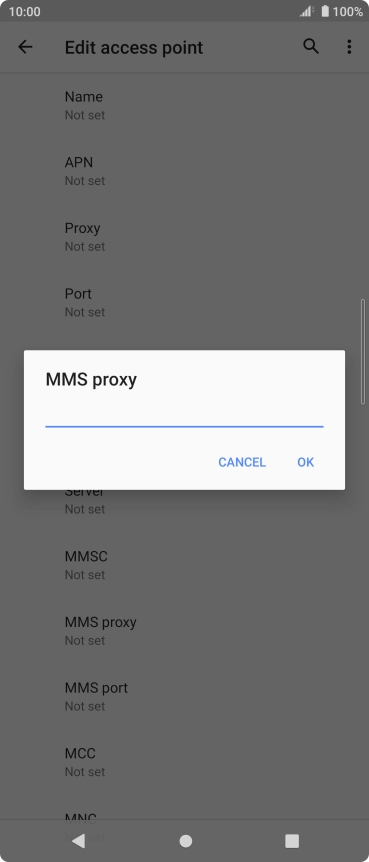

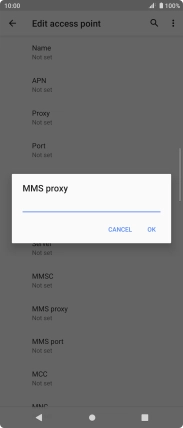

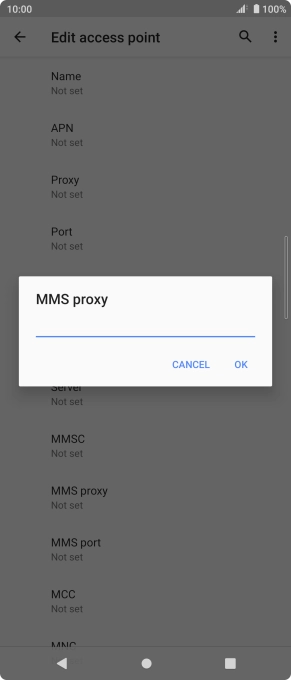

Key in 212.183.137.012 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-9444675e-feee-452d-8dbf-128bf18d143d.png?width=184&height=428)
212.183.137.012
8. Enter port number
Press MMS port.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-be49a5b3-e290-486d-9fcb-9cc8dea833a3.png?width=184&height=428)

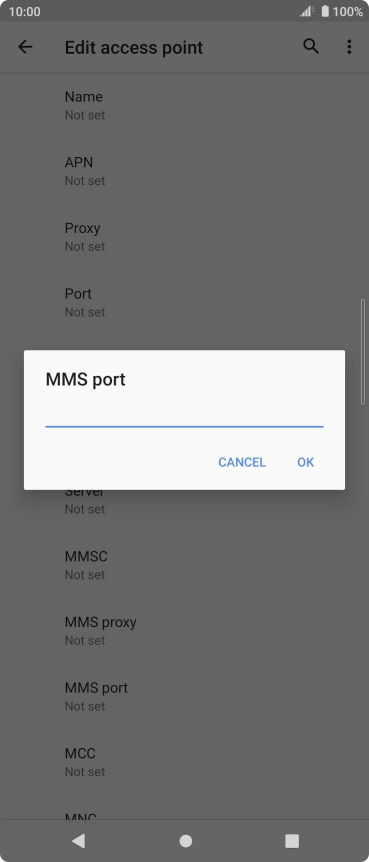

Key in 8799 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-eef2d5d4-ad0a-42fd-9caa-012d05a5f1dc.png?width=184&height=428)
8799
9. Enter country code
Press MCC.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-be49a5b3-e290-486d-9fcb-9cc8dea833a3.png?width=184&height=428)

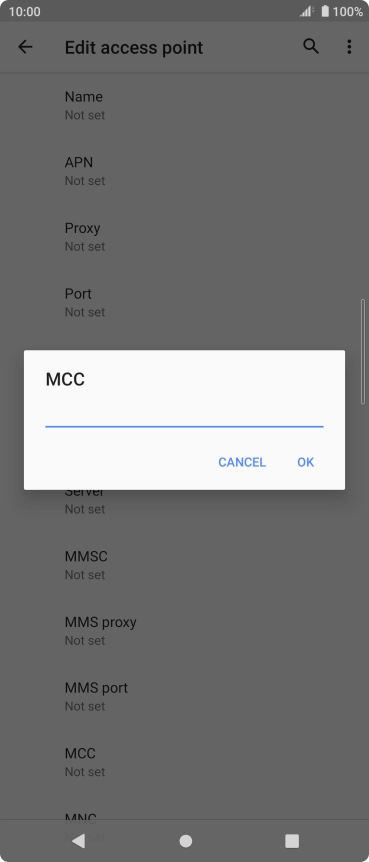

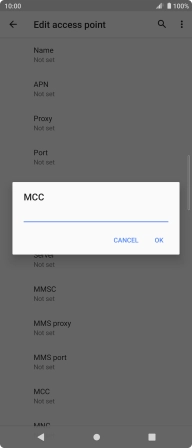

Key in 234 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-ac63f6f5-4495-4201-9bcb-a1bea80405fa.png?width=184&height=428)
234
10. Enter network code

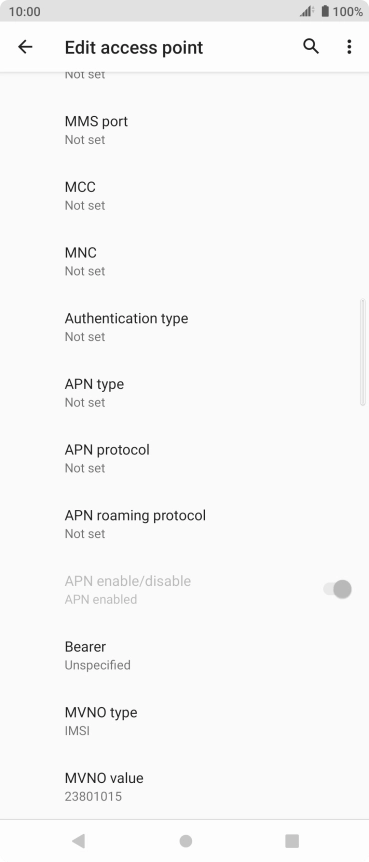

Press MNC.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-74692e88-c3a0-4e98-b46c-35af6db7300f.png?width=184&height=428)

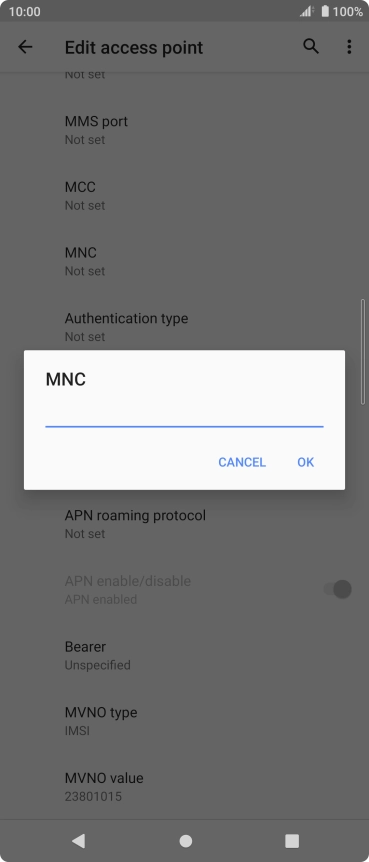

Key in 15 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-c4f94108-74c6-4a5a-bb17-62f68cec24b4.png?width=184&height=428)
15
11. Select authentication type

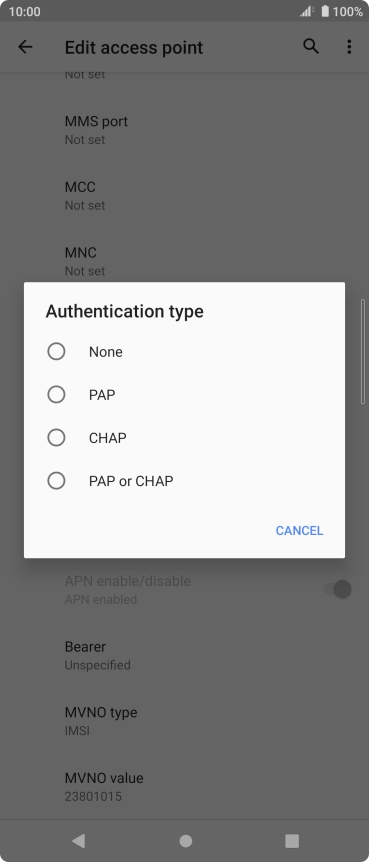

Press Authentication type.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-74692e88-c3a0-4e98-b46c-35af6db7300f.png?width=184&height=428)

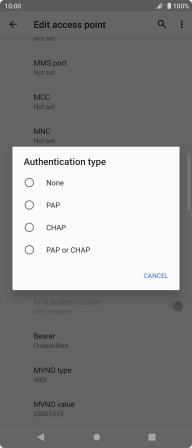

Press None.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-7e62ca3e-3f6a-4ff7-ae64-d6c84a84b4df.png?width=184&height=428)
12. Enter APN type
Press APN type.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-74692e88-c3a0-4e98-b46c-35af6db7300f.png?width=184&height=428)

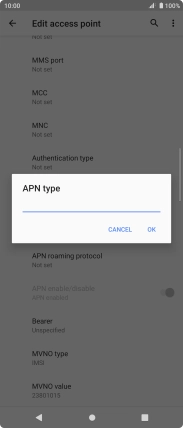

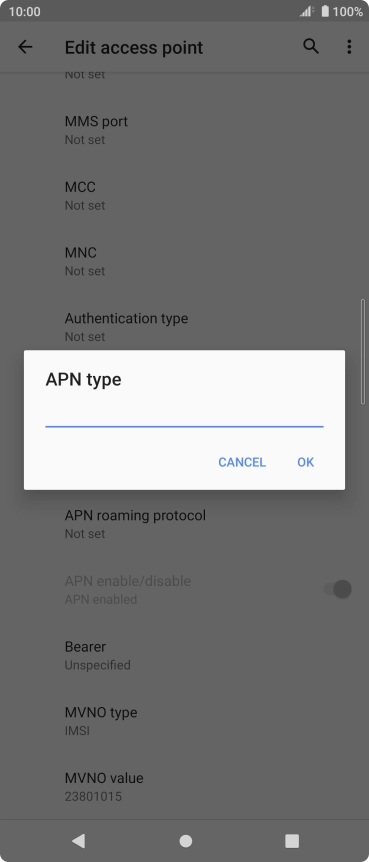

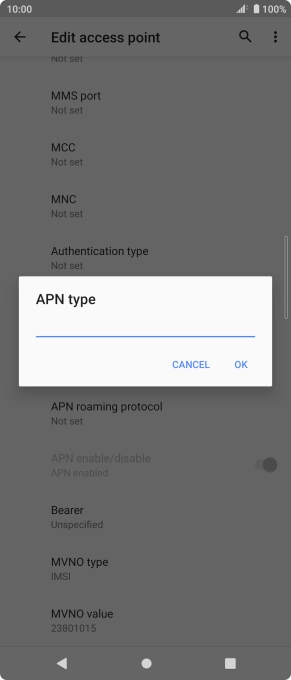

Key in mms and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-7fecc344-f2f4-411f-9ea8-0b4a3f3408aa.png?width=184&height=428)
mms
13. Save data connection
Press the menu icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-74692e88-c3a0-4e98-b46c-35af6db7300f.png?width=184&height=428)

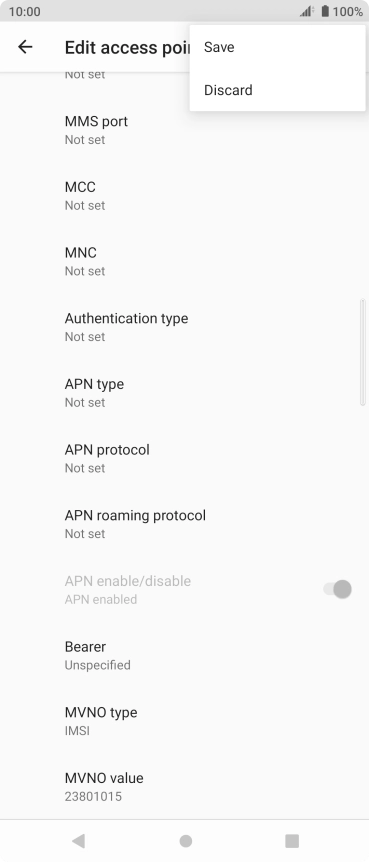

Press Save.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-74b8a30f-1615-473e-a611-eb2db3ee962f.png?width=184&height=428)
14. Return to the home screen

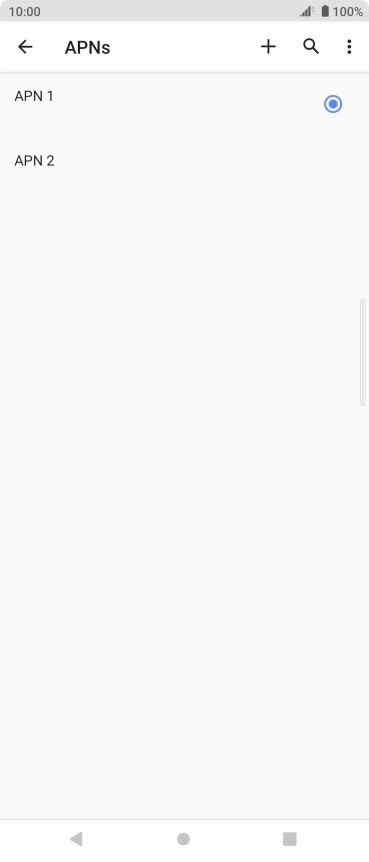

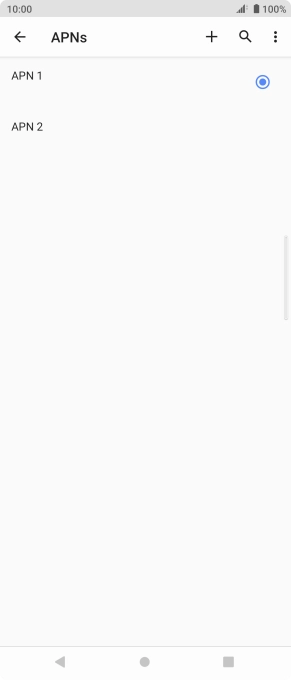

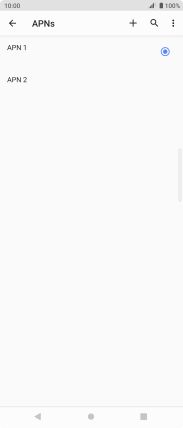

Press the Home key to return to the home screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-f49338b4-eabc-4791-a8f0-22c86bdbf987.png?width=184&height=428)
