Sony Xperia 5 III
1. Find "Access point names"
Slide two fingers downwards starting from the top of the screen.
1. Find "Access point names"
Press the settings icon.
1. Find "Access point names"
Press Network and Internet.
1. Find "Access point names"
Press Mobile network.
1. Find "Access point names"
Press Advanced.
1. Find "Access point names"
Press Access point names.

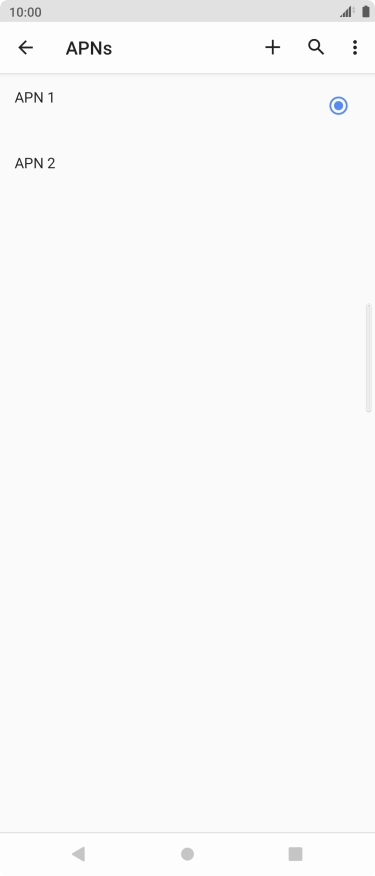

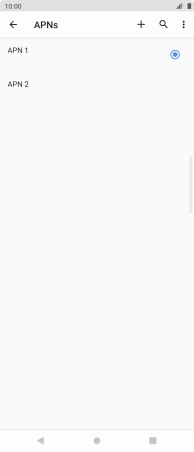

2. Create new data connection
Press the new data connection icon.
2. Create new data connection
Press Name.
2. Create new data connection
Key in Vodafone MMS and press OK.
3. Enter APN
Press APN.
3. Enter APN
Key in wap.vodafone.co.uk and press OK.
4. Enter username
Press Username.
4. Enter username
Key in wap and press OK.
5. Enter password
Press Password.
5. Enter password
Key in wap and press OK.

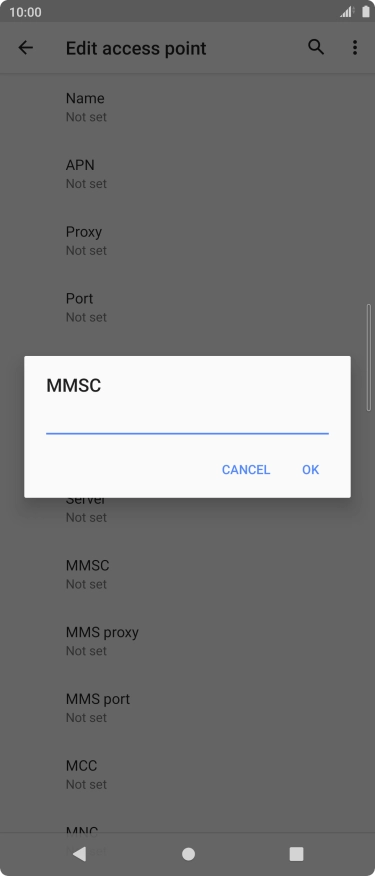

6. Enter MMSC
Press MMSC.
6. Enter MMSC
Key in http://mms.vodafone.co.uk/servlets/mms and press OK.

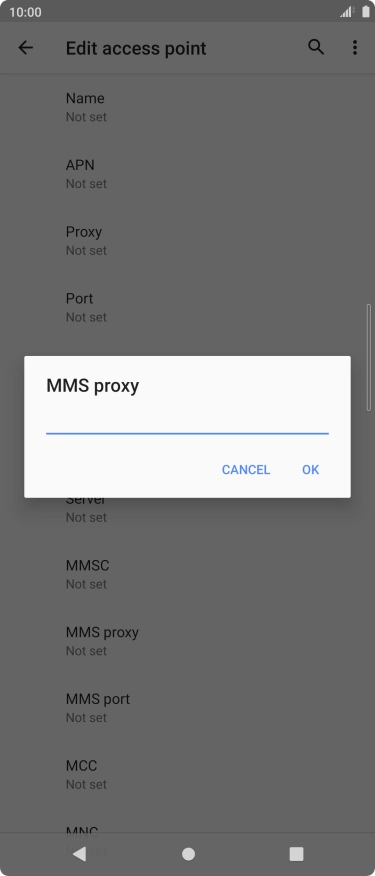

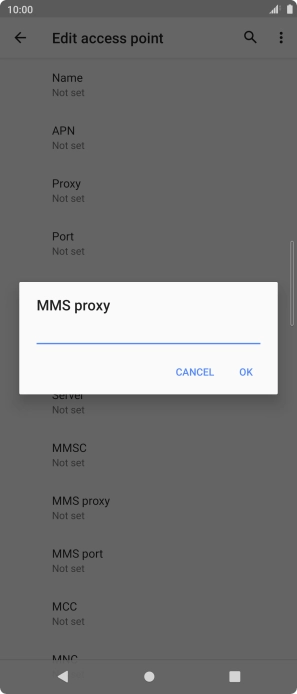

7. Enter IP address
Press MMS proxy.
7. Enter IP address
Key in 212.183.137.012 and press OK.

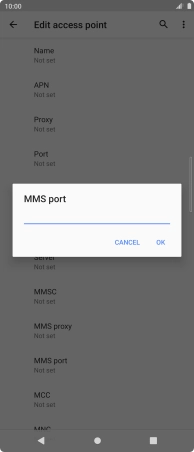

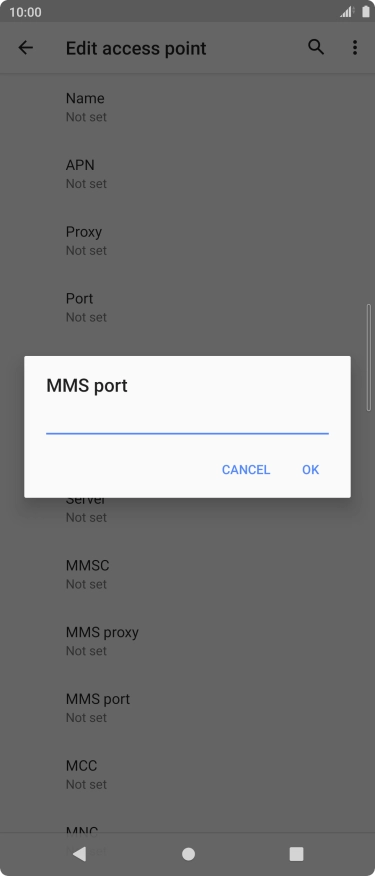

8. Enter port number
Press MMS port.
8. Enter port number
Key in 8799 and press OK.
9. Enter country code
Press MCC.
9. Enter country code
Key in 234 and press OK.
10. Enter network code
Press MNC.
10. Enter network code
Key in 15 and press OK.
11. Select authentication type
Press Authentication type.
11. Select authentication type
Press None.
12. Enter APN type
Press APN type.
12. Enter APN type
Key in mms and press OK.
13. Save data connection
Press the menu icon.
13. Save data connection
Press Save.
14. Return to the home screen
Press the Home key to return to the home screen.
1. Find "Access point names"
2. Create new data connection
3. Enter APN
4. Enter username
5. Enter password
6. Enter MMSC
7. Enter IP address
8. Enter port number
9. Enter country code
10. Enter network code
11. Select authentication type
12. Enter APN type
13. Save data connection
14. Return to the home screen
