Set up your Vodafone Smart turbo 7 Android 6.0 for internet

Read help info

The internet connection is shared by many functions on your phone such as internet browsing, receiving email messages and installing apps. You can access the internet as soon as you've inserted your SIM. If this isn't the case, you can set up your phone for internet manually.

Step 1 of 28

Find "Access Point Names"

Slide two fingers downwards starting from the top the screen.

Step 2 of 28

Find "Access Point Names"

Press the settings icon.

Step 3 of 28

Find "Access Point Names"

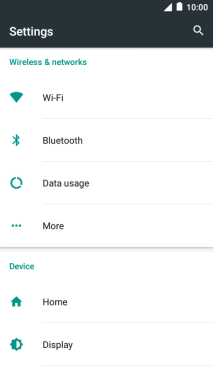

Press More.

Step 4 of 28

Find "Access Point Names"

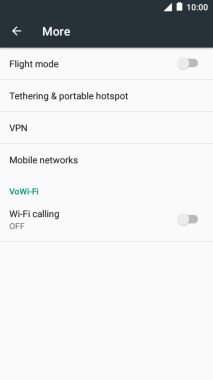

Press Mobile networks.

Step 5 of 28

Find "Access Point Names"

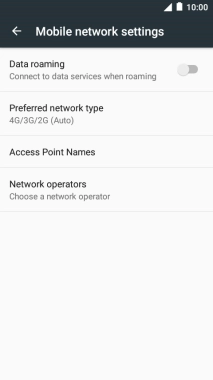

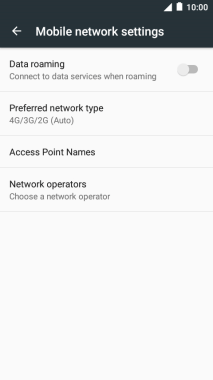

Press Access Point Names.

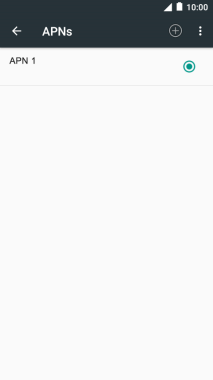

Step 6 of 28

Create new data connection

Press the new data connection icon.

Step 7 of 28

Create new data connection

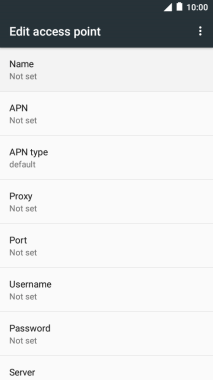

Press Name.

Vodafone Internet

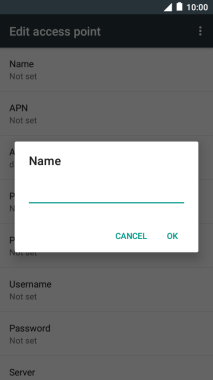

Step 8 of 28

Create new data connection

Key in Vodafone Internet and press OK.

Step 9 of 28

Enter APN

Press APN.

wap.vodafone.co.uk
Step 10 of 28

Enter APN

If you're on a pay monthly price plan, key in wap.vodafone.co.uk and press OK.

pp.vodafone.co.uk
Step 11 of 28

Enter APN

If you're on a pay as you go or VOXI price plan, key in pp.vodafone.co.uk and press OK.

Step 12 of 28

Select APN type

Press APN type.

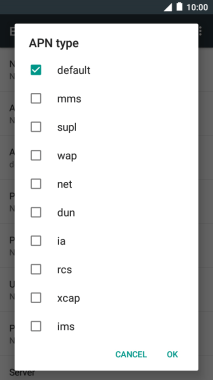

Step 13 of 28

Select APN type

Make sure only default is selected.

Step 14 of 28

Select APN type

Press OK.

Step 15 of 28

Enter username

Press Username.

wap
Step 16 of 28

Enter username

Key in wap and press OK.

Step 17 of 28

Enter password

Press Password.

wap

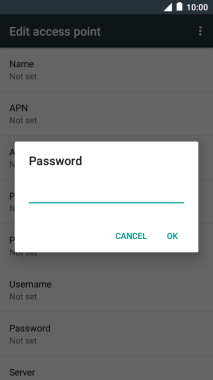

Step 18 of 28

Enter password

Key in wap and press OK.

Step 19 of 28

Enter country code

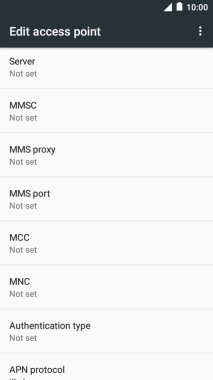

Press MCC.

234

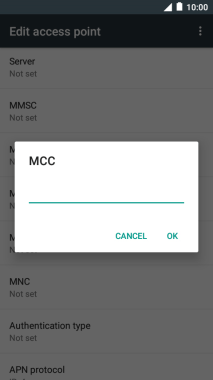

Step 20 of 28

Enter country code

Key in 234 and press OK.

Step 21 of 28

Enter network code

Press MNC.

15

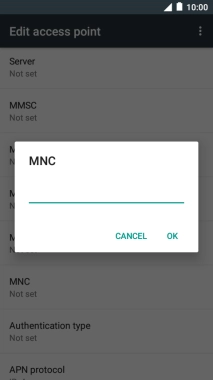

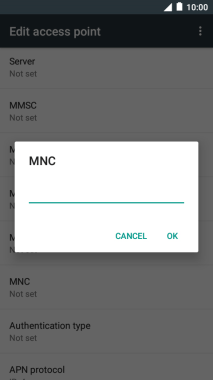

Step 22 of 28

Enter network code

Key in 15 and press OK.

Step 23 of 28

Select authentication type

Press Authentication type.

Step 24 of 28

Select authentication type

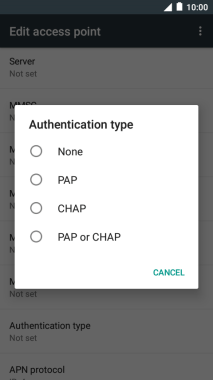

Press None.

Step 25 of 28

Save data connection

Press the menu icon.

Step 26 of 28

Save data connection

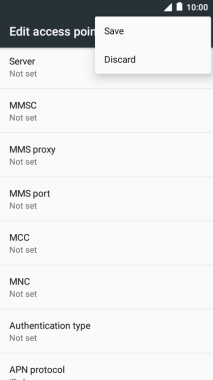

Press Save.

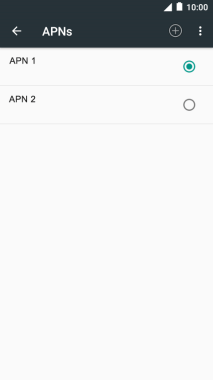

Step 27 of 28

Save data connection

Press the field next to the data connection to activate it.

Step 28 of 28

Return to the home screen

Press the Home key to return to the home screen.

1. Find "Access Point Names"

Slide two fingers downwards starting from the top the screen.
Press the settings icon.
Press More.
Press Mobile networks.
Press Access Point Names.

2. Create new data connection

Press the new data connection icon.
Press Name.
Key in Vodafone Internet and press OK.
Vodafone Internet

3. Enter APN

Press APN.
If you're on a pay monthly price plan, key in wap.vodafone.co.uk and press OK.
wap.vodafone.co.uk
If you're on a pay as you go or VOXI price plan, key in pp.vodafone.co.uk and press OK.
pp.vodafone.co.uk

4. Select APN type

Press APN type.
Make sure only default is selected.
Press OK.

5. Enter username

Press Username.
Key in wap and press OK.
wap

6. Enter password

Press Password.
Key in wap and press OK.
wap

7. Enter country code

Press MCC.
Key in 234 and press OK.
234

8. Enter network code

Press MNC.
Key in 15 and press OK.
15

9. Select authentication type

Press Authentication type.
Press None.

10. Save data connection

Press the menu icon.
Press Save.
Press the field next to the data connection to activate it.

11. Return to the home screen

Press the Home key to return to the home screen.
