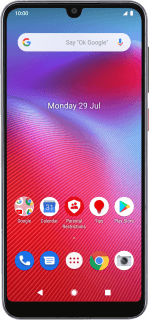

![Vodafone Smart V10](http://wmstatic.global.ssl.fastly.net/ml/7070823-f-5ff8e0b3-ba63-4edc-ac74-792572e06356.png?width=150&height=320)
Vodafone Smart V10
Android 9.0
1. Find "Access Point Names"

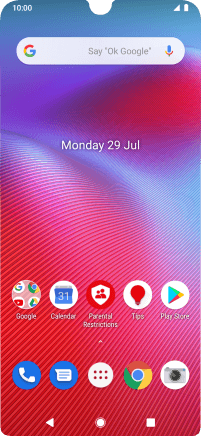

Slide two fingers downwards starting from the top of the screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7070823-f-7c2fa81e-03b8-49d7-a13e-f684f809eed0.png?width=202&height=436)

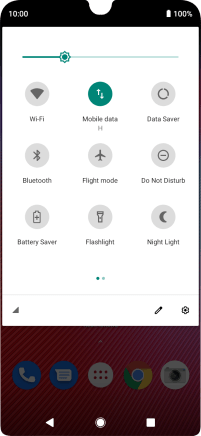

Press the settings icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7070823-f-cbfbc301-cf85-4340-b356-1debdaa0b65a.png?width=202&height=436)

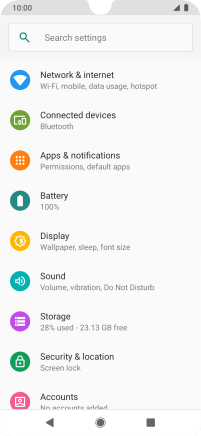

Press Network & internet.
![](http://wmstatic.global.ssl.fastly.net/ml/7070823-f-2923a249-de9e-405f-83eb-a92c1581106b.png?width=202&height=436)

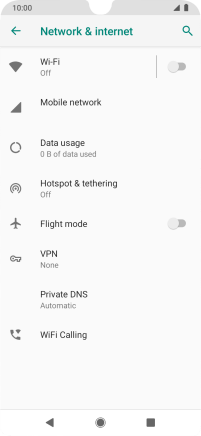

Press Mobile network.
![](http://wmstatic.global.ssl.fastly.net/ml/7070823-f-4a84482f-7d91-4934-969e-e273f593dfcd.png?width=202&height=436)

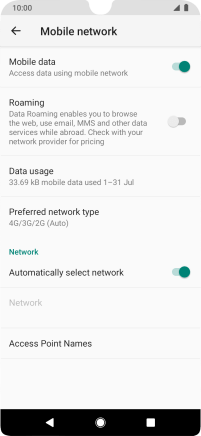

Press Access Point Names.
![](http://wmstatic.global.ssl.fastly.net/ml/7070823-f-dd27f135-9285-4c13-9b7e-8f1d6a215c75.png?width=202&height=436)
2. Create new data connection

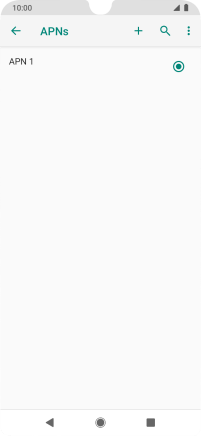

Press the new data connection icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7070823-f-4f52c617-0605-4a92-b138-a3d34f735bb6.png?width=202&height=436)
3. Enter a name for the connection

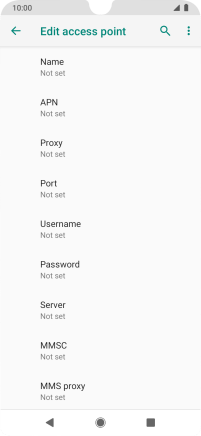

Press Name.
![](http://wmstatic.global.ssl.fastly.net/ml/7070823-f-1ec25f32-5b57-4806-84d1-0d0dd69ee744.png?width=202&height=436)
Key in Vodafone Internet and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7070823-f-846983c3-7a0f-45f9-b3b8-26b4d8c3fea9.png?width=202&height=436)
Vodafone Internet
4. Enter APN
Press APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7070823-f-1ec25f32-5b57-4806-84d1-0d0dd69ee744.png?width=202&height=436)

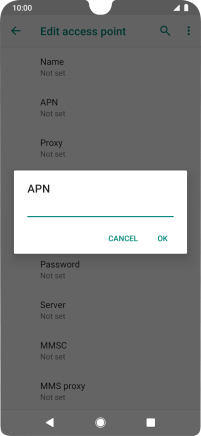

Key in wap.vodafone.co.uk and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7070823-f-9d918ebb-bd8a-44ee-8f5d-a55df62cae90.png?width=202&height=436)
wap.vodafone.co.uk
5. Enter username
Press Username.
![](http://wmstatic.global.ssl.fastly.net/ml/7070823-f-1ec25f32-5b57-4806-84d1-0d0dd69ee744.png?width=202&height=436)

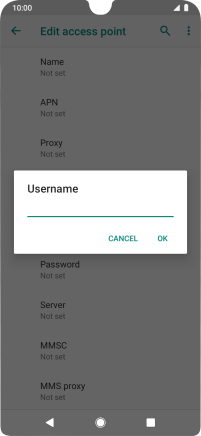

Key in wap and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7070823-f-199b38ba-0c1a-479a-ac91-e8c1f91dc422.png?width=202&height=436)
wap
6. Enter password
Press Password.
![](http://wmstatic.global.ssl.fastly.net/ml/7070823-f-1ec25f32-5b57-4806-84d1-0d0dd69ee744.png?width=202&height=436)

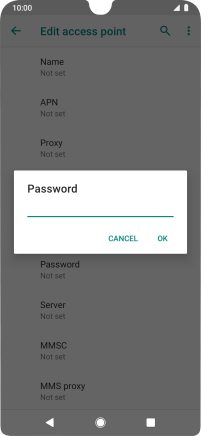

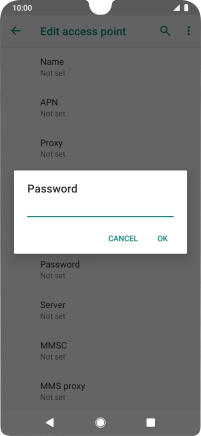

Key in wap and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7070823-f-ca071d7d-e824-45f8-a78a-192c58035586.png?width=202&height=436)
wap
7. Enter country code

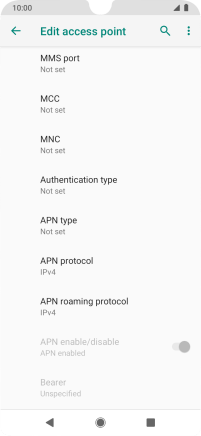

Press MCC.
![](http://wmstatic.global.ssl.fastly.net/ml/7070823-f-a893d132-d1f8-4202-a25f-1ac8b3e445cd.png?width=202&height=436)

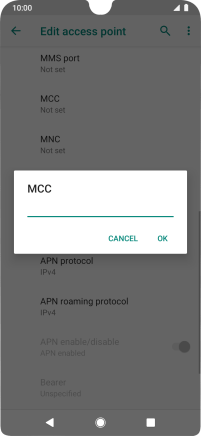

Key in 234 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7070823-f-f67b9744-0339-4d91-9244-556fcf230ade.png?width=202&height=436)
234
8. Enter network code
Press MNC.
![](http://wmstatic.global.ssl.fastly.net/ml/7070823-f-a893d132-d1f8-4202-a25f-1ac8b3e445cd.png?width=202&height=436)

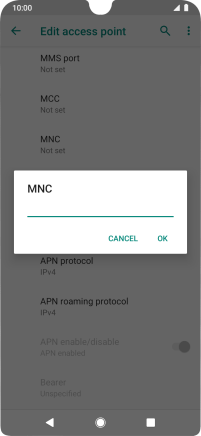

Key in 15 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7070823-f-f685b813-cbbf-47f6-ba3e-dd30cc74d79d.png?width=202&height=436)
15
9. Select authentication type
Press Authentication type.
![](http://wmstatic.global.ssl.fastly.net/ml/7070823-f-a893d132-d1f8-4202-a25f-1ac8b3e445cd.png?width=202&height=436)

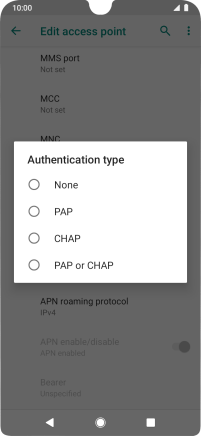

Press None.
![](http://wmstatic.global.ssl.fastly.net/ml/7070823-f-72571cf9-96c8-4025-bf39-8df58152f012.png?width=202&height=436)
10. Enter APN type
Press APN type.
![](http://wmstatic.global.ssl.fastly.net/ml/7070823-f-a893d132-d1f8-4202-a25f-1ac8b3e445cd.png?width=202&height=436)

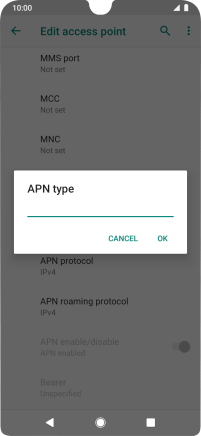

Key in default and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7070823-f-f578e068-7c3e-4973-8c41-eacd75a058fa.png?width=202&height=436)
default
11. Save data connection
Press the menu icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7070823-f-a893d132-d1f8-4202-a25f-1ac8b3e445cd.png?width=202&height=436)

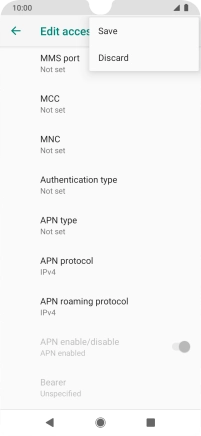

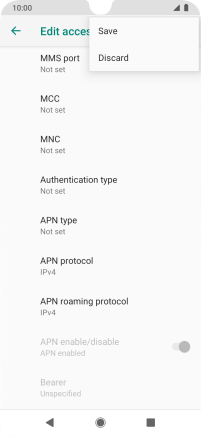

Press Save.
![](http://wmstatic.global.ssl.fastly.net/ml/7070823-f-31e617c5-2adc-46db-a416-fed31ec3a639.png?width=202&height=436)

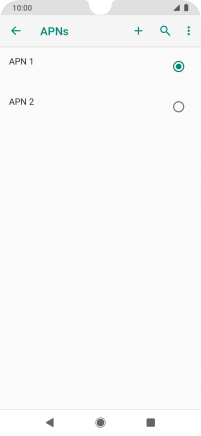

Press the field next to the required data connection to activate it.
![](http://wmstatic.global.ssl.fastly.net/ml/7070823-f-d221fd32-f3c7-4dd3-bad4-c386cad33c13.png?width=202&height=436)
12. Return to the home screen

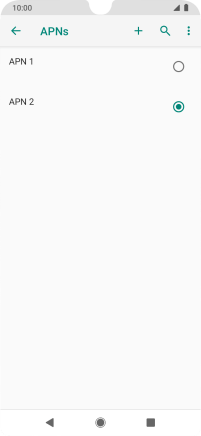

Press the Home key to return to the home screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7070823-f-99cd75c1-ab85-4b6b-ac69-bfdf8f58429d.png?width=202&height=436)
