![Xiaomi Mi 10T Pro](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-c01f3d87-2e05-47fd-bf66-7cd6bba72892.png?width=150&height=320)

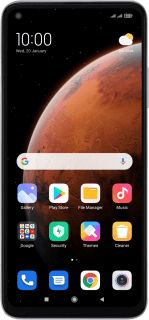

Xiaomi Mi 10T Pro
Android 10.0
1. Find "Access point names"

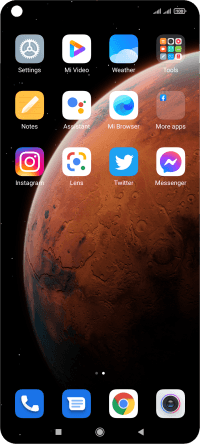

Press Settings.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-a73dceae-999c-4f32-ae61-73a2a0ca2a44.png?width=200&height=448)

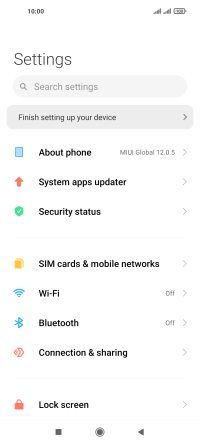

Press SIM cards & mobile networks.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-0d7b4a67-6c22-498b-a840-8e1f02e99552.png?width=200&height=448)

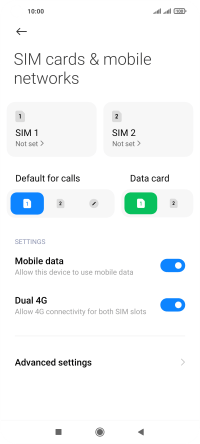

Press the required SIM.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-fca91642-0c27-4418-9e3c-e0f0c6904dab.png?width=200&height=448)

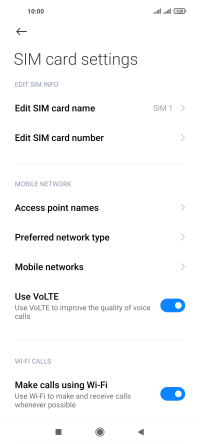

Press Access point names.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-6488d2be-0f09-495a-b006-10bc32f6a995.png?width=200&height=448)
2. Create new data connection

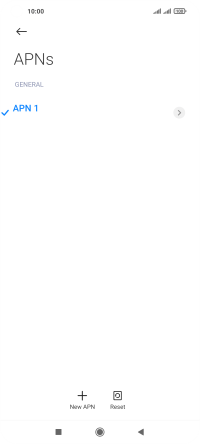

Press New APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-468aec4b-01b8-410d-bd68-509be71ef0dc.png?width=200&height=448)
3. Enter a name for the connection

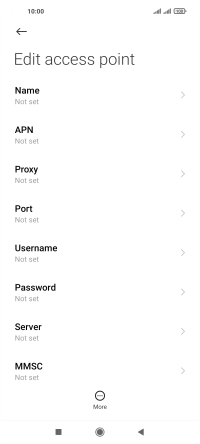

Press Name.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-578bc072-4ef8-4968-9ce5-031cd2a2bcc9.png?width=200&height=448)
Key in Vodafone MMS and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-3380ce5d-d5bd-432b-b600-b46a05bdd641.png?width=200&height=448)
Vodafone MMS
4. Enter APN
Press APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-578bc072-4ef8-4968-9ce5-031cd2a2bcc9.png?width=200&height=448)
Key in wap.vodafone.co.uk and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-926ae962-306a-494e-89ff-b37bc203c1c0.png?width=200&height=448)
wap.vodafone.co.uk
5. Enter username
Press Username.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-578bc072-4ef8-4968-9ce5-031cd2a2bcc9.png?width=200&height=448)
Key in wap and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-4837b996-2f57-461d-a31e-0ad598869120.png?width=200&height=448)
wap
6. Enter password
Press Password.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-578bc072-4ef8-4968-9ce5-031cd2a2bcc9.png?width=200&height=448)
Key in wap and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-fcbbd2c4-0418-4a85-8ce4-6d107dee867c.png?width=200&height=448)
wap
7. Enter picture messaging server
Press MMSC.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-578bc072-4ef8-4968-9ce5-031cd2a2bcc9.png?width=200&height=448)
Key in http://mms.vodafone.co.uk/servlets/mms and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-ac5cfd8e-151f-420d-afc8-16fd90f9f757.png?width=200&height=448)
http://mms.vodafone.co.uk/servlets/mms
8. Enter IP address

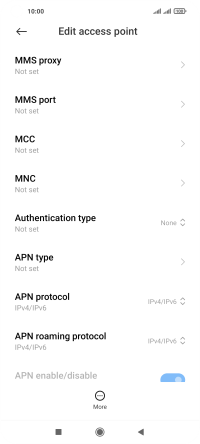

Press MMS proxy.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-27b8489f-f2e2-4528-84ec-bf40e7a1c035.png?width=200&height=448)

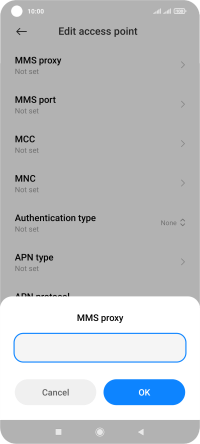

Key in 212.183.137.012 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-d3c098b8-f594-4124-adcd-f4bcb656f2e6.png?width=200&height=448)
212.183.137.012
9. Enter port number
Press MMS port.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-27b8489f-f2e2-4528-84ec-bf40e7a1c035.png?width=200&height=448)

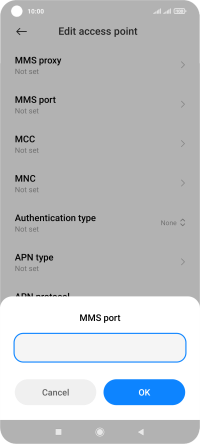

Key in 8799 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-50c7d252-74f7-413a-91aa-d31a6b58b6ce.png?width=200&height=448)
8799
10. Enter country code
Press MCC.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-27b8489f-f2e2-4528-84ec-bf40e7a1c035.png?width=200&height=448)

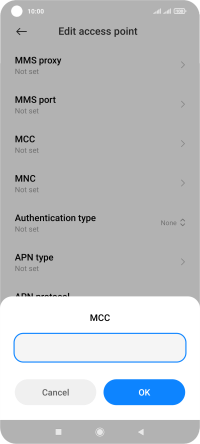

Key in 234 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-63b10781-8eff-4a66-83a7-5300fb7ccd95.png?width=200&height=448)
234
11. Enter network code
Press MNC.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-27b8489f-f2e2-4528-84ec-bf40e7a1c035.png?width=200&height=448)
Key in 15 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-e54a4971-5c20-4fcd-b03e-656d07d7e3fc.png?width=200&height=448)
15
12. Select authentication type
Press Authentication type.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-27b8489f-f2e2-4528-84ec-bf40e7a1c035.png?width=200&height=448)

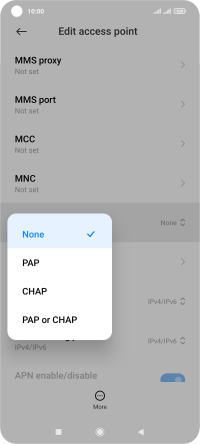

Press None.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-8b14dc24-770b-4269-9e3a-715874c99a94.png?width=200&height=448)
13. Enter APN type
Press APN type.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-27b8489f-f2e2-4528-84ec-bf40e7a1c035.png?width=200&height=448)

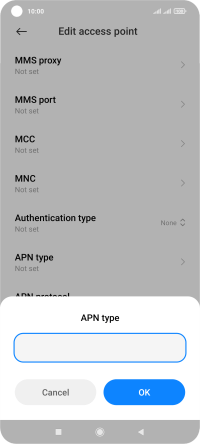

Key in mms and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-7a2b02ea-a640-4dd7-af67-e16de340e15e.png?width=200&height=448)
mms
14. Save data connection
Press More.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-27b8489f-f2e2-4528-84ec-bf40e7a1c035.png?width=200&height=448)

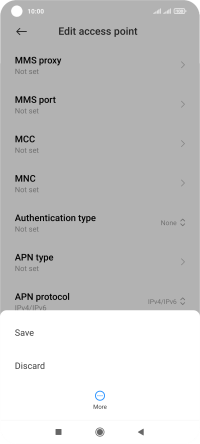

Press Save.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-d8c287dd-d82e-4783-ab3a-fd25e5c2e311.png?width=200&height=448)
15. Return to the home screen

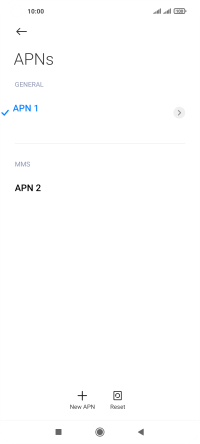

Press the Home key to return to the home screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-36cd759c-296f-43f5-8256-7f529684dd0e.png?width=200&height=448)
