![Xiaomi Redmi Note 11](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-167467be-a7f3-4154-a560-724b9836ccdd.png?width=150&height=320)
Xiaomi Redmi Note 11
Android 11.0
1. Find "Access point names"
Press Settings.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-80535f18-f857-4502-beb9-09ea2cc83861.png?width=204&height=452)
Press SIM cards & mobile networks.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-c89d7027-1cb2-4260-8e96-6cdba2b89b3d.png?width=204&height=452)

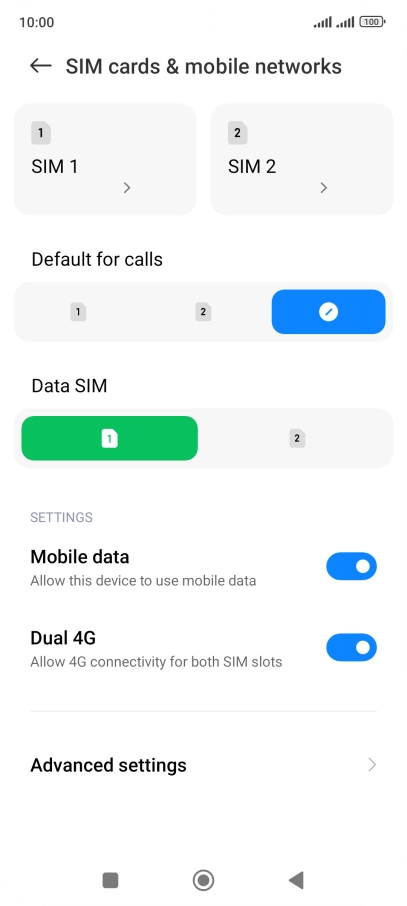

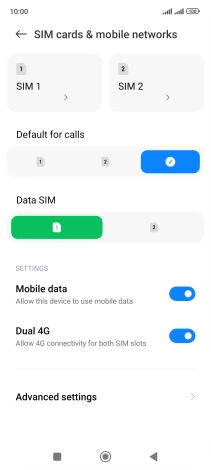

Press the required SIM.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-eb219366-8a0b-4f2c-b11c-803eb85f0d9f.png?width=204&height=452)

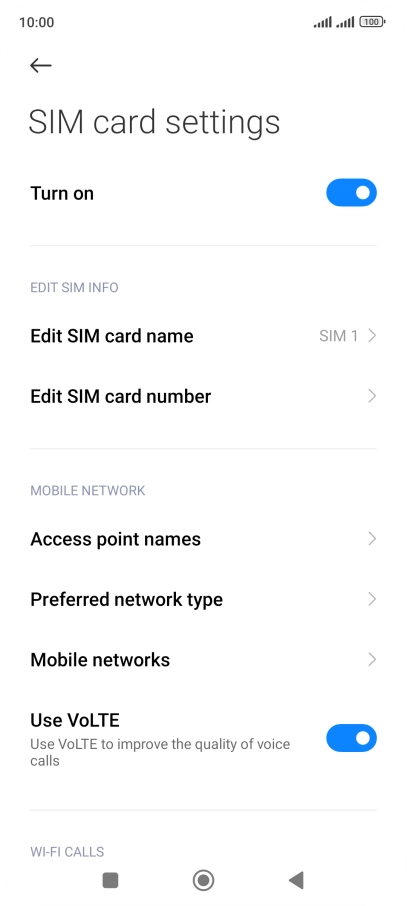

Press Access point names.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-6e552188-1aaa-4f2e-94a7-22ed96864ce9.png?width=204&height=452)
2. Create new data connection

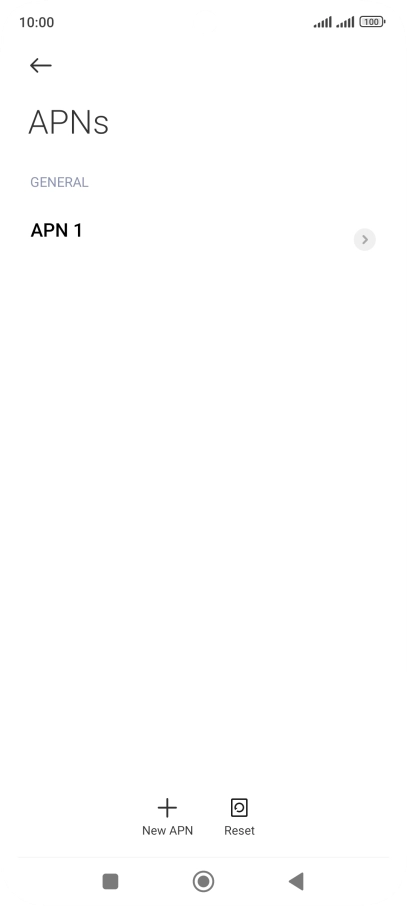

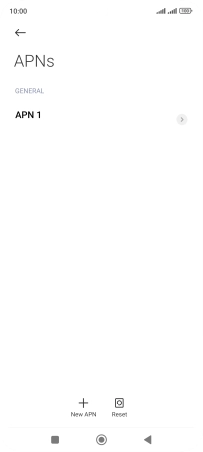

Press New APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-17d6603d-69ba-40d5-974b-b5d367e9fafe.png?width=204&height=452)
3. Enter a name for the connection

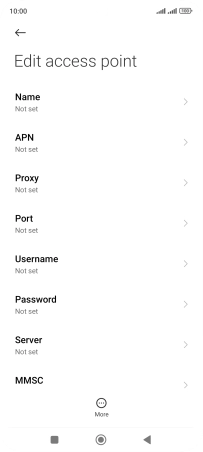

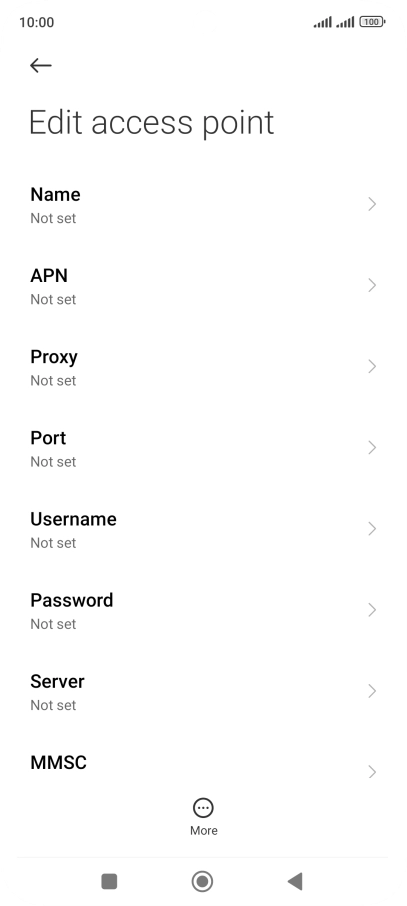

Press Name.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-8638757e-4c5c-46a7-ade5-9075a907b54e.png?width=204&height=452)
Key in Vodafone MMS and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-e101d136-c37e-44d9-94a5-27b187d8d65a.png?width=204&height=452)
Vodafone MMS
4. Enter APN
Press APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-8638757e-4c5c-46a7-ade5-9075a907b54e.png?width=204&height=452)

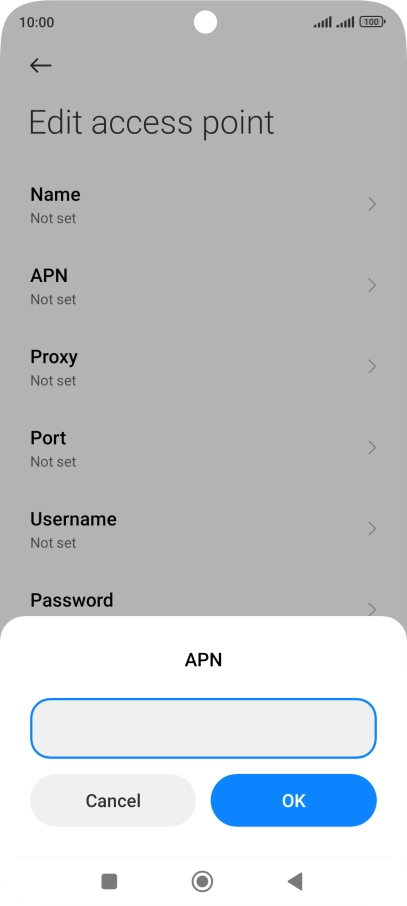

Key in wap.vodafone.co.uk and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-ac240016-b05b-4920-bdae-6c839f2153e4.png?width=204&height=452)
wap.vodafone.co.uk
5. Enter username
Press Username.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-8638757e-4c5c-46a7-ade5-9075a907b54e.png?width=204&height=452)
Key in wap and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-460fcfe0-0544-4f04-9a53-924e863ad801.png?width=204&height=452)
wap
6. Enter password
Press Password.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-8638757e-4c5c-46a7-ade5-9075a907b54e.png?width=204&height=452)
Key in wap and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-d8b04d1b-99c5-47b9-ae5b-65c44d258c20.png?width=204&height=452)
wap
7. Enter picture messaging server
Press MMSC.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-8638757e-4c5c-46a7-ade5-9075a907b54e.png?width=204&height=452)

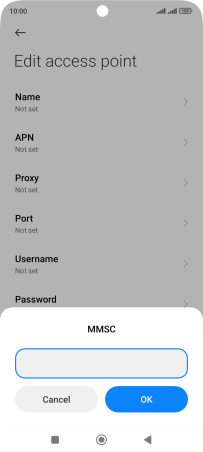

Key in http://mms.vodafone.co.uk/servlets/mms and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-181c78a2-ee7f-4491-b183-057666123cd3.png?width=204&height=452)
http://mms.vodafone.co.uk/servlets/mms
8. Enter IP address

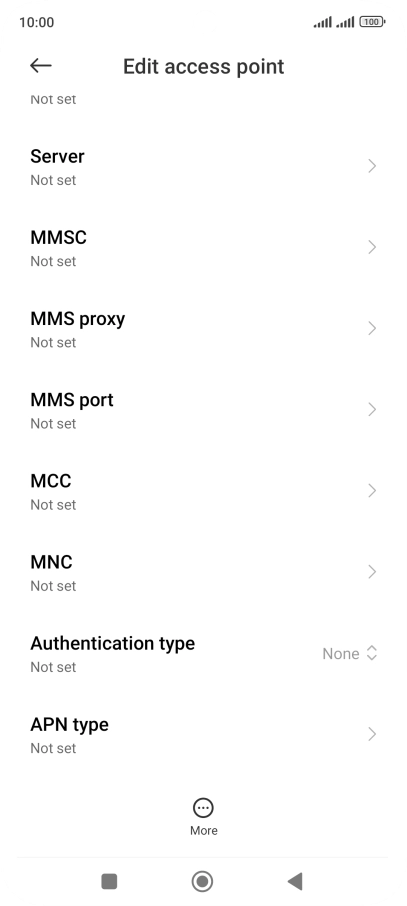

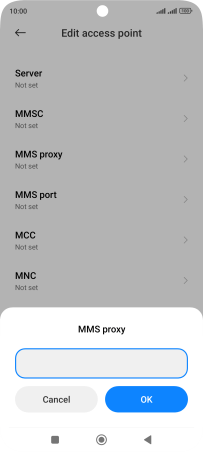

Press MMS proxy.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-0f98e9b8-56b0-4c22-bc15-cfa8c5b77deb.png?width=204&height=452)

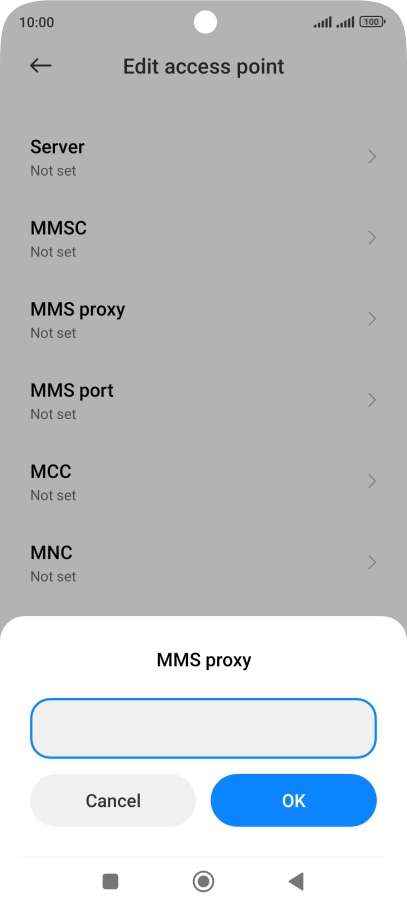

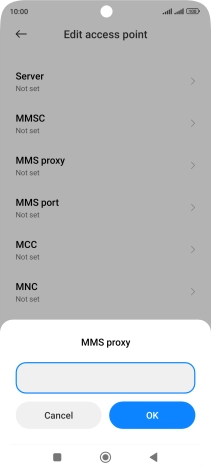

Key in 212.183.137.012 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-fd252066-58a8-42a6-9fe2-4f3241793ff8.png?width=204&height=452)
212.183.137.012
9. Enter port number
Press MMS port.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-0f98e9b8-56b0-4c22-bc15-cfa8c5b77deb.png?width=204&height=452)
Key in 8799 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-e4dab6b6-93a1-435c-ab04-8115f83a6e88.png?width=204&height=452)
8799
10. Enter country code
Press MCC.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-0f98e9b8-56b0-4c22-bc15-cfa8c5b77deb.png?width=204&height=452)
Key in 234 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-789ab8b1-56c4-47c3-974d-0a6a17ed1d9d.png?width=204&height=452)
234
11. Enter network code
Press MNC.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-0f98e9b8-56b0-4c22-bc15-cfa8c5b77deb.png?width=204&height=452)
Key in 15 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-465ad1d3-0cb5-4f86-9d01-90e47e824ea3.png?width=204&height=452)
15
12. Select authentication type
Press Authentication type.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-0f98e9b8-56b0-4c22-bc15-cfa8c5b77deb.png?width=204&height=452)

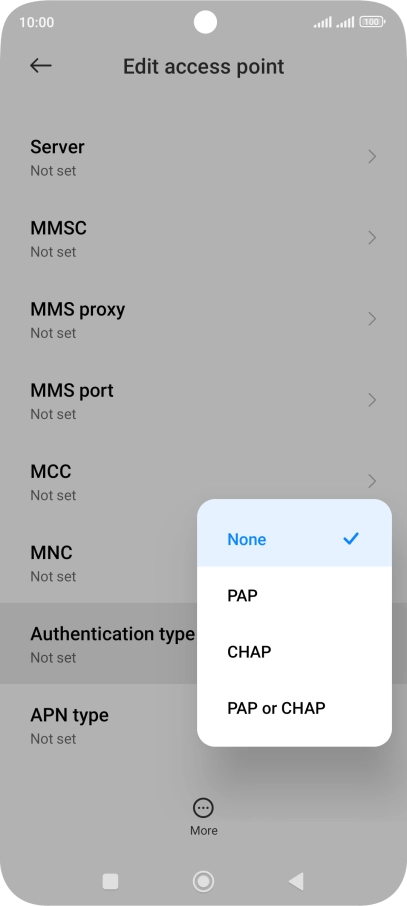

Press None.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-508fe73a-15b3-4eb1-b6be-cce068a5791e.png?width=204&height=452)
13. Enter APN type
Press APN type.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-0f98e9b8-56b0-4c22-bc15-cfa8c5b77deb.png?width=204&height=452)

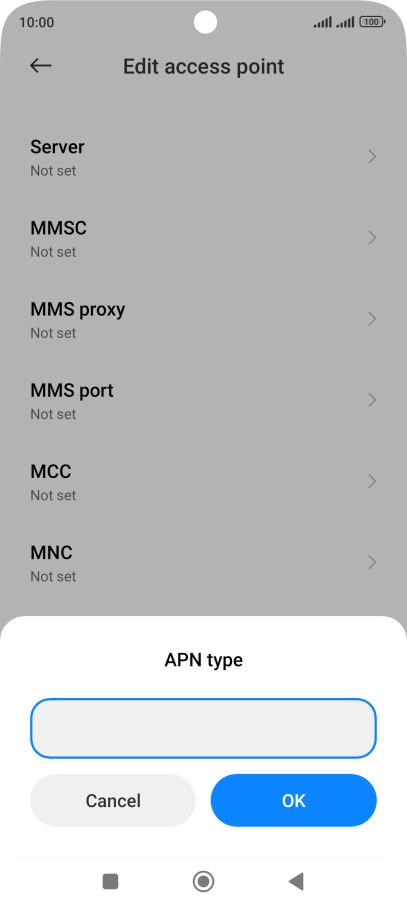

Key in mms and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-cfe5c08a-397b-4ab2-9582-548936e732cc.png?width=204&height=452)
mms
14. Save data connection
Press More.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-0f98e9b8-56b0-4c22-bc15-cfa8c5b77deb.png?width=204&height=452)

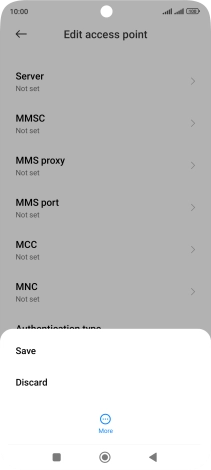

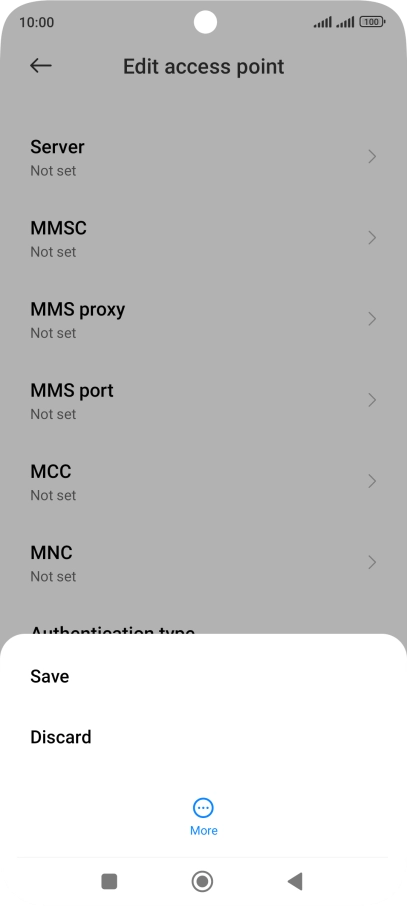

Press Save.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-768ea9ad-1f8b-4187-b590-098982c2256e.png?width=204&height=452)

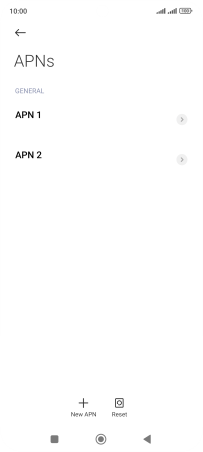

15. Return to the home screen

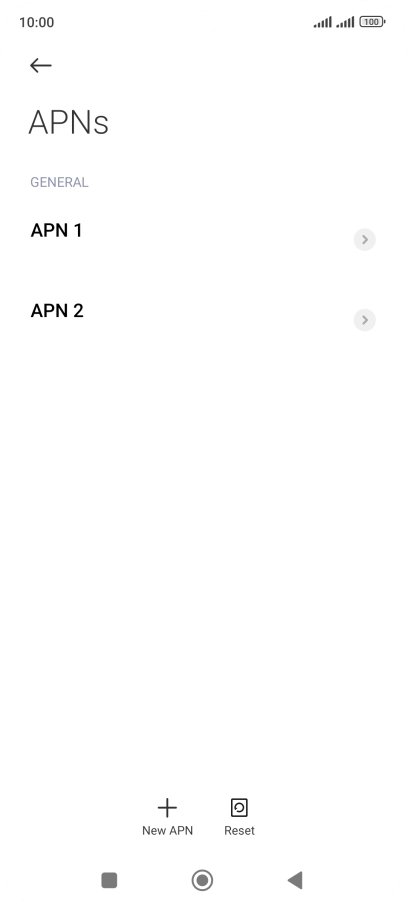

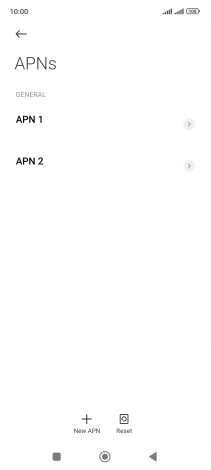

Press the Home key to return to the home screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-d2aef804-9e7a-4653-8c62-276e06e09257.png?width=204&height=452)
