Alcatel 1B (2020)

1. Find "Access Point Names"

Slide two fingers downwards starting from the top of the screen.

1. Find "Access Point Names"

Press the settings icon.

1. Find "Access Point Names"

Press Network & internet.

1. Find "Access Point Names"

Press Mobile network.

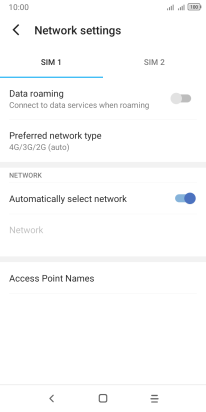

1. Find "Access Point Names"

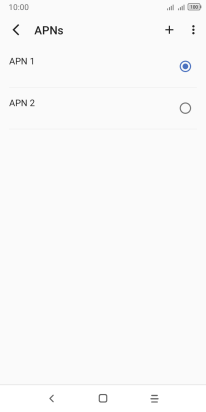

Press Access Point Names.

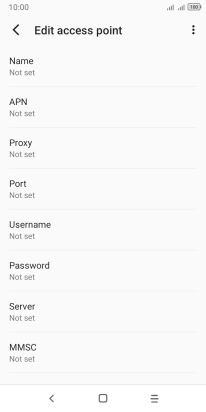

2. Create new data connection

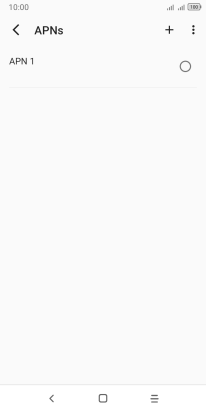

Press the add icon.

2. Create new data connection

Press Name.

2. Create new data connection

Key in Vodafone Internet and press OK.

3. Enter APN

Press APN.

3. Enter APN

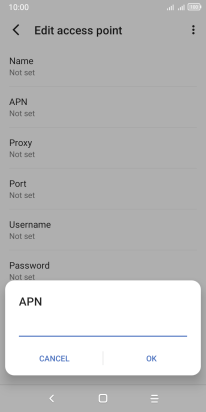

Key in wap.vodafone.co.uk and press OK.

4. Enter username

Press Username.

4. Enter username

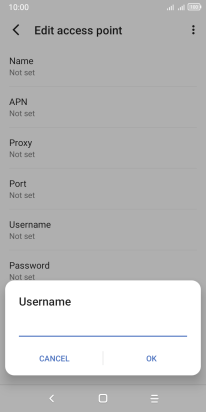

Key in wap and press OK.

5. Enter password

Press Password.

5. Enter password

Key in wap and press OK.

6. Enter country code

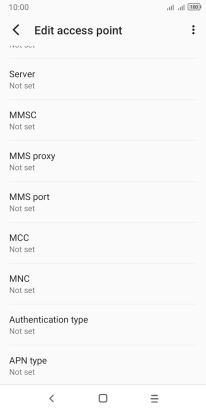

Press MCC.

6. Enter country code

Key in 234 and press OK.

7. Enter network code

Press MNC.

7. Enter network code

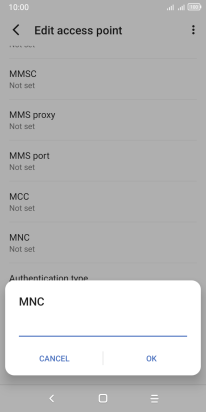

Key in 15 and press OK.

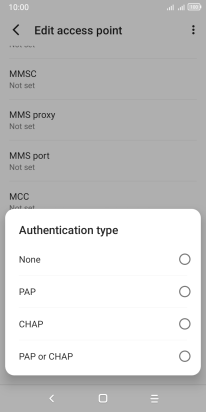

8. Select authentication type

Press Authentication type.

8. Select authentication type

Press None.

9. Enter APN type

Press APN type.

9. Enter APN type

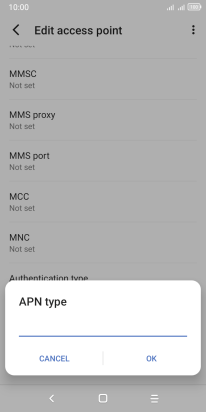

Key in default and press OK.

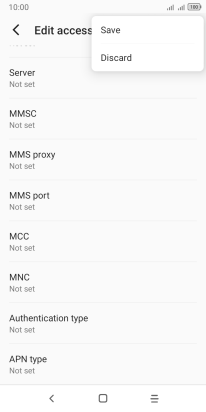

10. Save data connection

Press the menu icon.

10. Save data connection

Press Save.

10. Save data connection

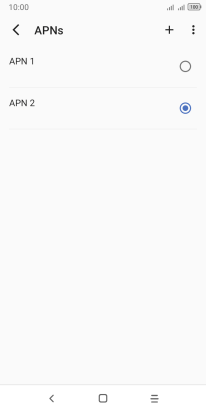

Press the field next to the data connection to activate it.

11. Return to the home screen

Press the Home key to return to the home screen.
