Set up your Huawei P40 lite 5G Android 10.0 for internet

Read help info

The internet connection is shared by many functions on your phone such as internet browsing, receiving email messages and installing apps. You can access the internet as soon as you've inserted your SIM. If this isn't the case, you can set up your phone for internet manually.

Press Settings.
Step 1 of 25

1. Find "Access Point Names (APNs)"

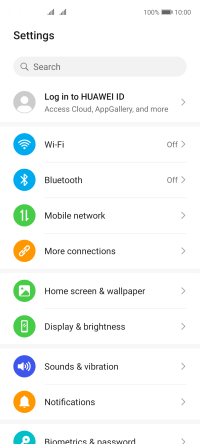

Press Settings.

Press Mobile network.
Step 2 of 25

1. Find "Access Point Names (APNs)"

Press Mobile network.

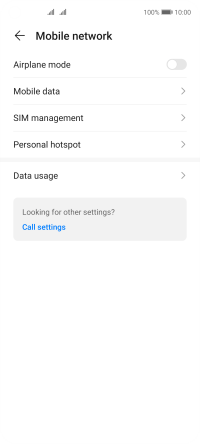

Press Mobile data.
Step 3 of 25

1. Find "Access Point Names (APNs)"

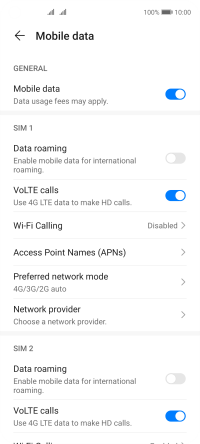

Press Mobile data.

Press Access Point Names (APNs) below the required SIM.
Step 4 of 25

1. Find "Access Point Names (APNs)"

Press Access Point Names (APNs) below the required SIM.

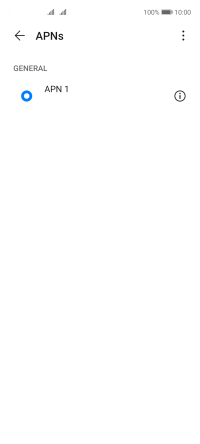

Press the menu icon.
Step 5 of 25

2. Create new data connection

Press the menu icon.

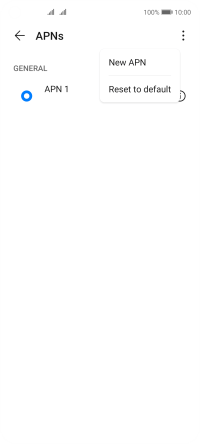

Press New APN.
Step 6 of 25

2. Create new data connection

Press New APN.

Press Name.
Step 7 of 25

3. Enter a name for the connection

Press Name.

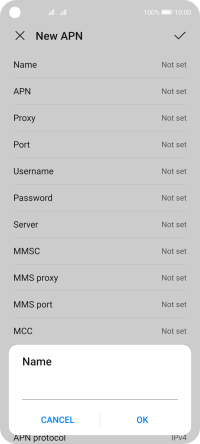

Key in Vodafone Internet and press OK.
Vodafone Internet
Step 8 of 25

3. Enter a name for the connection

Key in Vodafone Internet and press OK.

Press APN.
Step 9 of 25

4. Enter APN

Press APN.

Key in wap.vodafone.co.uk and press OK.
wap.vodafone.co.uk
Step 10 of 25

4. Enter APN

Key in wap.vodafone.co.uk and press OK.

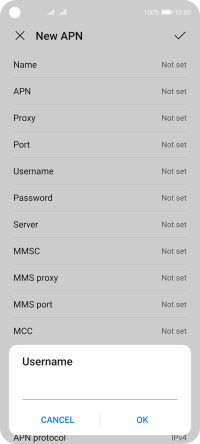

Press Username.
Step 11 of 25

5. Enter username

Press Username.

Key in wap and press OK.
wap
Step 12 of 25

5. Enter username

Key in wap and press OK.

Press Password.
Step 13 of 25

6. Enter password

Press Password.

Key in wap and press OK.
wap
Step 14 of 25

6. Enter password

Key in wap and press OK.

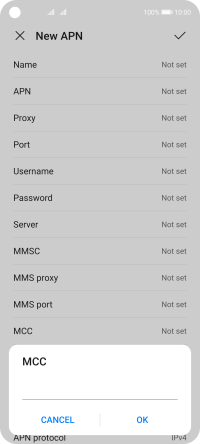

Press MCC.
Step 15 of 25

7. Enter country code

Press MCC.

Key in 234 and press OK.
234
Step 16 of 25

7. Enter country code

Key in 234 and press OK.

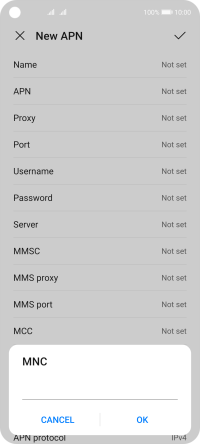

Press MNC.
Step 17 of 25

8. Enter network code

Press MNC.

Key in 15 and press OK.
15
Step 18 of 25

8. Enter network code

Key in 15 and press OK.

Press Authentication type.
Step 19 of 25

9. Select authentication type

Press Authentication type.

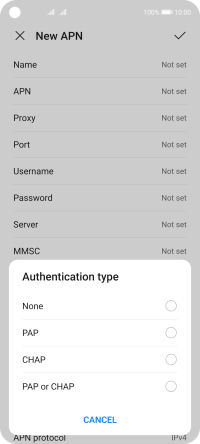

Press None.
Step 20 of 25

9. Select authentication type

Press None.

Press APN type.
Step 21 of 25

10. Enter APN type

Press APN type.

Key in default and press OK.
default
Step 22 of 25

10. Enter APN type

Key in default and press OK.

Press the confirm icon.
Step 23 of 25

11. Save data connection

Press the confirm icon.

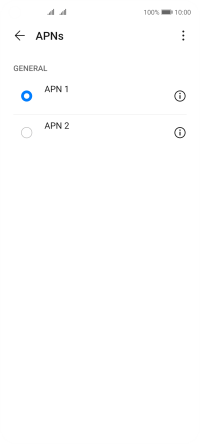

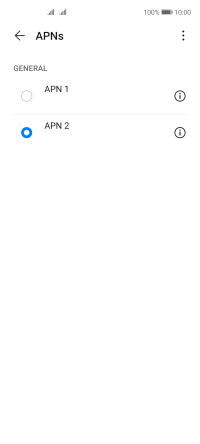

Press the field next to the required data connection to activate it.
Step 24 of 25

11. Save data connection

Press the field next to the required data connection to activate it.

Slide your finger upwards starting from the bottom of the screen to return to the home screen.
Step 25 of 25

12. Return to the home screen

Slide your finger upwards starting from the bottom of the screen to return to the home screen.

1. Find "Access Point Names (APNs)"

Press Settings.
Press Mobile network.
Press Mobile data.
Press Access Point Names (APNs) below the required SIM.

2. Create new data connection

Press the menu icon.
Press New APN.

3. Enter a name for the connection

Press Name.
Key in Vodafone Internet and press OK.
Vodafone Internet

4. Enter APN

Press APN.
Key in wap.vodafone.co.uk and press OK.
wap.vodafone.co.uk

5. Enter username

Press Username.
Key in wap and press OK.
wap

6. Enter password

Press Password.
Key in wap and press OK.
wap

7. Enter country code

Press MCC.
Key in 234 and press OK.
234

8. Enter network code

Press MNC.
Key in 15 and press OK.
15

9. Select authentication type

Press Authentication type.
Press None.

10. Enter APN type

Press APN type.
Key in default and press OK.
default

11. Save data connection

Press the confirm icon.
Press the field next to the required data connection to activate it.

12. Return to the home screen

Slide your finger upwards starting from the bottom of the screen to return to the home screen.
