Set up your tablet for internet - Lenovo IdeaTab A3000

Read help info

The internet connection is shared by many functions on your tablet such as internet browsing, receiving email messages and installing apps. You can access the internet as soon as you've inserted your SIM. If this isn't the case, you can set up your tablet for internet manually.

Slide your finger downwards starting from the top right side of the display.Press SETTINGS.
Step 1 of 29

Find "Access Point Name"

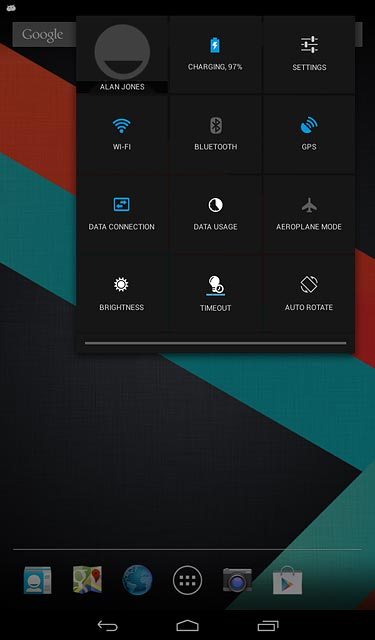

Slide your finger downwards starting from the top right side of the display.

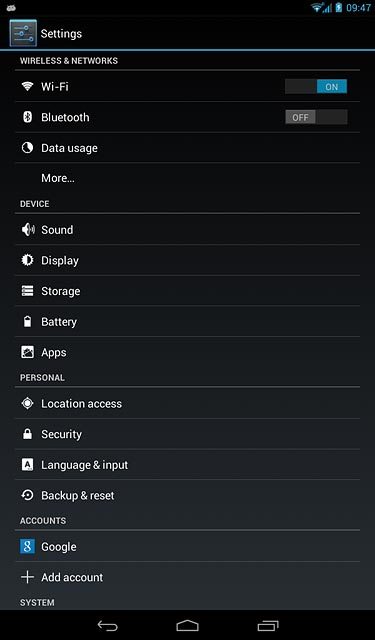

Press SETTINGS.

Press More....
Step 2 of 29

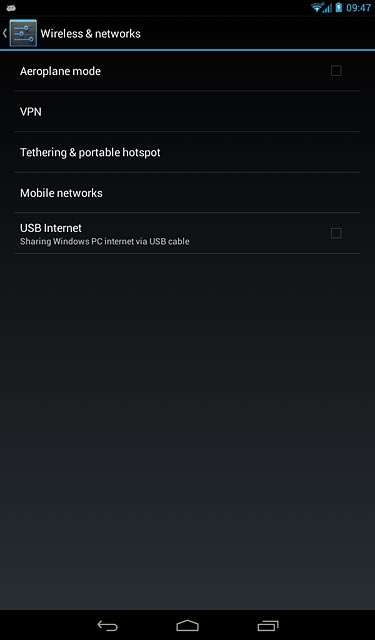

Find "Access Point Name"

Press More....

Press Mobile networks.
Step 3 of 29

Find "Access Point Name"

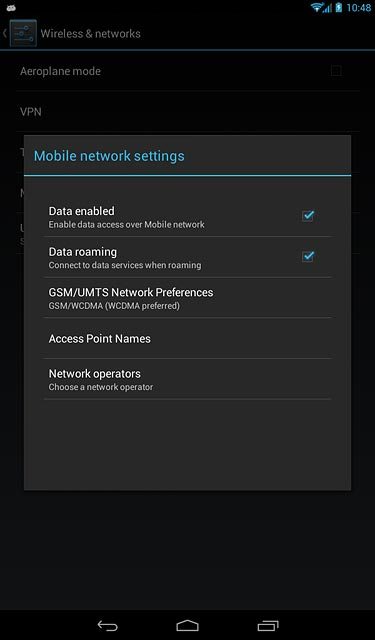

Press Mobile networks.

Press Access Point Name.
Step 4 of 29

Find "Access Point Name"

Press Access Point Name.

Press the menu icon.
Step 5 of 29

Create new data connection

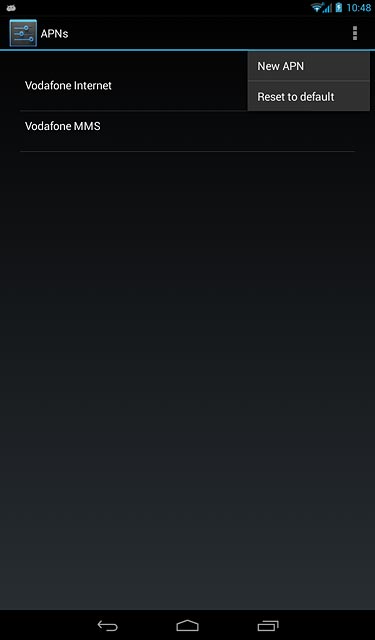

Press the menu icon.

Press New APN.
Step 6 of 29

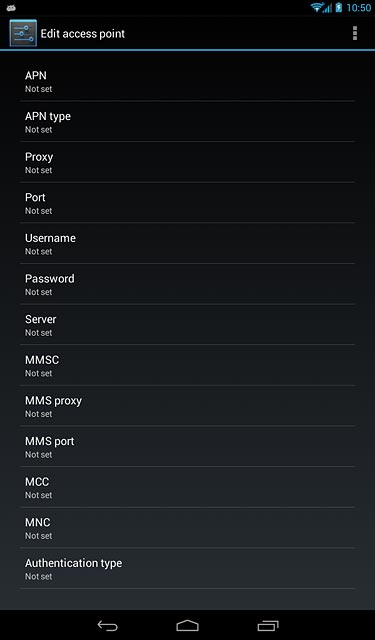

Create new data connection

Press New APN.

Press Name.
Step 7 of 29

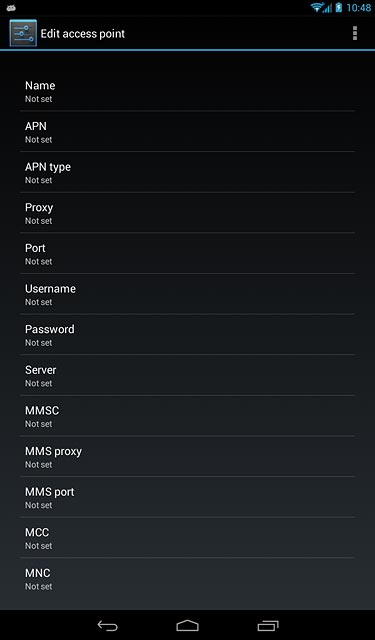

Enter data connection name

Press Name.

Key in Vodafone Internet and press OK.
Step 8 of 29

Enter data connection name

Key in Vodafone Internet and press OK.

Press APN.
Step 9 of 29

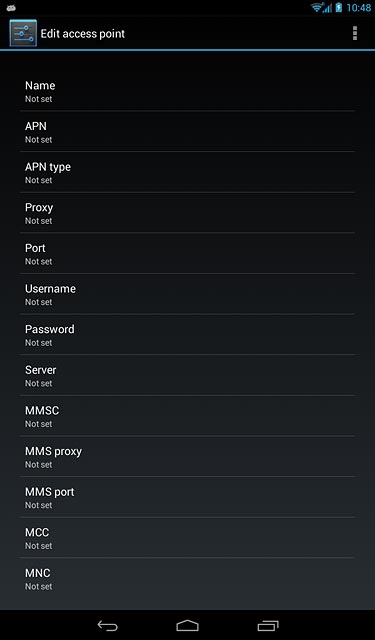

Enter APN

Press APN.

Key in wap.vodafone.co.uk and press OK.
Step 10 of 29

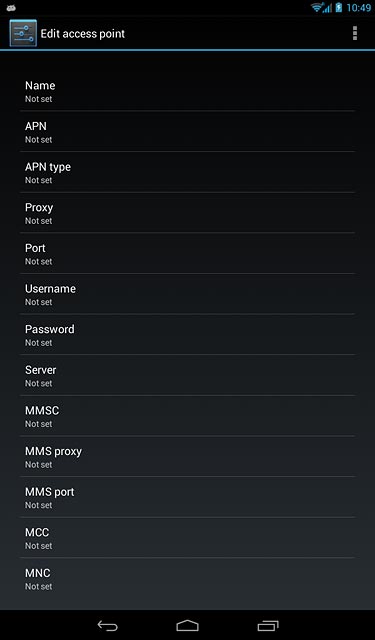

Enter APN

Key in wap.vodafone.co.uk and press OK.

Press APN type.
Step 11 of 29

Select APN type

Press APN type.

Press default until the APN type has been selected.
Step 12 of 29

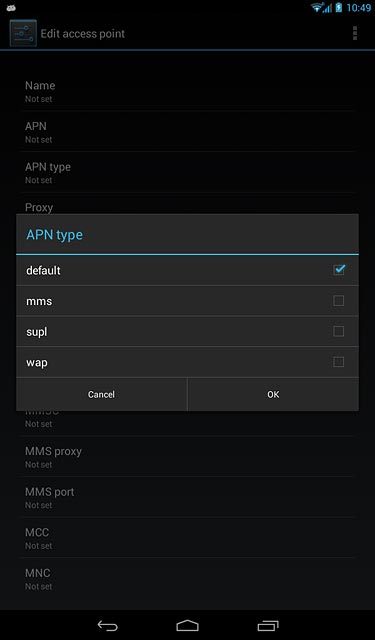

Select APN type

Press default until the APN type has been selected.

Press OK.
Step 13 of 29

Select APN type

Press OK.

Press Username.
Step 14 of 29

Enter username

Press Username.

Key in wap and press OK.
Step 15 of 29

Enter username

Key in wap and press OK.

Press Password.
Step 16 of 29

Enter password

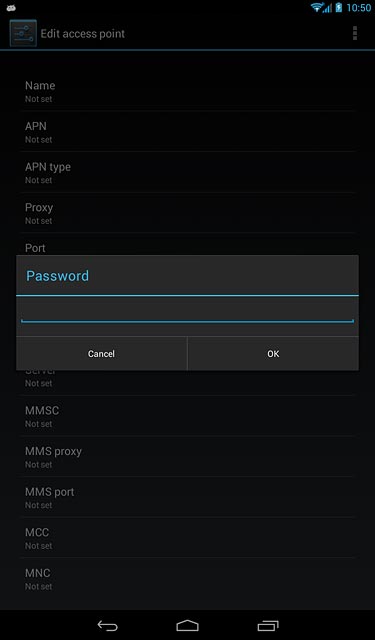

Press Password.

Key in wap and press OK.
Step 17 of 29

Enter password

Key in wap and press OK.

Press MCC.
Step 18 of 29

Enter country code

Press MCC.

Key in 234 and press OK.
Step 19 of 29

Enter country code

Key in 234 and press OK.

Press MNC.
Step 20 of 29

Enter network code

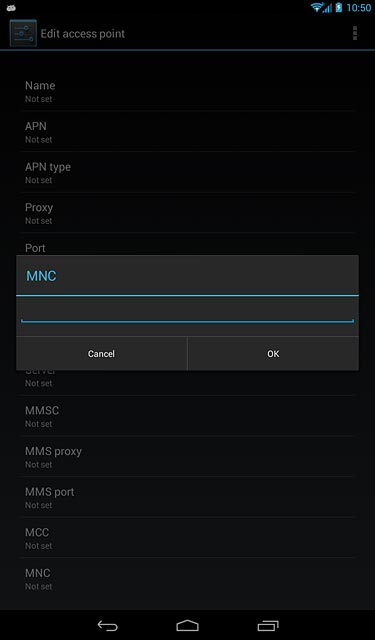

Press MNC.

Key in 15 and press OK.
Step 21 of 29

Enter network code

Key in 15 and press OK.

Press Authentication type.
Step 22 of 29

Select authentication type

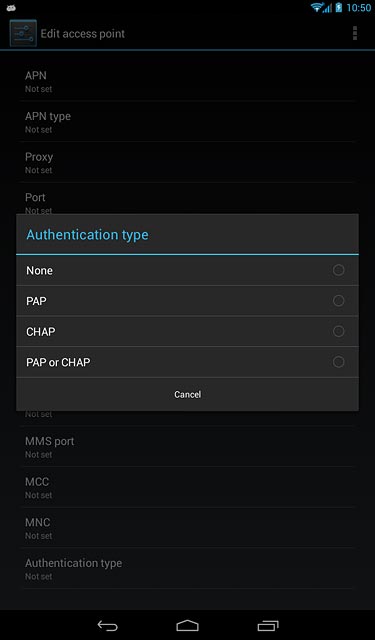

Press Authentication type.

Press None.
Step 23 of 29

Select authentication type

Press None.

Press Bearer.
Step 24 of 29

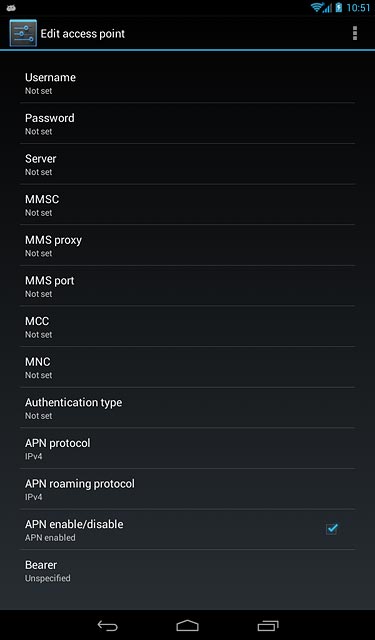

Select data bearer

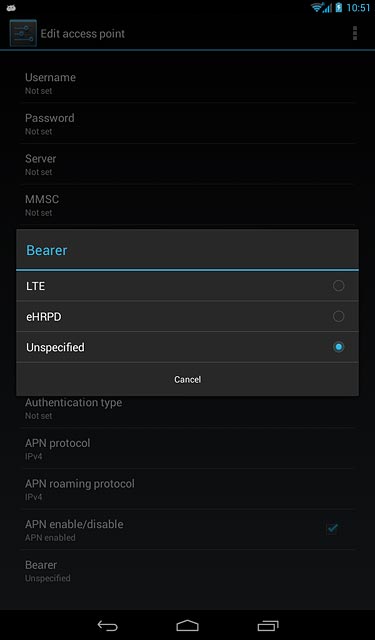

Press Bearer.

Press Unspecified.
Step 25 of 29

Select data bearer

Press Unspecified.

Press the menu icon.
Step 26 of 29

Save and activate data connection

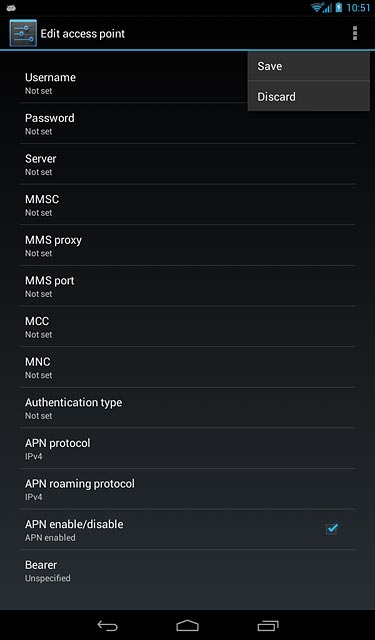

Press the menu icon.

Press Save.
Step 27 of 29

Save and activate data connection

Press Save.

Press the field next to the data connection to fill in the field.
Step 28 of 29

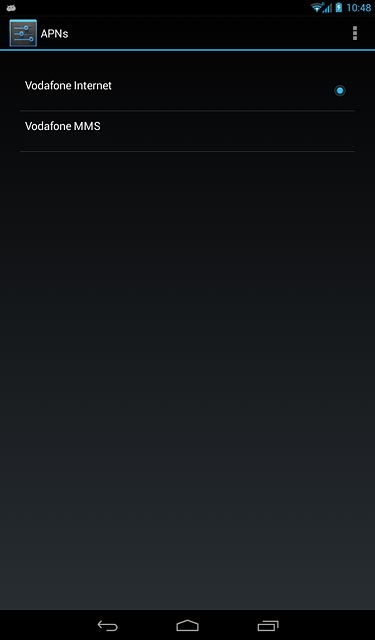

Save and activate data connection

Press the field next to the data connection to fill in the field.

Press the home icon to return to the home screen.
Step 29 of 29

Return to the home screen

Press the home icon to return to the home screen.

Find "Access Point Name"

Slide your finger downwards starting from the top right side of the display.
Press SETTINGS.
Press More....
Press Mobile networks.
Press Access Point Name.

Create new data connection

Press the menu icon.
Press New APN.

Enter data connection name

Press Name.
Key in Vodafone Internet and press OK.

Enter APN

Press APN.
Key in wap.vodafone.co.uk and press OK.

Select APN type

Press APN type.
Press default until the APN type has been selected.
Press OK.

Enter username

Press Username.
Key in wap and press OK.

Enter password

Press Password.
Key in wap and press OK.

Enter country code

Press MCC.
Key in 234 and press OK.

Enter network code

Press MNC.
Key in 15 and press OK.

Select authentication type

Press Authentication type.
Press None.

Select data bearer

Press Bearer.
Press Unspecified.

Save and activate data connection

Press the menu icon.
Press Save.
Press the field next to the data connection to fill in the field.

Return to the home screen

Press the home icon to return to the home screen.
