Set up your MobiWire Oneida Proprietary OS for internet

Read help info

The internet connection is shared by many functions on your phone such as internet browsing, receiving email messages and installing apps. You can access the internet as soon as you've inserted your SIM. If this isn't the case, you can set up your phone for internet manually.

Step 1 of 26

1. Find "Access point names"

Select the menu icon.

Step 2 of 26

1. Find "Access point names"

Select Settings.

Step 3 of 26

1. Find "Access point names"

Select Network & Internet.

Step 4 of 26

1. Find "Access point names"

Select Mobile network.

Step 5 of 26

1. Find "Access point names"

Select Access point names.

Step 6 of 26

2. Create new data connection

Select the add icon.

Step 7 of 26

2. Create new data connection

Select Name.

Vodafone Internet
Step 8 of 26

2. Create new data connection

Key in Vodafone Internet and select OK.

Step 9 of 26

3. Enter APN

Select APN.

wap.vodafone.co.uk
Step 10 of 26

3. Enter APN

Key in wap.vodafone.co.uk and press OK.

Step 11 of 26

4. Enter username

Select Username.

wap
Step 12 of 26

4. Enter username

Key in wap and select OK.

Step 13 of 26

5. Enter password

Select Password.

wap
Step 14 of 26

5. Enter password

Key in wap and select OK.

Step 15 of 26

6. Enter country code

Select MCC.

234
Step 16 of 26

6. Enter country code

Key in 234 and select OK.

Step 17 of 26

7. Enter network code

Select MNC.

15
Step 18 of 26

7. Enter network code

Key in 15 and select OK.

Step 19 of 26

8. Select authentication type

Select Authentication type.

Step 20 of 26

8. Select authentication type

Select None.

Step 21 of 26

9. Enter APN type

Select APN type.

default
Step 22 of 26

9. Enter APN type

Key in default and select OK.

Step 23 of 26

10. Save data connection

Press the Left selection key.

Step 24 of 26

10. Save data connection

Select Save.

Step 25 of 26

10. Save data connection

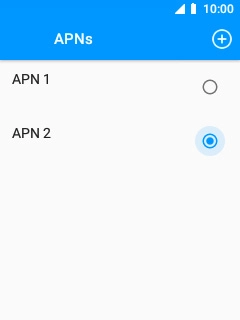

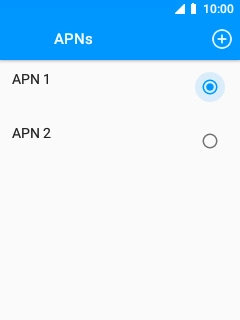

Select the field next to the data connection to activate it.

Step 26 of 26

11. Return to the home screen

Press Disconnect to return to the home screen.

1. Find "Access point names"

Select the menu icon.
Select Settings.
Select Network & Internet.
Select Mobile network.
Select Access point names.

2. Create new data connection

Select the add icon.
Select Name.
Key in Vodafone Internet and select OK.
Vodafone Internet

3. Enter APN

Select APN.
Key in wap.vodafone.co.uk and press OK.
wap.vodafone.co.uk

4. Enter username

Select Username.
Key in wap and select OK.
wap

5. Enter password

Select Password.
Key in wap and select OK.
wap

6. Enter country code

Select MCC.
Key in 234 and select OK.
234

7. Enter network code

Select MNC.
Key in 15 and select OK.
15

8. Select authentication type

Select Authentication type.
Select None.

9. Enter APN type

Select APN type.
Key in default and select OK.
default

10. Save data connection

Press the Left selection key.
Select Save.
Select the field next to the data connection to activate it.

11. Return to the home screen

Press Disconnect to return to the home screen.
