![Motorola Moto G04](http://wmstatic.global.ssl.fastly.net/ml/7190624-f-2579c56a-8eba-4403-bf7a-31bc34c802c5.png?width=150&height=320)
Motorola Moto G04
Android 14
1. Find "Access point names"
Slide two fingers downwards starting from the top of the screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7190624-f-b0f238f3-891b-4f1a-a14c-eef25bff6c27.png?width=200&height=446)
Press the settings icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7190624-f-fcef69e9-1a42-4657-97f5-3204808b3db9.png?width=200&height=446)
Press Network & Internet.
![](http://wmstatic.global.ssl.fastly.net/ml/7190624-f-78d378d8-456e-4171-af78-5fa8032939c7.png?width=200&height=446)
Press Mobile network.
![](http://wmstatic.global.ssl.fastly.net/ml/7190624-f-9fb8ed05-e793-409a-ab46-a548cd694d48.png?width=200&height=446)
Press the name of the SIM.
![](http://wmstatic.global.ssl.fastly.net/ml/7190624-f-b3ddc2e9-389e-4e49-96ef-6b78c6be583d.png?width=200&height=446)
Press Access point names.
![](http://wmstatic.global.ssl.fastly.net/ml/7190624-f-1fc7e1cf-30c4-45f0-a867-91394cfa00e0.png?width=200&height=446)
2. Create new data connection

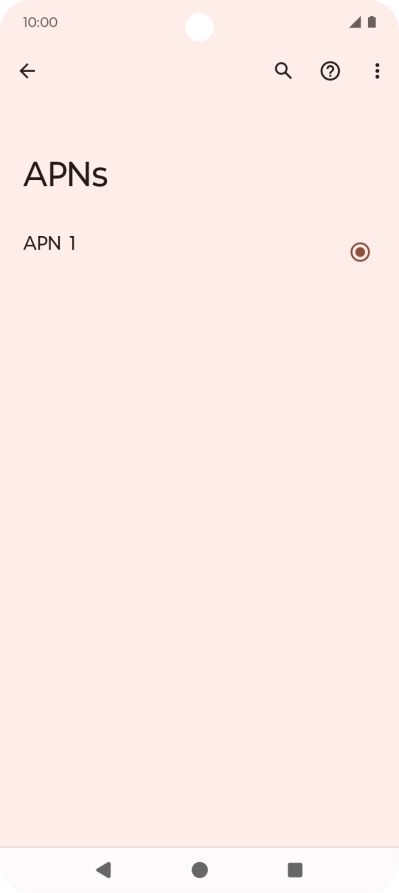

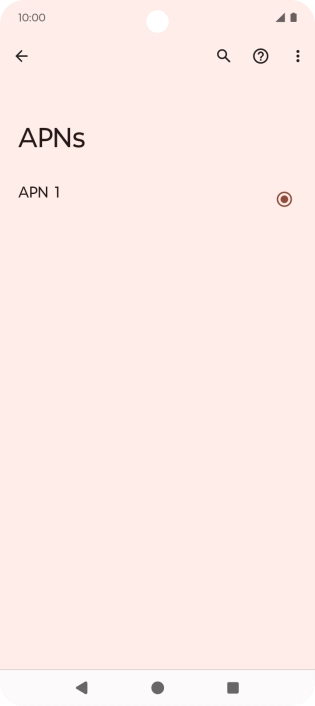

Press the menu icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7190624-f-dd6c2248-f0e7-4246-a582-211ab5147144.png?width=200&height=446)

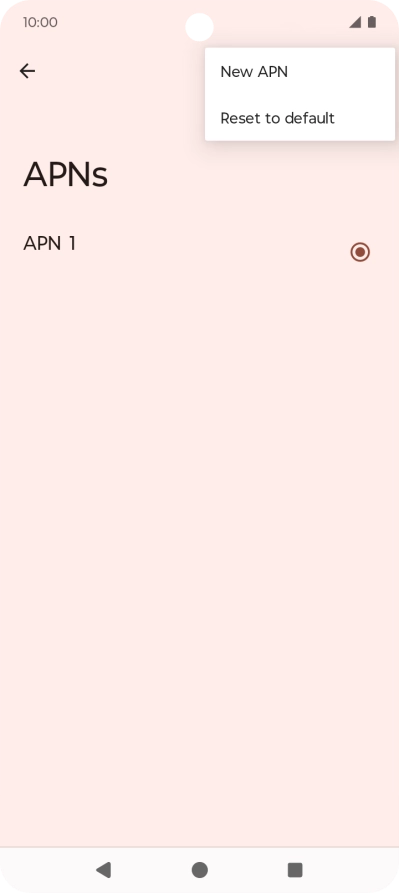

Press New APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7190624-f-6794557e-4761-4216-8d2d-593698848304.png?width=200&height=446)
3. Enter a name for the connection

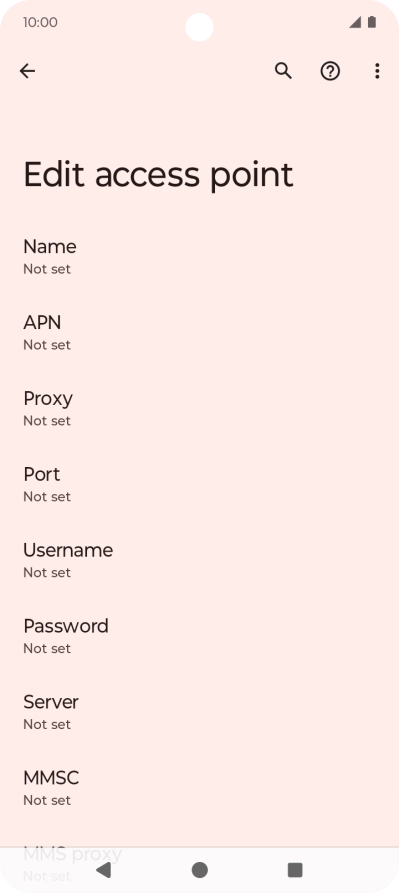

Press Name.
![](http://wmstatic.global.ssl.fastly.net/ml/7190624-f-36dcfc05-7c4e-4281-b6e2-c377aa0ced16.png?width=200&height=446)

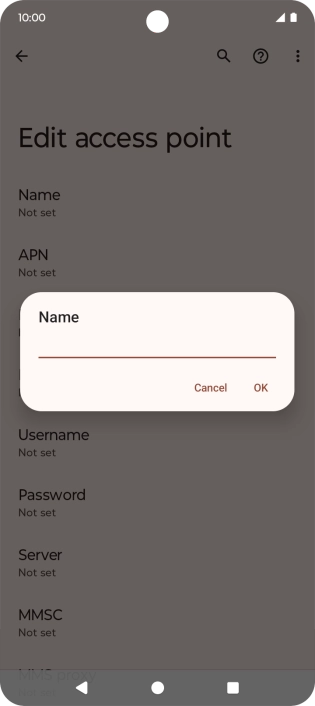

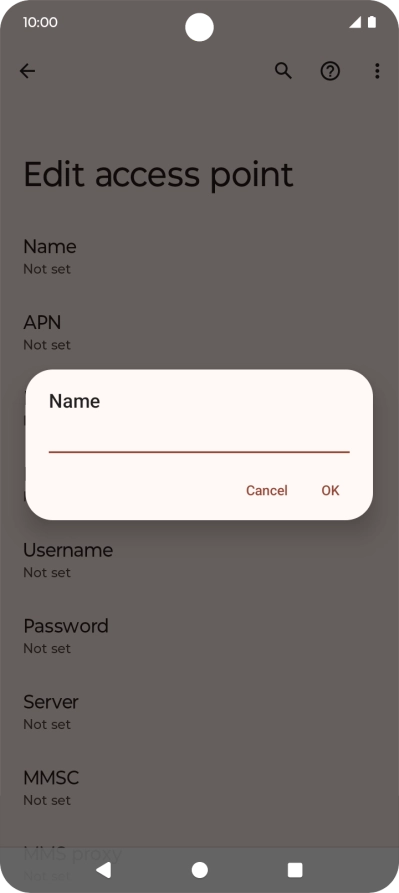

Key in Vodafone MMS and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7190624-f-29b48557-6866-421b-91b4-4a828e754c6c.png?width=200&height=446)
Vodafone MMS
4. Enter APN
Press APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7190624-f-36dcfc05-7c4e-4281-b6e2-c377aa0ced16.png?width=200&height=446)

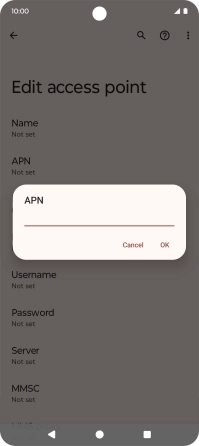

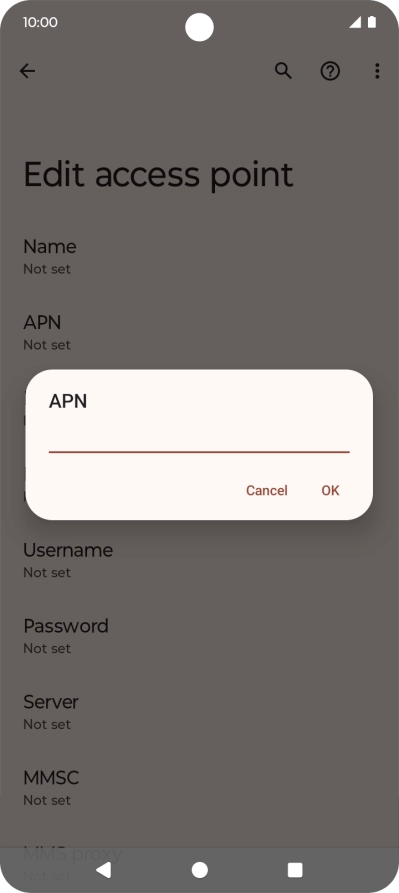

Key in wap.vodafone.co.uk and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7190624-f-ecdcaeba-3b44-4fa5-80da-ee99dadf6d38.png?width=200&height=446)
wap.vodafone.co.uk
5. Enter username
Press Username.
![](http://wmstatic.global.ssl.fastly.net/ml/7190624-f-36dcfc05-7c4e-4281-b6e2-c377aa0ced16.png?width=200&height=446)

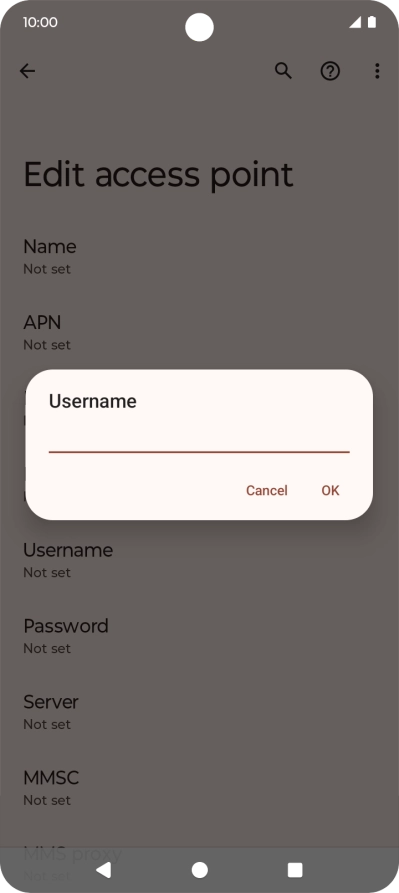

Key in wap and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7190624-f-08d7abf4-df31-4897-9afb-58b23b1844be.png?width=200&height=446)
wap
6. Enter password
Press Password.
![](http://wmstatic.global.ssl.fastly.net/ml/7190624-f-36dcfc05-7c4e-4281-b6e2-c377aa0ced16.png?width=200&height=446)
Key in wap and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7190624-f-528a13c1-9697-44b8-8d15-8a5cf26d5370.png?width=200&height=446)
wap
7. Enter picture messaging server
Press MMSC.
![](http://wmstatic.global.ssl.fastly.net/ml/7190624-f-36dcfc05-7c4e-4281-b6e2-c377aa0ced16.png?width=200&height=446)

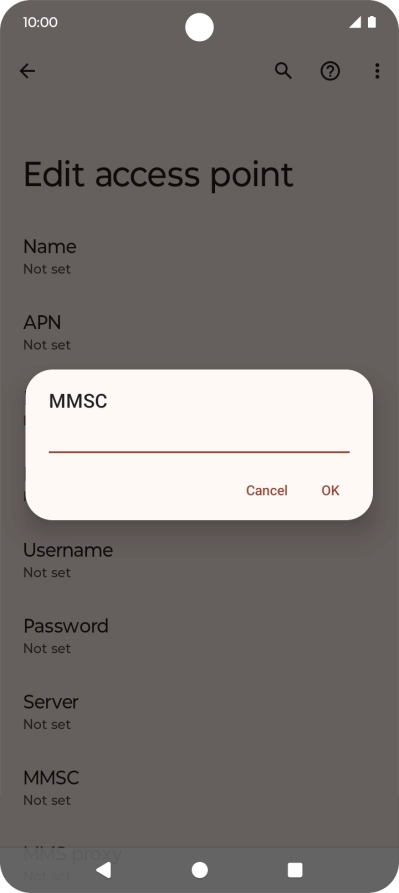

Key in http://mms.vodafone.co.uk/servlets/mms and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7190624-f-13c0d2c4-726b-467d-aa0c-c61a6134b35f.png?width=200&height=446)
http://mms.vodafone.co.uk/servlets/mms
8. Enter IP address

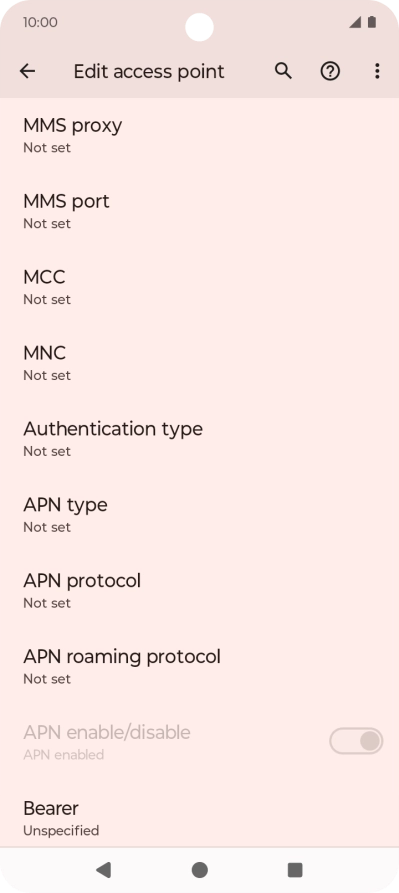

Press MMS proxy.
![](http://wmstatic.global.ssl.fastly.net/ml/7190624-f-ccd6440e-c36e-461d-92db-a3a67314d827.png?width=200&height=446)

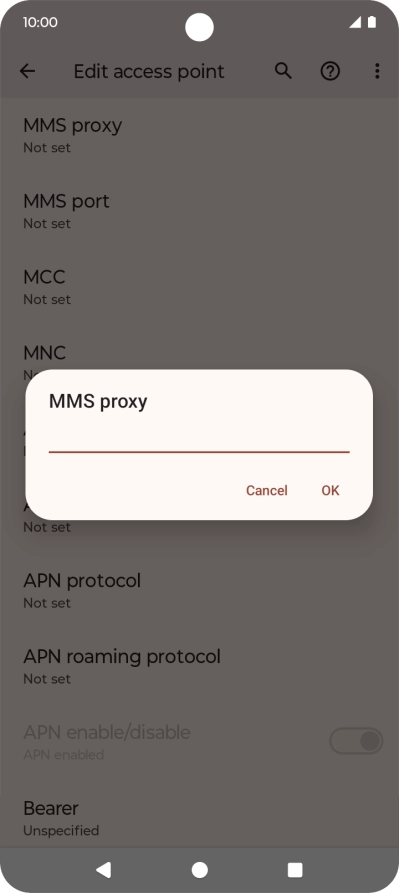

Key in 212.183.137.012 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7190624-f-c3242f26-5ac3-4ca4-bb58-831c7ebefe04.png?width=200&height=446)
212.183.137.012
9. Enter port number
Press MMS port.
![](http://wmstatic.global.ssl.fastly.net/ml/7190624-f-ccd6440e-c36e-461d-92db-a3a67314d827.png?width=200&height=446)

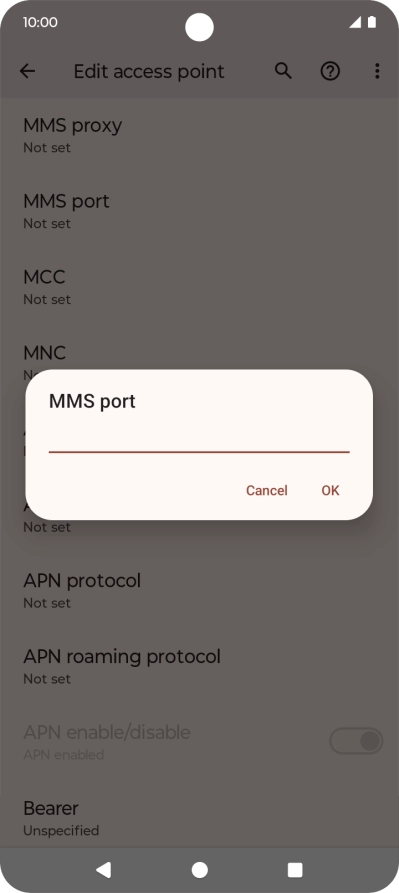

Key in 8799 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7190624-f-cfb37a91-e05f-40c7-b5cc-cb7166a61514.png?width=200&height=446)
8799
10. Enter country code
Press MCC.
![](http://wmstatic.global.ssl.fastly.net/ml/7190624-f-ccd6440e-c36e-461d-92db-a3a67314d827.png?width=200&height=446)
Key in 234 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7190624-f-a19fad8e-cc0e-4b73-81f2-df2d5cb006bd.png?width=200&height=446)
234
11. Enter network code
Press MNC.
![](http://wmstatic.global.ssl.fastly.net/ml/7190624-f-ccd6440e-c36e-461d-92db-a3a67314d827.png?width=200&height=446)

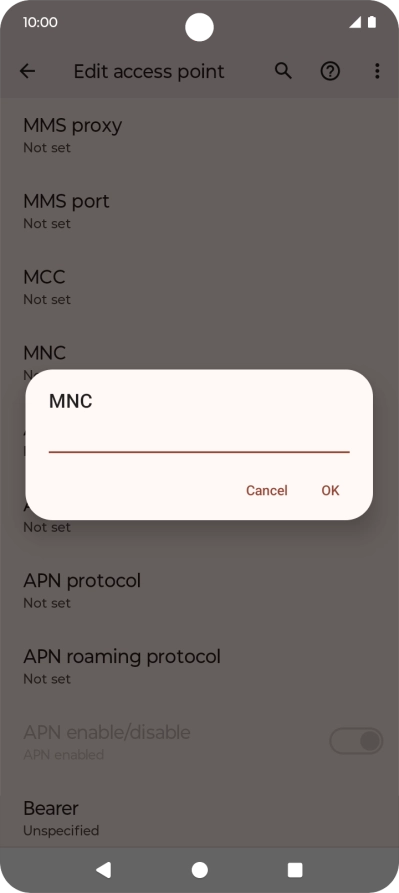

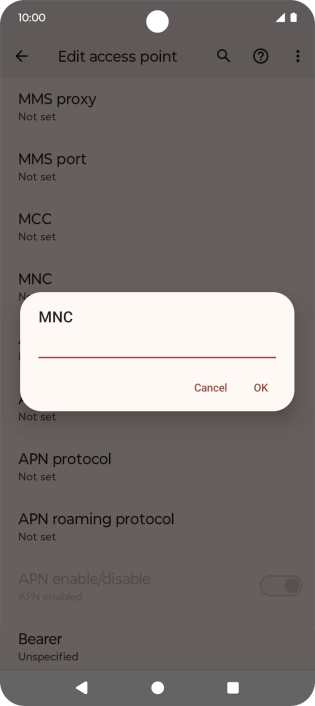

Key in 15 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7190624-f-0142bc45-4946-44a6-aaf5-ddd892171473.png?width=200&height=446)
15
12. Select authentication type
Press Authentication type.
![](http://wmstatic.global.ssl.fastly.net/ml/7190624-f-ccd6440e-c36e-461d-92db-a3a67314d827.png?width=200&height=446)

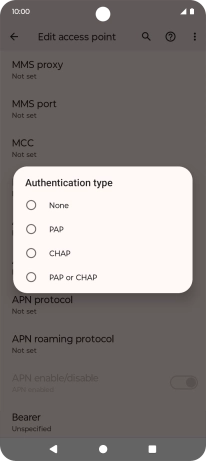

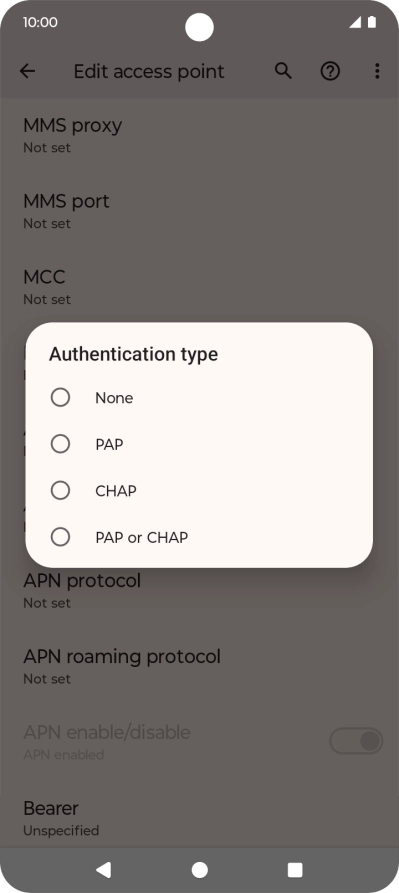

Press None.
![](http://wmstatic.global.ssl.fastly.net/ml/7190624-f-3ab6058e-2671-4dcb-821e-755f8184e220.png?width=200&height=446)
13. Enter APN type
Press APN type.
![](http://wmstatic.global.ssl.fastly.net/ml/7190624-f-ccd6440e-c36e-461d-92db-a3a67314d827.png?width=200&height=446)
Key in mms and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7190624-f-f08e3738-c852-469b-9fc6-13f28c270000.png?width=200&height=446)
mms
14. Save data connection
Press the menu icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7190624-f-ccd6440e-c36e-461d-92db-a3a67314d827.png?width=200&height=446)

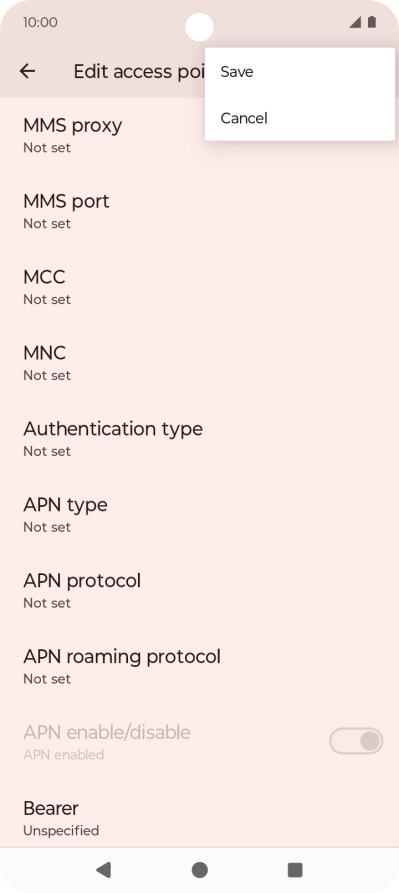

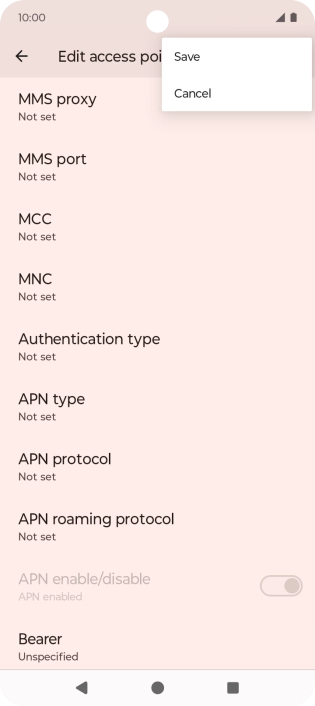

Press Save.
![](http://wmstatic.global.ssl.fastly.net/ml/7190624-f-95fd7aea-df29-4db5-a91d-9795f4f00330.png?width=200&height=446)
15. Return to the home screen

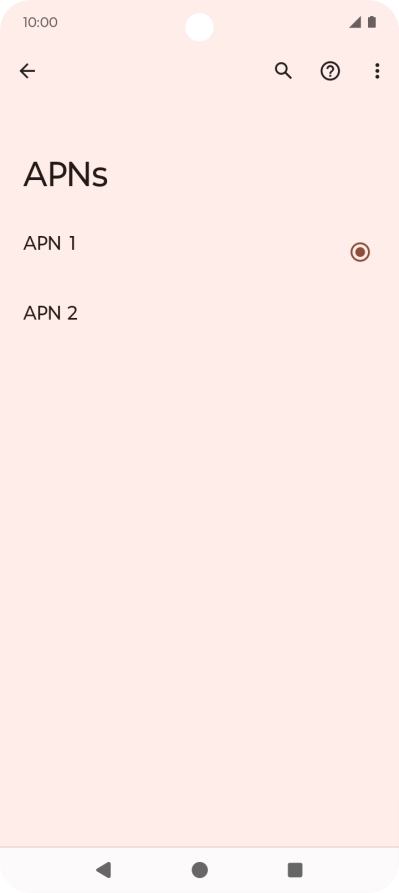

Press the Home key to return to the home screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7190624-f-c4ebd4e9-0af3-4217-909d-3c592fda06ea.png?width=200&height=446)
