![Motorola Moto G34 5G](http://wmstatic.global.ssl.fastly.net/ml/7060524-f-14accfb4-9a46-4149-a4e5-a7b954a3179b.png?width=150&height=320)
Motorola Moto G34 5G
Android 14
1. Find "Access point names"
Slide two fingers downwards starting from the top of the screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7060524-f-7646e64a-eddf-467c-baec-aa1493beb199.png?width=200&height=448)
Press the settings icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7060524-f-f2c3008f-ffcb-4c23-8291-a93c4864051c.png?width=200&height=448)
Press Network & Internet.
![](http://wmstatic.global.ssl.fastly.net/ml/7060524-f-4fa73003-152f-49f8-ab22-75e5e14058c4.png?width=200&height=448)
Press Mobile network.
![](http://wmstatic.global.ssl.fastly.net/ml/7060524-f-75a81019-36f3-4890-a4ab-54f484ea4745.png?width=200&height=448)
Press the name of the SIM.
![](http://wmstatic.global.ssl.fastly.net/ml/7060524-f-4427cfc4-93ae-40e3-8acb-689bbc7658de.png?width=200&height=448)
Press Access point names.
![](http://wmstatic.global.ssl.fastly.net/ml/7060524-f-22a5f7ac-8a4e-4993-94a6-1ae901479534.png?width=200&height=448)
2. Create new data connection

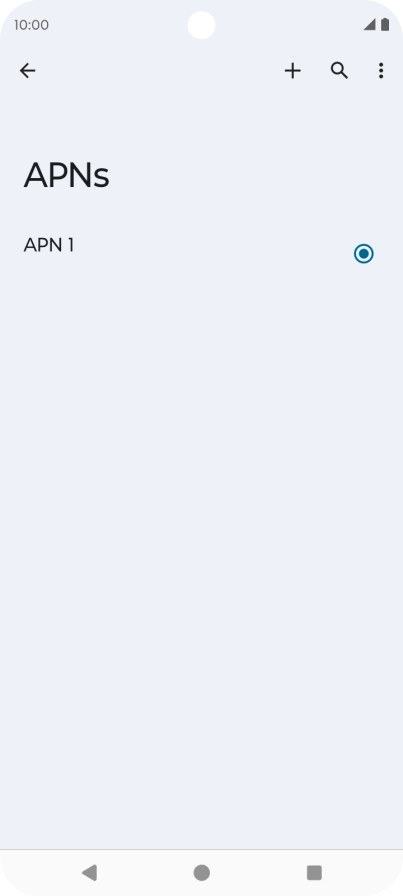

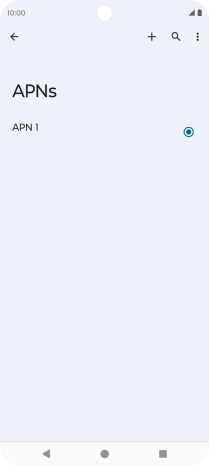

Press the new data connection icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7060524-f-bcf96758-529e-498b-babe-9673ffa37bd7.png?width=200&height=448)
3. Enter a name for the connection

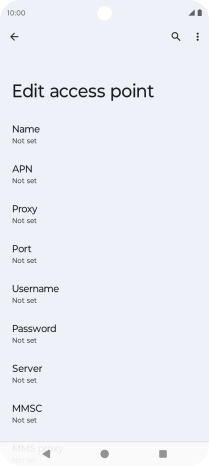

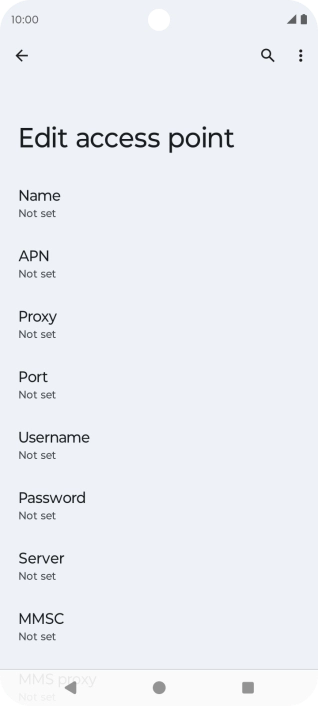

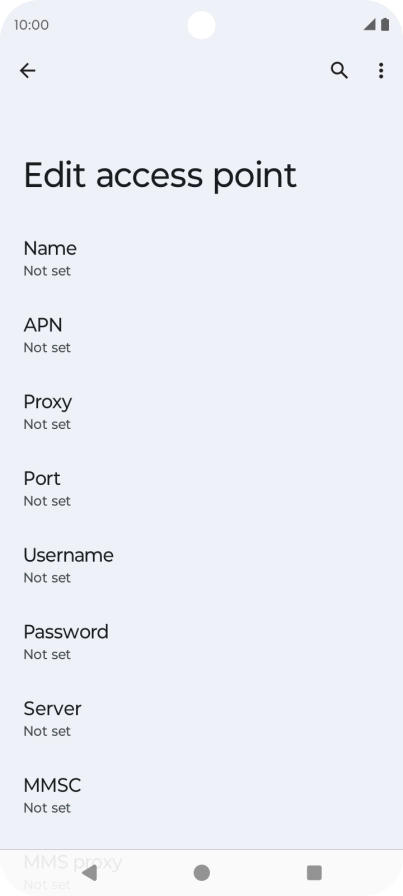

Press Name.
![](http://wmstatic.global.ssl.fastly.net/ml/7060524-f-bb9056f9-cf85-4b36-9af1-65b039e251d8.png?width=200&height=448)

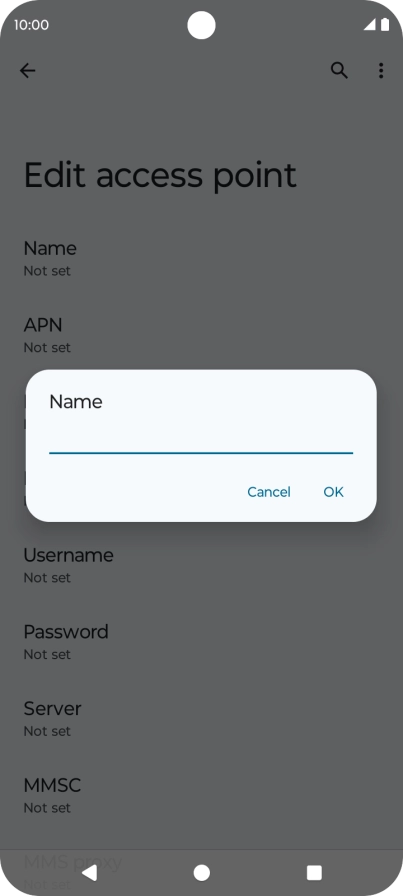

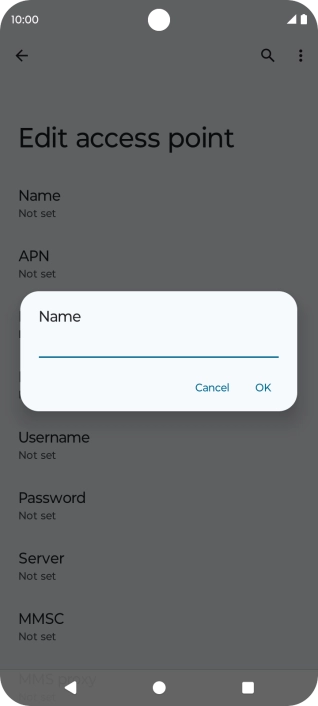

Key in Vodafone MMS and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7060524-f-f972a35b-886c-4e01-b42f-afe47fd6378f.png?width=200&height=448)
Vodafone MMS
4. Enter APN

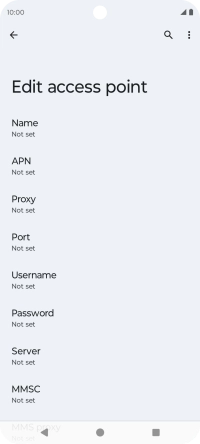

Press APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7060524-f-bb9056f9-cf85-4b36-9af1-65b039e251d8.png?width=200&height=448)

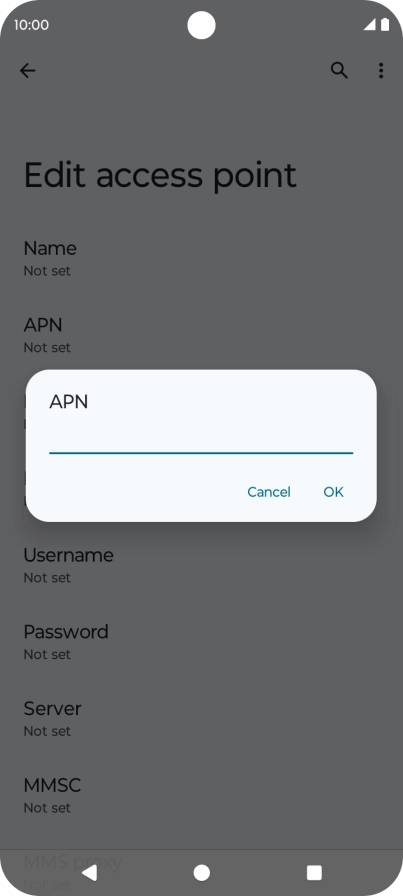

Key in wap.vodafone.co.uk and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7060524-f-6f33d59a-8830-4af6-b14b-57a3c121142b.png?width=200&height=448)
wap.vodafone.co.uk
5. Enter username
Press Username.
![](http://wmstatic.global.ssl.fastly.net/ml/7060524-f-bb9056f9-cf85-4b36-9af1-65b039e251d8.png?width=200&height=448)
Key in wap and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7060524-f-059471ed-6700-4ff7-83d4-5fb146d2fbe1.png?width=200&height=448)
wap
6. Enter password
Press Password.
![](http://wmstatic.global.ssl.fastly.net/ml/7060524-f-bb9056f9-cf85-4b36-9af1-65b039e251d8.png?width=200&height=448)

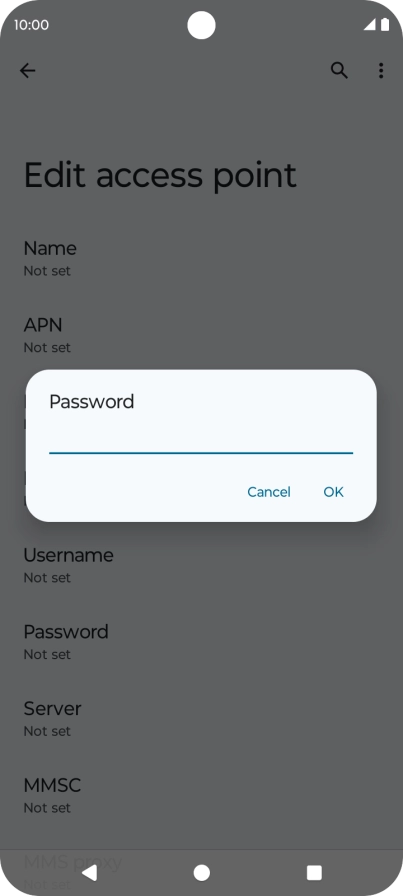

Key in wap and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7060524-f-273d39ba-b01d-42cc-a2e0-6085ab5e5042.png?width=200&height=448)
wap
7. Enter picture messaging server
Press MMSC.
![](http://wmstatic.global.ssl.fastly.net/ml/7060524-f-bb9056f9-cf85-4b36-9af1-65b039e251d8.png?width=200&height=448)

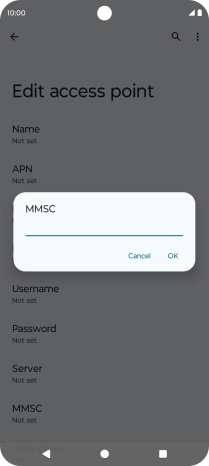

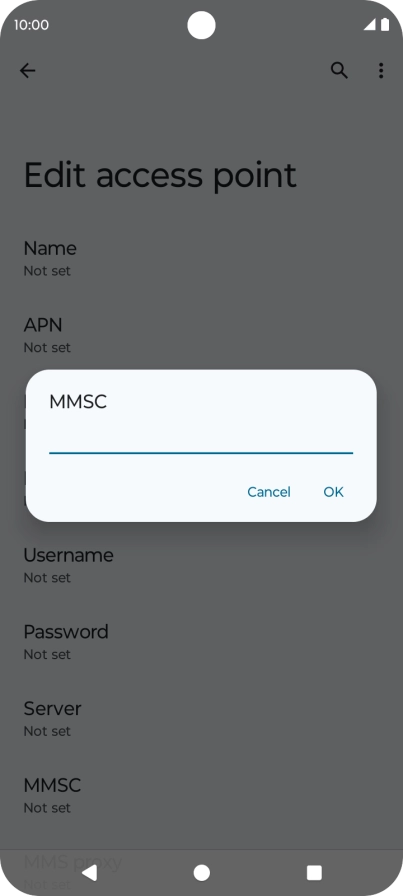

Key in http://mms.vodafone.co.uk/servlets/mms and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7060524-f-ca9b14b0-8ea3-4e0b-bbcb-e85e7f01ffa7.png?width=200&height=448)
http://mms.vodafone.co.uk/servlets/mms
8. Enter IP address

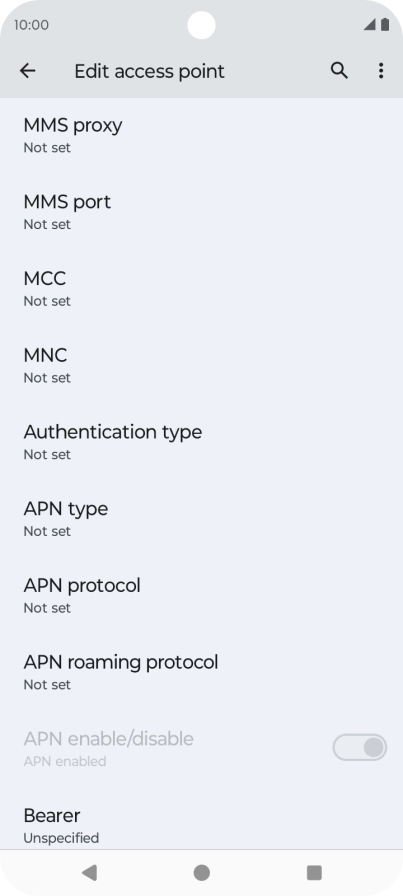

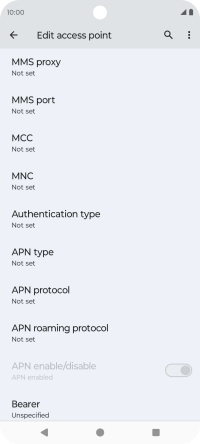

Press MMS proxy.
![](http://wmstatic.global.ssl.fastly.net/ml/7060524-f-f1089bca-94d2-4112-ac2c-07edf50589bb.png?width=200&height=448)

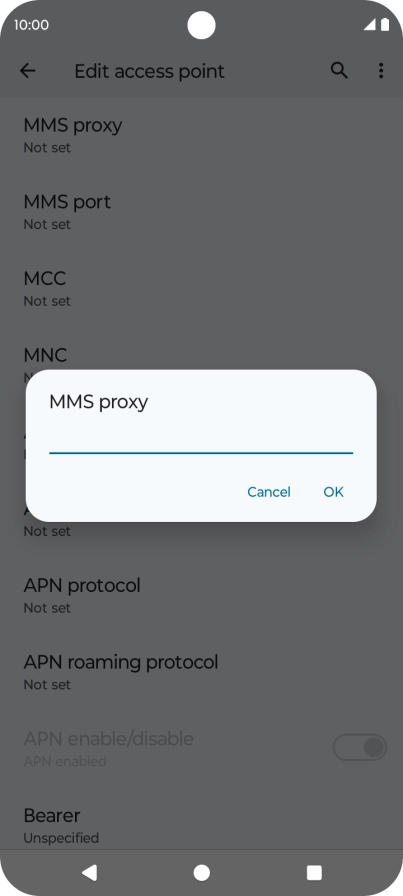

Key in 212.183.137.012 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7060524-f-04fbb241-c53c-41da-8b64-e35df3d6a789.png?width=200&height=448)
212.183.137.012
9. Enter port number

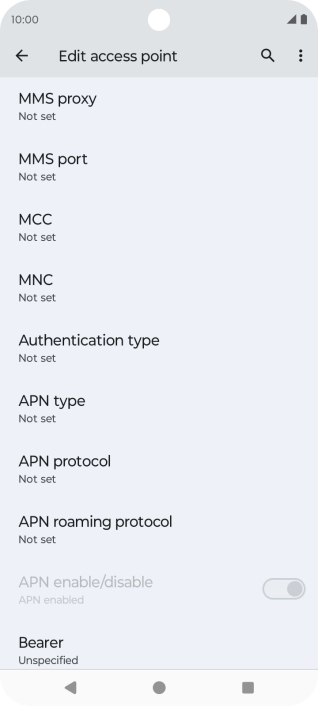

Press MMS port.
![](http://wmstatic.global.ssl.fastly.net/ml/7060524-f-f1089bca-94d2-4112-ac2c-07edf50589bb.png?width=200&height=448)

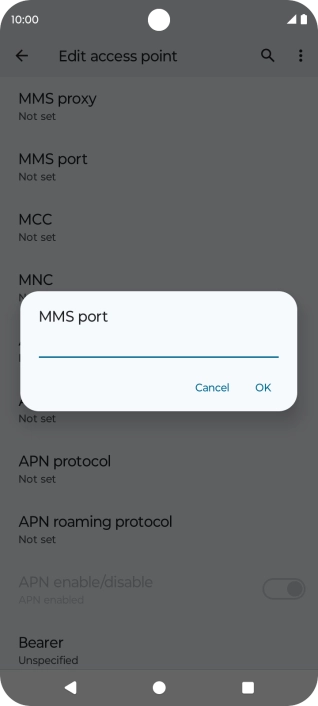

Key in 8799 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7060524-f-634a4800-8cc2-481d-ab34-ca6c1b9b7634.png?width=200&height=448)
8799
10. Enter country code
Press MCC.
![](http://wmstatic.global.ssl.fastly.net/ml/7060524-f-f1089bca-94d2-4112-ac2c-07edf50589bb.png?width=200&height=448)

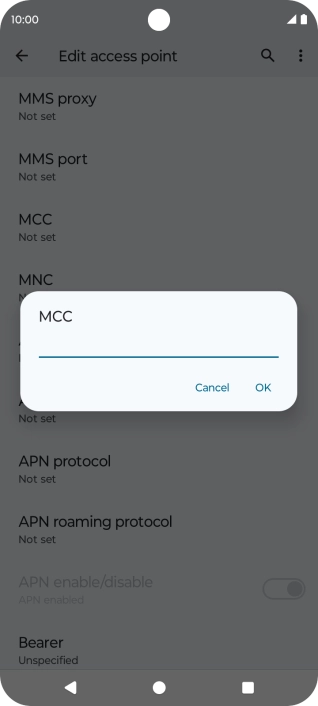

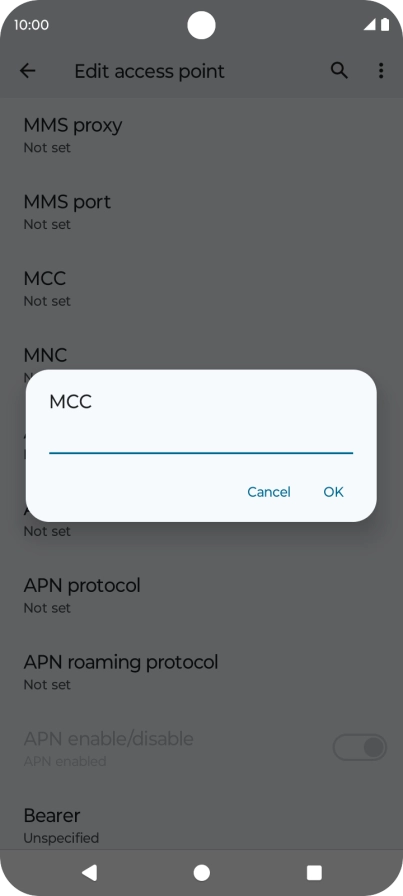

Key in 234 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7060524-f-65914f49-80b7-4404-b20d-68beb9d302ff.png?width=200&height=448)
234
11. Enter network code
Press MNC.
![](http://wmstatic.global.ssl.fastly.net/ml/7060524-f-f1089bca-94d2-4112-ac2c-07edf50589bb.png?width=200&height=448)
Key in 15 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7060524-f-4e6d6a3c-2164-4ac4-90de-c91ddad4b75f.png?width=200&height=448)
15
12. Select authentication type
Press Authentication type.
![](http://wmstatic.global.ssl.fastly.net/ml/7060524-f-f1089bca-94d2-4112-ac2c-07edf50589bb.png?width=200&height=448)

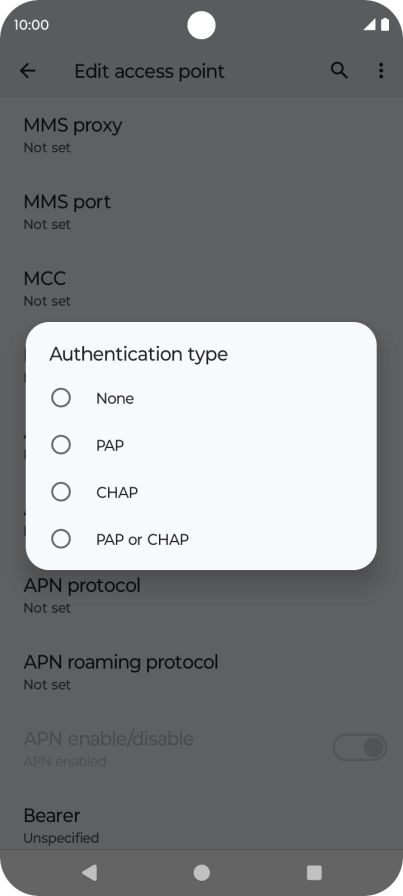

Press None.
![](http://wmstatic.global.ssl.fastly.net/ml/7060524-f-1d451a91-bb47-4099-91f4-32d50a210e14.png?width=200&height=448)
13. Enter APN type
Press APN type.
![](http://wmstatic.global.ssl.fastly.net/ml/7060524-f-f1089bca-94d2-4112-ac2c-07edf50589bb.png?width=200&height=448)

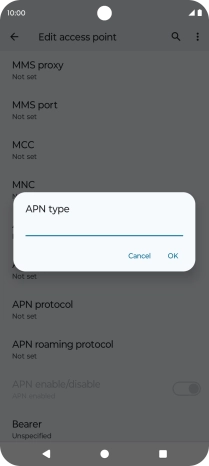

Key in mms and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7060524-f-6144f591-6bef-42de-bc2d-f28a590dc0b2.png?width=200&height=448)
mms
14. Save data connection
Press the menu icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7060524-f-f1089bca-94d2-4112-ac2c-07edf50589bb.png?width=200&height=448)

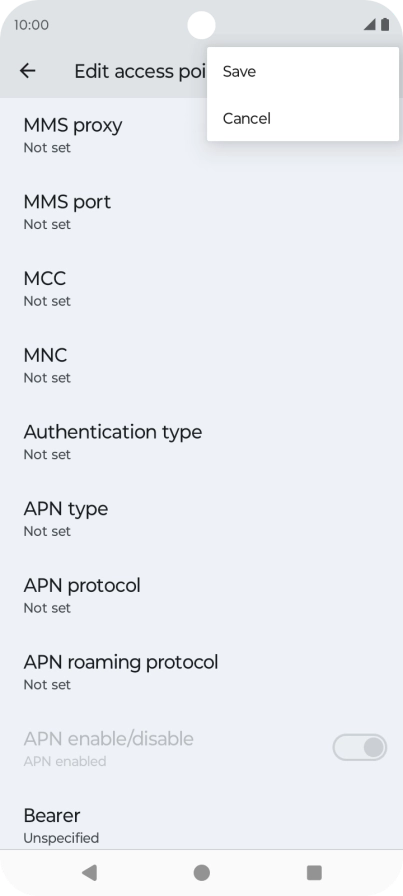

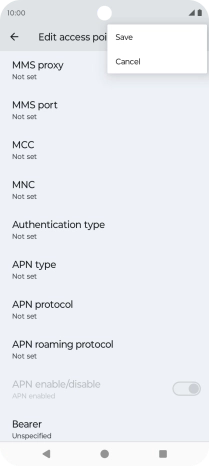

Press Save.
![](http://wmstatic.global.ssl.fastly.net/ml/7060524-f-d542a741-c7d4-4abb-bab4-475326331304.png?width=200&height=448)
15. Return to the home screen

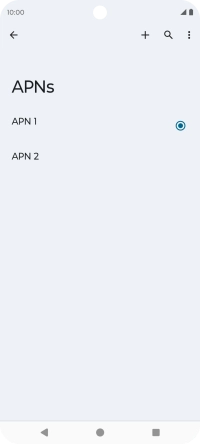

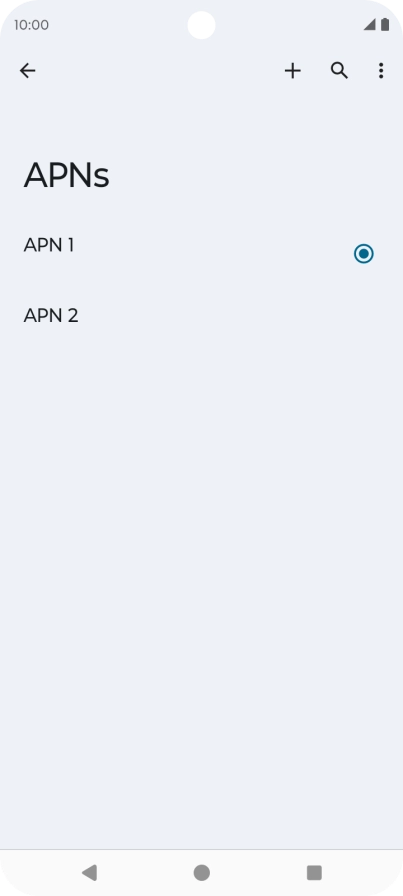

Press the Home key to return to the home screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7060524-f-66243735-01ac-4499-be67-97e6094ab1cf.png?width=200&height=448)
