Motorola Moto G50
1. Find "Access point names"
Slide two fingers downwards starting from the top of the screen.
1. Find "Access point names"
Press the settings icon.
1. Find "Access point names"
Press Network & Internet.
1. Find "Access point names"
Press Mobile network.
1. Find "Access point names"
Press Advanced.
1. Find "Access point names"
Press Access point names.
2. Create new data connection

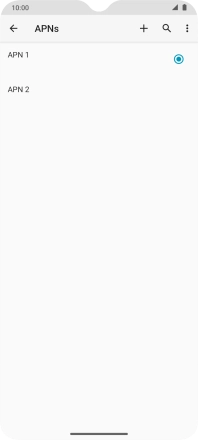

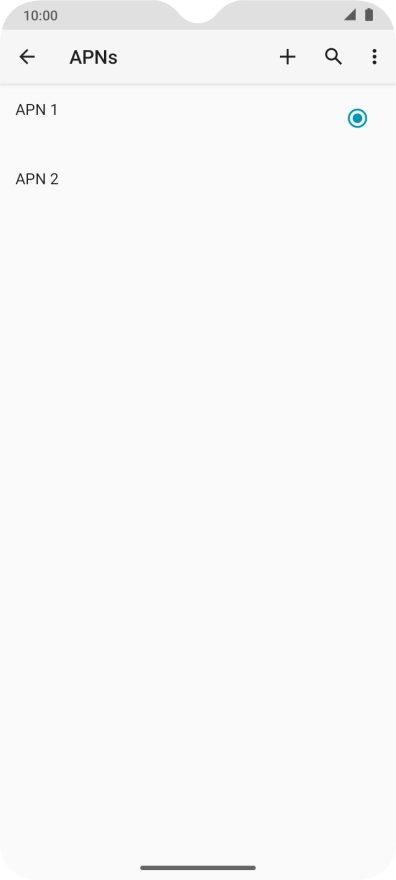

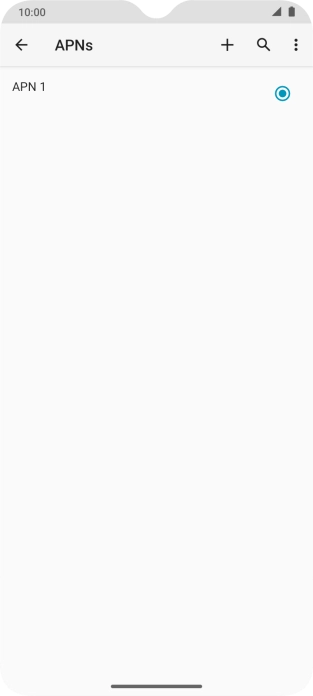

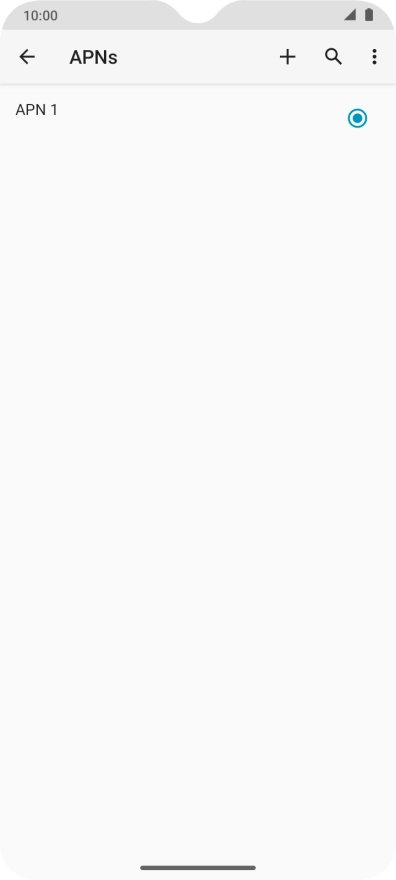

Press the new data connection icon.
3. Enter a name for the connection

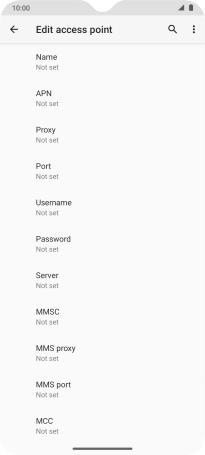

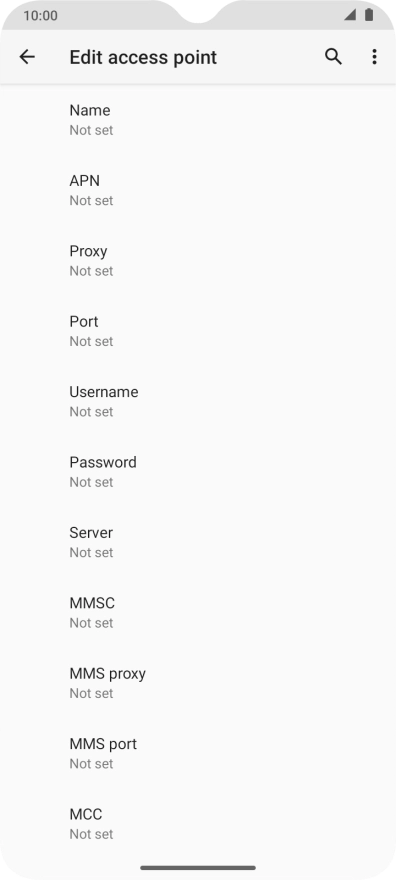

Press Name.
3. Enter a name for the connection

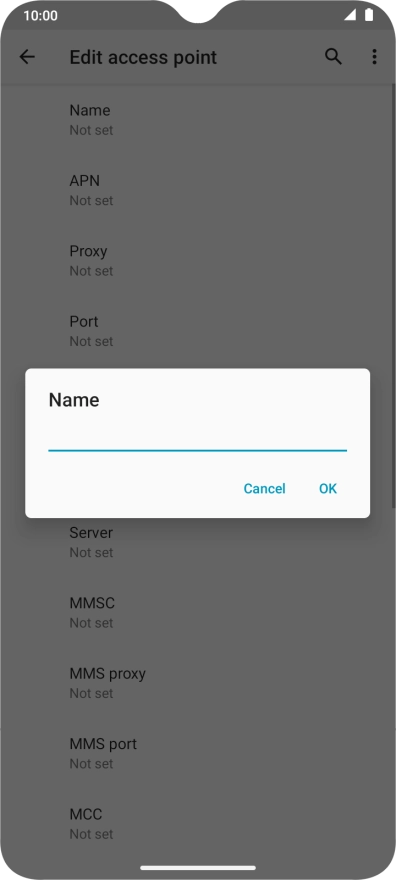

Key in Vodafone MMS and press OK.
4. Enter APN
Press APN.
4. Enter APN

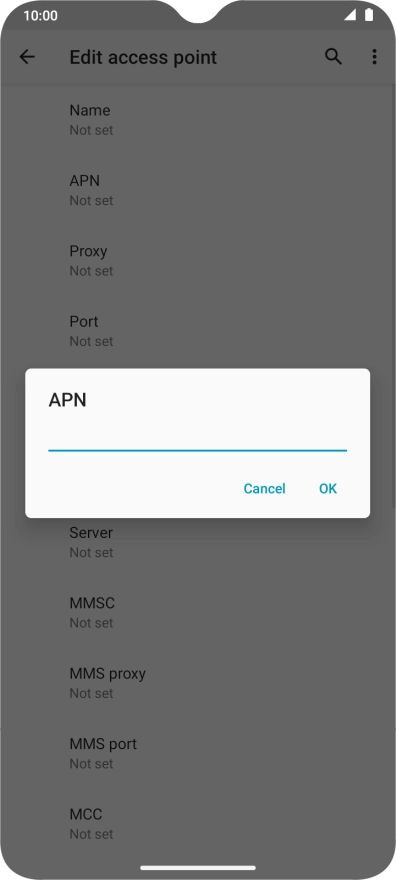

Key in wap.vodafone.co.uk and press OK.
5. Enter username
Press Username.
5. Enter username

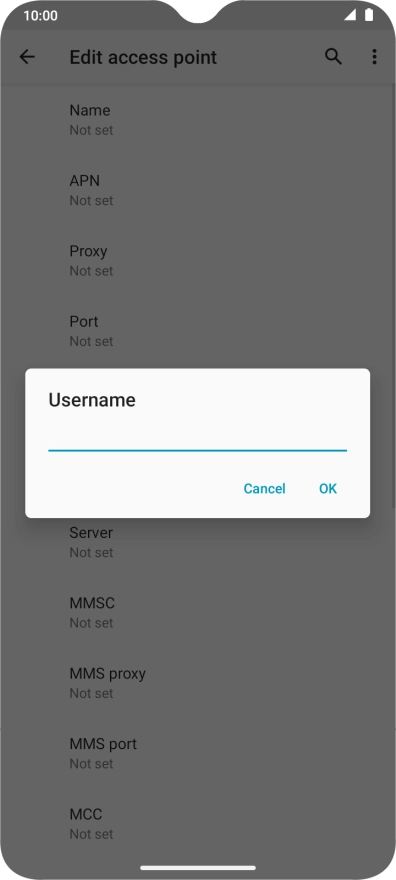

Key in wap and press OK.
6. Enter password
Press Password.
6. Enter password

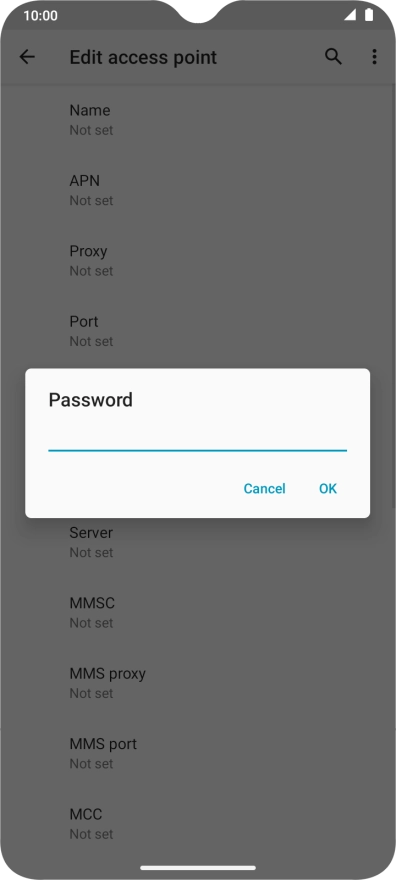

Key in wap and press OK.
7. Enter MMSC
Press MMSC.
7. Enter MMSC

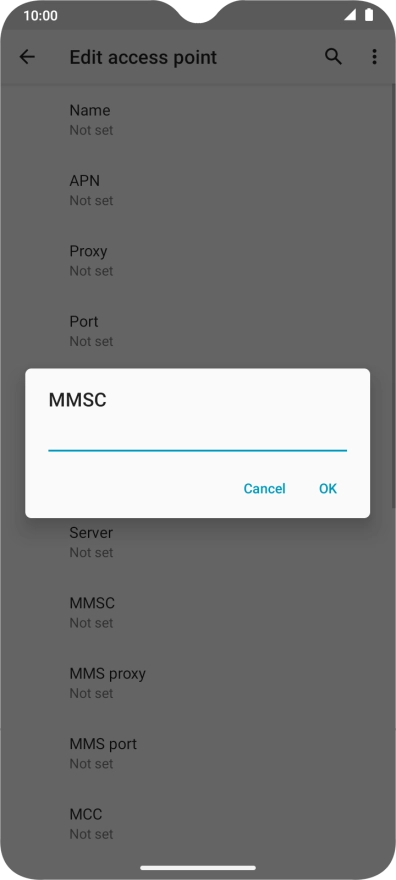

Key in http://mms.vodafone.co.uk/servlets/mms and press OK.
8. Enter IP address

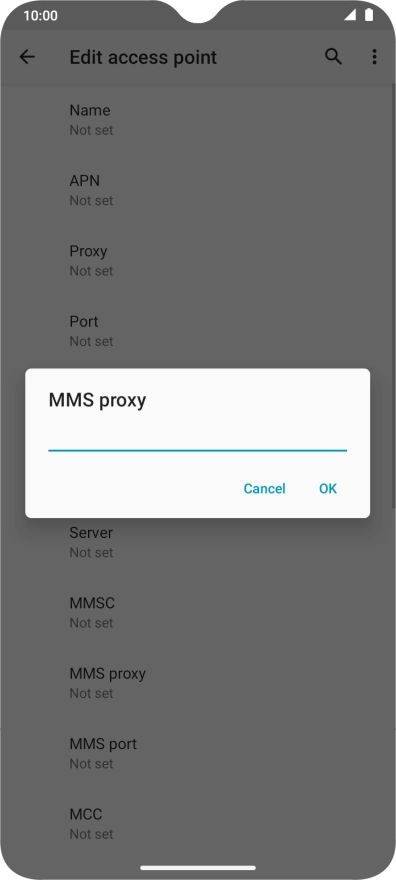

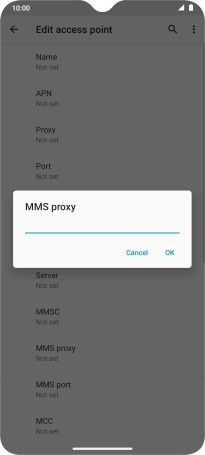

Press MMS proxy.
8. Enter IP address
Key in 212.183.137.012 and press OK.
9. Enter port number

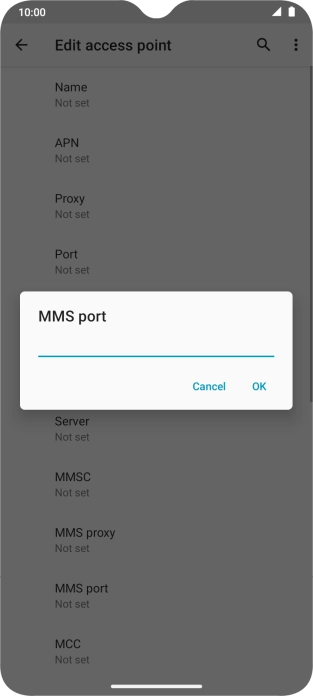

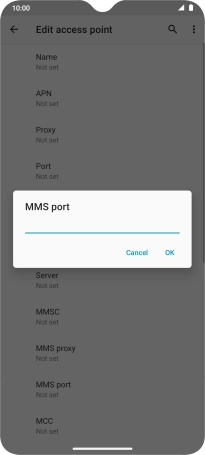

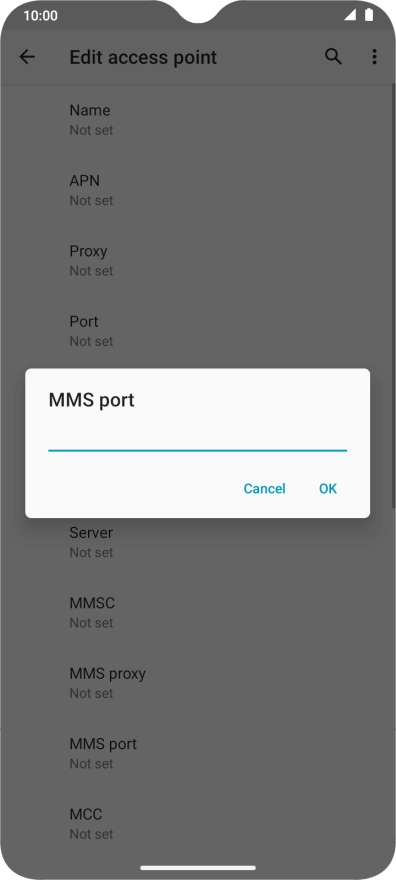

Press MMS port.
9. Enter port number
Key in 8799 and press OK.
10. Enter country code
Press MCC.
10. Enter country code

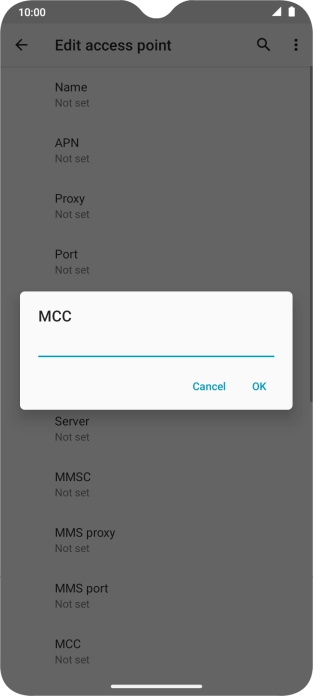

Key in 234 and press OK.
11. Enter network code

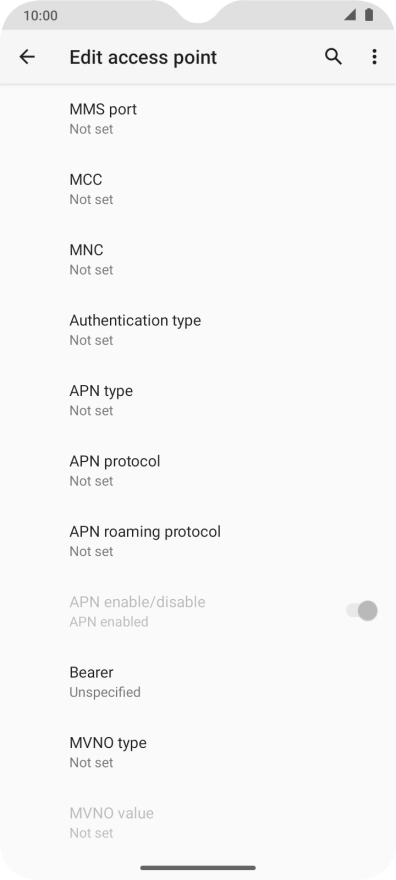

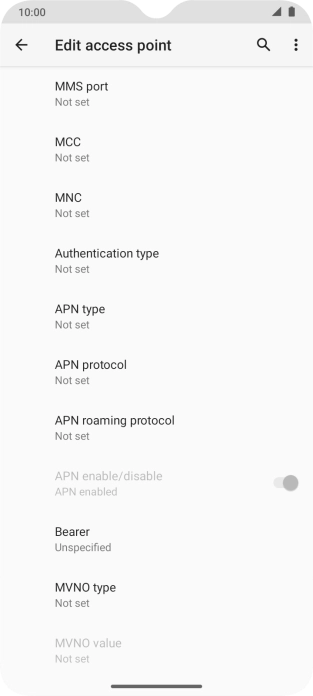

Press MNC.
11. Enter network code

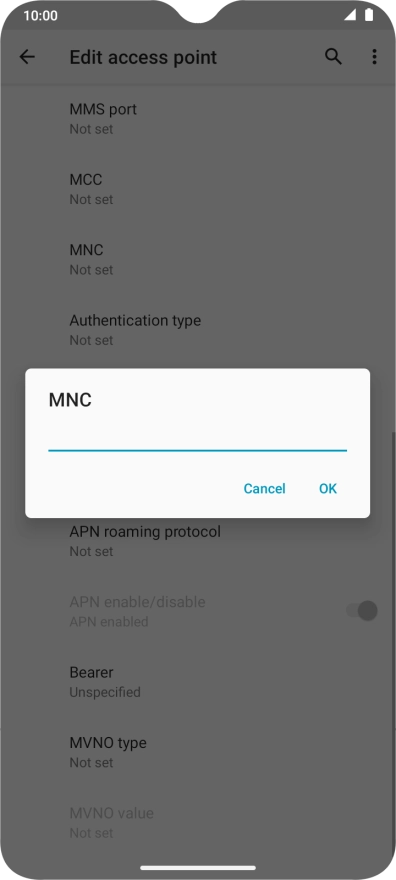

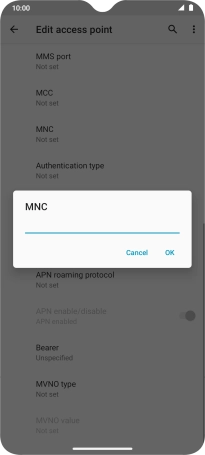

Key in 15 and press OK.
12. Select authentication type
Press Authentication type.
12. Select authentication type

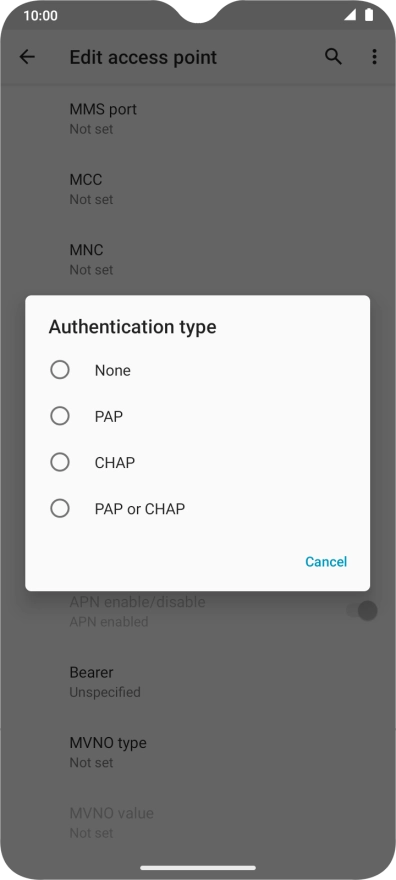

Press None.
13. Enter APN type
Press APN type.
13. Enter APN type

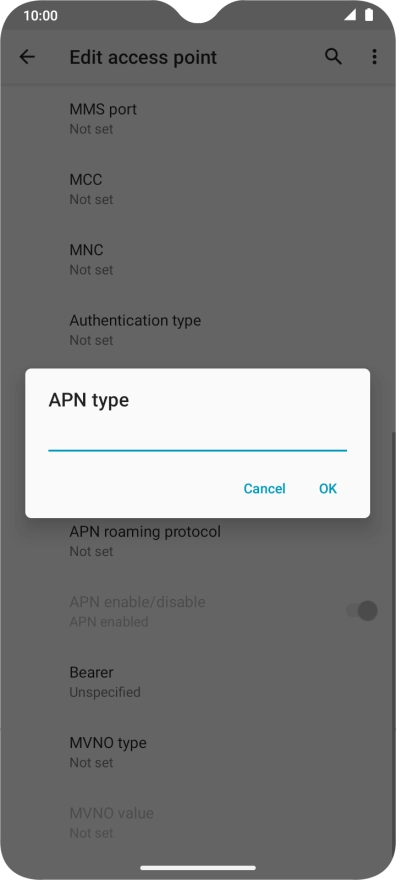

Key in mms and press OK.
14. Save data connection
Press the menu icon.
14. Save data connection

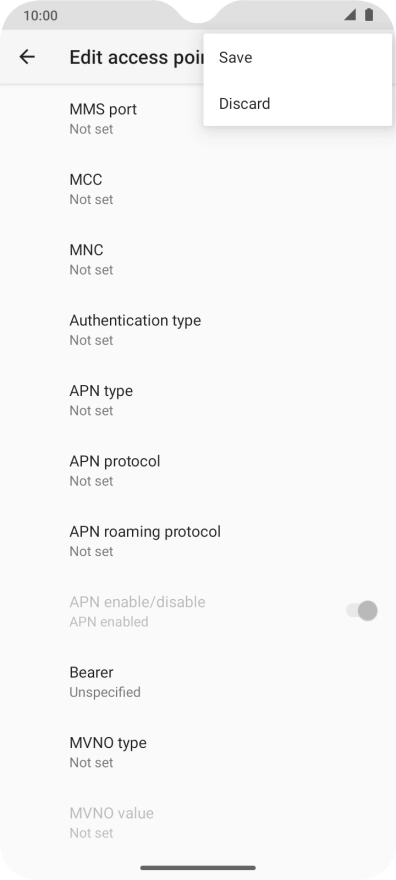

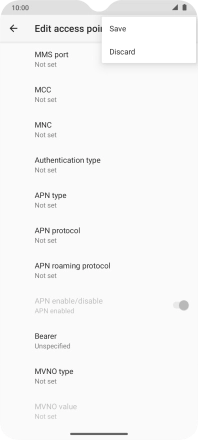

Press Save.
15. Return to the home screen
Slide your finger upwards starting from the bottom of the screen to return to the home screen.
