OPPO A57 4G

OPPO A57 4G

Android 12.0

Set up your OPPO A57 4G Android 12.0 for picture messaging

Read help info

A picture message is a message which can contain pictures and other media files and can be sent to other mobile phones. You can send and receive picture messages as soon as you've inserted your SIM. If this isn't the case, you can set up your phone for picture messaging manually.

Step 1 of 20

1. Find "Access point names"

Slide two fingers downwards starting from the top of the screen.

Step 2 of 20

1. Find "Access point names"

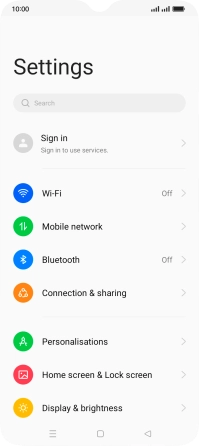

Press the settings icon.

Step 3 of 20

1. Find "Access point names"

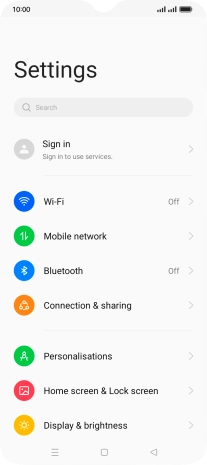

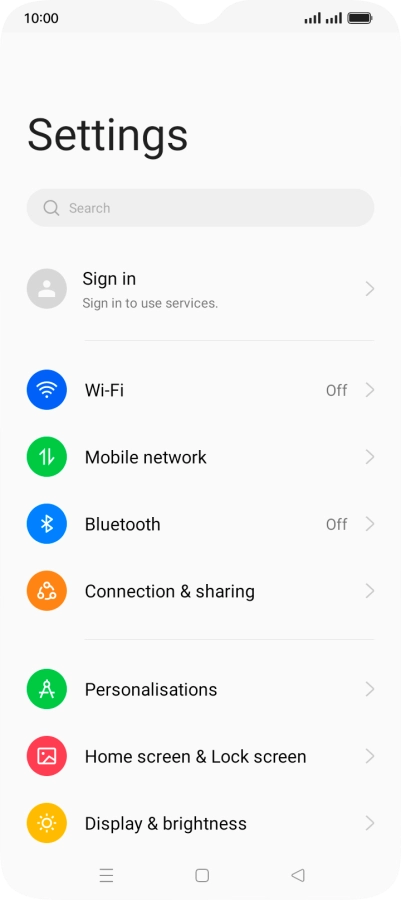

Press Mobile network.

Step 4 of 20

1. Find "Access point names"

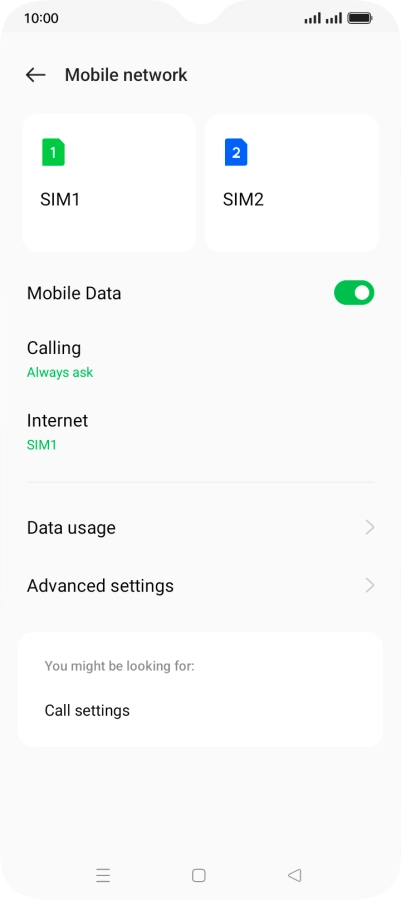

Press the required SIM.

Step 5 of 20

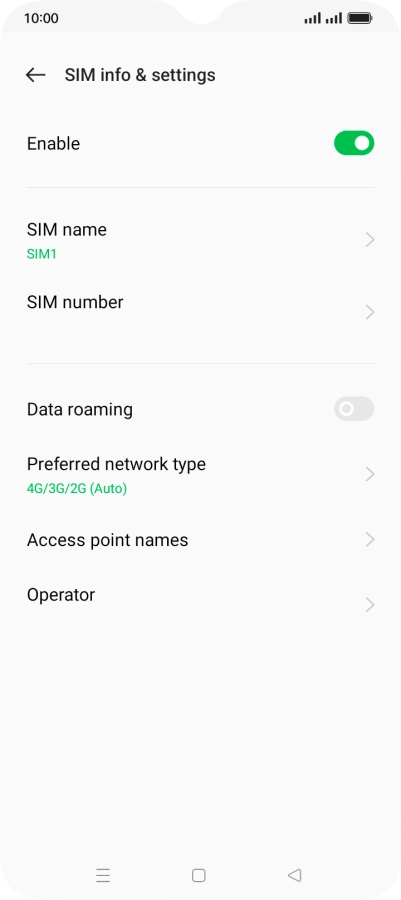

1. Find "Access point names"

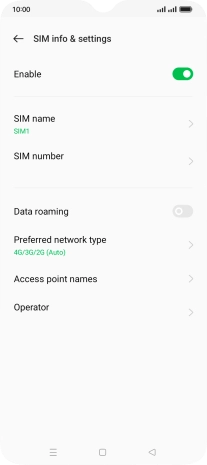

Press Access point names.

Step 6 of 20

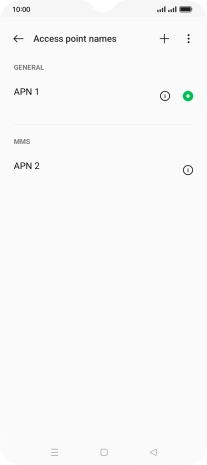

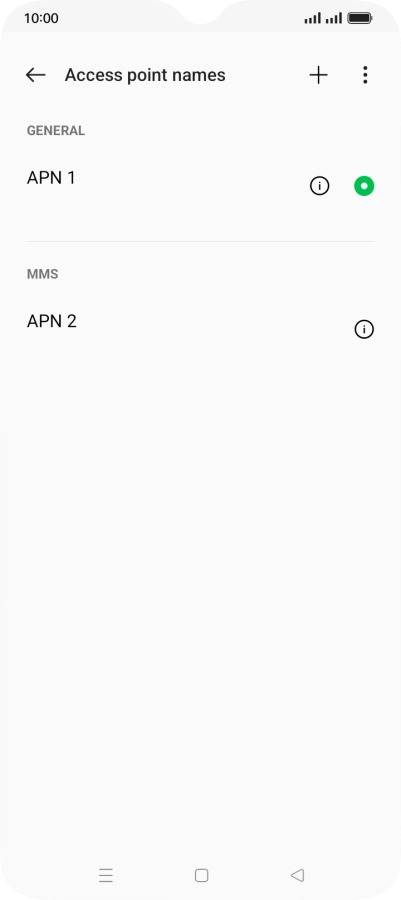

2. Create new data connection

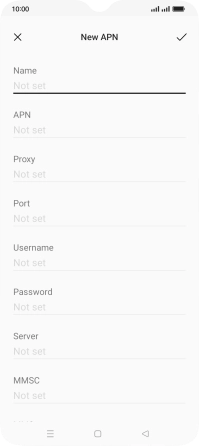

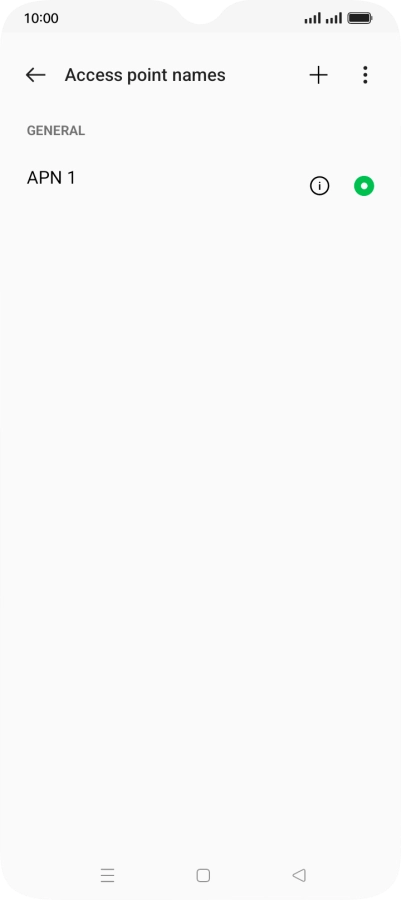

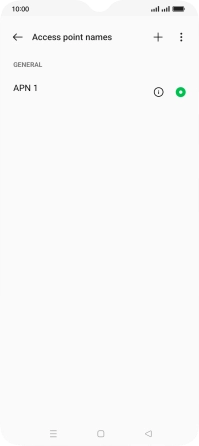

Press the new data connection icon.

Vodafone MMS
Step 7 of 20

2. Create new data connection

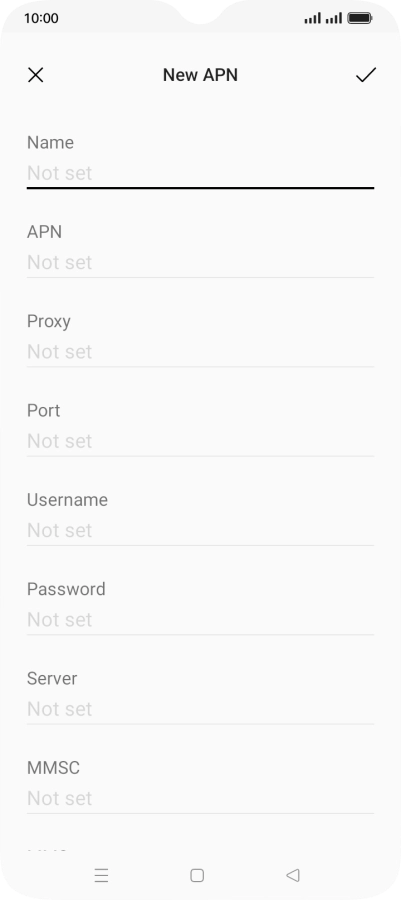

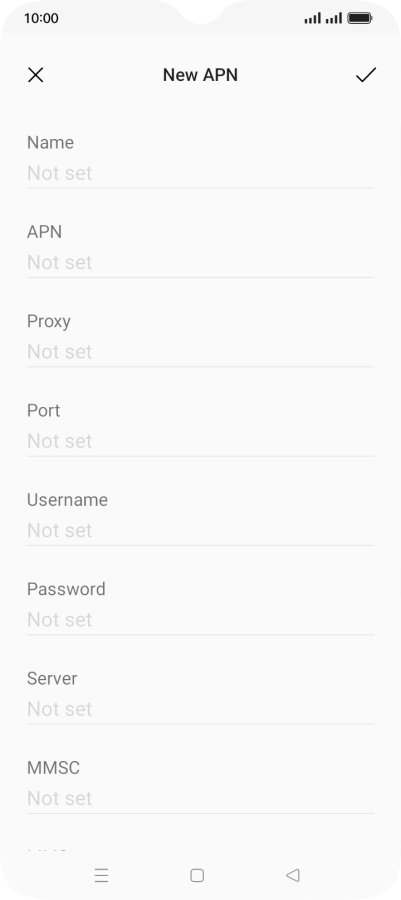

Press the field below "Name" and key in Vodafone MMS.

wap.vodafone.co.uk
Step 8 of 20

3. Enter APN

Press the field below "APN" and key in wap.vodafone.co.uk.

wap
Step 9 of 20

4. Enter username

Press the field below "Username" and key in wap.

wap
Step 10 of 20

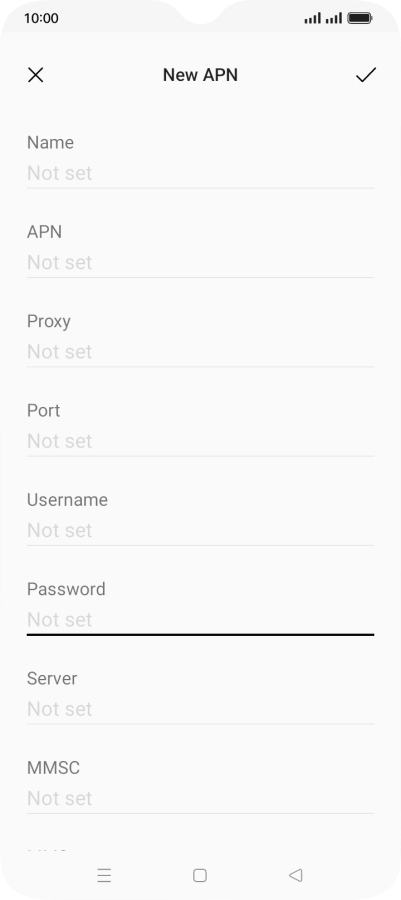

5. Enter password

Press the field below "Password" and key in wap.

http://mms.vodafone.co.uk/servlets/mms
Step 11 of 20

6. Enter MMSC

Press the field below "MMSC" and key in http://mms.vodafone.co.uk/servlets/mms.

212.183.137.012
Step 12 of 20

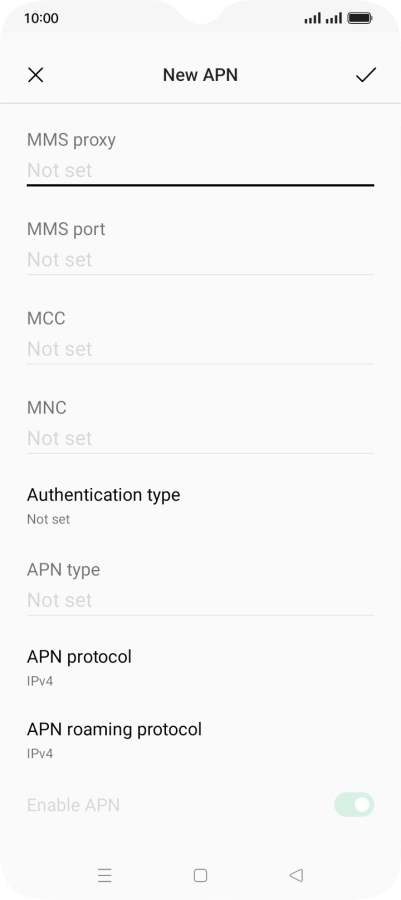

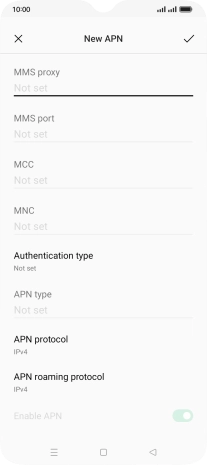

7. Enter IP address

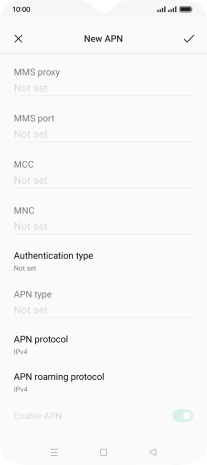

Press the field below "MMS proxy" and key in 212.183.137.012.

8799
Step 13 of 20

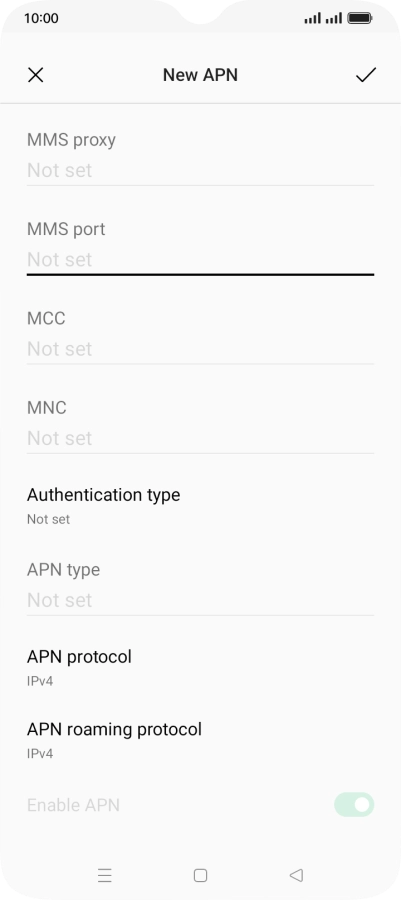

8. Enter port number

Press the field below "MMS port" and key in 8799.

234
Step 14 of 20

9. Enter country code

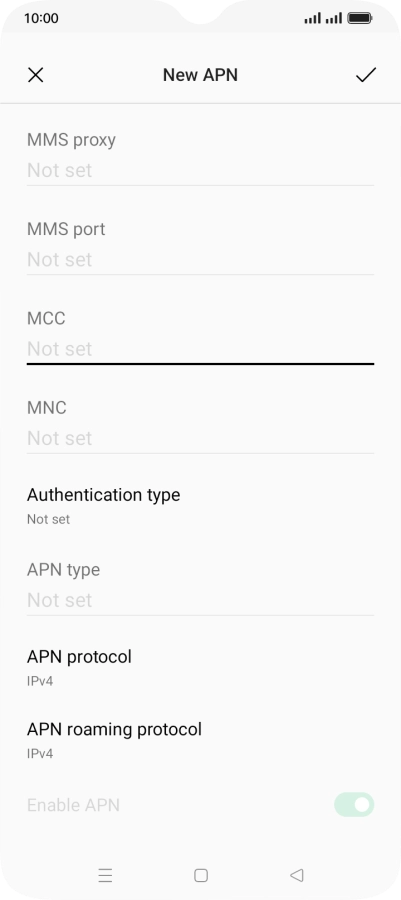

Press the field below "MCC" and key in 234.

15
Step 15 of 20

10. Enter network code

Press the field below "MNC" and key in 15.

Step 16 of 20

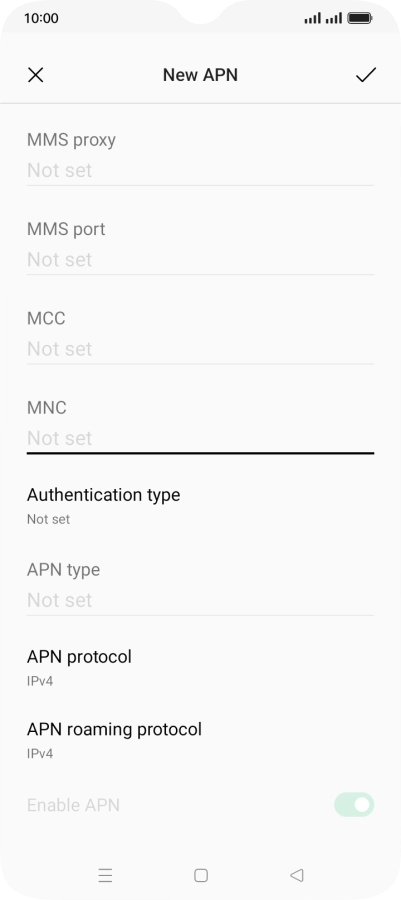

11. Select authentication type

Press Authentication type.

Step 17 of 20

11. Select authentication type

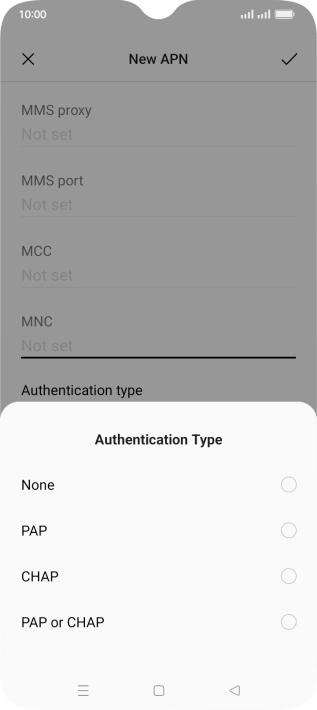

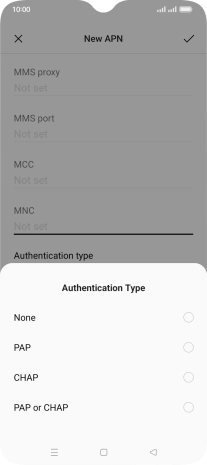

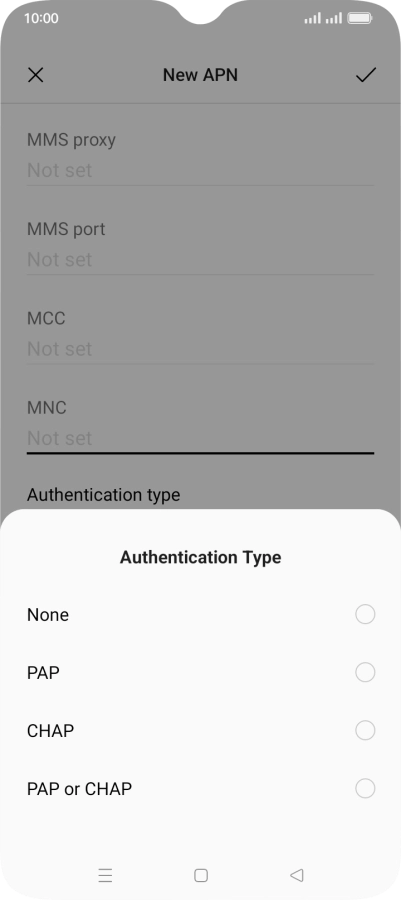

Press None.

mms
Step 18 of 20

12. Enter APN type

Press the field below "APN type" and key in mms.

Step 19 of 20

13. Save data connection

Press the confirm icon.

Step 20 of 20

14. Return to the home screen

Press the Home key to return to the home screen.

1. Find "Access point names"

Slide two fingers downwards starting from the top of the screen.
Press the settings icon.
Press Mobile network.
Press the required SIM.
Press Access point names.

2. Create new data connection

Press the new data connection icon.
Press the field below "Name" and key in Vodafone MMS.
Vodafone MMS

3. Enter APN

Press the field below "APN" and key in wap.vodafone.co.uk.
wap.vodafone.co.uk

4. Enter username

Press the field below "Username" and key in wap.
wap

5. Enter password

Press the field below "Password" and key in wap.
wap

6. Enter MMSC

Press the field below "MMSC" and key in http://mms.vodafone.co.uk/servlets/mms.
http://mms.vodafone.co.uk/servlets/mms

7. Enter IP address

Press the field below "MMS proxy" and key in 212.183.137.012.
212.183.137.012

8. Enter port number

Press the field below "MMS port" and key in 8799.
8799

9. Enter country code

Press the field below "MCC" and key in 234.
234

10. Enter network code

Press the field below "MNC" and key in 15.
15

11. Select authentication type

Press Authentication type.
Press None.

12. Enter APN type

Press the field below "APN type" and key in mms.
mms

13. Save data connection

Press the confirm icon.

14. Return to the home screen

Press the Home key to return to the home screen.
