OPPO Find X2 Lite

OPPO Find X2 Lite

Android 10.0

I can't send and receive picture messages on my OPPO Find X2 Lite Android 10.0

Cause 5 of 5: Your phone hasn't been set up for picture messaging correctly

To send and receive picture messages, you need to set up your phone correctly for picture messaging.

Solution: Set up your phone for picture messaging.

Step 1 of 30

Find "Access Point Name"

Slide two fingers downwards starting from the top of the screen.

Step 2 of 30

Find "Access Point Name"

Press the settings icon.

Step 3 of 30

Find "Access Point Name"

Press SIM Card & Mobile Data.

Step 4 of 30

Find "Access Point Name"

Press the name of the SIM.

Step 5 of 30

Find "Access Point Name"

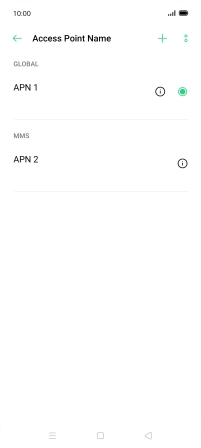

Press Access Point Name.

Step 6 of 30

Create new data connection

Press the add icon.

Step 7 of 30

Create new data connection

Press Name.

Vodafone MMS
Step 8 of 30

Create new data connection

Key in Vodafone MMS and press OK.

Step 9 of 30

Enter APN

Press APN.

wap.vodafone.co.uk
Step 10 of 30

Enter APN

Key in wap.vodafone.co.uk and press OK.

Step 11 of 30

Enter username

Press Username.

wap
Step 12 of 30

Enter username

Key in wap and press OK.

Step 13 of 30

Enter password

Press Password.

wap
Step 14 of 30

Enter password

Key in wap and press OK.

Step 15 of 30

Enter MMSC

Press MMSC.

http://mms.vodafone.co.uk/servlets/mms
Step 16 of 30

Enter MMSC

Key in http://mms.vodafone.co.uk/servlets/mms and press OK.

Step 17 of 30

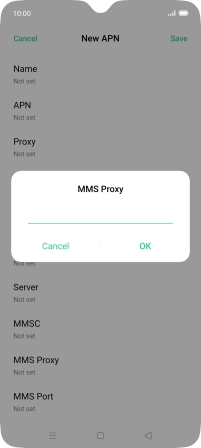

Enter IP address

Press MMS Proxy.

212.183.137.012
Step 18 of 30

Enter IP address

Key in 212.183.137.012 and press OK.

Step 19 of 30

Enter port number

Press MMS Port.

8799
Step 20 of 30

Enter port number

Key in 8799 and press OK.

Step 21 of 30

Enter country code

Press MCC.

234
Step 22 of 30

Enter country code

Key in 234 and press OK.

Step 23 of 30

Enter network code

Press MNC.

15
Step 24 of 30

Enter network code

Key in 15 and press OK.

Step 25 of 30

Select authentication type

Press Authentication Type.

Step 26 of 30

Select authentication type

Press None.

Step 27 of 30

Enter APN type

Press APN Type.

mms
Step 28 of 30

Enter APN type

Key in mms and press OK.

Step 29 of 30

Save data connection

Press Save.

Step 30 of 30

Return to the home screen

Press the Home key to return to the home screen.

1 Find "Access Point Name"

Slide two fingers downwards starting from the top of the screen.
Press the settings icon.
Press SIM Card & Mobile Data.
Press the name of the SIM.
Press Access Point Name.

2 Create new data connection

Press the add icon.
Press Name.
Key in Vodafone MMS and press OK.
Vodafone MMS

3 Enter APN

Press APN.
Key in wap.vodafone.co.uk and press OK.
wap.vodafone.co.uk

4 Enter username

Press Username.
Key in wap and press OK.
wap

5 Enter password

Press Password.
Key in wap and press OK.
wap

6 Enter MMSC

Press MMSC.
Key in http://mms.vodafone.co.uk/servlets/mms and press OK.
http://mms.vodafone.co.uk/servlets/mms

7 Enter IP address

Press MMS Proxy.
Key in 212.183.137.012 and press OK.
212.183.137.012

8 Enter port number

Press MMS Port.
Key in 8799 and press OK.
8799

9 Enter country code

Press MCC.
Key in 234 and press OK.
234

10 Enter network code

Press MNC.
Key in 15 and press OK.
15

11 Select authentication type

Press Authentication Type.
Press None.

12 Enter APN type

Press APN Type.
Key in mms and press OK.
mms

13 Save data connection

Press Save.

14 Return to the home screen

Press the Home key to return to the home screen.
