OPPO Find X5 Lite
1. Find "Access point names"
Slide two fingers downwards starting from the top of the screen.
1. Find "Access point names"
Press the settings icon.
1. Find "Access point names"
Press Mobile network.
1. Find "Access point names"
Press the required SIM.
1. Find "Access point names"

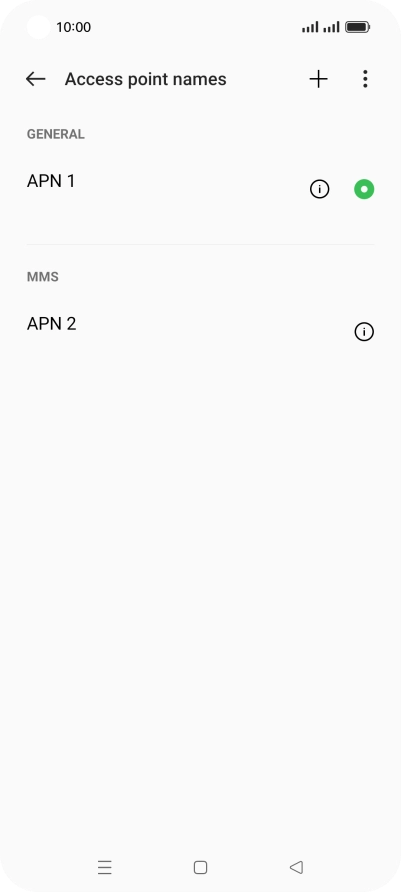

Press Access point names.
2. Create new data connection
Press the new data connection icon.
2. Create new data connection
Press the field below "Name" and key in Vodafone MMS.
3. Enter APN
Press the field below "APN" and key in wap.vodafone.co.uk.
4. Enter username
Press the field below "Username" and key in wap.
5. Enter password
Press the field below "Password" and key in wap.
6. Enter MMSC
Press the field below "MMSC" and key in http://mms.vodafone.co.uk/servlets/mms.
7. Enter IP address
Press the field below "MMS proxy" and key in 212.183.137.012.
8. Enter port number
Press the field below "MMS port" and key in 8799.
9. Enter country code
Press the field below "MCC" and key in 234.
10. Enter network code
Press the field below "MNC" and key in 15.
11. Select authentication type
Press Authentication type.
11. Select authentication type
Press None.
12. Enter APN type
Press the field below "APN type" and key in mms.
13. Save data connection
Press the confirm icon.
14. Return to the home screen
Press the Home key to return to the home screen.
