![OPPO Reno4 Pro 5G](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-2c7a8924-0b94-4bef-bed0-ec6e59fbb001.png?width=150&height=320)
OPPO Reno4 Pro 5G
Android 10.0
1. Find "Access point name"
Slide two fingers downwards starting from the top of the screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-dcb3cc6d-4af6-4520-afef-1cf345ae8870.png?width=204&height=452)
Press the settings icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-ce341a3d-e91b-433c-aeb7-6e304666366d.png?width=204&height=452)

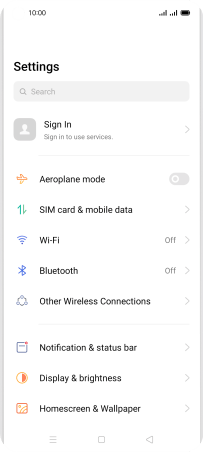

Press SIM card & mobile data.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-20990c7f-0f77-4aec-b2da-2b90fe7a3f30.png?width=204&height=452)

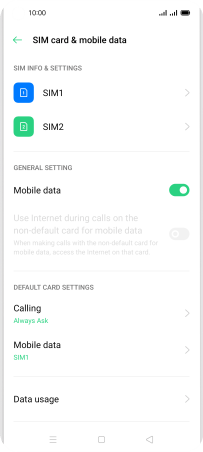

Press the required SIM.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-9fd222a4-b718-4d4d-86e5-9541369deeaa.png?width=204&height=452)

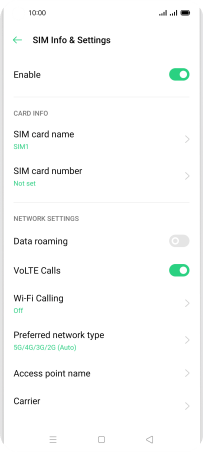

Press Access point name.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-1b49114f-d33a-4bc3-ac8c-2cf8aac74d1b.png?width=204&height=452)
2. Create new data connection

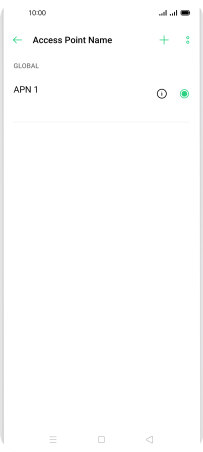

Press the add icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-c2a6df63-0d7c-4944-8b04-1eb45c61807f.png?width=204&height=452)

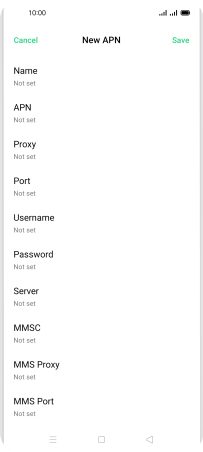

Press Name.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-035fabc6-c1a0-42e0-80fd-2a299fa10c07.png?width=204&height=452)

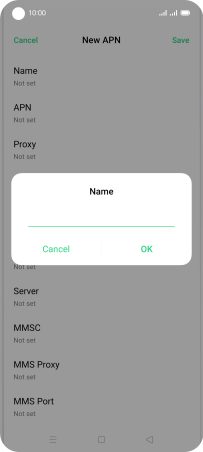

Key in Vodafone Internet and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-304cdc8a-e8d5-4b5a-b213-e8563b4fdfd1.png?width=204&height=452)
Vodafone Internet
3. Enter APN
Press APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-035fabc6-c1a0-42e0-80fd-2a299fa10c07.png?width=204&height=452)

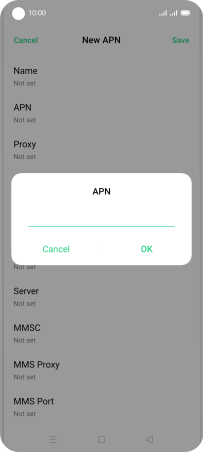

Key in wap.vodafone.co.uk and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-209d77d2-3b50-4488-b996-1b5e827bffe9.png?width=204&height=452)
wap.vodafone.co.uk
4. Enter username
Press Username.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-035fabc6-c1a0-42e0-80fd-2a299fa10c07.png?width=204&height=452)

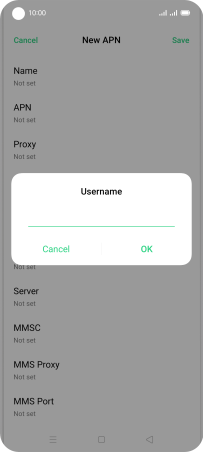

Key in wap and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-74727378-300f-4816-ab26-a0bcf8dbbd68.png?width=204&height=452)
wap
5. Enter password
Press Password.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-035fabc6-c1a0-42e0-80fd-2a299fa10c07.png?width=204&height=452)
Key in wap and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-d1cfb2a3-6b74-44ad-b4e0-72d096e9b600.png?width=204&height=452)
wap
6. Enter country code
Press MCC.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-bf6af7ec-142c-48ac-b6a5-1b469304fa83.png?width=204&height=452)
Key in 234 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-6227a966-371c-48f5-8098-8d521b7dfadc.png?width=204&height=452)
234
7. Enter network code
Press MNC.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-bf6af7ec-142c-48ac-b6a5-1b469304fa83.png?width=204&height=452)
Key in 15 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-be8fe0cd-e1f7-417d-adcd-707f80e2a14b.png?width=204&height=452)
15
8. Select authentication type
Press Authentication Type.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-bf6af7ec-142c-48ac-b6a5-1b469304fa83.png?width=204&height=452)

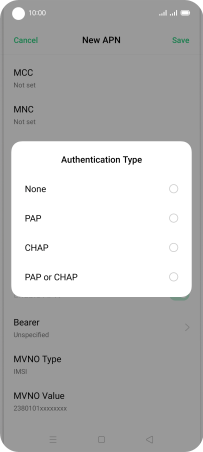

Press None.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-145c4d26-736d-42f0-9d59-c2328e82dbd3.png?width=204&height=452)
9. Enter APN type
Press APN Type.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-bf6af7ec-142c-48ac-b6a5-1b469304fa83.png?width=204&height=452)

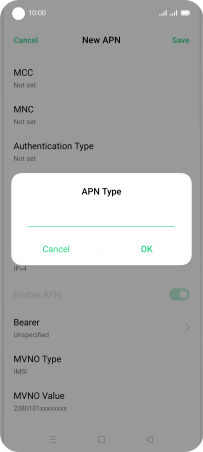

Key in default and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-6dc61849-b60a-4fe2-8085-8e1b3a416b7c.png?width=204&height=452)
default
10. Save data connection
Press Save.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-bf6af7ec-142c-48ac-b6a5-1b469304fa83.png?width=204&height=452)

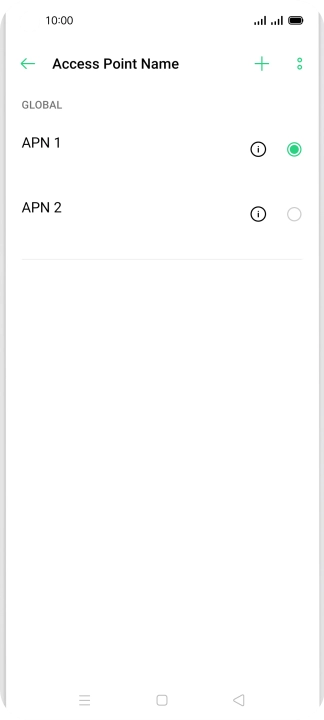

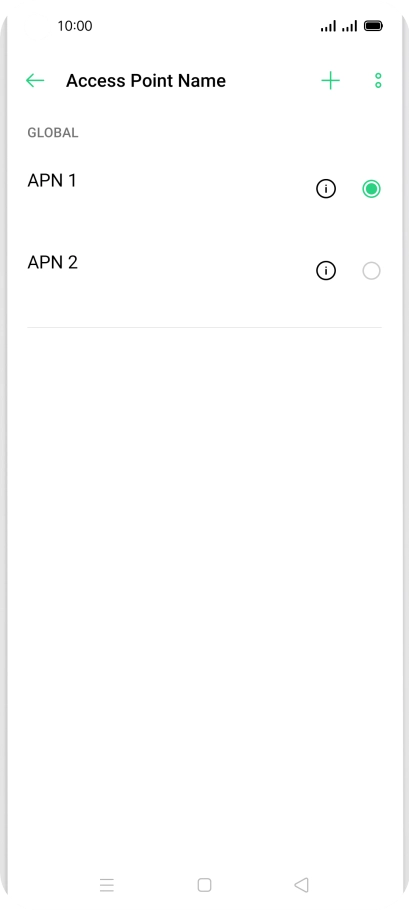

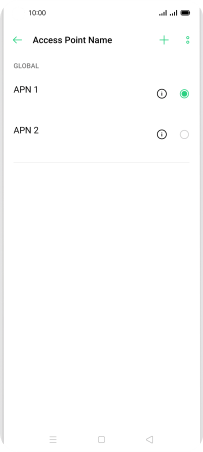

Press the field next to the data connection to activate it.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-b39ab516-4f8d-4f8a-87ea-7ac6fbd44b84.png?width=204&height=452)
11. Return to the home screen

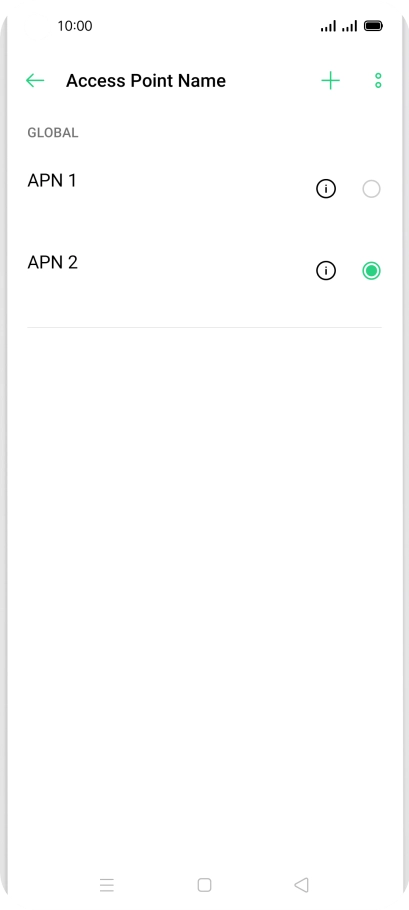

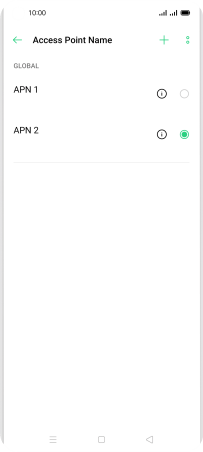

Press the Home key to return to the home screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-a6e06967-26b1-4857-aca8-4ccb82ff44c5.png?width=204&height=452)
