Samsung Galaxy A71
1. Find "Access Point Names"
Slide two fingers downwards starting from the top of the screen.
1. Find "Access Point Names"
Press the settings icon.
1. Find "Access Point Names"

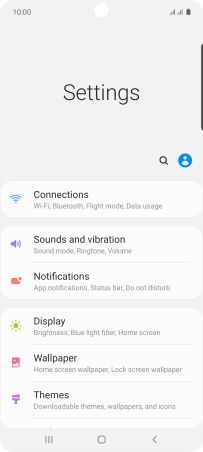

Press Connections.
1. Find "Access Point Names"

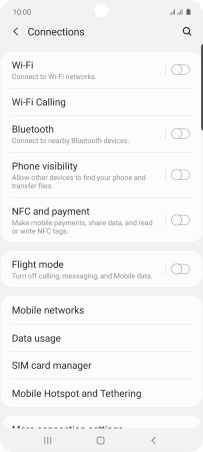

Press Mobile networks.
1. Find "Access Point Names"

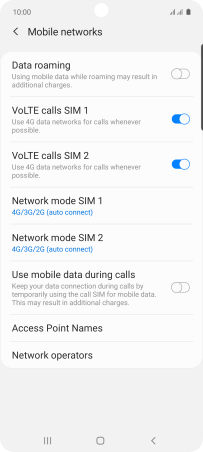

Press Access Point Names.
2. Create new data connection

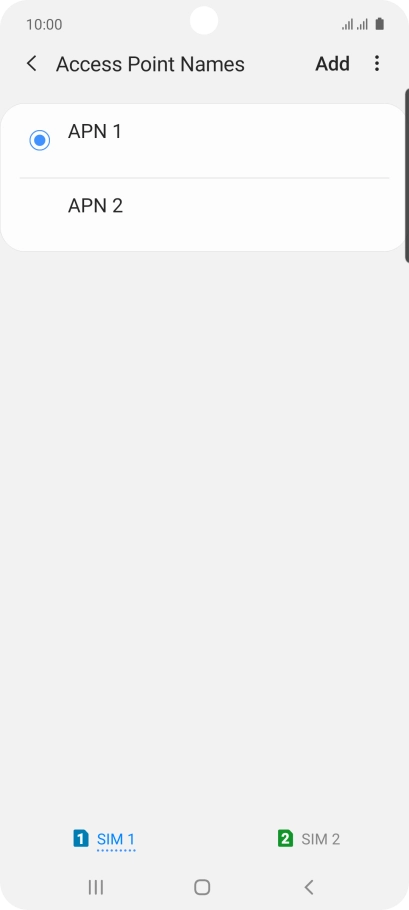

Press the required SIM.
2. Create new data connection

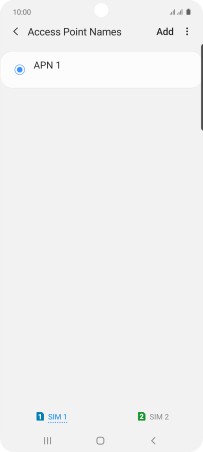

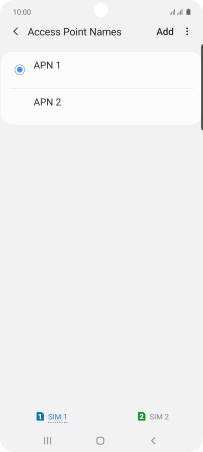

Press Add.
2. Create new data connection

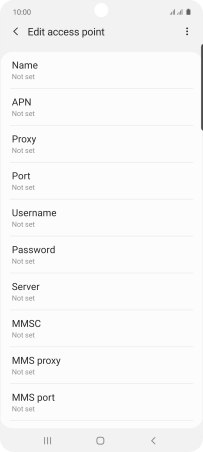

Press Name.
2. Create new data connection

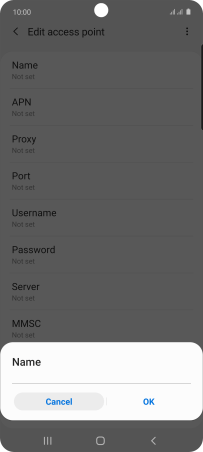

Key in Vodafone MMS and press OK.
3. Enter APN

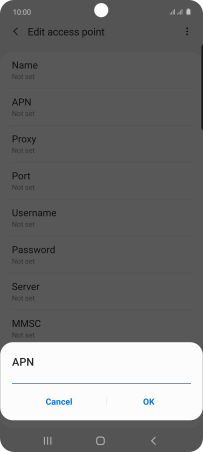

Press APN.
3. Enter APN
Key in wap.vodafone.co.uk and press OK.
4. Enter username
Press Username.
4. Enter username
Key in wap and press OK.
5. Enter password

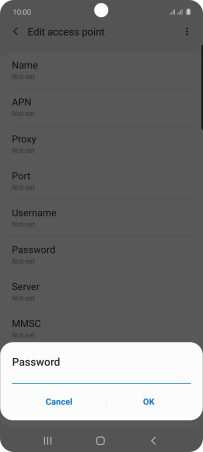

Press Password.
5. Enter password
Key in wap and press OK.
6. Enter MMSC

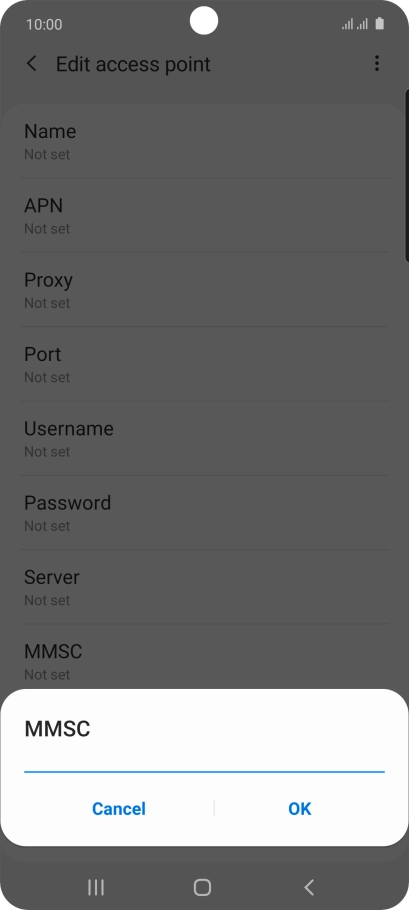

Press MMSC.
6. Enter MMSC

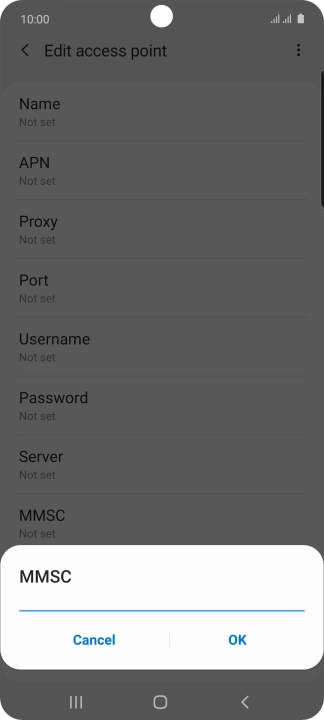

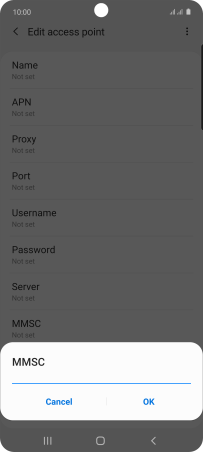

Key in http://mms.vodafone.co.uk/servlets/mms and press OK.
7. Enter IP address

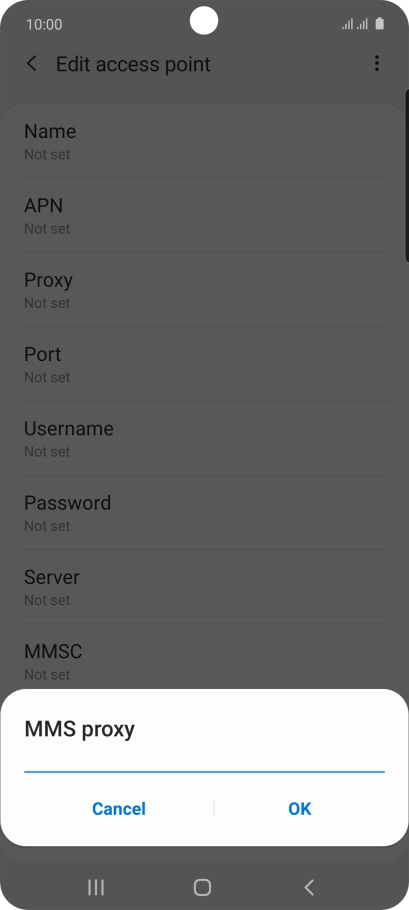

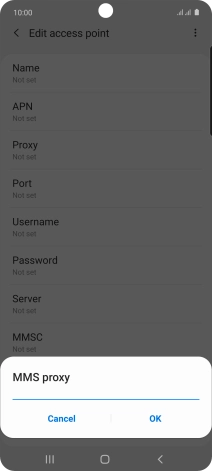

Press MMS proxy.
7. Enter IP address

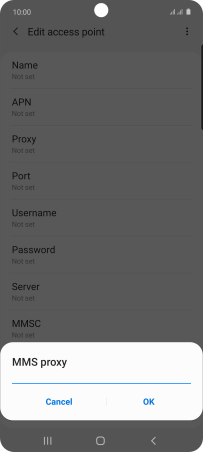

Key in 212.183.137.012 and press OK.
8. Enter port number

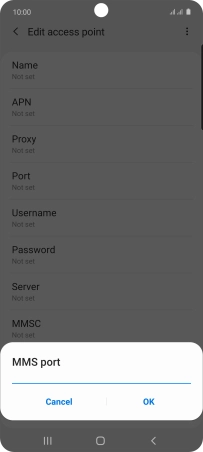

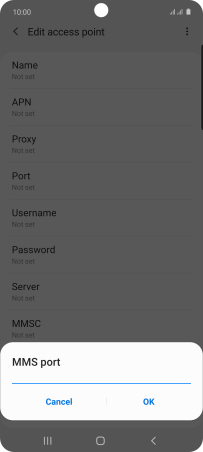

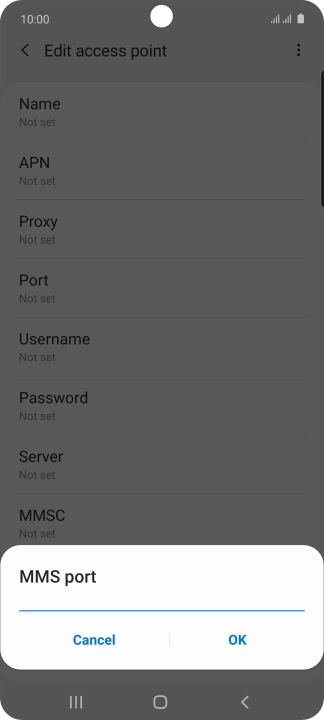

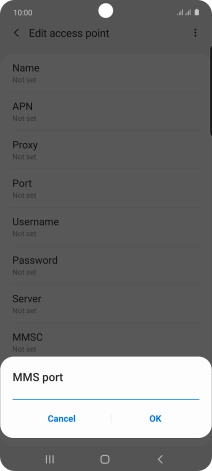

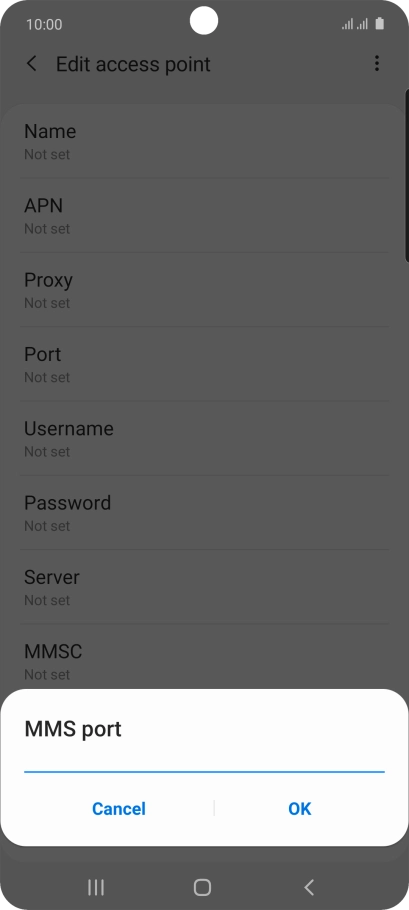

Press MMS port.
8. Enter port number
Key in 8799 and press OK.
9. Enter country code

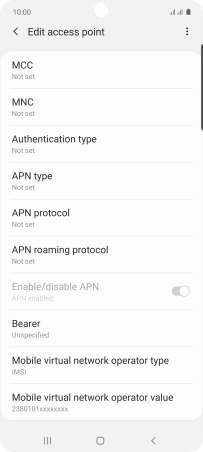

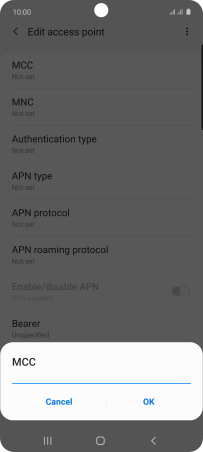

Press MCC.
9. Enter country code
Key in 234 and press OK.
10. Enter network code

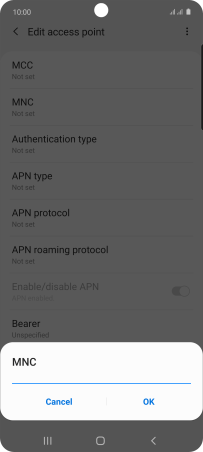

Press MNC.
10. Enter network code
Key in 15 and press OK.
11. Select authentication type
Press Authentication type.
11. Select authentication type

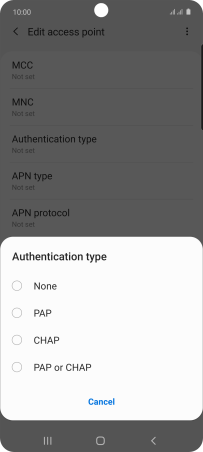

Press None.
12. Enter APN type

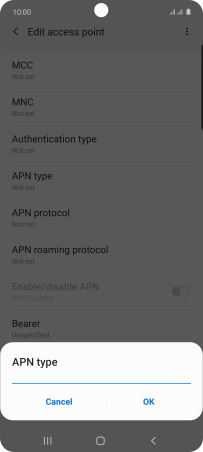

Press APN type.
12. Enter APN type
Key in mms and press OK.
13. Save data connection
Press the menu icon.
13. Save data connection

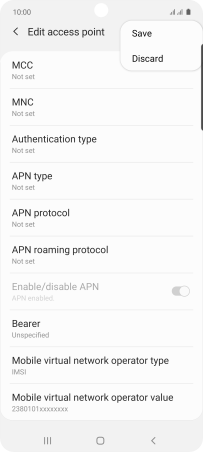

Press Save.
14. Return to the home screen
Press the Home key to return to the home screen.
