Samsung Galaxy S21 Ultra 5G
1. Find "Access Point Names"
Slide two fingers downwards starting from the top of the screen.
1. Find "Access Point Names"
Press the settings icon.
1. Find "Access Point Names"
Press Connections.
1. Find "Access Point Names"
Press Mobile networks.
1. Find "Access Point Names"
Press Access Point Names.
2. Create new data connection

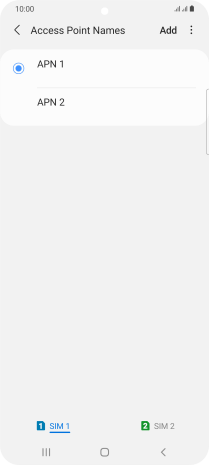

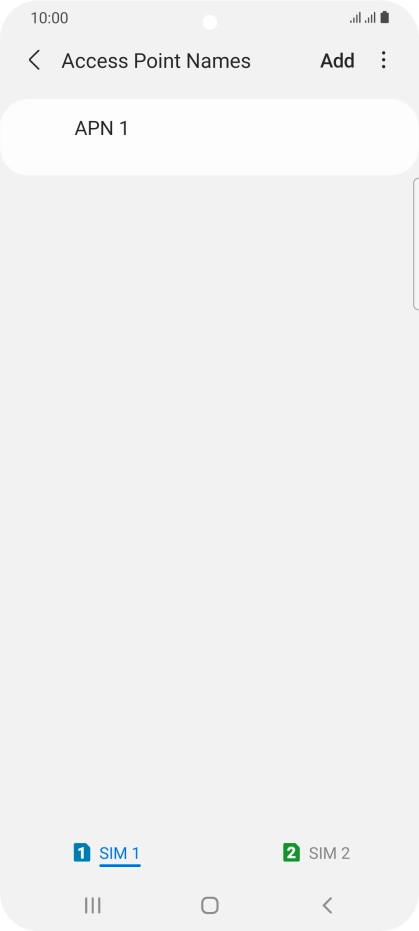

Press the required SIM.

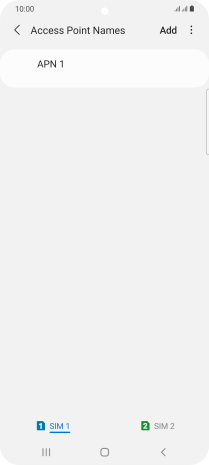

2. Create new data connection
Press Add.

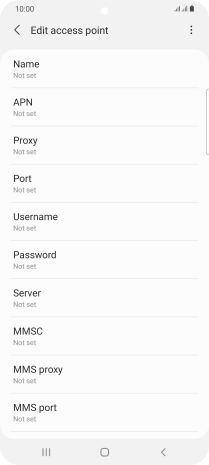

3. Enter a name for the connection

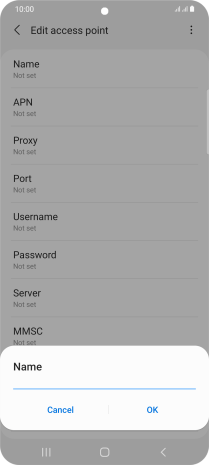

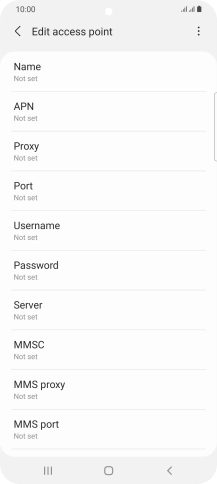

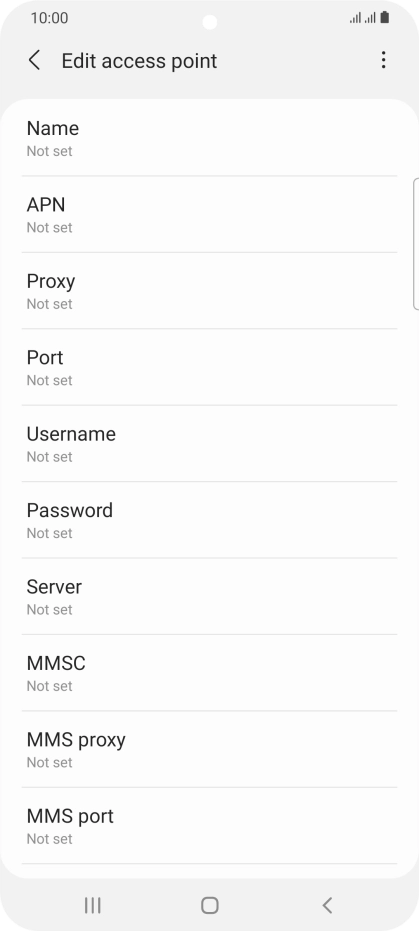

Press Name.
3. Enter a name for the connection

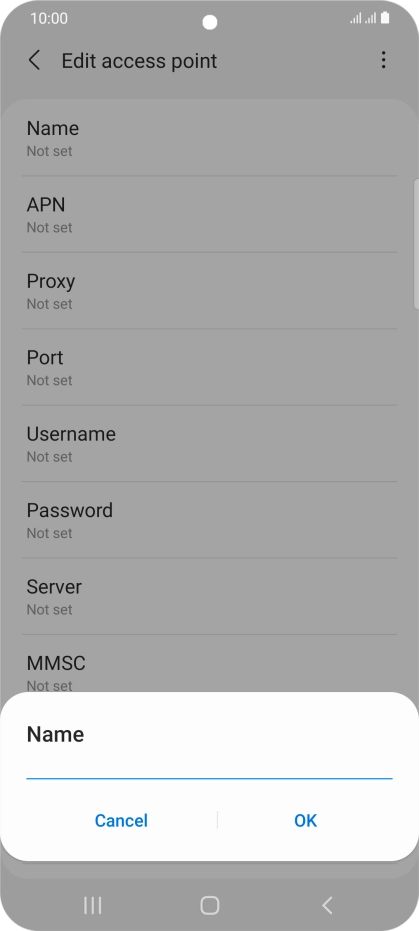

Key in Vodafone MMS and press OK.
4. Enter APN

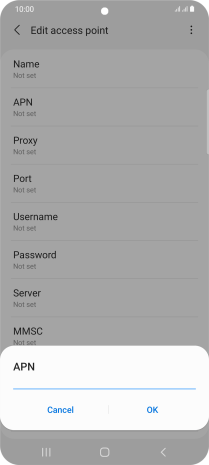

Press APN.
4. Enter APN

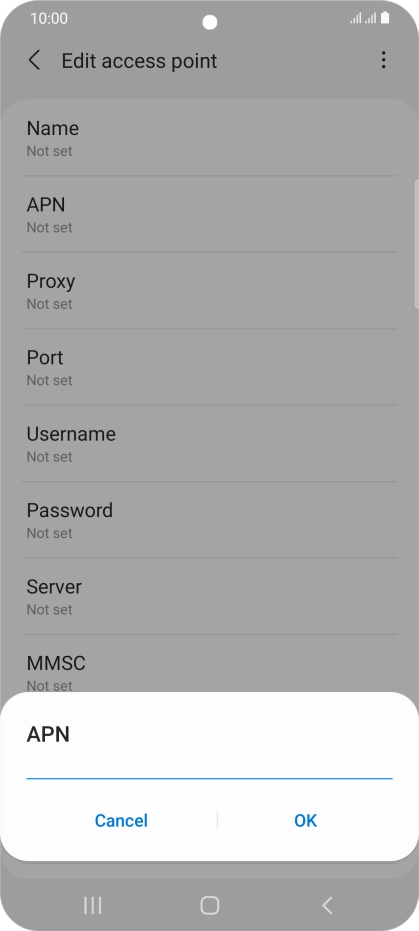

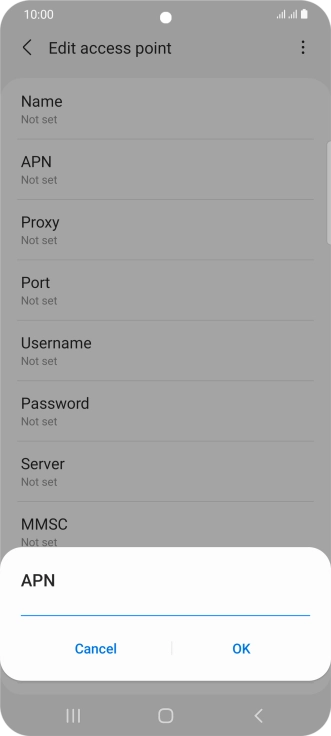

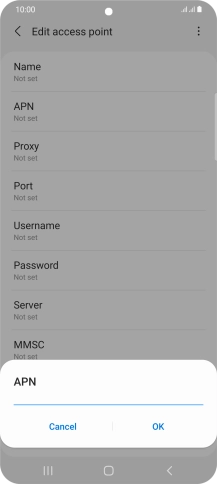

Key in wap.vodafone.co.uk and press OK.
5. Enter username
Press Username.
5. Enter username
Key in wap and press OK.
6. Enter password
Press Password.

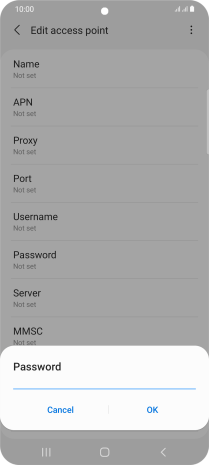

6. Enter password
Key in wap and press OK.
7. Enter MMSC

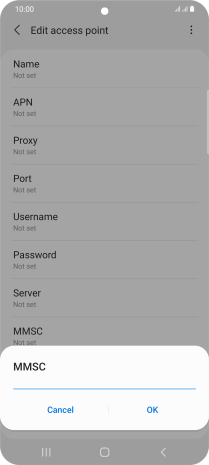

Press MMSC.
7. Enter MMSC

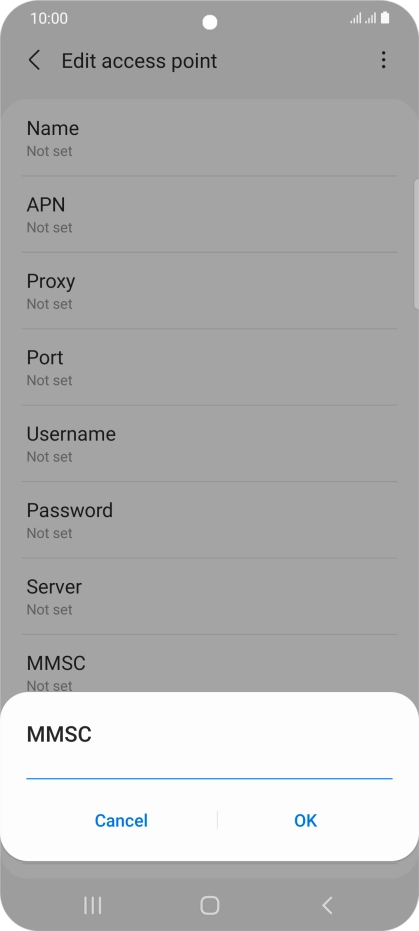

Key in http://mms.vodafone.co.uk/servlets/mms and press OK.
8. Enter IP address

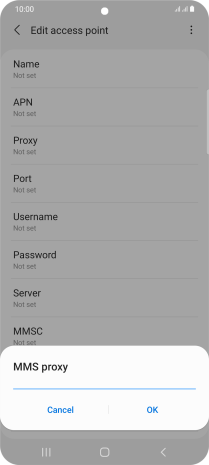

Press MMS proxy.
8. Enter IP address

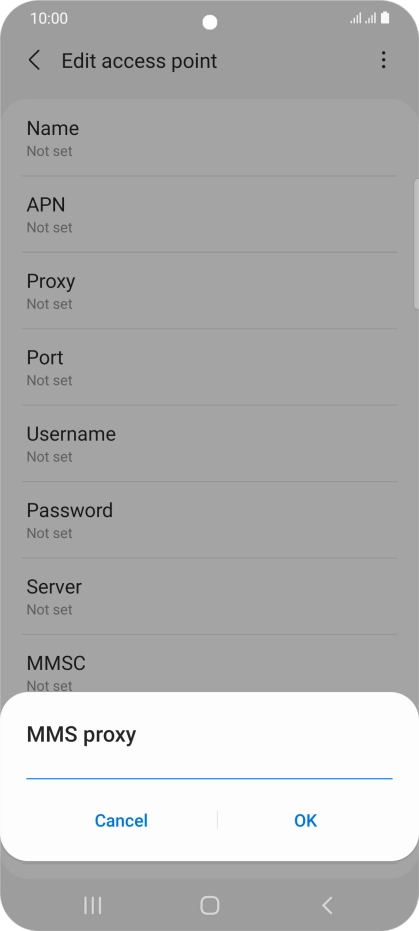

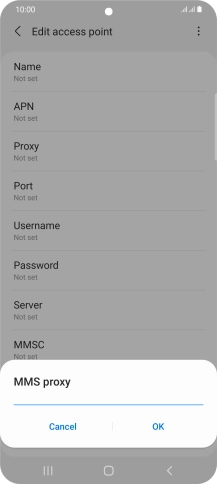

Key in 212.183.137.012 and press OK.
9. Enter port number

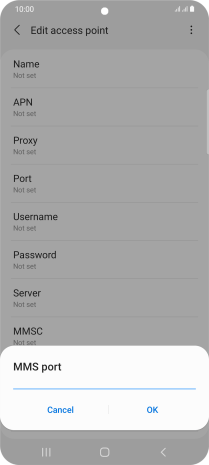

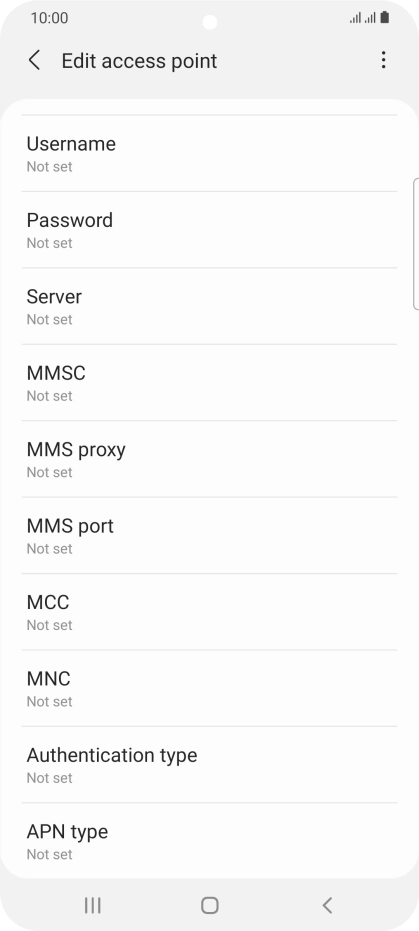

Press MMS port.
9. Enter port number

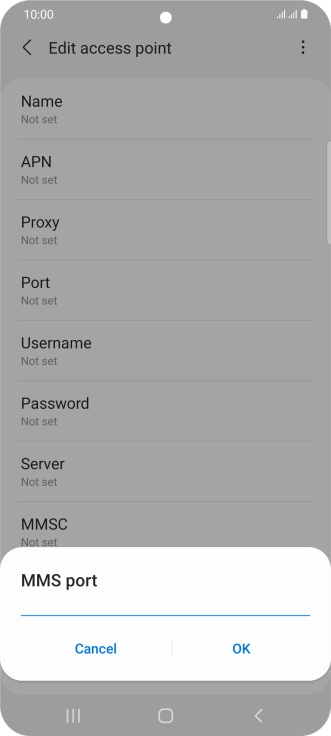

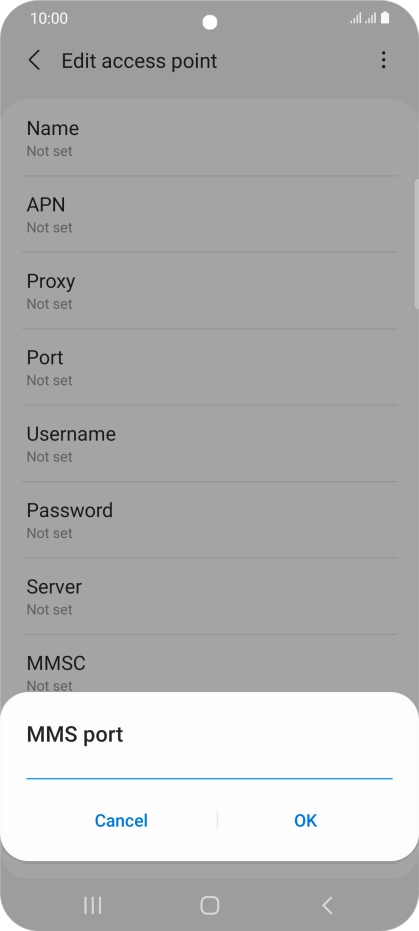

Key in 8799 and press OK.
10. Enter country code

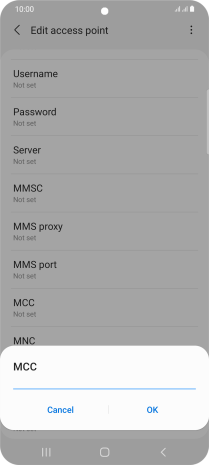

Press MCC.
10. Enter country code

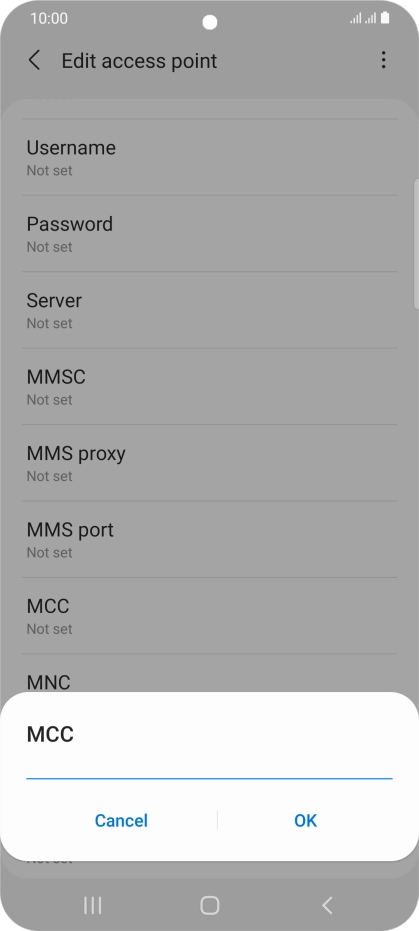

Key in 234 and press OK.

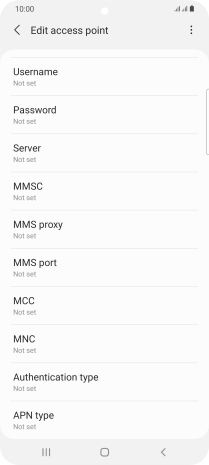

11. Enter network code
Press MNC.

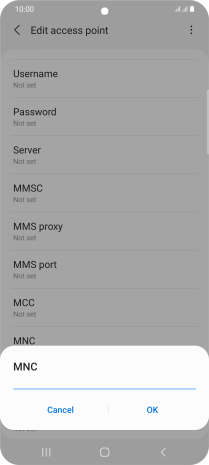

11. Enter network code

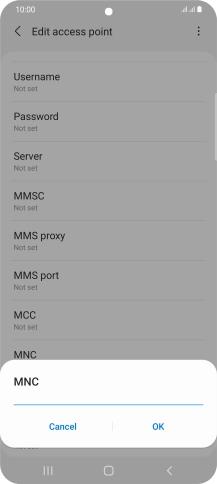

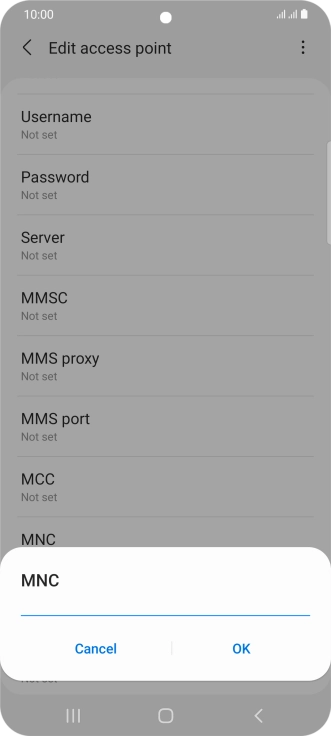

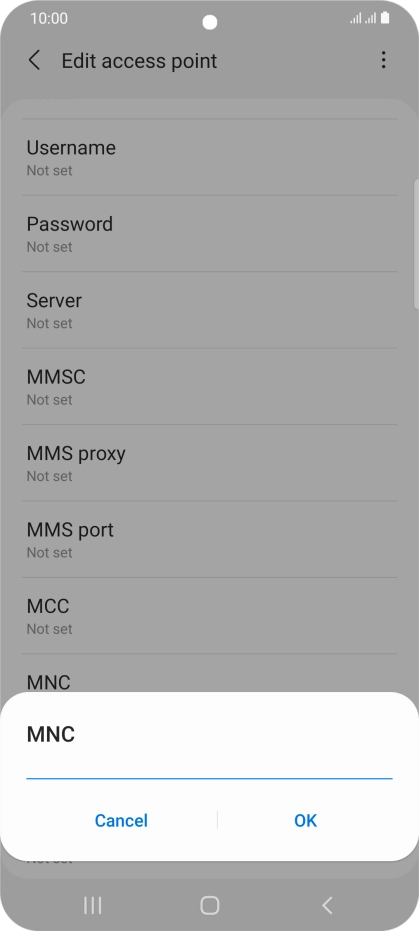

Key in 15 and press OK.
12. Select authentication type

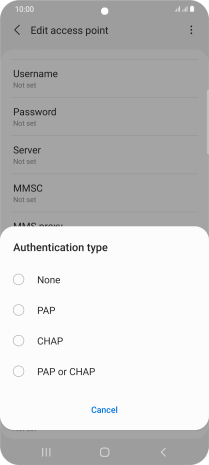

Press Authentication type.
12. Select authentication type

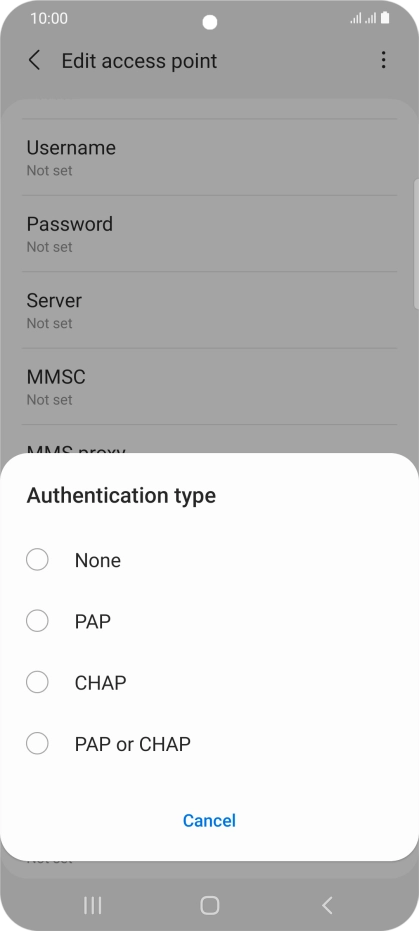

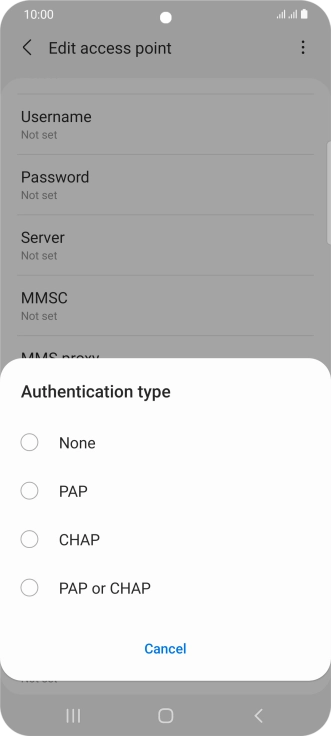

Press None.
13. Enter APN type
Press APN type.

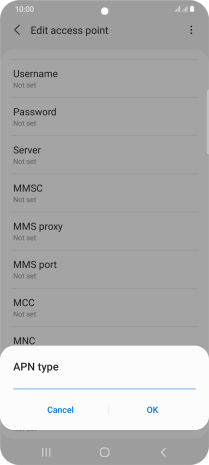

13. Enter APN type

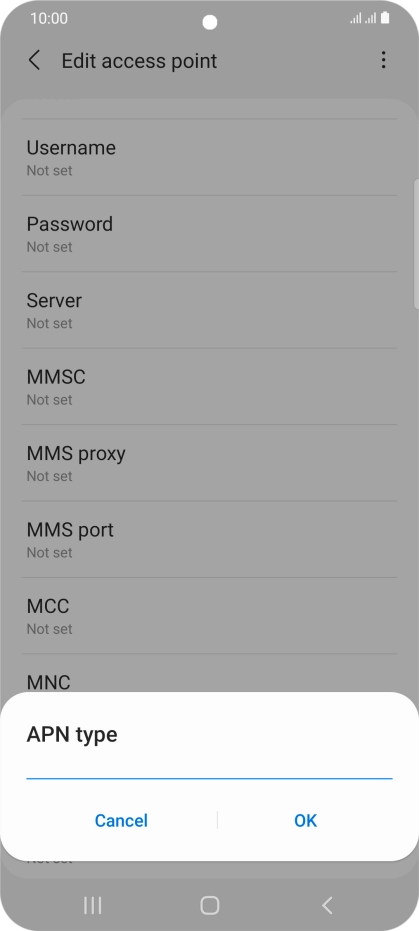

Key in mms and press OK.
14. Save data connection
Press the menu icon.

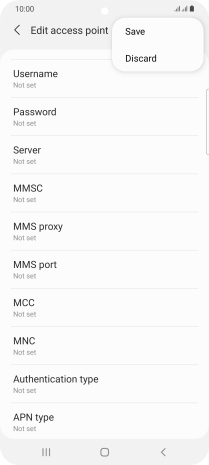

14. Save data connection

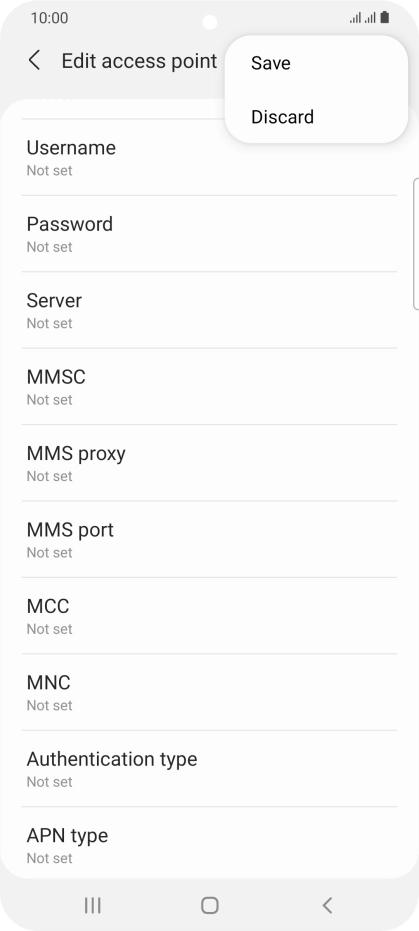

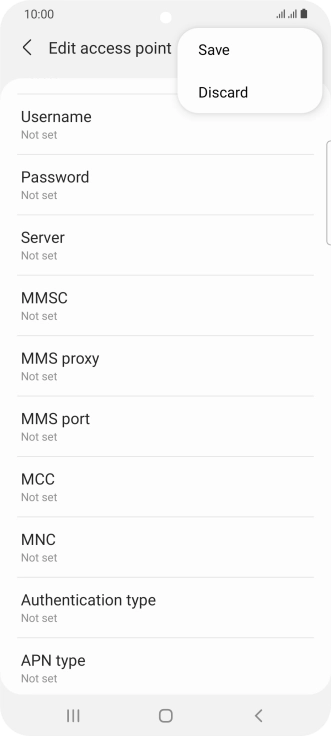

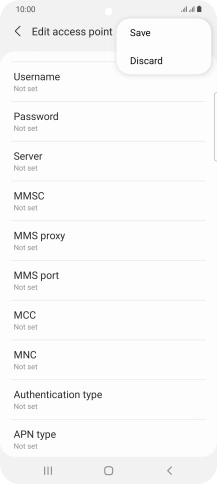

Press Save.
15. Return to the home screen

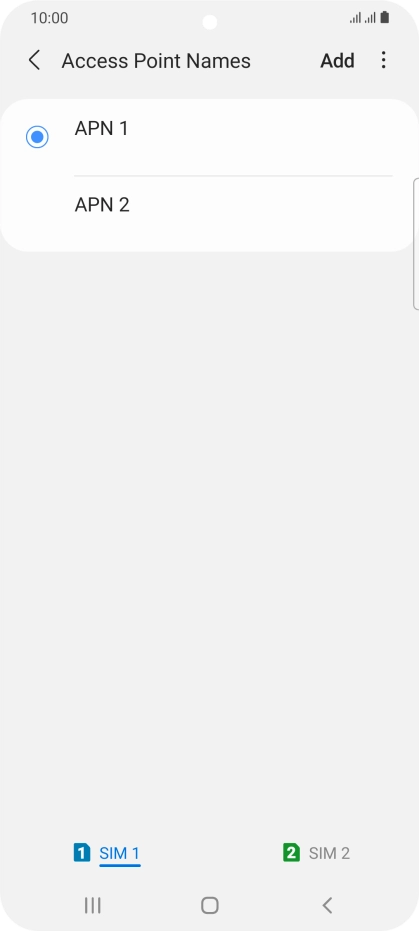

Press the Home key to return to the home screen.
