Samsung Galaxy S23 Ultra
1. Find "Access Point Names"
Slide two fingers downwards starting from the top of the screen.
1. Find "Access Point Names"
Press the settings icon.
1. Find "Access Point Names"

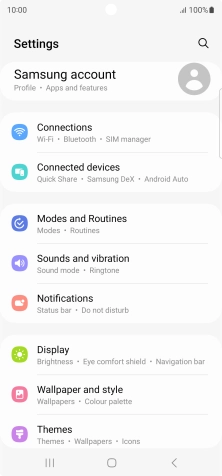

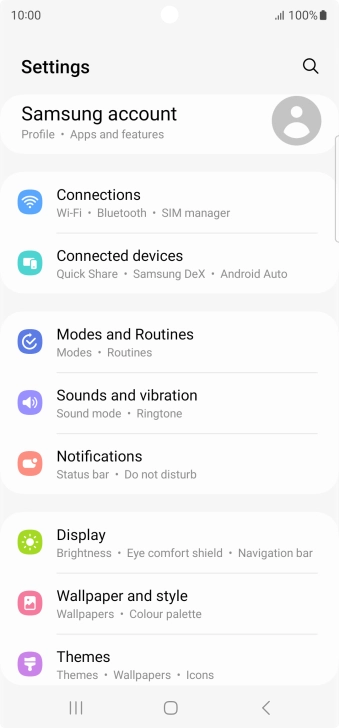

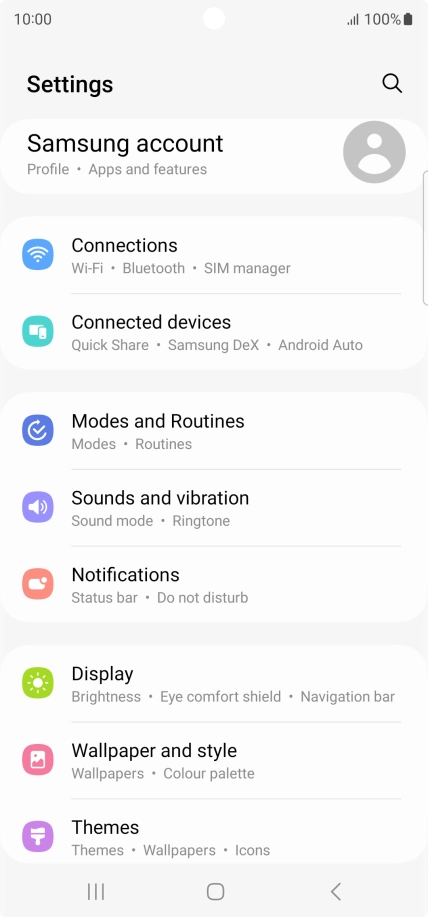

Press Connections.
1. Find "Access Point Names"

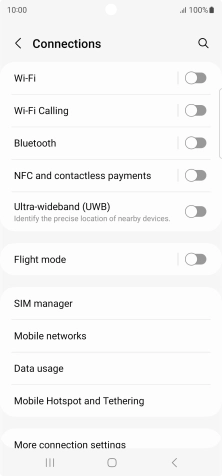

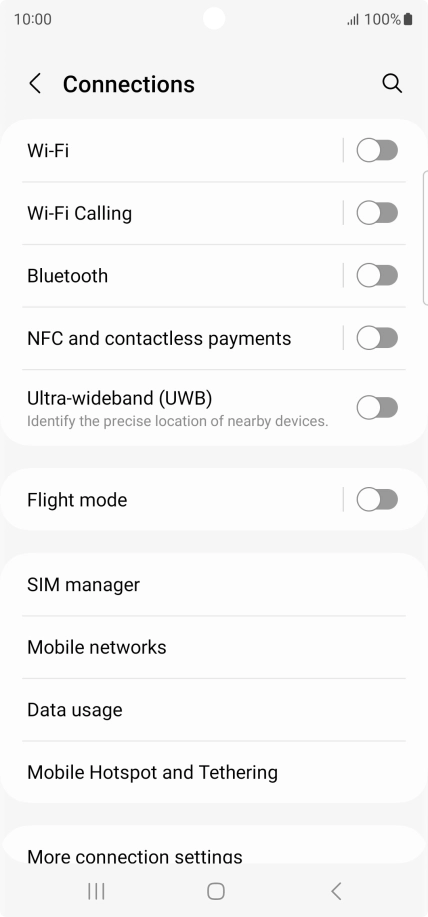

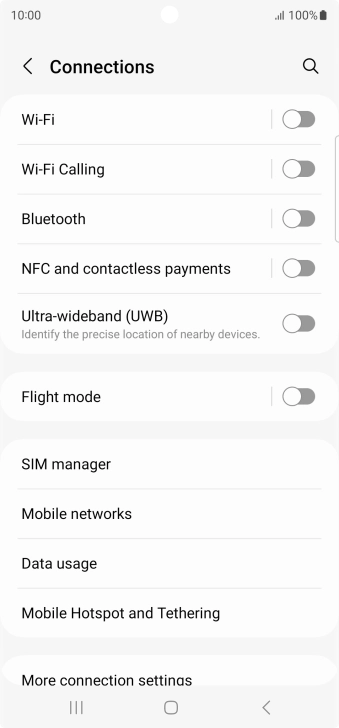

Press Mobile networks.
1. Find "Access Point Names"

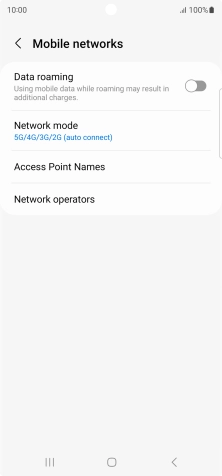

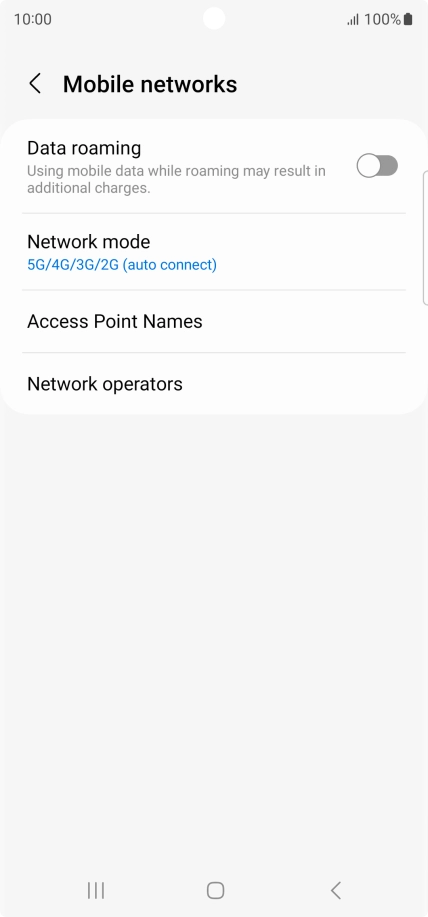

Press Access Point Names.

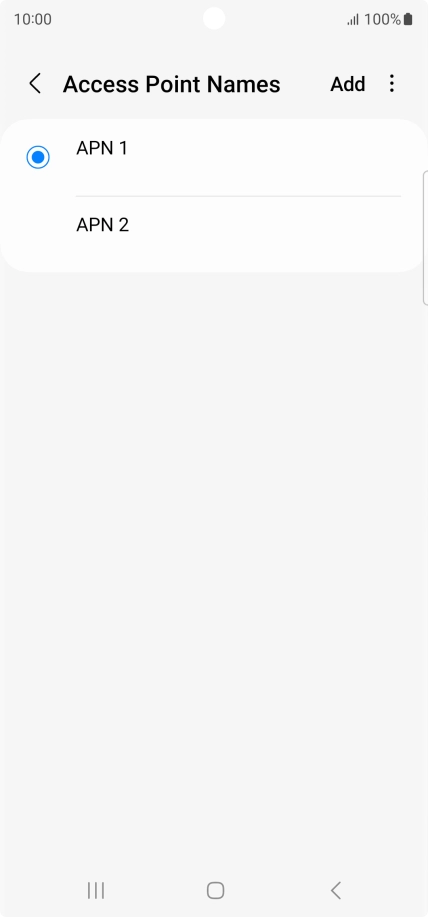

2. Create new data connection

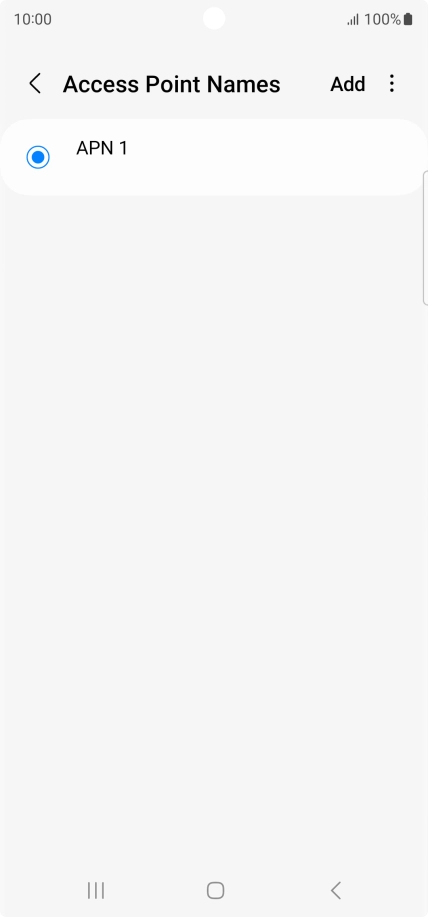

Press Add.
2. Create new data connection

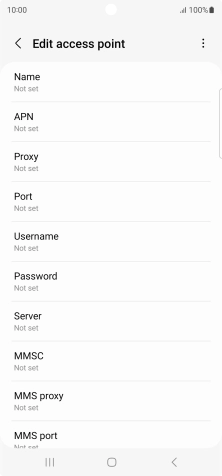

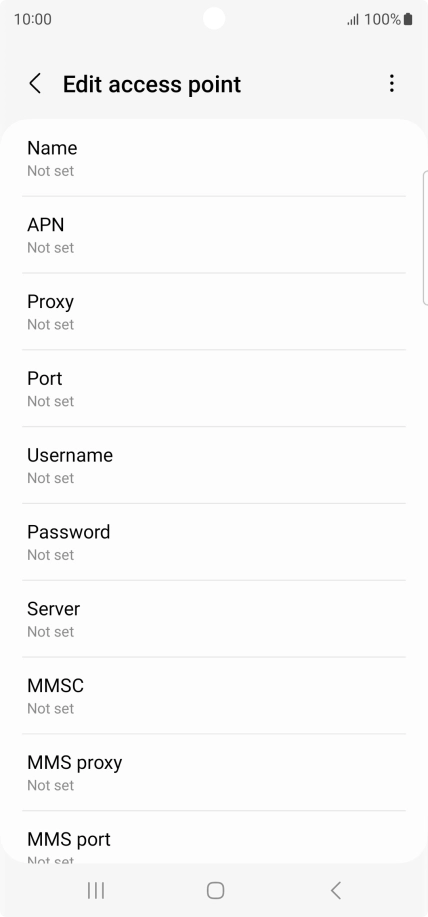

Press Name.

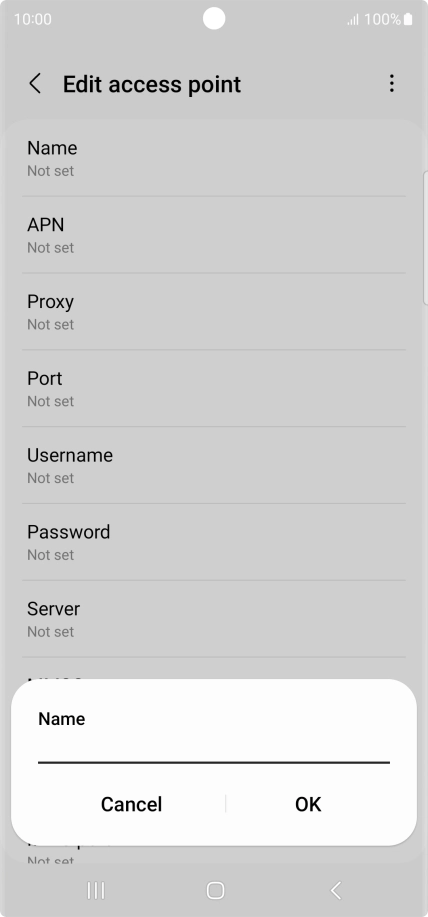

2. Create new data connection

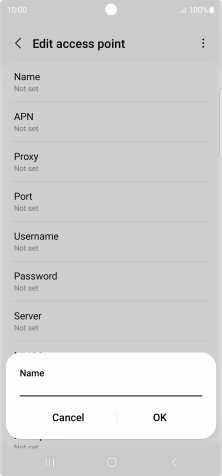

Key in Vodafone MMS and press OK.
3. Enter APN
Press APN.
3. Enter APN

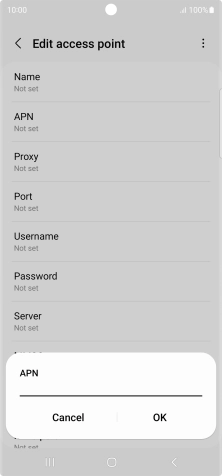

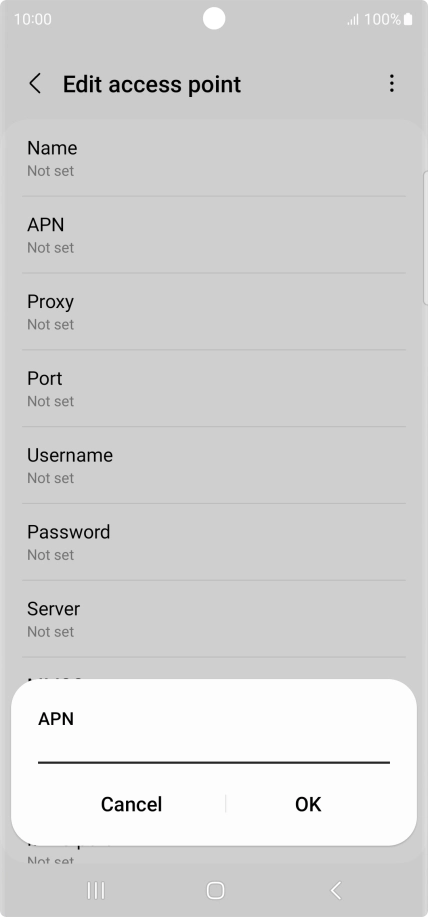

Key in wap.vodafone.co.uk and press OK.
4. Enter username
Press Username.

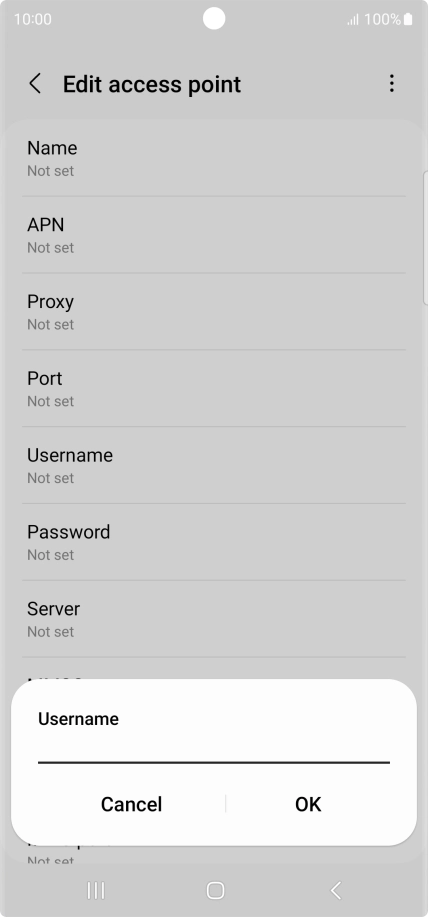

4. Enter username
Key in wap and press OK.
5. Enter password
Press Password.
5. Enter password

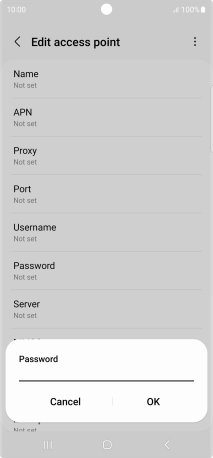

Key in wap and press OK.
6. Enter picture messaging server
Press MMSC.

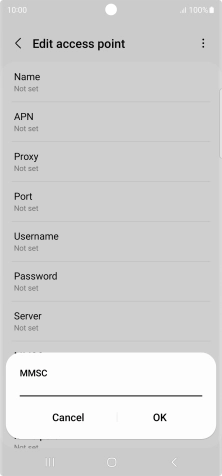

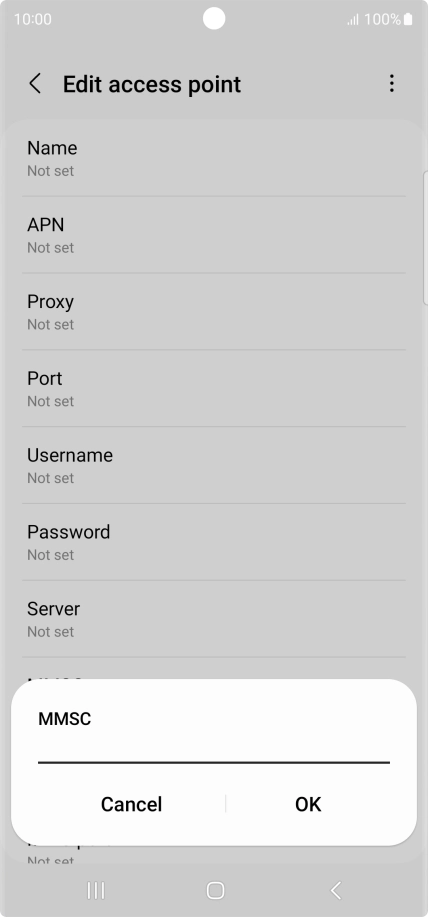

6. Enter picture messaging server
Key in http://mms.vodafone.co.uk/servlets/mms and press OK.
7. Enter IP address
Press MMS proxy.

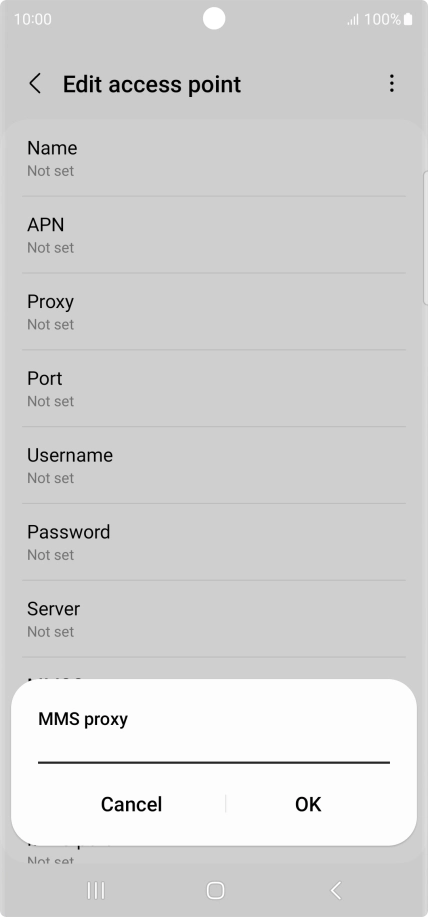

7. Enter IP address
Key in 212.183.137.012 and press OK.

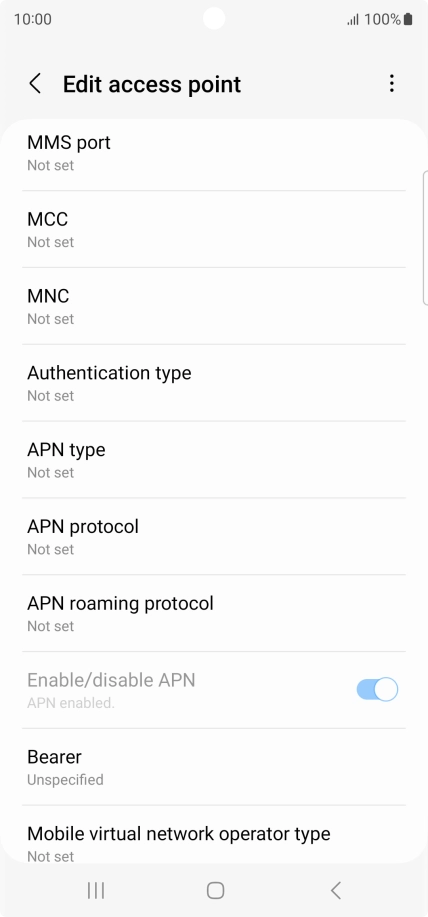

8. Enter port number

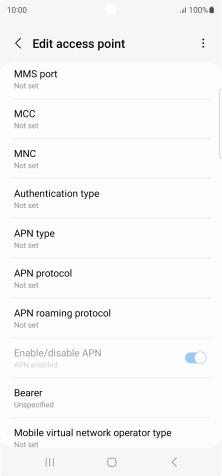

Press MMS port.

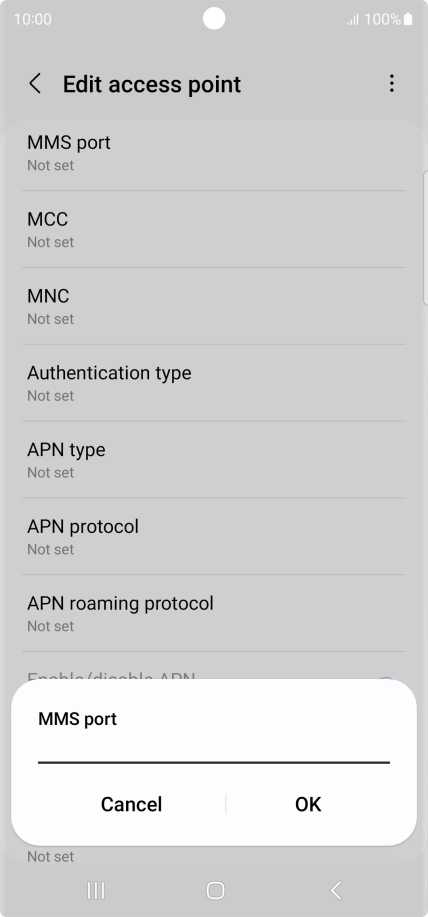

8. Enter port number
Key in 8799 and press OK.
9. Enter country code

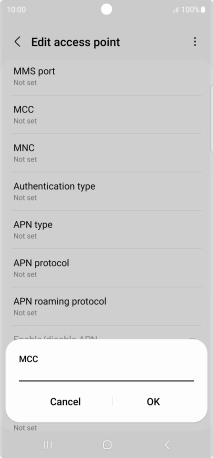

Press MCC.
9. Enter country code

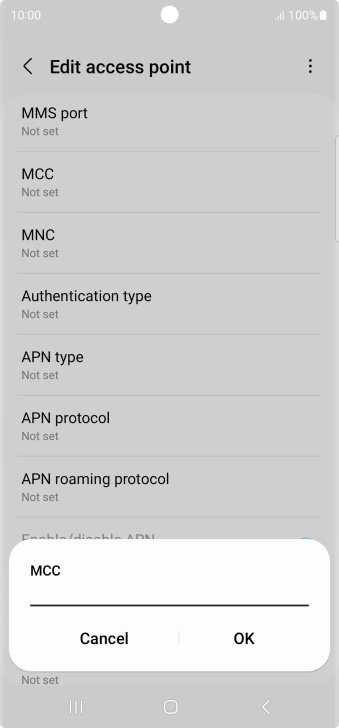

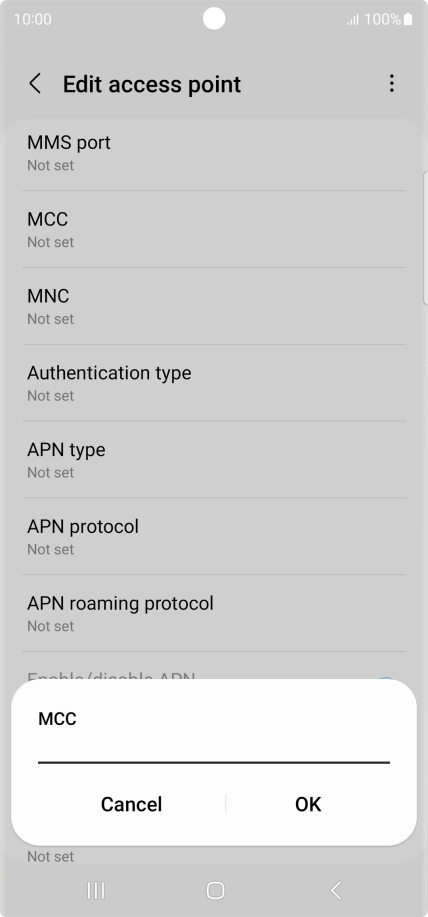

Key in 234 and press OK.
10. Enter network code

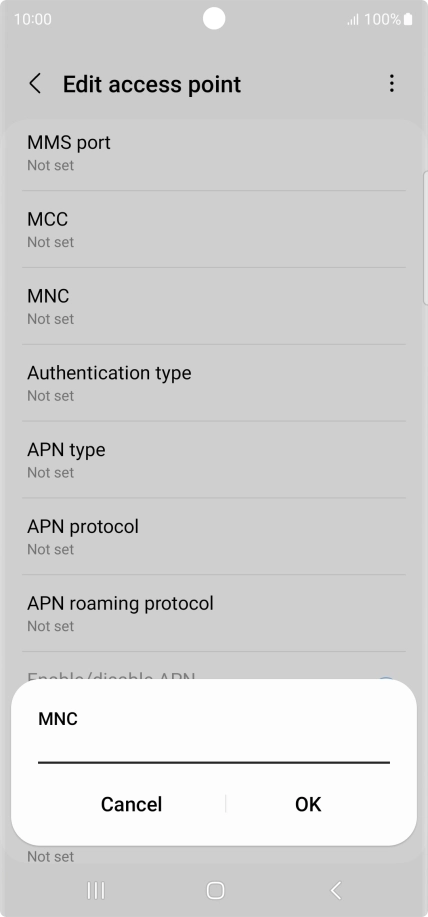

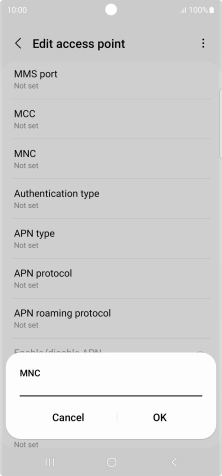

Press MNC.
10. Enter network code
Key in 15 and press OK.
11. Select authentication type

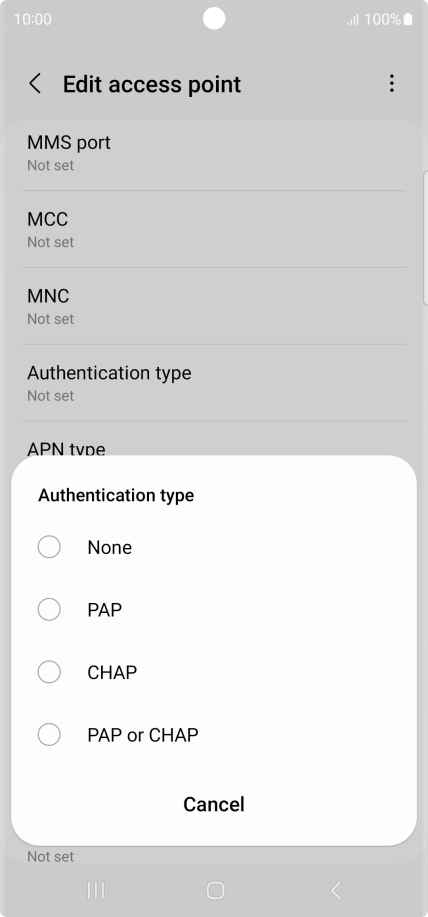

Press Authentication type.
11. Select authentication type
Press None.
12. Enter APN type

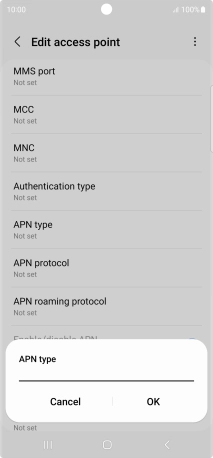

Press APN type.
12. Enter APN type
Key in mms and press OK.
13. Save data connection

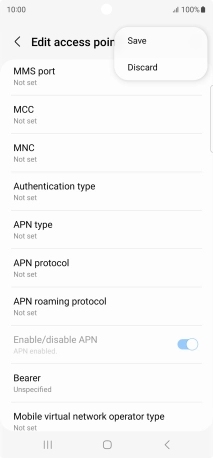

Press the menu icon.
13. Save data connection

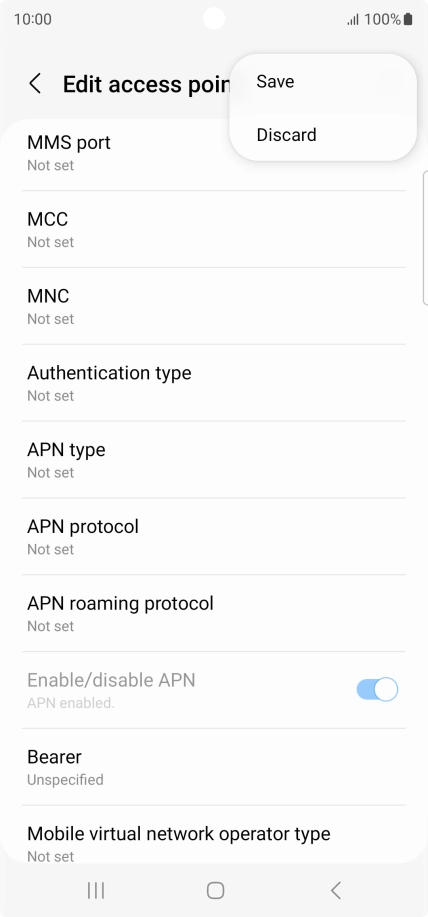

Press Save.
14. Return to the home screen
Press the Home key to return to the home screen.
