Set up your TCL onetouch 4041 Proprietary OS for picture messaging

Read help info

A picture message is a message which can contain pictures and other media files and can be sent to other mobile phones. You can send and receive picture messages as soon as you've inserted your SIM. If this isn't the case, you can set up your phone for picture messaging manually.

Press the Navigation key.
Step 1 of 35

1. Find "Data Accounts"

Press the Navigation key.

Select Settings.
Step 2 of 35

1. Find "Data Accounts"

Select Settings.

Select Connectivity.
Step 3 of 35

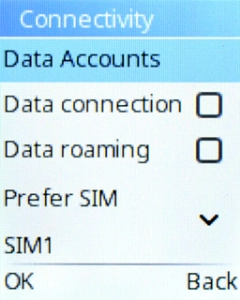

1. Find "Data Accounts"

Select Connectivity.

Select Data Accounts.
Step 4 of 35

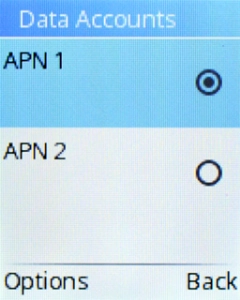

1. Find "Data Accounts"

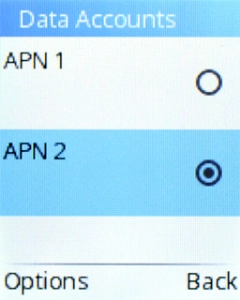

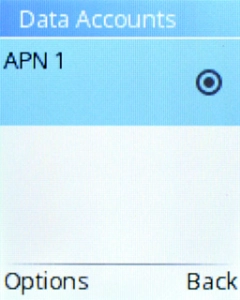

Select Data Accounts.

Press the Left selection key.
Step 5 of 35

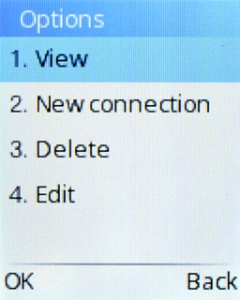

2. Create new data connection

Press the Left selection key.

Select New connection.
Step 6 of 35

2. Create new data connection

Select New connection.

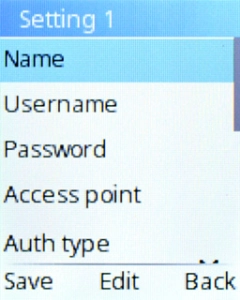

Select Name.
Step 7 of 35

2. Create new data connection

Select Name.

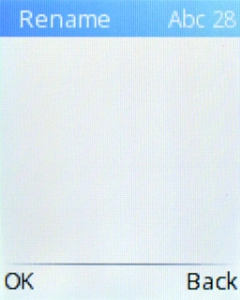

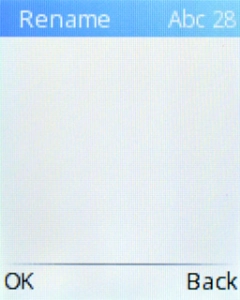

Key in Vodafone MMS and press the Left selection key.
Vodafone MMS
Step 8 of 35

2. Create new data connection

Key in Vodafone MMS and press the Left selection key.

Select Username.
Step 9 of 35

3. Enter username

Select Username.

Key in wap and press the Left selection key.
wap
Step 10 of 35

3. Enter username

Key in wap and press the Left selection key.

Select the field below
Step 11 of 35

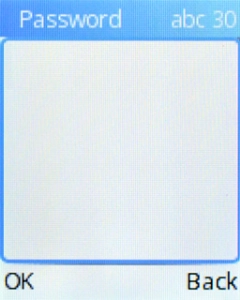

4. Enter password

Select the field below "Password".

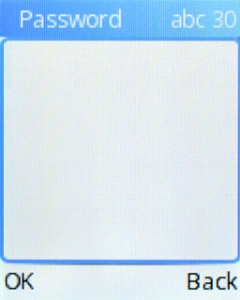

Key in wap and press the Left selection key.
wap
Step 12 of 35

4. Enter password

Key in wap and press the Left selection key.

Select Access point.
Step 13 of 35

5. Enter APN

Select Access point.

Key in wap.vodafone.co.uk and press the Left selection key.
wap.vodafone.co.uk
Step 14 of 35

5. Enter APN

Key in wap.vodafone.co.uk and press the Left selection key.

Select the field below
Step 15 of 35

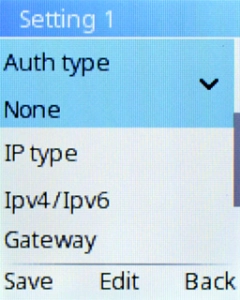

6. Select authentication type

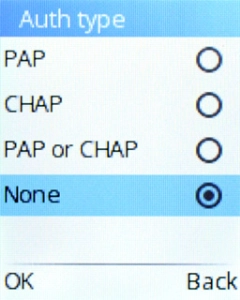

Select the field below "Auth type".

Select None.
Step 16 of 35

6. Select authentication type

Select None.

Select Gateway.
Step 17 of 35

7. Enter IP address

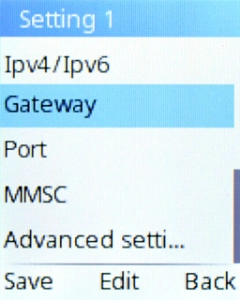

Select Gateway.

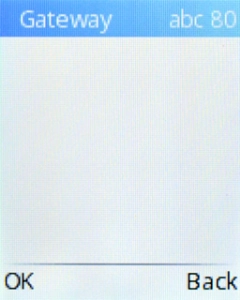

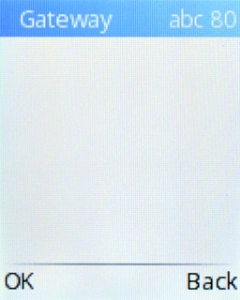

Key in 212.183.137.012 and press the Left selection key.
212.183.137.012
Step 18 of 35

7. Enter IP address

Key in 212.183.137.012 and press the Left selection key.

Select Port.
Step 19 of 35

8. Enter port number

Select Port.

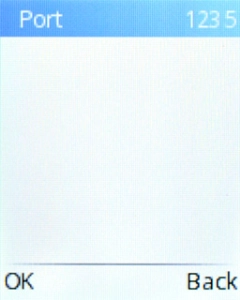

Key in 8799 and press the Left selection key.
8799
Step 20 of 35

8. Enter port number

Key in 8799 and press the Left selection key.

Select MMSC.
Step 21 of 35

9. Enter picture messaging server

Select MMSC.

Key in http://mms.vodafone.co.uk/servlets/mms and press the Left selection key.
http://mms.vodafone.co.uk/servlets/mms
Step 22 of 35

9. Enter picture messaging server

Key in http://mms.vodafone.co.uk/servlets/mms and press the Left selection key.

Select Advanced settings.
Step 23 of 35

10. Select connection type

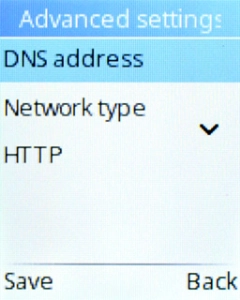

Select Advanced settings.

Select Network type.
Step 24 of 35

10. Select connection type

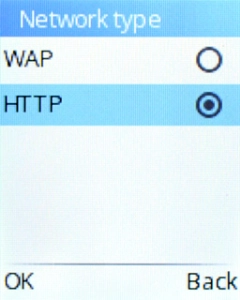

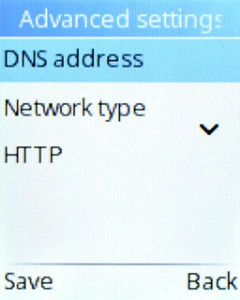

Select Network type.

Select HTTP.
Step 25 of 35

10. Select connection type

Select HTTP.

Press the Left selection key.
Step 26 of 35

11. Save data connection

Press the Left selection key.

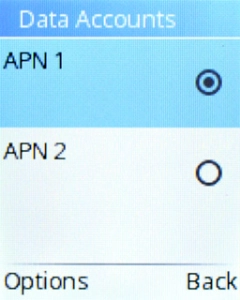

Press Disconnect to return to the home screen.
Step 27 of 35

12. Return to the home screen

Press Disconnect to return to the home screen.

Press the Navigation key.
Step 28 of 35

13. Find "MMS account"

Press the Navigation key.

Select Message.
Step 29 of 35

13. Find "MMS account"

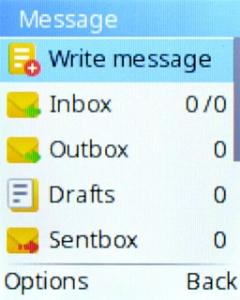

Select Message.

Press the Left selection key.
Step 30 of 35

13. Find "MMS account"

Press the Left selection key.

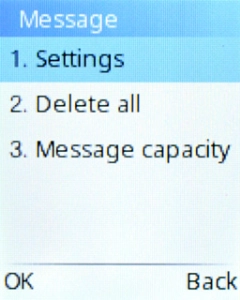

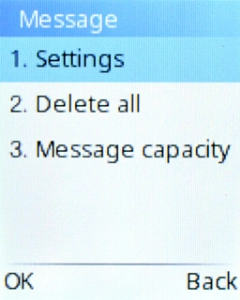

Select Settings.
Step 31 of 35

13. Find "MMS account"

Select Settings.

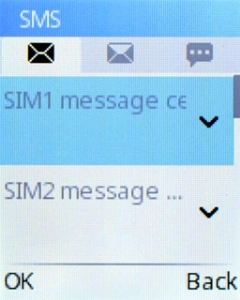

Select the picture message icon.
Step 32 of 35

13. Find "MMS account"

Select the picture message icon.

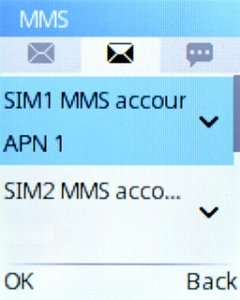

Select MMS account.
Step 33 of 35

13. Find "MMS account"

Select MMS account.

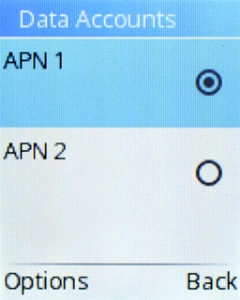

Select the required data connection.
Step 34 of 35

14. Active data connection

Select the required data connection.

Press Disconnect to return to the home screen.
Step 35 of 35

15. Return to the home screen

Press Disconnect to return to the home screen.

1. Find "Data Accounts"

Press the Navigation key.
Select Settings.
Select Connectivity.
Select Data Accounts.

2. Create new data connection

Press the Left selection key.
Select New connection.
Select Name.
Key in Vodafone MMS and press the Left selection key.
Vodafone MMS

3. Enter username

Select Username.
Key in wap and press the Left selection key.
wap

4. Enter password

Select the field below "Password".
Key in wap and press the Left selection key.
wap

5. Enter APN

Select Access point.
Key in wap.vodafone.co.uk and press the Left selection key.
wap.vodafone.co.uk

6. Select authentication type

Select the field below "Auth type".
Select None.

7. Enter IP address

Select Gateway.
Key in 212.183.137.012 and press the Left selection key.
212.183.137.012

8. Enter port number

Select Port.
Key in 8799 and press the Left selection key.
8799

9. Enter picture messaging server

Select MMSC.
Key in http://mms.vodafone.co.uk/servlets/mms and press the Left selection key.
http://mms.vodafone.co.uk/servlets/mms

10. Select connection type

Select Advanced settings.
Select Network type.
Select HTTP.

11. Save data connection

Press the Left selection key.

12. Return to the home screen

Press Disconnect to return to the home screen.

13. Find "MMS account"

Press the Navigation key.
Select Message.
Press the Left selection key.
Select Settings.
Select the picture message icon.
Select MMS account.

14. Active data connection

Select the required data connection.

15. Return to the home screen

Press Disconnect to return to the home screen.
