I can't send and receive picture messages on my TCL onetouch 4041 Proprietary OS

Cause 1 of 4: Your phone hasn't been set up for picture messaging correctly

To send and receive picture messages, you need to set up your phone correctly for picture messaging.

Solution: Set up your phone for picture messaging.

Step 1 of 35

Find "Data Accounts"

Press the Navigation key.

Step 2 of 35

Find "Data Accounts"

Select Settings.

Step 3 of 35

Find "Data Accounts"

Select Connectivity.

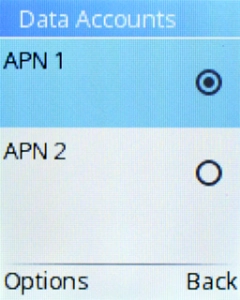

Step 4 of 35

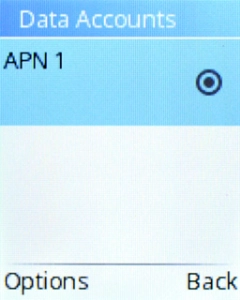

Find "Data Accounts"

Select Data Accounts.

Step 5 of 35

Create new data connection

Press the Left selection key.

Step 6 of 35

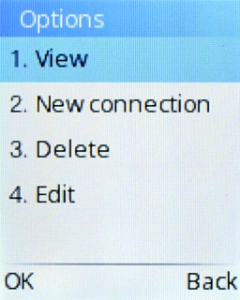

Create new data connection

Select New connection.

Step 7 of 35

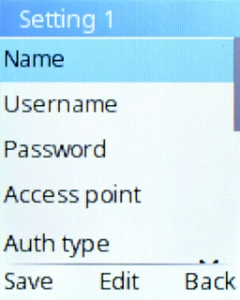

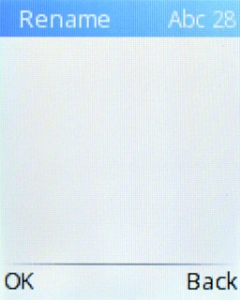

Create new data connection

Select Name.

Step 8 of 35

Create new data connection

Key in Vodafone MMS and press the Left selection key.

Step 9 of 35

Enter username

Select Username.

Step 10 of 35

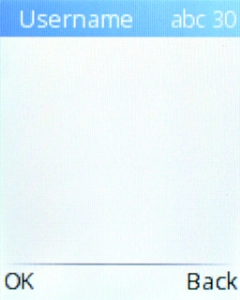

Enter username

Key in wap and press the Left selection key.

Step 11 of 35

Enter password

Select the field below "Password".

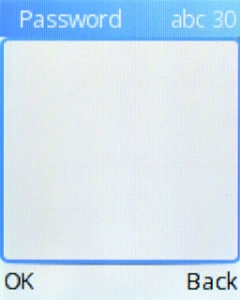

Step 12 of 35

Enter password

Key in wap and press the Left selection key.

Step 13 of 35

Enter APN

Select Access point.

Step 14 of 35

Enter APN

Key in wap.vodafone.co.uk and press the Left selection key.

Step 15 of 35

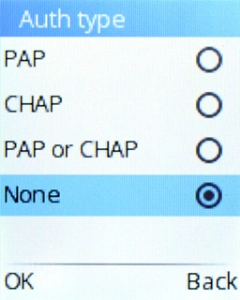

Select authentication type

Select the field below "Auth type".

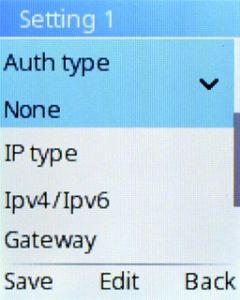

Step 16 of 35

Select authentication type

Select None.

Step 17 of 35

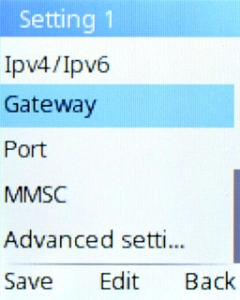

Enter IP address

Select Gateway.

Step 18 of 35

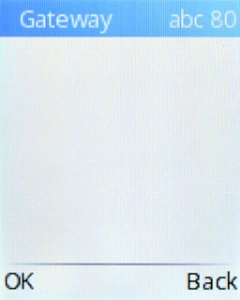

Enter IP address

Key in 212.183.137.012 and press the Left selection key.

Step 19 of 35

Enter port number

Select Port.

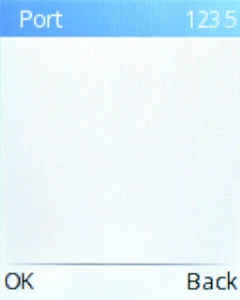

Step 20 of 35

Enter port number

Key in 8799 and press the Left selection key.

Step 21 of 35

Enter picture messaging server

Select MMSC.

Step 22 of 35

Enter picture messaging server

Key in http://mms.vodafone.co.uk/servlets/mms and press the Left selection key.

Step 23 of 35

Select connection type

Select Advanced settings.

Step 24 of 35

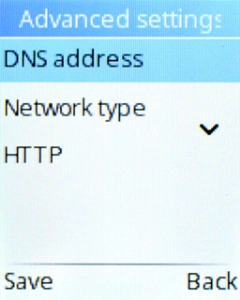

Select connection type

Select Network type.

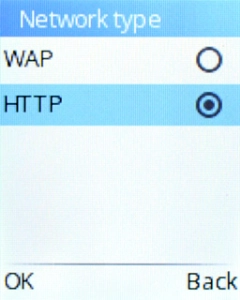

Step 25 of 35

Select connection type

Select HTTP.

Step 26 of 35

Save data connection

Press the Left selection key.

Step 27 of 35

Return to the home screen

Press Disconnect to return to the home screen.

Step 28 of 35

Find "MMS account"

Press the Navigation key.

Step 29 of 35

Find "MMS account"

Select Message.

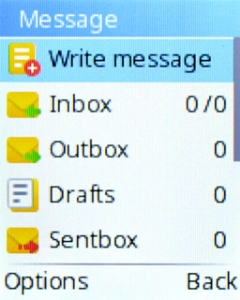

Step 30 of 35

Find "MMS account"

Press the Left selection key.

Step 31 of 35

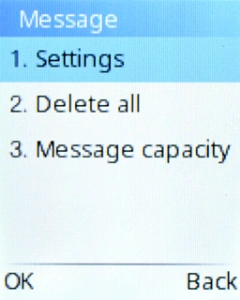

Find "MMS account"

Select Settings.

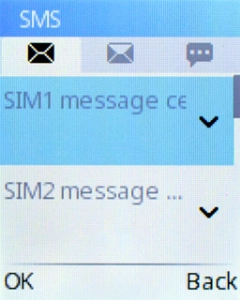

Step 32 of 35

Find "MMS account"

Select the picture message icon.

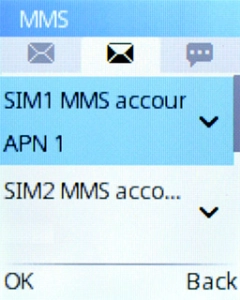

Step 33 of 35

Find "MMS account"

Select MMS account.

Step 34 of 35

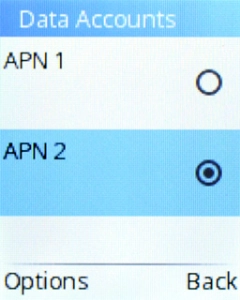

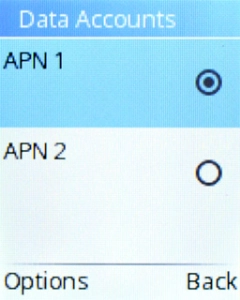

Active data connection

Select the required data connection.

Step 35 of 35

Return to the home screen

Press Disconnect to return to the home screen.

1 Find "Data Accounts"

Press the Navigation key.

Select Settings.

Select Connectivity.

Select Data Accounts.

2 Create new data connection

Press the Left selection key.

Select New connection.

Select Name.

Key in Vodafone MMS and press the Left selection key.

3 Enter username

Select Username.

Key in wap and press the Left selection key.

4 Enter password

Select the field below "Password".

Key in wap and press the Left selection key.

5 Enter APN

Select Access point.

Key in wap.vodafone.co.uk and press the Left selection key.

6 Select authentication type

Select the field below "Auth type".

Select None.

7 Enter IP address

Select Gateway.

Key in 212.183.137.012 and press the Left selection key.

8 Enter port number

Select Port.

Key in 8799 and press the Left selection key.

9 Enter picture messaging server

Select MMSC.

Key in http://mms.vodafone.co.uk/servlets/mms and press the Left selection key.

10 Select connection type

Select Advanced settings.

Select Network type.

Select HTTP.

11 Save data connection

Press the Left selection key.

12 Return to the home screen

Press Disconnect to return to the home screen.

13 Find "MMS account"

Press the Navigation key.

Select Message.

Press the Left selection key.

Select Settings.

Select the picture message icon.

Select MMS account.

14 Active data connection

Select the required data connection.

15 Return to the home screen

Press Disconnect to return to the home screen.
