![Xiaomi 11 Lite 5G NE](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-a5d27e72-0931-4a4a-a70f-cc91d3e7be22.png?width=150&height=320)
Xiaomi 11 Lite 5G NE
Android 12.0
1. Find "Access point names"
Press Settings.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-0d68589a-315e-4f60-8e83-62645ec686f9.png?width=206&height=456)

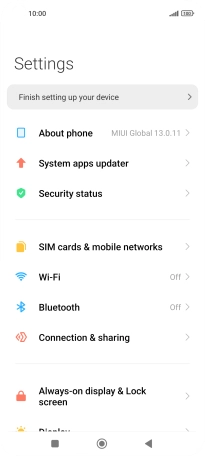

Press SIM cards & mobile networks.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-d498c068-6101-48e7-ab56-d649bea838df.png?width=206&height=456)

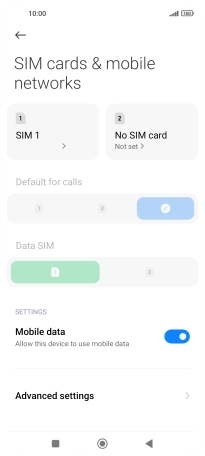

Press the name of the SIM.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-7377103f-b7e0-473a-b4bc-caaa0280529e.png?width=206&height=456)

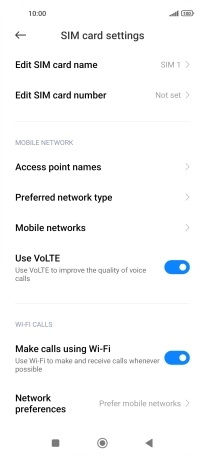

Press Access point names.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-e910757f-935e-44bd-b664-9ade914aada6.png?width=206&height=456)
2. Create new data connection

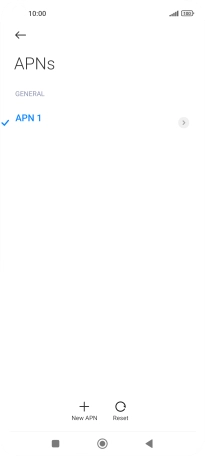

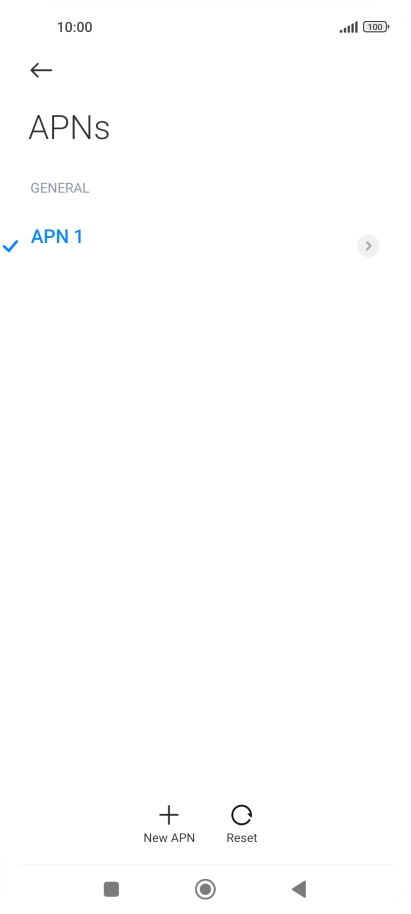

Press New APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-6bdc855b-8a4c-49d8-8250-f84795c35d7c.png?width=206&height=456)
3. Enter a name for the connection

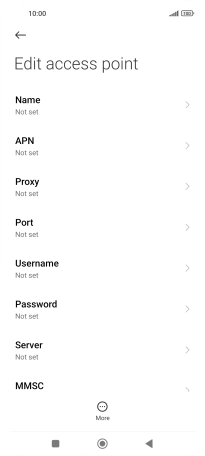

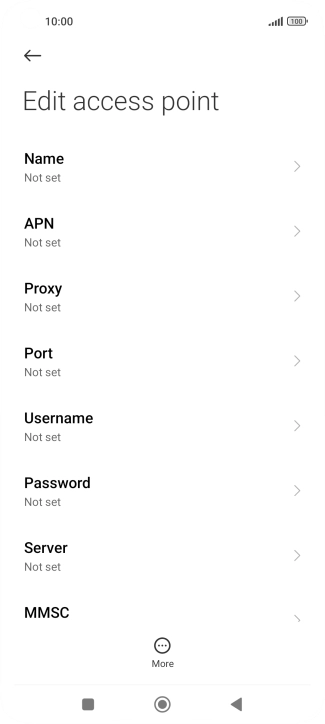

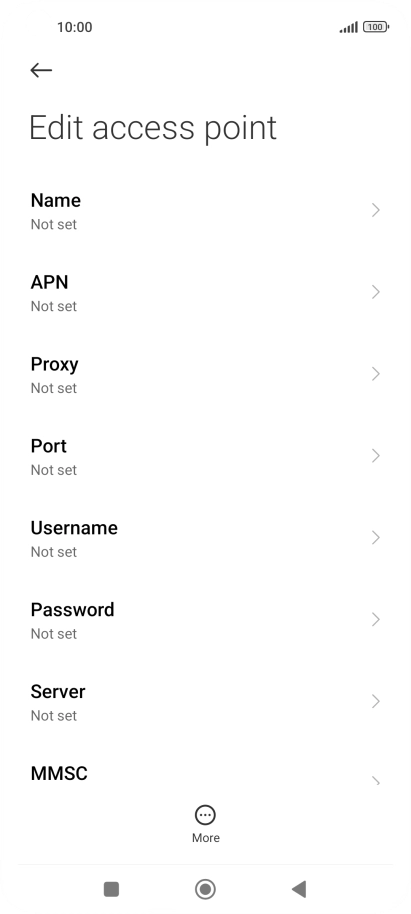

Press Name.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-0accdc9c-dc99-4cfb-ba43-9095a49ff2f3.png?width=206&height=456)

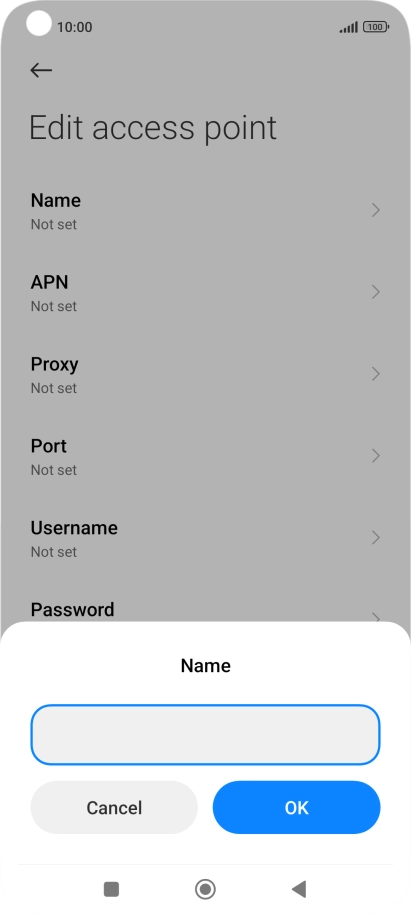

Key in Vodafone MMS and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-106e87e3-db87-458b-8c19-33c28bb1ff77.png?width=206&height=456)
Vodafone MMS
4. Enter APN
Press APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-0accdc9c-dc99-4cfb-ba43-9095a49ff2f3.png?width=206&height=456)
Key in wap.vodafone.co.uk and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-b502f5c8-ac28-455e-b969-47f8a19b5449.png?width=206&height=456)
wap.vodafone.co.uk
5. Enter username
Press Username.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-0accdc9c-dc99-4cfb-ba43-9095a49ff2f3.png?width=206&height=456)
Key in wap and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-9c300c07-d835-4c90-90d7-0f1a2e3bf58a.png?width=206&height=456)
wap
6. Enter password
Press Password.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-0accdc9c-dc99-4cfb-ba43-9095a49ff2f3.png?width=206&height=456)
Key in wap and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-28589e57-cdfb-4689-99db-788953cdf168.png?width=206&height=456)
wap
7. Enter picture messaging server
Press MMSC.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-0accdc9c-dc99-4cfb-ba43-9095a49ff2f3.png?width=206&height=456)

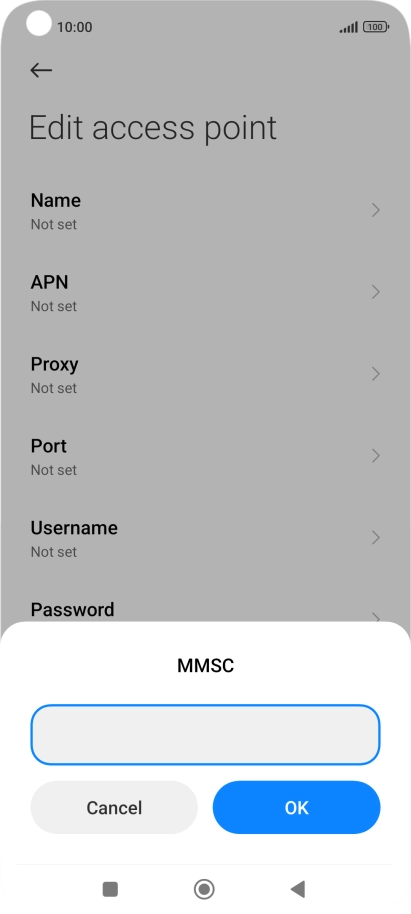

Key in http://mms.vodafone.co.uk/servlets/mms and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-e07b7837-43e1-45c8-86f1-0fccab68058d.png?width=206&height=456)
http://mms.vodafone.co.uk/servlets/mms
8. Enter IP address

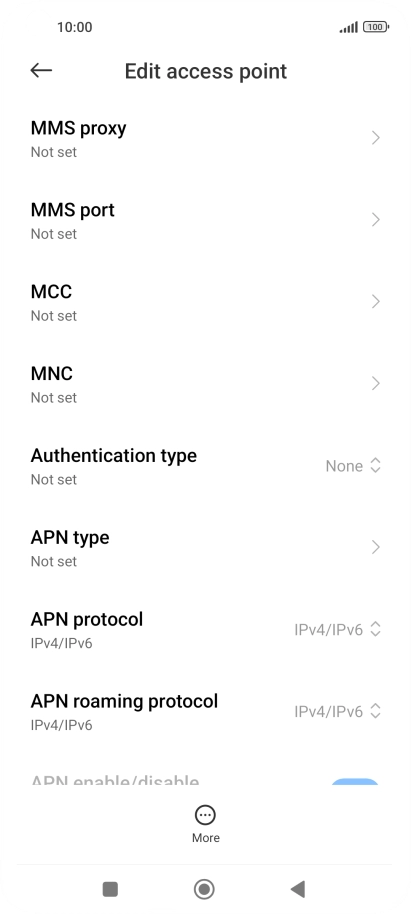

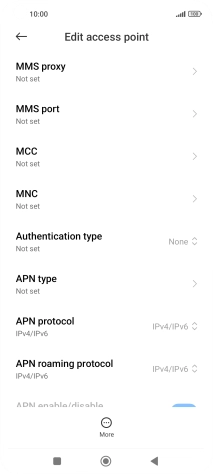

Press MMS proxy.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-640dc6d4-dd90-4786-9a93-1e2bde2c30cb.png?width=206&height=456)

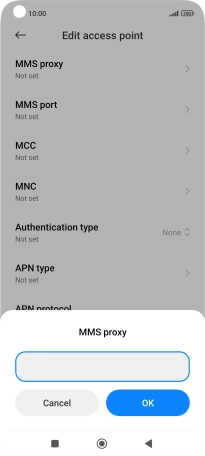

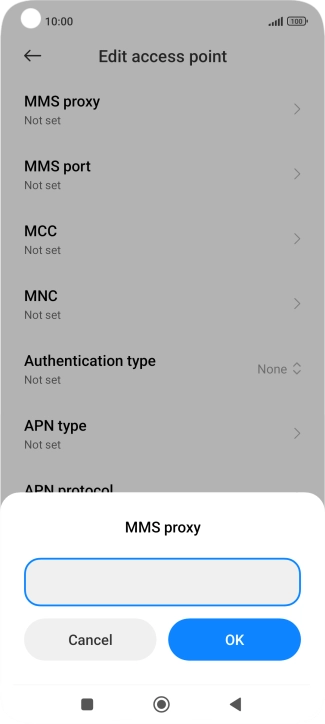

Key in 212.183.137.012 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-32c7fe6d-6eac-44fe-b09a-8c11bd105471.png?width=206&height=456)
212.183.137.012
9. Enter port number
Press MMS port.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-640dc6d4-dd90-4786-9a93-1e2bde2c30cb.png?width=206&height=456)

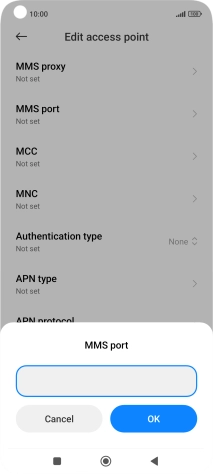

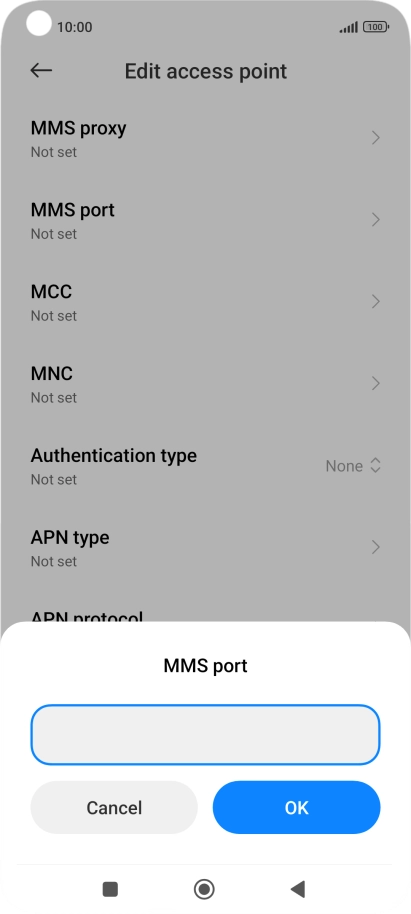

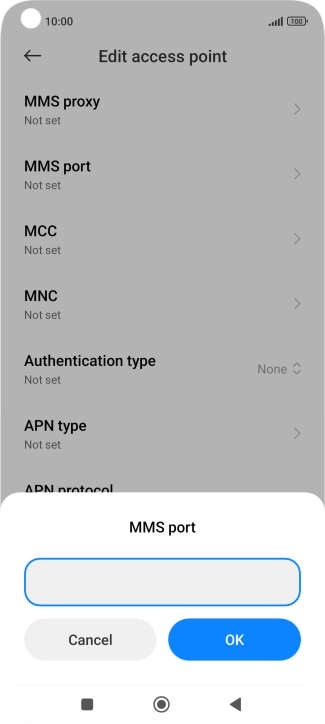

Key in 8799 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-9e9f0b42-0240-4d02-97a4-44f0931322c8.png?width=206&height=456)
8799
10. Enter country code
Press MCC.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-640dc6d4-dd90-4786-9a93-1e2bde2c30cb.png?width=206&height=456)

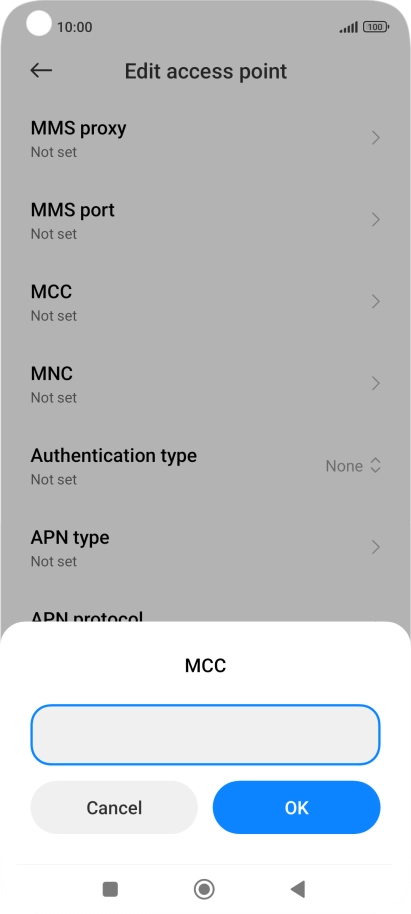

Key in 234 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-cd61649e-a135-4203-8610-fb7c6642cca5.png?width=206&height=456)
234
11. Enter network code
Press MNC.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-640dc6d4-dd90-4786-9a93-1e2bde2c30cb.png?width=206&height=456)
Key in 15 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-13c1235a-cf14-425f-948f-d8dc3e14fdb7.png?width=206&height=456)
15
12. Select authentication type
Press Authentication type.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-640dc6d4-dd90-4786-9a93-1e2bde2c30cb.png?width=206&height=456)

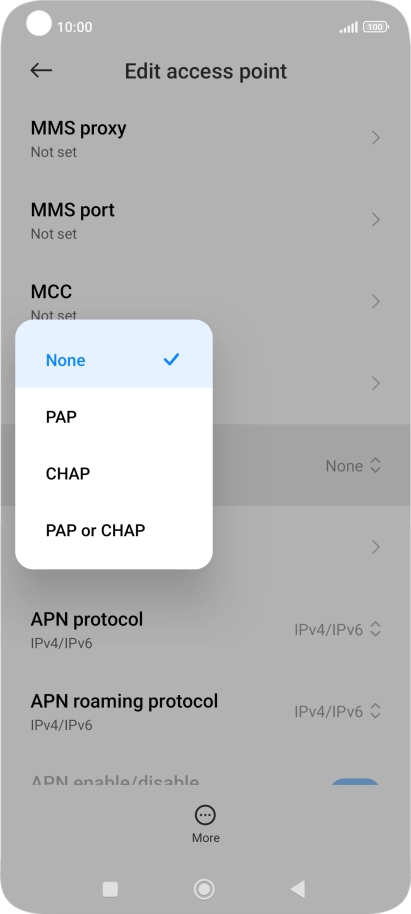

Press None.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-b2854ae8-ffa0-4a43-8d31-3b357f91f0dc.png?width=206&height=456)
13. Enter APN type
Press APN type.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-640dc6d4-dd90-4786-9a93-1e2bde2c30cb.png?width=206&height=456)
Key in mms and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-14d0f690-603c-4f9a-bbd7-3b56c7b8ce52.png?width=206&height=456)
mms
14. Save data connection
Press More.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-640dc6d4-dd90-4786-9a93-1e2bde2c30cb.png?width=206&height=456)

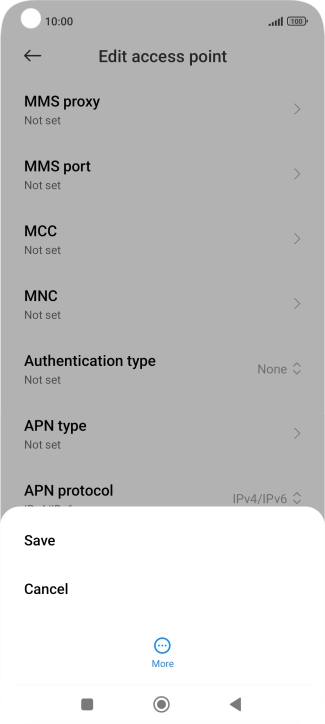

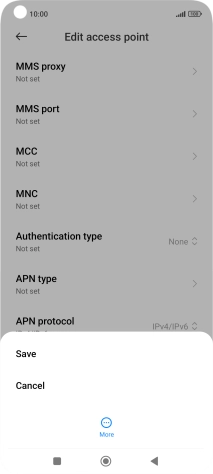

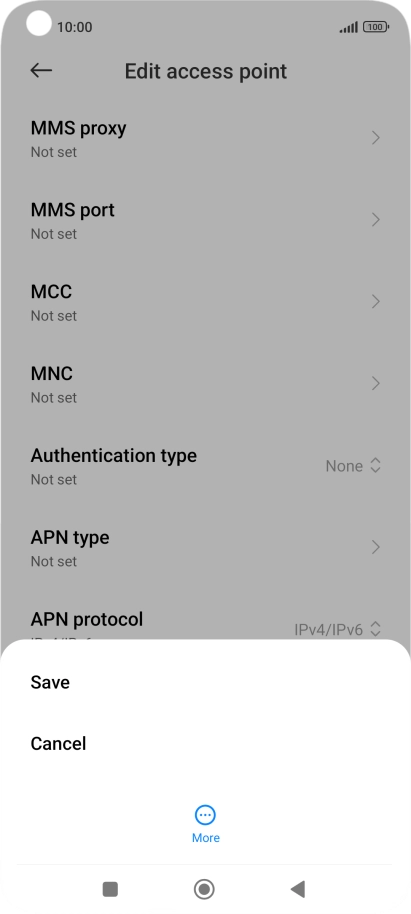

Press Save.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-b8eb29b7-9757-4b51-9bad-23317d7873a3.png?width=206&height=456)
15. Return to the home screen

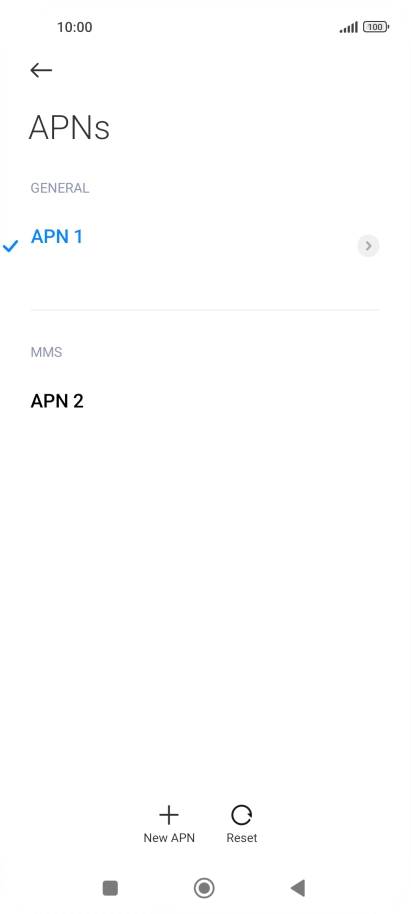

Press the Home key to return to the home screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-1051cd56-c405-413c-a110-d71b3d59f8e3.png?width=206&height=456)
