Xiaomi 11T Pro

Xiaomi 11T Pro

Android 11.0

Set up your Xiaomi 11T Pro Android 11.0 for picture messaging

Read help info

A picture message is a message which can contain pictures and other media files and can be sent to other mobile phones. You can send and receive picture messages as soon as you've inserted your SIM. If this isn't the case, you can set up your phone for picture messaging manually.

Step 1 of 30

1. Find "Access point names"

Press Settings.

Step 2 of 30

1. Find "Access point names"

Press SIM cards & mobile networks.

Step 3 of 30

1. Find "Access point names"

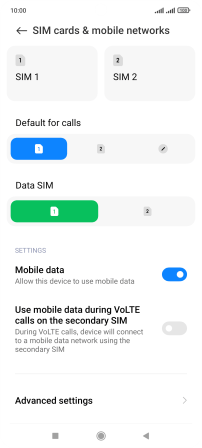

Press the required SIM.

Step 4 of 30

1. Find "Access point names"

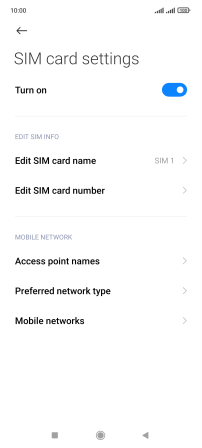

Press Access point names.

Step 5 of 30

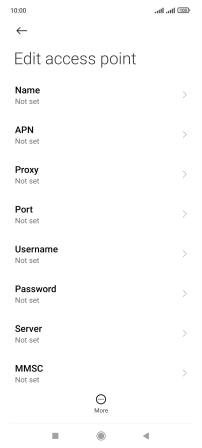

2. Create new data connection

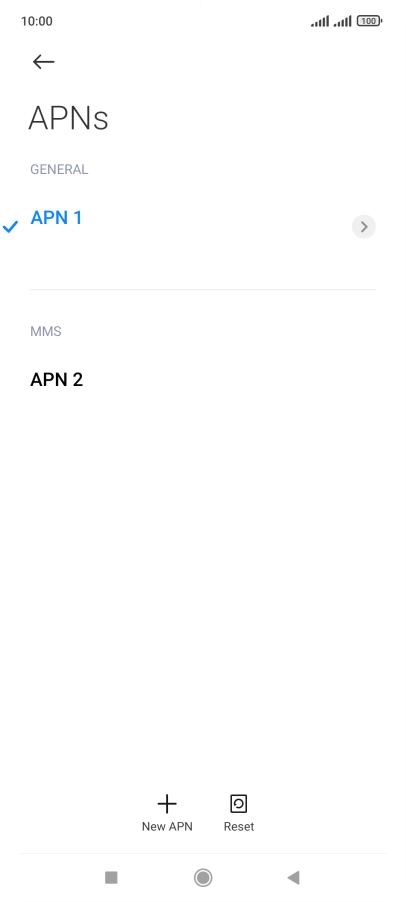

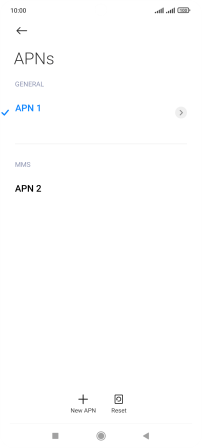

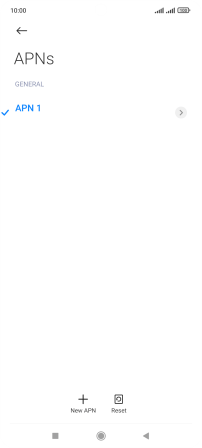

Press New APN.

Step 6 of 30

3. Enter a name for the connection

Press Name.

Vodafone MMS
Step 7 of 30

3. Enter a name for the connection

Key in Vodafone MMS and press OK.

Step 8 of 30

4. Enter APN

Press APN.

wap.vodafone.co.uk
Step 9 of 30

4. Enter APN

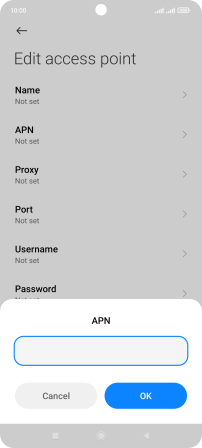

Key in wap.vodafone.co.uk and press OK.

Step 10 of 30

5. Enter username

Press Username.

wap
Step 11 of 30

5. Enter username

Key in wap and press OK.

Step 12 of 30

6. Enter password

Press Password.

wap
Step 13 of 30

6. Enter password

Key in wap and press OK.

Step 14 of 30

7. Enter picture messaging server

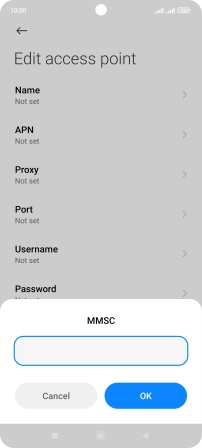

Press MMSC.

http://mms.vodafone.co.uk/servlets/mms
Step 15 of 30

7. Enter picture messaging server

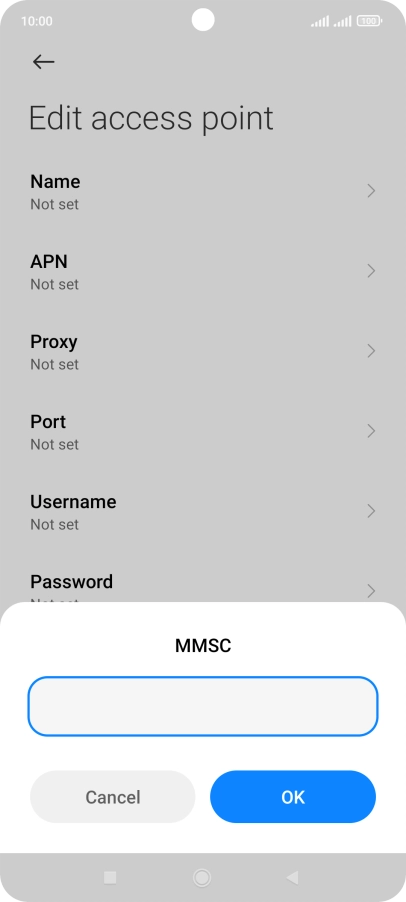

Key in http://mms.vodafone.co.uk/servlets/mms and press OK.

Step 16 of 30

8. Enter IP address

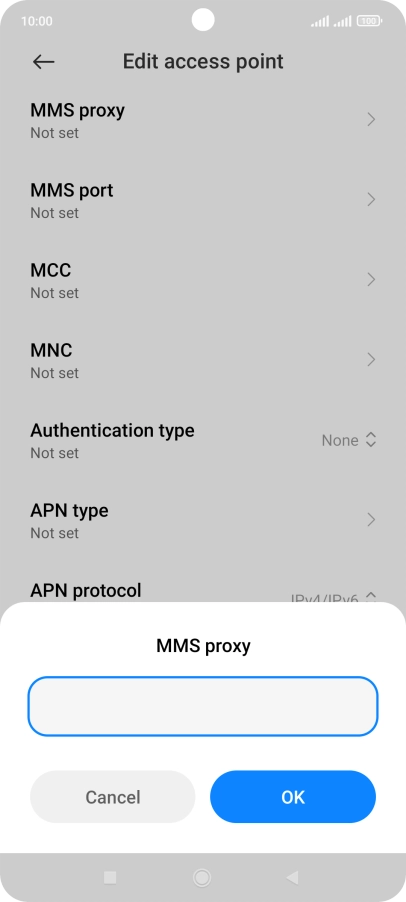

Press MMS proxy.

212.183.137.012
Step 17 of 30

8. Enter IP address

Key in 212.183.137.012 and press OK.

Step 18 of 30

9. Enter port number

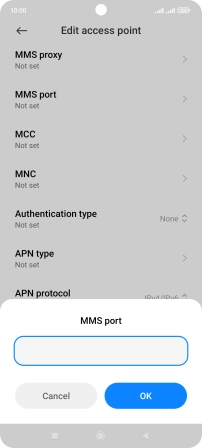

Press MMS port.

8799
Step 19 of 30

9. Enter port number

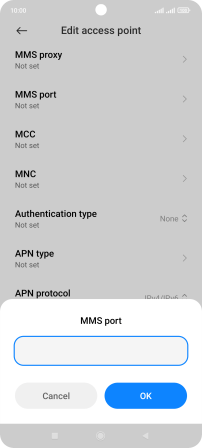

Key in 8799 and press OK.

Step 20 of 30

10. Enter country code

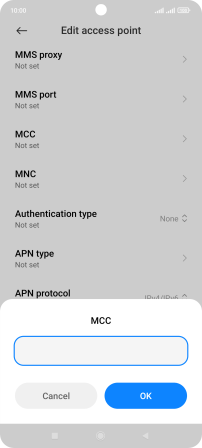

Press MCC.

234
Step 21 of 30

10. Enter country code

Key in 234 and press OK.

Step 22 of 30

11. Enter network code

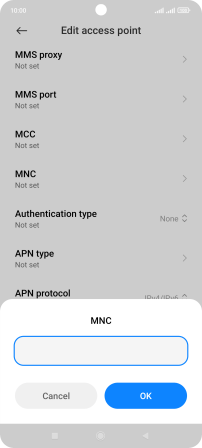

Press MNC.

15
Step 23 of 30

11. Enter network code

Key in 15 and press OK.

Step 24 of 30

12. Select authentication type

Press Authentication type.

Step 25 of 30

12. Select authentication type

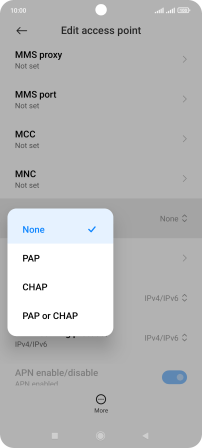

Press None.

Step 26 of 30

13. Enter APN type

Press APN type.

mms
Step 27 of 30

13. Enter APN type

Key in mms and press OK.

Step 28 of 30

14. Save data connection

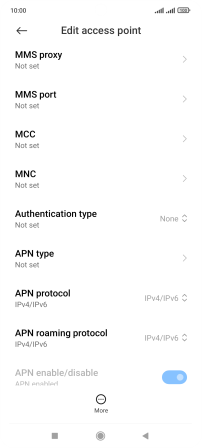

Press More.

Step 29 of 30

14. Save data connection

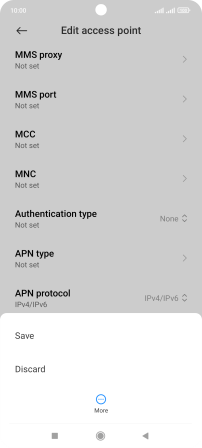

Press Save.

Step 30 of 30

15. Return to the home screen

Press the Home key to return to the home screen.

1. Find "Access point names"

Press Settings.
Press SIM cards & mobile networks.
Press the required SIM.
Press Access point names.

2. Create new data connection

Press New APN.

3. Enter a name for the connection

Press Name.
Key in Vodafone MMS and press OK.
Vodafone MMS

4. Enter APN

Press APN.
Key in wap.vodafone.co.uk and press OK.
wap.vodafone.co.uk

5. Enter username

Press Username.
Key in wap and press OK.
wap

6. Enter password

Press Password.
Key in wap and press OK.
wap

7. Enter picture messaging server

Press MMSC.
Key in http://mms.vodafone.co.uk/servlets/mms and press OK.
http://mms.vodafone.co.uk/servlets/mms

8. Enter IP address

Press MMS proxy.
Key in 212.183.137.012 and press OK.
212.183.137.012

9. Enter port number

Press MMS port.
Key in 8799 and press OK.
8799

10. Enter country code

Press MCC.
Key in 234 and press OK.
234

11. Enter network code

Press MNC.
Key in 15 and press OK.
15

12. Select authentication type

Press Authentication type.
Press None.

13. Enter APN type

Press APN type.
Key in mms and press OK.
mms

14. Save data connection

Press More.
Press Save.

15. Return to the home screen

Press the Home key to return to the home screen.
