![Xiaomi Redmi A3](http://wmstatic.global.ssl.fastly.net/ml/7230524-f-1a74073b-122f-496c-9b67-584a8bd69eea.png?width=150&height=320)
Xiaomi Redmi A3
Android 14
1. Find "APNs"
Slide two fingers downwards starting from the top of the screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7230524-f-0606367f-81c8-4e3f-97bb-d3411a7a4583.png?width=194&height=444)
Press the settings icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7230524-f-1c84b4db-0262-475d-aa2f-2590b4804d24.png?width=194&height=444)

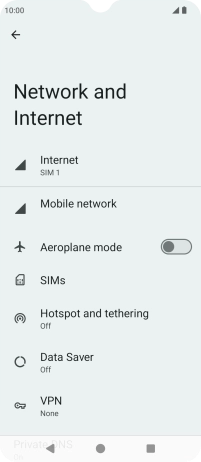

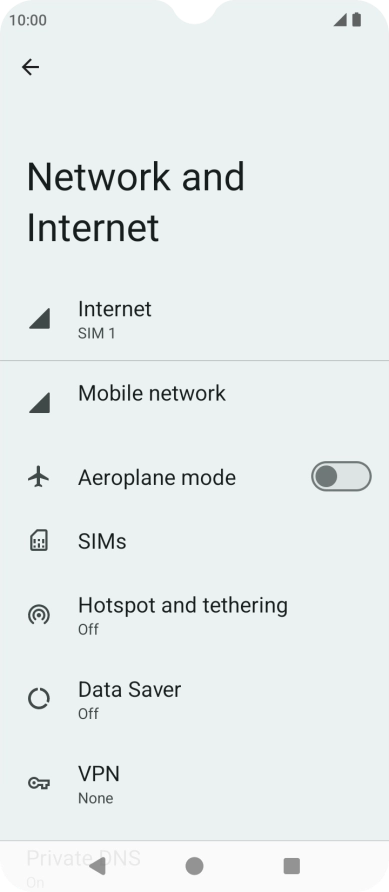

Press Mobile network.
![](http://wmstatic.global.ssl.fastly.net/ml/7230524-f-d94e0565-cddc-4eab-9089-a54f2ff7d3a0.png?width=194&height=444)

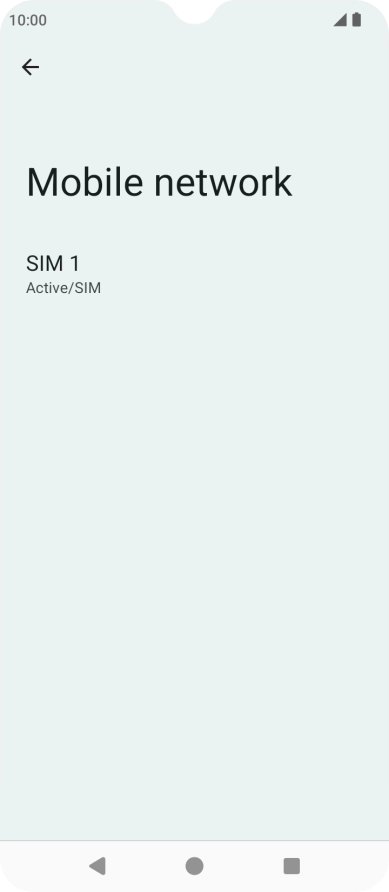

Press the name of the SIM.
![](http://wmstatic.global.ssl.fastly.net/ml/7230524-f-c93bda24-c589-4c26-bfae-c30704efe76d.png?width=194&height=444)

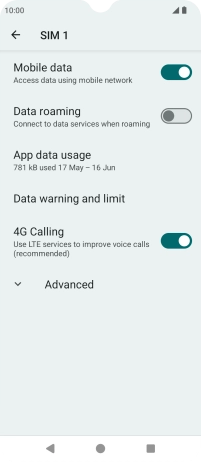

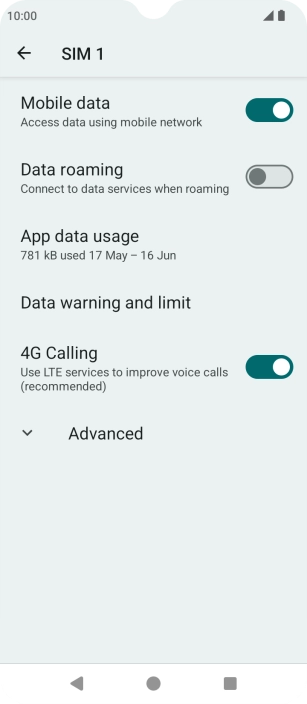

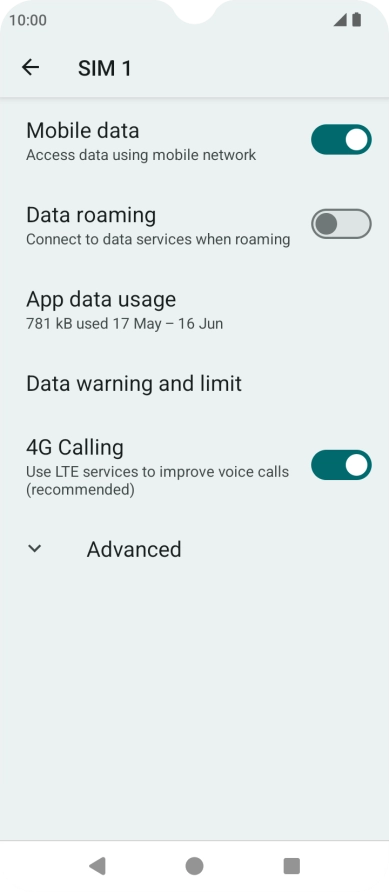

Press Advanced.
![](http://wmstatic.global.ssl.fastly.net/ml/7230524-f-1e69ee70-93dd-4116-90a3-4d83136b6e0b.png?width=194&height=444)

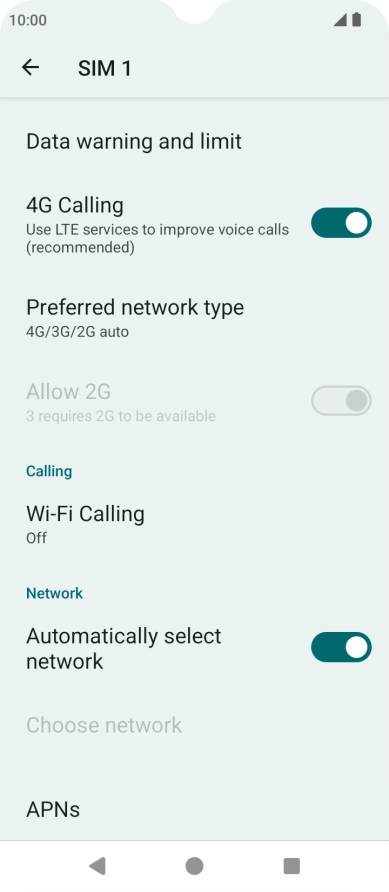

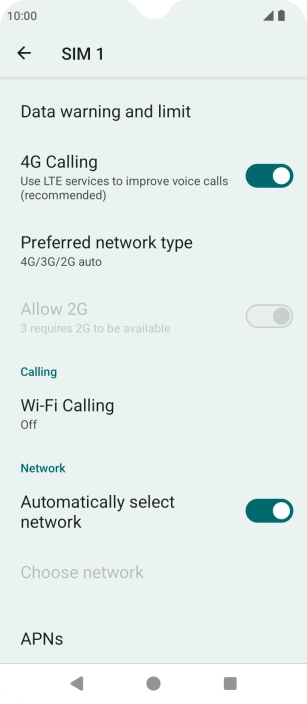

Press APNs.
![](http://wmstatic.global.ssl.fastly.net/ml/7230524-f-968391b9-548e-47b0-a666-eeb3cdebde75.png?width=194&height=444)
2. Create new data connection

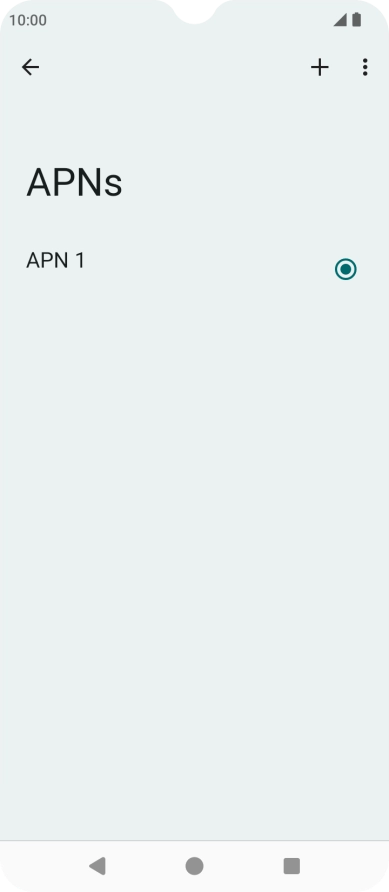

Press the add icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7230524-f-4d04c798-1ae2-4fd7-b957-30fa086a4cf7.png?width=194&height=444)
3. Enter a name for the connection

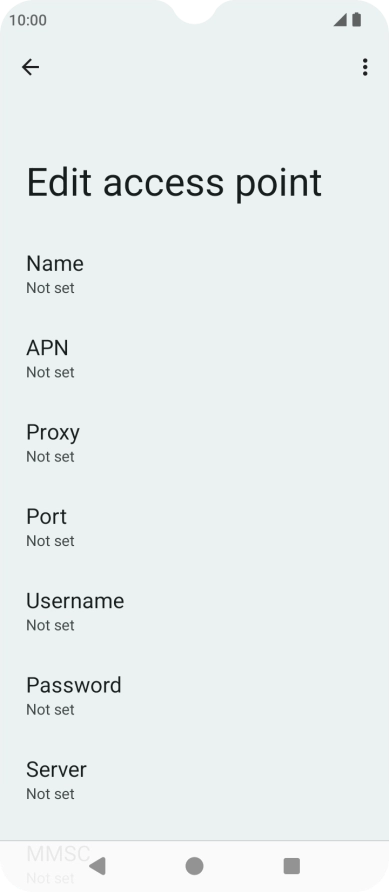

Press Name.
![](http://wmstatic.global.ssl.fastly.net/ml/7230524-f-06ce8cd0-d21f-403c-ab23-9cf3ed0df19e.png?width=194&height=444)

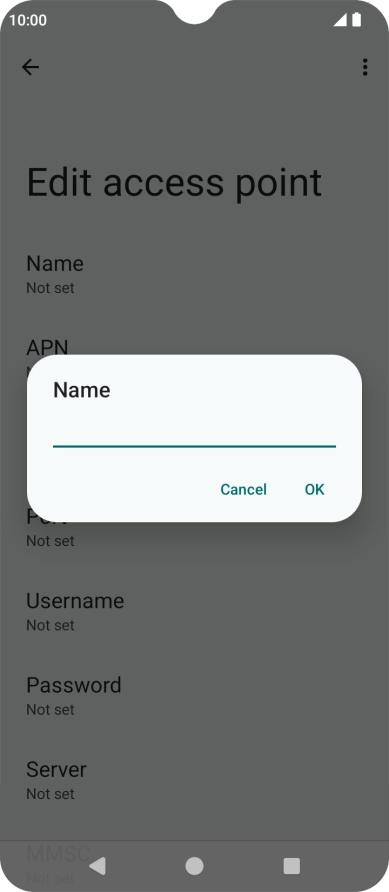

Key in Vodafone MMS and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7230524-f-10c1260a-94b8-48e7-ae7d-1610ef99b1d3.png?width=194&height=444)
Vodafone MMS
4. Enter APN
Press APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7230524-f-06ce8cd0-d21f-403c-ab23-9cf3ed0df19e.png?width=194&height=444)

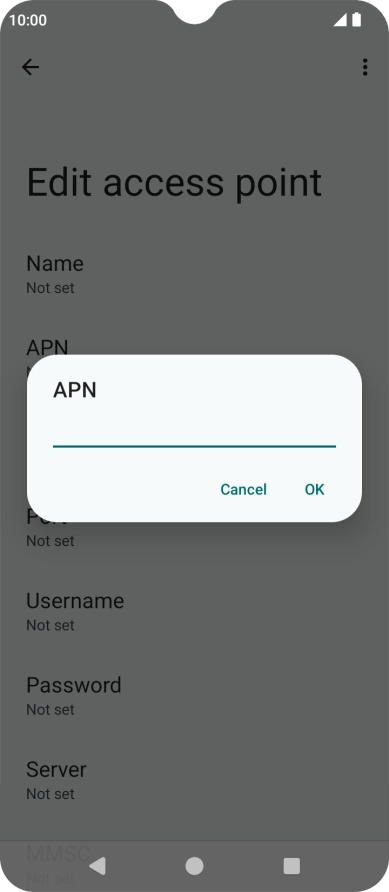

Key in wap.vodafone.co.uk and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7230524-f-6af6b300-5d40-4693-a84b-34dc9dd768d6.png?width=194&height=444)
wap.vodafone.co.uk
5. Enter username
Press Username.
![](http://wmstatic.global.ssl.fastly.net/ml/7230524-f-06ce8cd0-d21f-403c-ab23-9cf3ed0df19e.png?width=194&height=444)

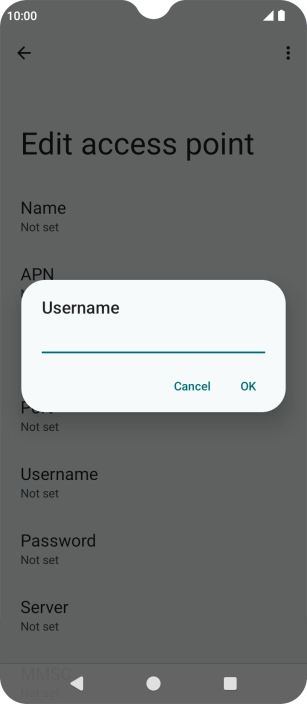

Key in wap and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7230524-f-4bedb3ef-833d-499b-be56-d7e3ed5df346.png?width=194&height=444)
wap
6. Enter password
Press Password.
![](http://wmstatic.global.ssl.fastly.net/ml/7230524-f-06ce8cd0-d21f-403c-ab23-9cf3ed0df19e.png?width=194&height=444)

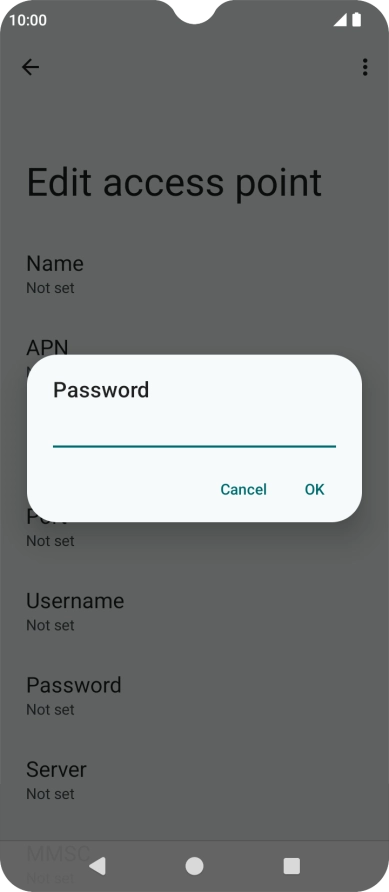

Key in wap and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7230524-f-b52da5c6-c517-4820-aa3c-e4f65b432580.png?width=194&height=444)
wap
7. Enter picture messaging server
Press MMSC.
![](http://wmstatic.global.ssl.fastly.net/ml/7230524-f-06ce8cd0-d21f-403c-ab23-9cf3ed0df19e.png?width=194&height=444)

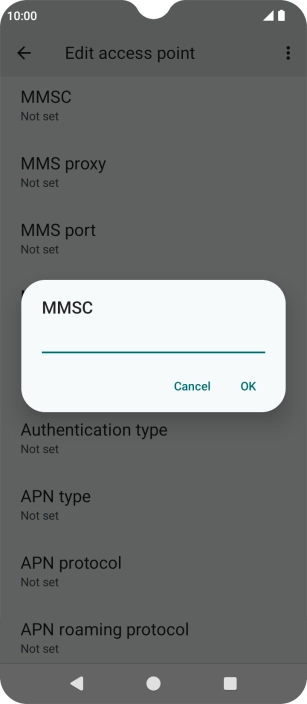

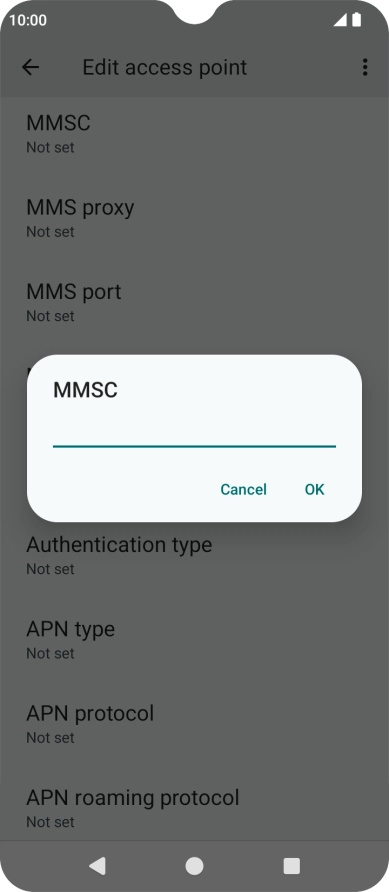

Key in http://mms.vodafone.co.uk/servlets/mms and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7230524-f-ca76e8d5-b018-4479-9430-cb9e854eb813.png?width=194&height=444)
http://mms.vodafone.co.uk/servlets/mms
8. Enter IP address

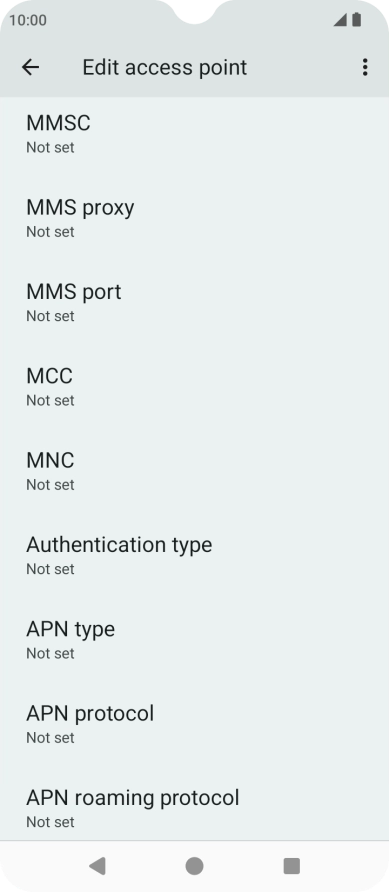

Press MMS proxy.
![](http://wmstatic.global.ssl.fastly.net/ml/7230524-f-65db6b0b-6719-4764-9bf3-7dea6d3672bd.png?width=194&height=444)

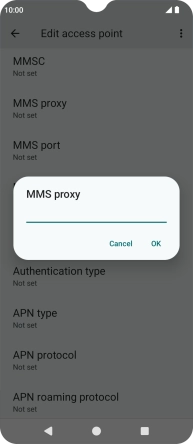

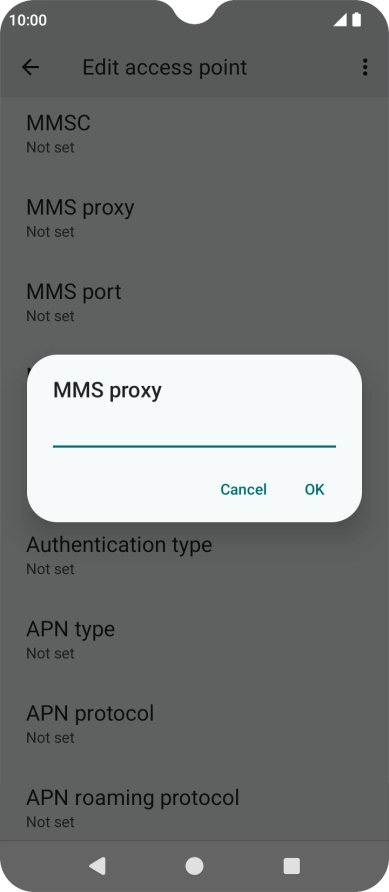

Key in 212.183.137.012 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7230524-f-19364400-23ef-475b-929b-a31f541c8dfa.png?width=194&height=444)
212.183.137.012
9. Enter port number
Press MMS port.
![](http://wmstatic.global.ssl.fastly.net/ml/7230524-f-65db6b0b-6719-4764-9bf3-7dea6d3672bd.png?width=194&height=444)

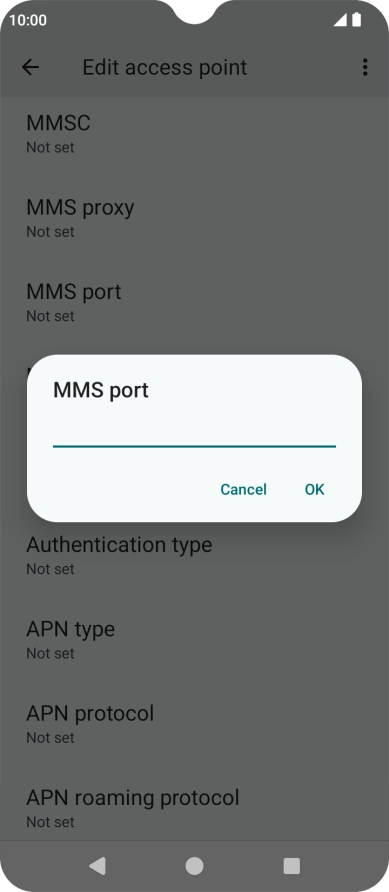

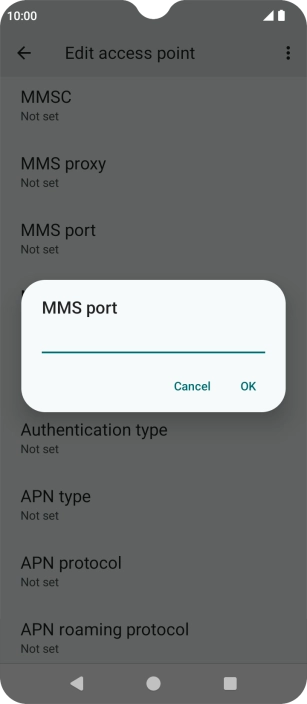

Key in 8799 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7230524-f-0f15b782-a7b7-4833-8d8d-a78af273e433.png?width=194&height=444)
8799
10. Enter country code
Press MCC.
![](http://wmstatic.global.ssl.fastly.net/ml/7230524-f-65db6b0b-6719-4764-9bf3-7dea6d3672bd.png?width=194&height=444)

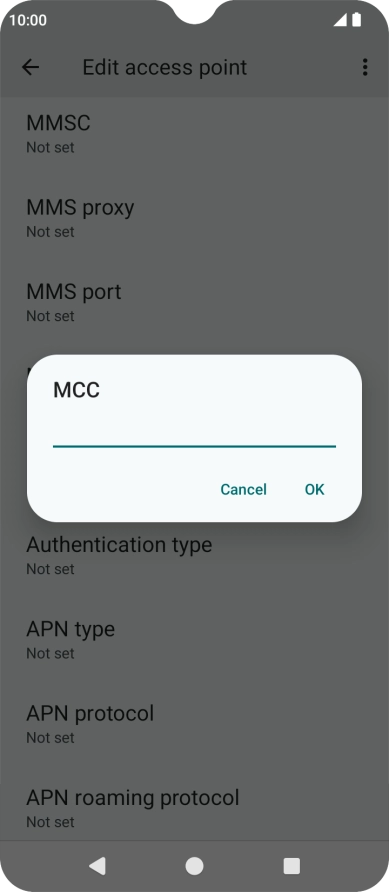

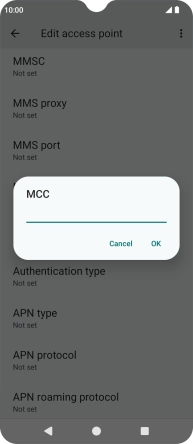

Key in 234 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7230524-f-2f2c24a0-8c71-4e94-b605-ae73bc02808e.png?width=194&height=444)
234
11. Enter network code
Press MNC.
![](http://wmstatic.global.ssl.fastly.net/ml/7230524-f-65db6b0b-6719-4764-9bf3-7dea6d3672bd.png?width=194&height=444)
Key in 15 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7230524-f-0d9b89a8-2074-49c3-ad43-3b707909b6d0.png?width=194&height=444)
15
12. Select authentication type
Press Authentication type.
![](http://wmstatic.global.ssl.fastly.net/ml/7230524-f-65db6b0b-6719-4764-9bf3-7dea6d3672bd.png?width=194&height=444)

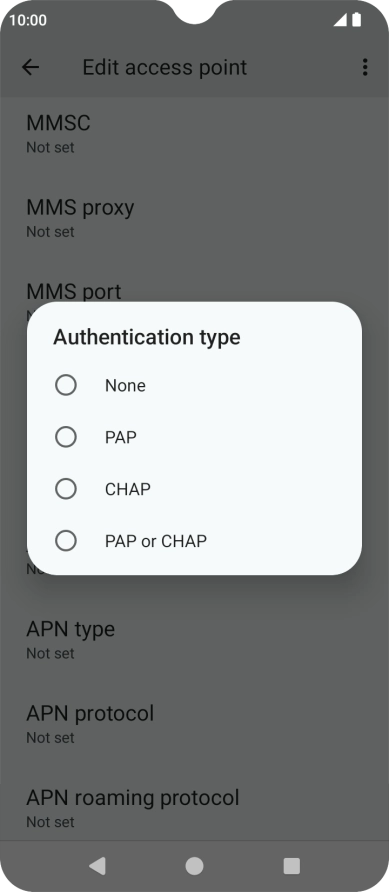

Press None.
![](http://wmstatic.global.ssl.fastly.net/ml/7230524-f-d06a4e5a-679f-46a1-a582-0ddd345e1cdc.png?width=194&height=444)
13. Enter APN type
Press APN type.
![](http://wmstatic.global.ssl.fastly.net/ml/7230524-f-65db6b0b-6719-4764-9bf3-7dea6d3672bd.png?width=194&height=444)

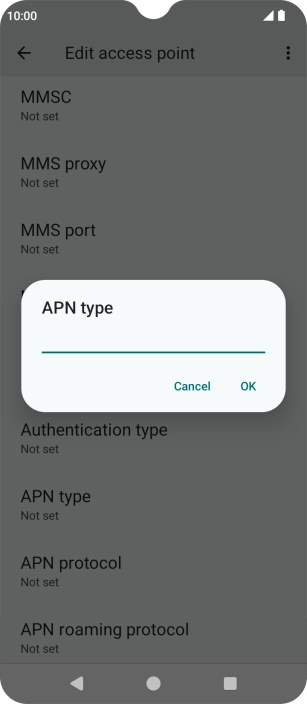

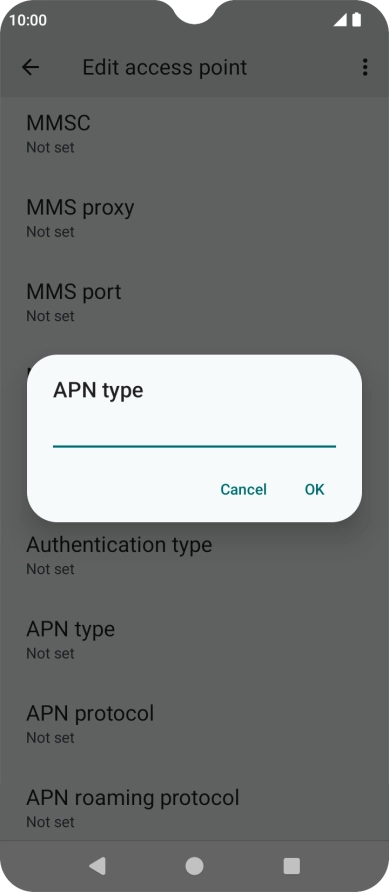

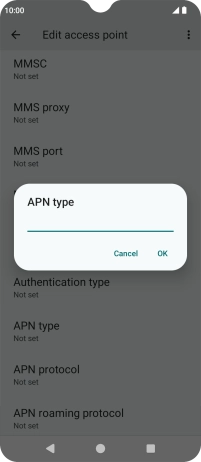

Key in mms and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7230524-f-82a6b0a8-8af8-4fb7-a15f-1b9ac01c1c69.png?width=194&height=444)
mms
14. Save data connection
Press the menu icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7230524-f-65db6b0b-6719-4764-9bf3-7dea6d3672bd.png?width=194&height=444)

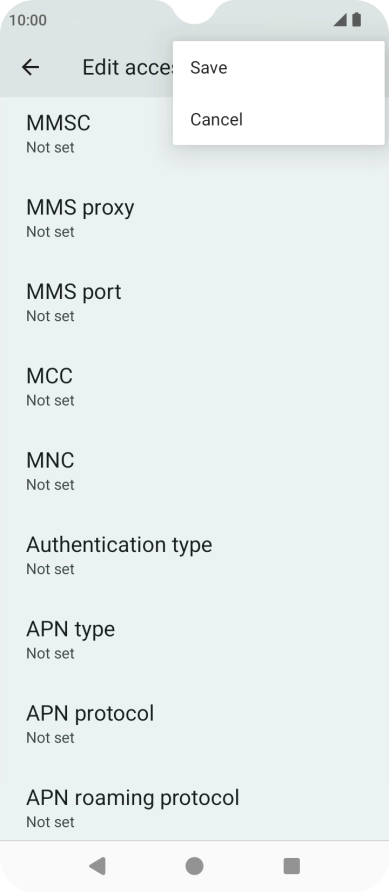

Press Save.
![](http://wmstatic.global.ssl.fastly.net/ml/7230524-f-ad27c36e-bc88-47df-b94e-4a5ca6c36fa8.png?width=194&height=444)
15. Return to the home screen

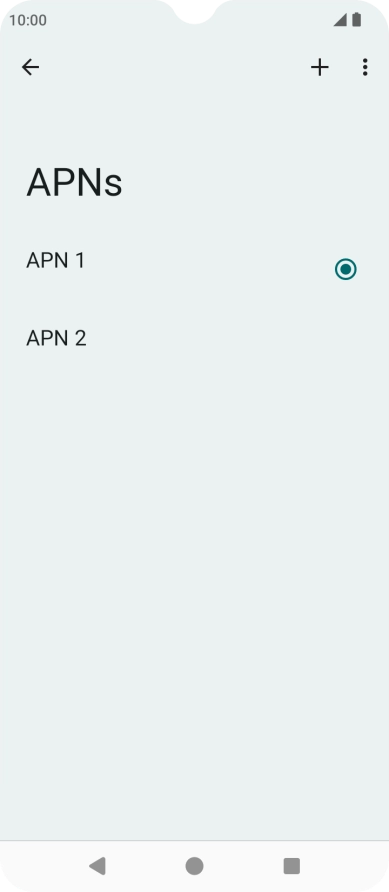

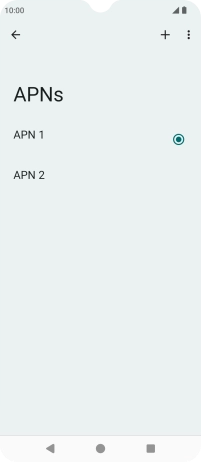

Press the Home key to return to the home screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7230524-f-784d909e-4557-4a1a-92b8-32e0e782c14e.png?width=194&height=444)
