I can't send and receive picture messages on my Xiaomi Redmi Note 10 5G Android 11.0

Cause 5 of 5: Your phone hasn't been set up for picture messaging correctly

To send and receive picture messages, you need to set up your phone correctly for picture messaging.

Solution: Set up your phone for picture messaging.

Step 1 of 30

Find "Access point names"

Press Settings.

Step 2 of 30

Find "Access point names"

Press SIM cards & mobile networks.

Step 3 of 30

Find "Access point names"

Press the name of the SIM.

Step 4 of 30

Find "Access point names"

Press Access point names.

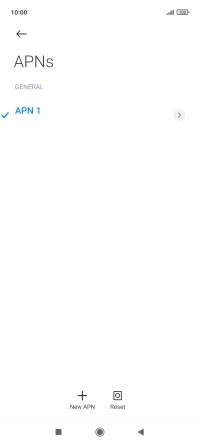

Step 5 of 30

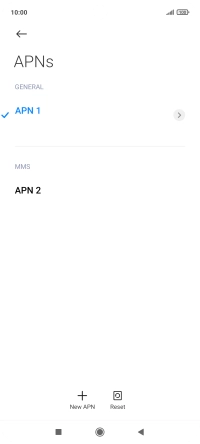

Create new data connection

Press New APN.

Step 6 of 30

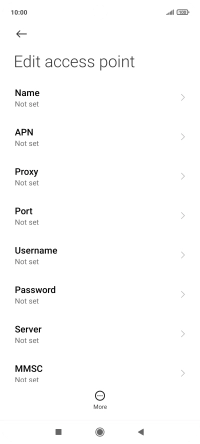

Enter a name for the connection

Press Name.

Vodafone MMS
Step 7 of 30

Enter a name for the connection

Key in Vodafone MMS and press OK.

Step 8 of 30

Enter APN

Press APN.

wap.vodafone.co.uk
Step 9 of 30

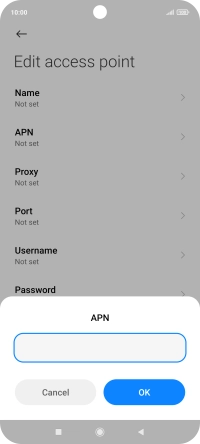

Enter APN

Key in wap.vodafone.co.uk and press OK.

Step 10 of 30

Enter username

Press Username.

wap
Step 11 of 30

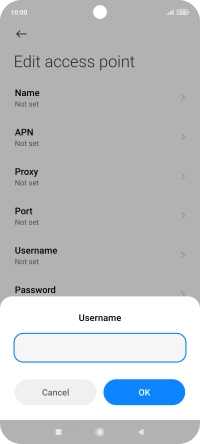

Enter username

Key in wap and press OK.

Step 12 of 30

Enter password

Press Password.

wap
Step 13 of 30

Enter password

Key in wap and press OK.

Step 14 of 30

Enter picture messaging server

Press MMSC.

http://mms.vodafone.co.uk/servlets/mms
Step 15 of 30

Enter picture messaging server

Key in http://mms.vodafone.co.uk/servlets/mms and press OK.

Step 16 of 30

Enter IP address

Press MMS proxy.

212.183.137.012
Step 17 of 30

Enter IP address

Key in 212.183.137.012 and press OK.

Step 18 of 30

Enter port number

Press MMS port.

8799
Step 19 of 30

Enter port number

Key in 8799 and press OK.

Step 20 of 30

Enter country code

Press MCC.

234
Step 21 of 30

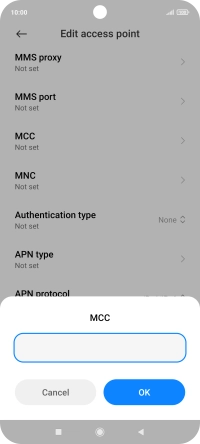

Enter country code

Key in 234 and press OK.

Step 22 of 30

Enter network code

Press MNC.

15
Step 23 of 30

Enter network code

Key in 15 and press OK.

Step 24 of 30

Select authentication type

Press Authentication type.

Step 25 of 30

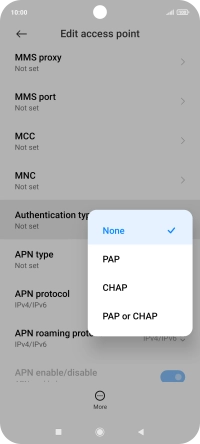

Select authentication type

Press None.

Step 26 of 30

Enter APN type

Press APN type.

mms
Step 27 of 30

Enter APN type

Key in mms and press OK.

Step 28 of 30

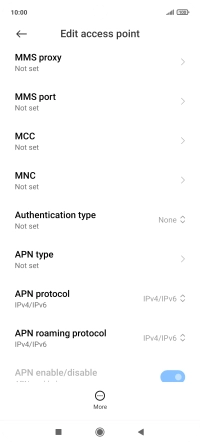

Save data connection

Press More.

Step 29 of 30

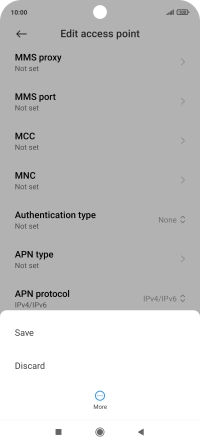

Save data connection

Press Save.

Step 30 of 30

Return to the home screen

Press the Home key to return to the home screen.
