1. Find "Mobile Data Network"
Press Settings.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-aa8fa17a-fa1e-478c-9714-6c8b880b60d3.png?width=206&height=444)
Press Mobile Service.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-e9d48bac-e04e-48dc-8e9e-57c8e01d5ed9.png?width=206&height=444)
Press Mobile Data Network.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-f62bfe51-782e-43f4-84e8-1e8be5ee04b5.png?width=206&height=444)
2. Enter APN

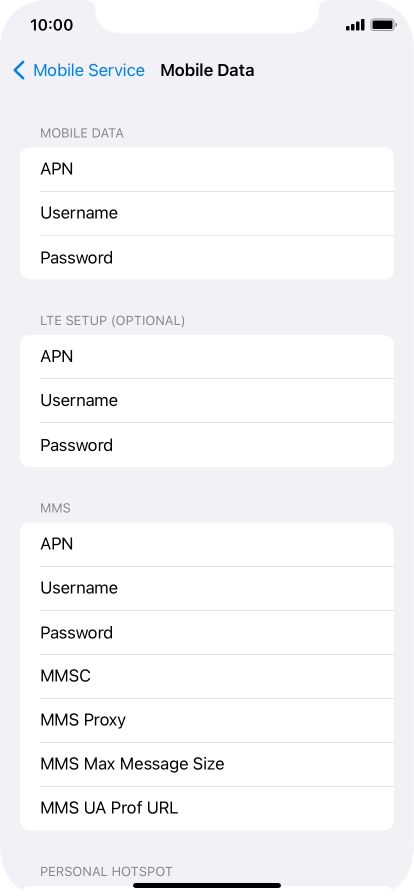

Press APN and key in wap.vodafone.co.uk.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-c2c85b85-cd5d-4228-a553-b71a9ee1ba9a.png?width=206&height=444)
wap.vodafone.co.uk
3. Enter username
Press Username and key in wap.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-c2c85b85-cd5d-4228-a553-b71a9ee1ba9a.png?width=206&height=444)
wap
4. Enter password
Press Password and key in wap.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-c2c85b85-cd5d-4228-a553-b71a9ee1ba9a.png?width=206&height=444)
wap
5. Enter picture messaging server
Press MMSC and key in http://mms.vodafone.co.uk/servlets/mms.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-c2c85b85-cd5d-4228-a553-b71a9ee1ba9a.png?width=206&height=444)
http://mms.vodafone.co.uk/servlets/mms
6. Enter IP address
Press MMS Proxy and key in 212.183.137.012:8799.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-c2c85b85-cd5d-4228-a553-b71a9ee1ba9a.png?width=206&height=444)
212.183.137.012:8799
7. Save settings
Press arrow left.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-c2c85b85-cd5d-4228-a553-b71a9ee1ba9a.png?width=206&height=444)
Slide your finger upwards starting from the bottom of the screen to return to the home screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-f62bfe51-782e-43f4-84e8-1e8be5ee04b5.png?width=206&height=444)
8. Turn picture messaging on or off
Press Settings.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-aa8fa17a-fa1e-478c-9714-6c8b880b60d3.png?width=206&height=444)
Press Messages.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-ec89b2fb-8b86-4e12-8ac0-01d15ec92774.png?width=206&height=444)

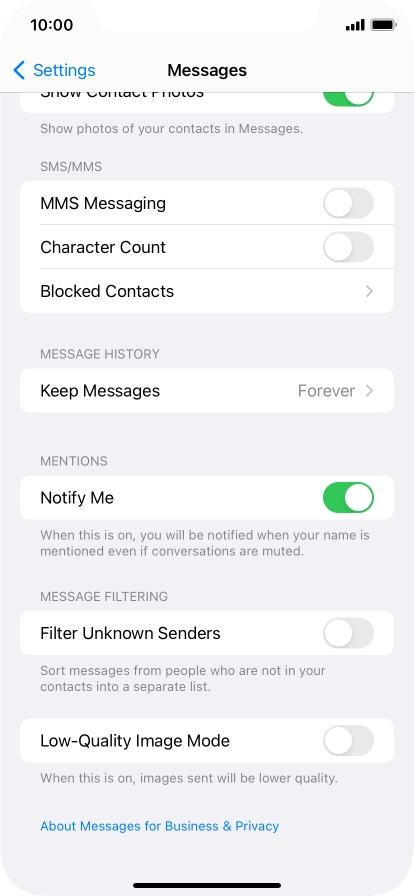

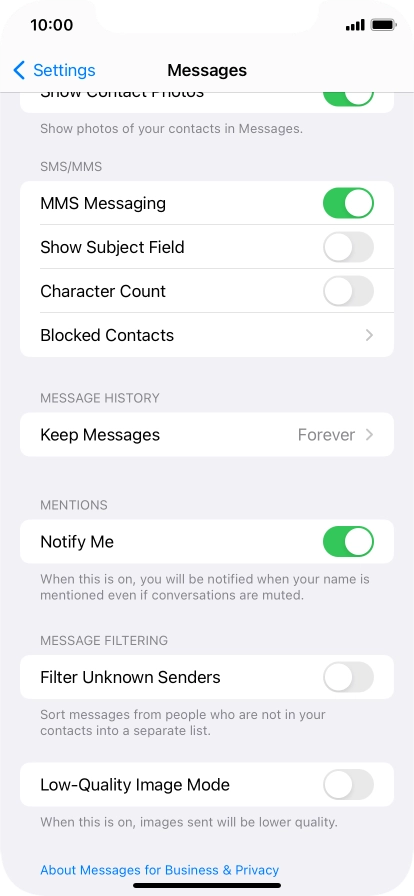

Press the indicator next to "MMS Messaging" to turn on the function.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-8e70670e-bb05-4536-a1c9-c4e4e99c3913.png?width=206&height=444)
9. Return to the home screen

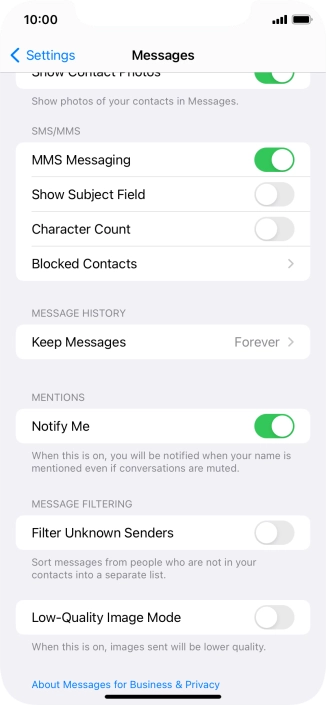

Slide your finger upwards starting from the bottom of the screen to return to the home screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-3cee3577-942b-48e8-aa7e-9f28e98f5dc2.png?width=206&height=444)
