Motorola Moto G04

Motorola Moto G04

Android 14

I can't send and receive picture messages on my Motorola Moto G04 Android 14

Cause 1 of 4: Your phone hasn't been set up for picture messaging correctly

To send and receive picture messages, you need to set up your phone correctly for picture messaging.

Solution: Set up your phone for picture messaging.

Step 1 of 33

Find "Access point names"

Slide two fingers downwards starting from the top of the screen.

Step 2 of 33

Find "Access point names"

Press the settings icon.

Step 3 of 33

Find "Access point names"

Press Network & Internet.

Step 4 of 33

Find "Access point names"

Press Mobile network.

Step 5 of 33

Find "Access point names"

Press the name of the SIM.

Step 6 of 33

Find "Access point names"

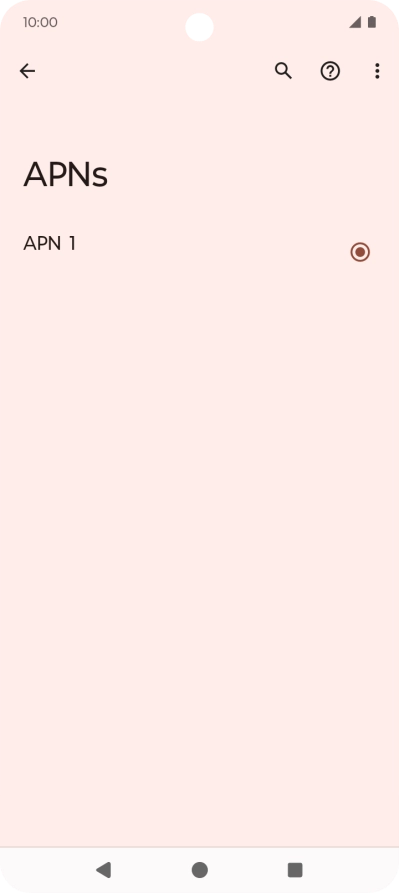

Press Access point names.

Step 7 of 33

Create new data connection

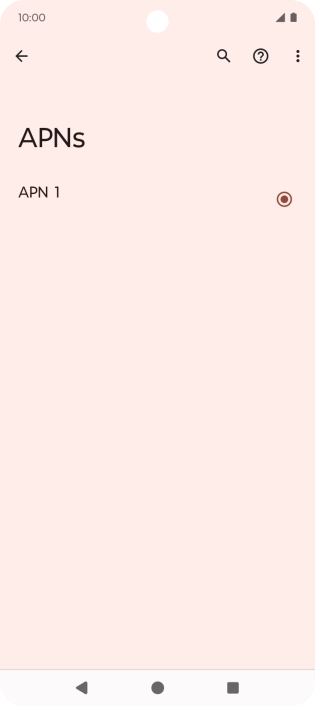

Press the menu icon.

Step 8 of 33

Create new data connection

Press New APN.

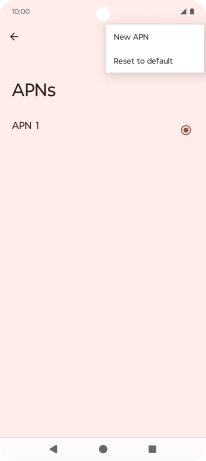

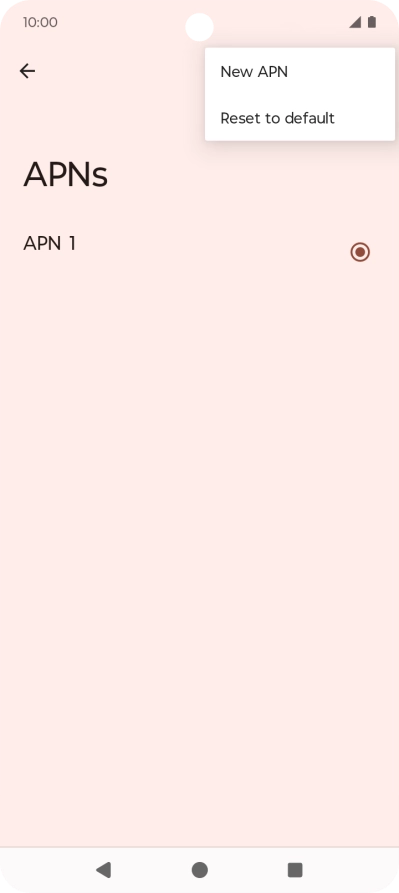

Step 9 of 33

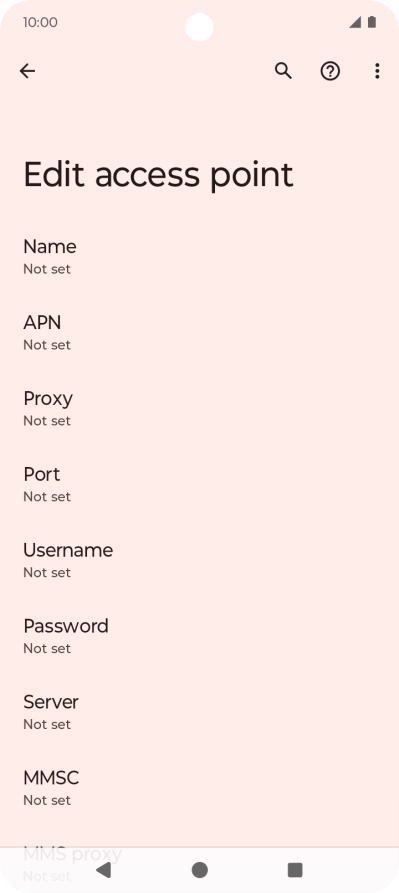

Enter a name for the connection

Press Name.

Vodafone MMS

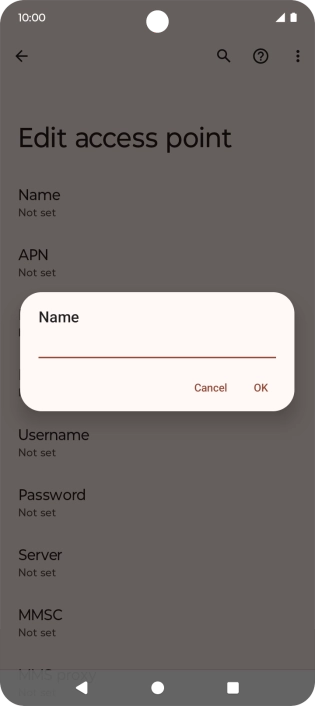

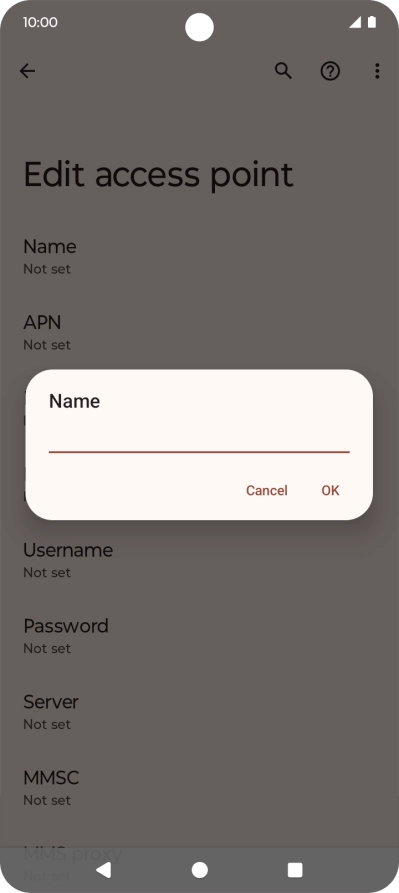

Step 10 of 33

Enter a name for the connection

Key in Vodafone MMS and press OK.

Step 11 of 33

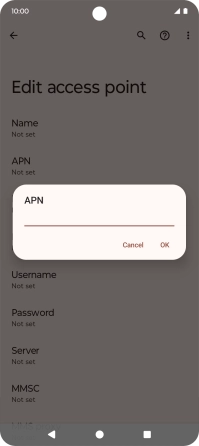

Enter APN

Press APN.

wap.vodafone.co.uk

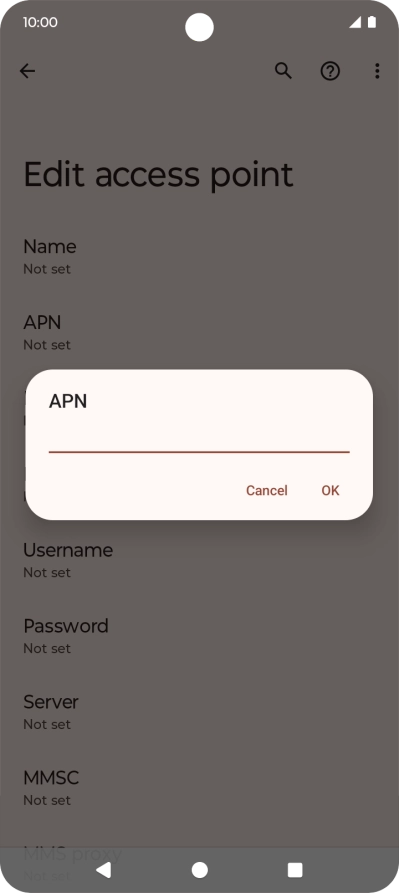

Step 12 of 33

Enter APN

Key in wap.vodafone.co.uk and press OK.

Step 13 of 33

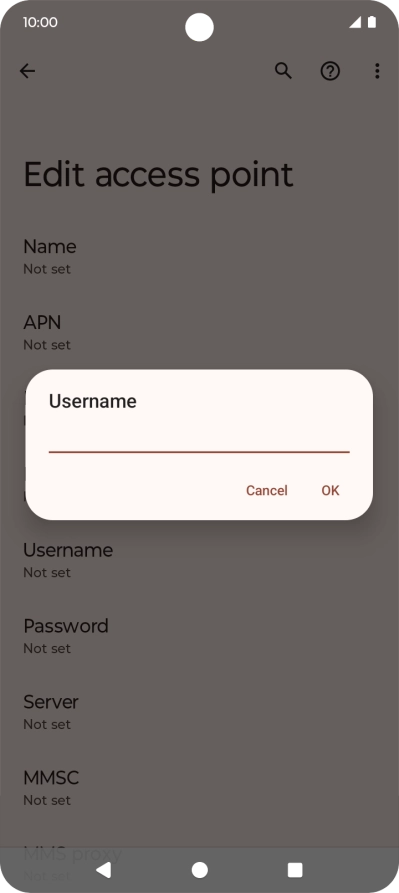

Enter username

Press Username.

wap
Step 14 of 33

Enter username

Key in wap and press OK.

Step 15 of 33

Enter password

Press Password.

wap
Step 16 of 33

Enter password

Key in wap and press OK.

Step 17 of 33

Enter picture messaging server

Press MMSC.

http://mms.vodafone.co.uk/servlets/mms

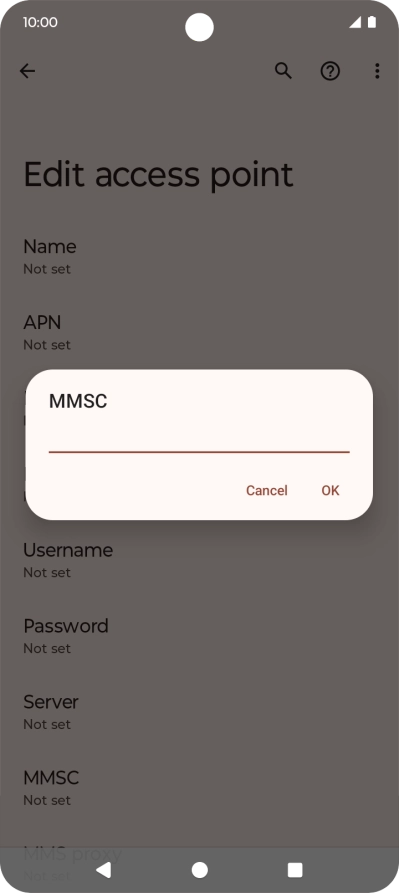

Step 18 of 33

Enter picture messaging server

Key in http://mms.vodafone.co.uk/servlets/mms and press OK.

Step 19 of 33

Enter IP address

Press MMS proxy.

212.183.137.012

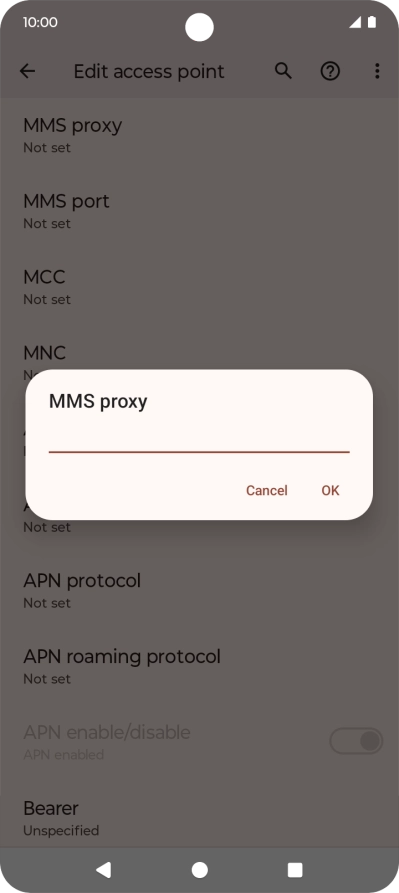

Step 20 of 33

Enter IP address

Key in 212.183.137.012 and press OK.

Step 21 of 33

Enter port number

Press MMS port.

8799
Step 22 of 33

Enter port number

Key in 8799 and press OK.

Step 23 of 33

Enter country code

Press MCC.

234
Step 24 of 33

Enter country code

Key in 234 and press OK.

Step 25 of 33

Enter network code

Press MNC.

15

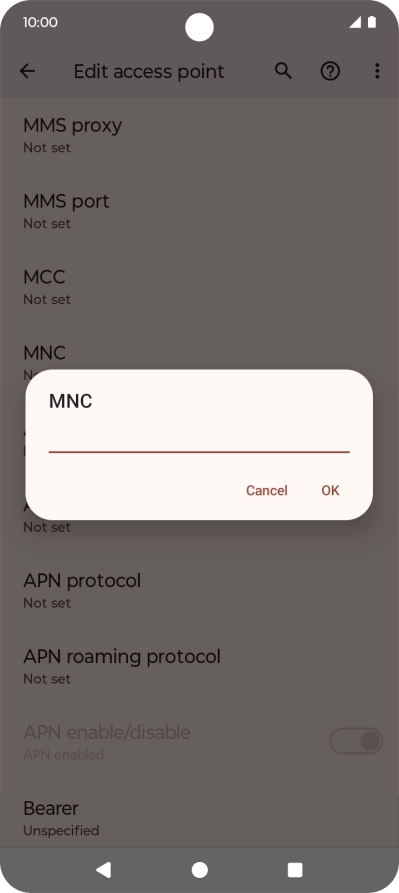

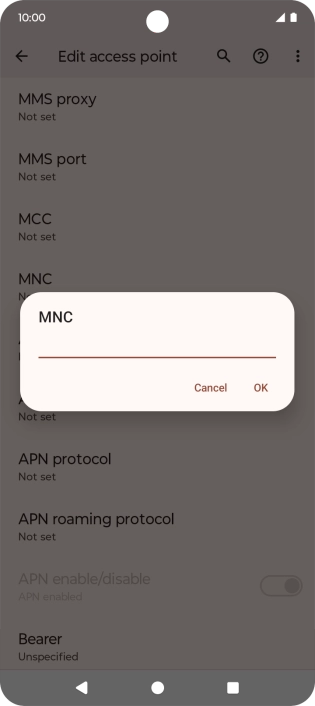

Step 26 of 33

Enter network code

Key in 15 and press OK.

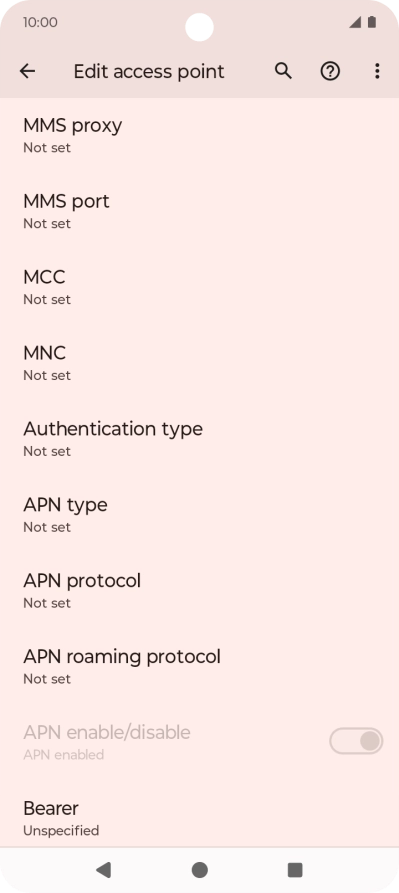

Step 27 of 33

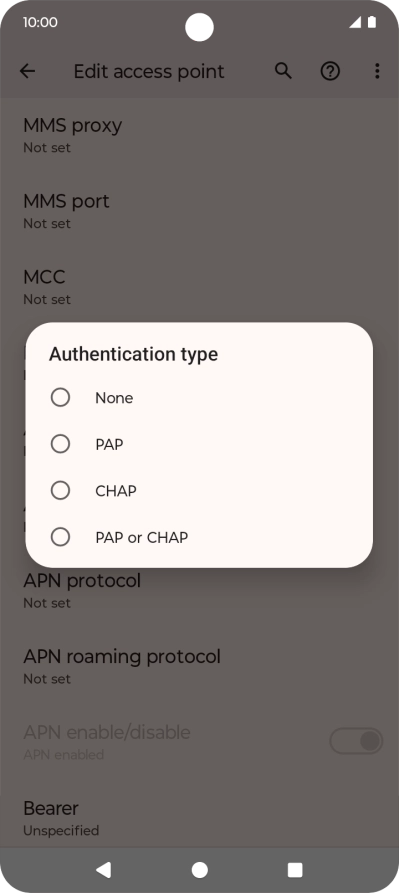

Select authentication type

Press Authentication type.

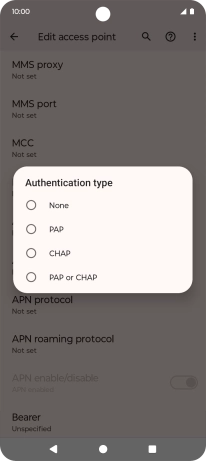

Step 28 of 33

Select authentication type

Press None.

Step 29 of 33

Enter APN type

Press APN type.

mms

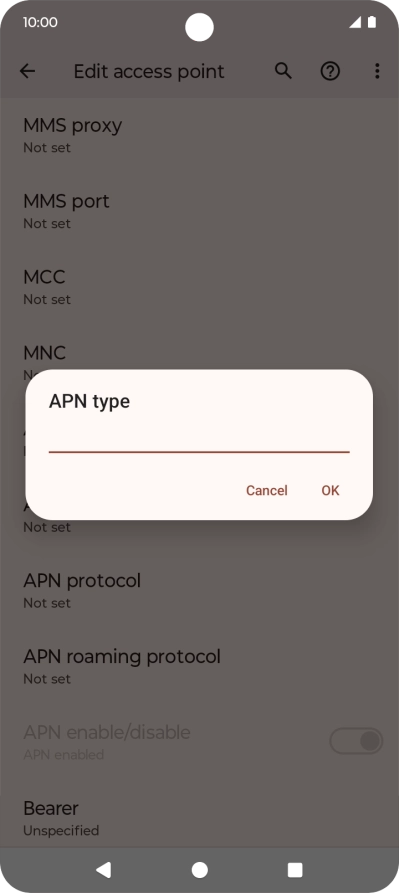

Step 30 of 33

Enter APN type

Key in mms and press OK.

Step 31 of 33

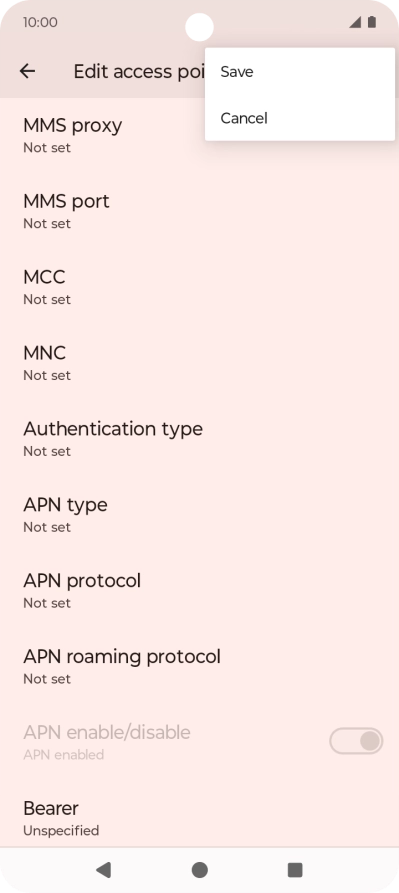

Save data connection

Press the menu icon.

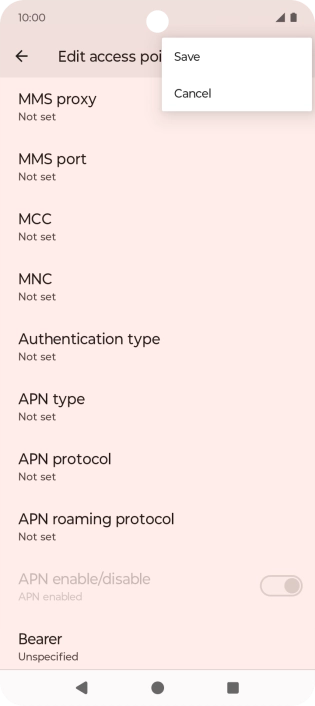

Step 32 of 33

Save data connection

Press Save.

Step 33 of 33

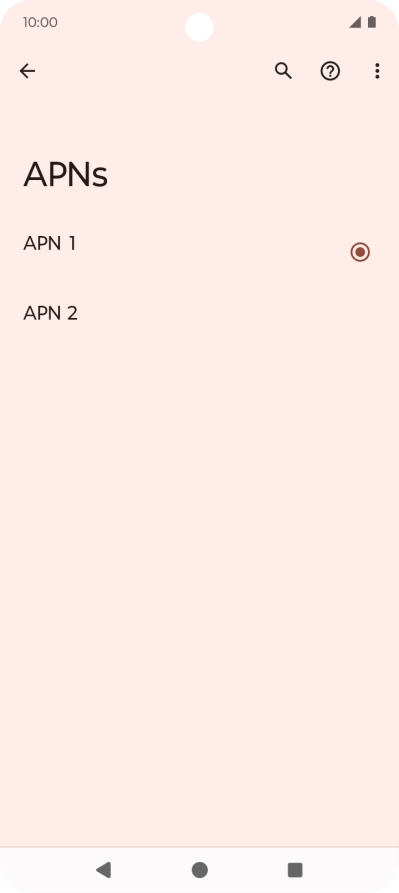

Return to the home screen

Press the Home key to return to the home screen.

1 Find "Access point names"

Slide two fingers downwards starting from the top of the screen.
Press the settings icon.
Press Network & Internet.
Press Mobile network.
Press the name of the SIM.
Press Access point names.

2 Create new data connection

Press the menu icon.
Press New APN.

3 Enter a name for the connection

Press Name.
Key in Vodafone MMS and press OK.
Vodafone MMS

4 Enter APN

Press APN.
Key in wap.vodafone.co.uk and press OK.
wap.vodafone.co.uk

5 Enter username

Press Username.
Key in wap and press OK.
wap

6 Enter password

Press Password.
Key in wap and press OK.
wap

7 Enter picture messaging server

Press MMSC.
Key in http://mms.vodafone.co.uk/servlets/mms and press OK.
http://mms.vodafone.co.uk/servlets/mms

8 Enter IP address

Press MMS proxy.
Key in 212.183.137.012 and press OK.
212.183.137.012

9 Enter port number

Press MMS port.
Key in 8799 and press OK.
8799

10 Enter country code

Press MCC.
Key in 234 and press OK.
234

11 Enter network code

Press MNC.
Key in 15 and press OK.
15

12 Select authentication type

Press Authentication type.
Press None.

13 Enter APN type

Press APN type.
Key in mms and press OK.
mms

14 Save data connection

Press the menu icon.
Press Save.

15 Return to the home screen

Press the Home key to return to the home screen.
