OPPO Reno8 5G
Android 12.0
1. Find "Access point names"
Slide two fingers downwards starting from the top of the screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-3d14977b-98fa-4d41-9f3e-1771b1971adf.png?width=200&height=448)
Press the settings icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-3f021327-8552-4d2a-8847-4384e7518eef.png?width=200&height=448)
Press Mobile network.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-376d3a56-667d-423f-b8d7-8c4ef26d420f.png?width=200&height=448)
Press the required SIM.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-7e4e700d-a449-44e1-a415-3dceb18e0d63.png?width=200&height=448)
Press Access point names.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-4ec4418b-e97a-4aaf-b69a-2098b17a4eba.png?width=200&height=448)
2. Create new data connection
Press the new data connection icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-765a2d29-76b6-4941-84ad-eb6cea52848d.png?width=200&height=448)
Press the field below "Name" and key in Vodafone MMS.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-f920633c-b973-47ae-98e5-11e19e1c6bb5.png?width=200&height=448)
Vodafone MMS
3. Enter APN
Press the field below "APN" and key in wap.vodafone.co.uk.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-f920633c-b973-47ae-98e5-11e19e1c6bb5.png?width=200&height=448)
wap.vodafone.co.uk
4. Enter username
Press the field below "Username" and key in wap.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-f920633c-b973-47ae-98e5-11e19e1c6bb5.png?width=200&height=448)
wap
5. Enter password
Press the field below "Password" and key in wap.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-f920633c-b973-47ae-98e5-11e19e1c6bb5.png?width=200&height=448)
wap
6. Enter MMSC
Press the field below "MMSC" and key in http://mms.vodafone.co.uk/servlets/mms.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-f920633c-b973-47ae-98e5-11e19e1c6bb5.png?width=200&height=448)
http://mms.vodafone.co.uk/servlets/mms
7. Enter IP address
Press the field below "MMS proxy" and key in 212.183.137.012.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-2e2d002b-5547-4016-bc05-1a66603ebeba.png?width=200&height=448)
212.183.137.012
8. Enter port number
Press the field below "MMS port" and key in 8799.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-2e2d002b-5547-4016-bc05-1a66603ebeba.png?width=200&height=448)
8799
9. Enter country code
Press the field below "MCC" and key in 234.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-2e2d002b-5547-4016-bc05-1a66603ebeba.png?width=200&height=448)
234
10. Enter network code
Press the field below "MNC" and key in 15.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-2e2d002b-5547-4016-bc05-1a66603ebeba.png?width=200&height=448)
15
11. Select authentication type
Press Authentication type.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-2e2d002b-5547-4016-bc05-1a66603ebeba.png?width=200&height=448)
Press None.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-f3c3bc56-5870-4bcc-89ae-1ece1d621e5e.png?width=200&height=448)
12. Enter APN type
Press the field below "APN type" and key in mms.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-2e2d002b-5547-4016-bc05-1a66603ebeba.png?width=200&height=448)
mms
13. Save data connection
Press the save icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-2e2d002b-5547-4016-bc05-1a66603ebeba.png?width=200&height=448)

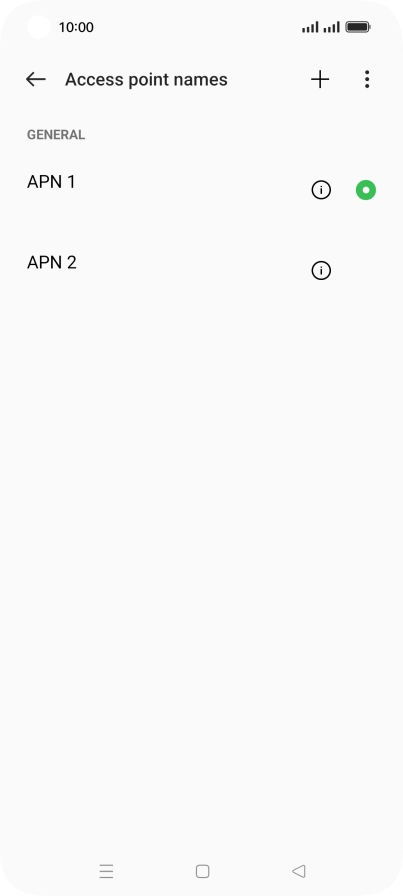

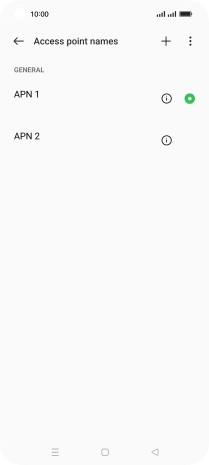

14. Return to the home screen
Press the Home key to return to the home screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-9a64a583-3055-4386-887e-b9b3ca15ccff.png?width=200&height=448)
