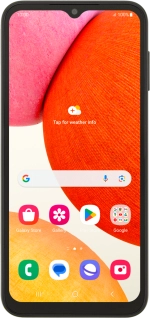

Samsung Galaxy A14
1. Find "Access Point Names"

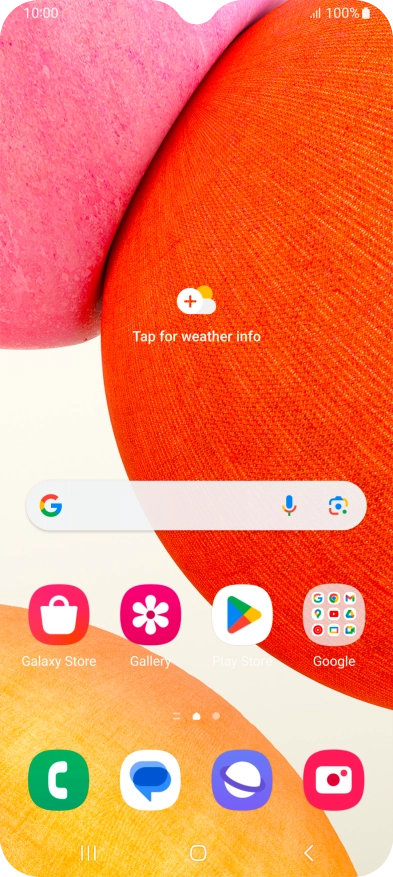

Slide two fingers downwards starting from the top of the screen.
1. Find "Access Point Names"

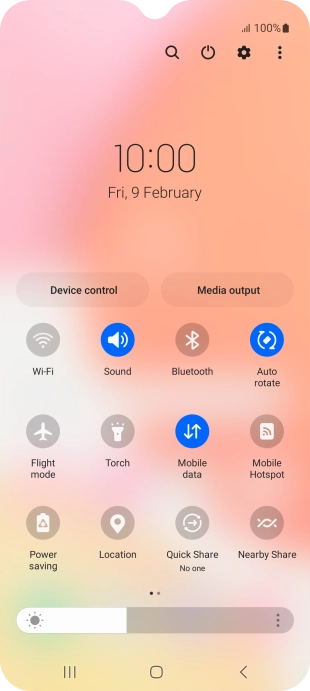

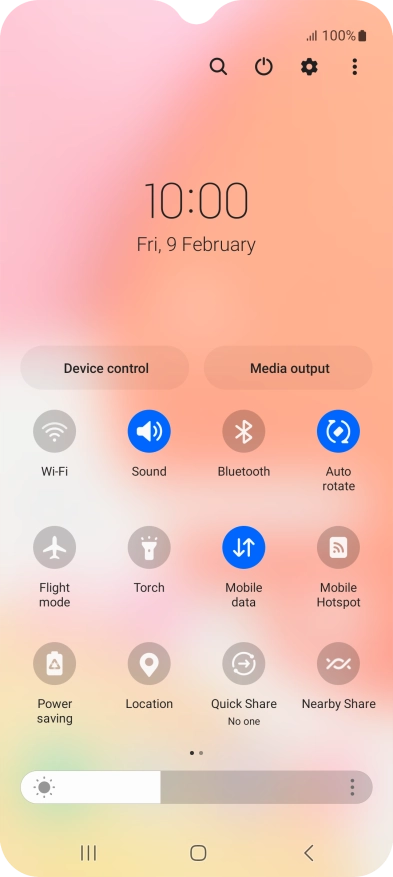

Press the settings icon.
1. Find "Access Point Names"

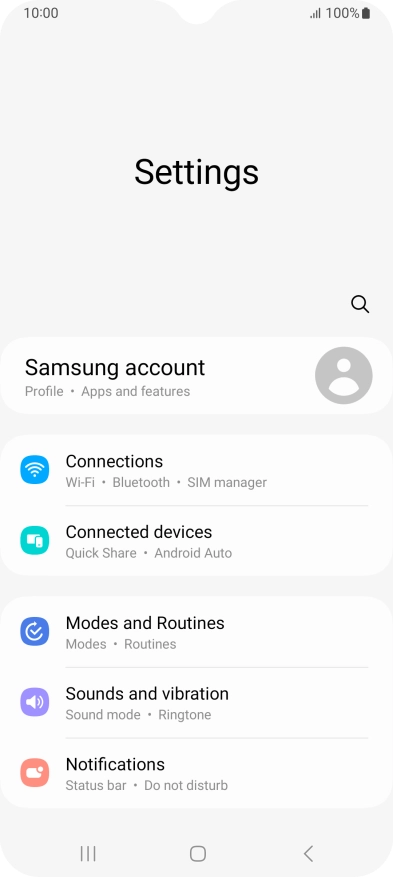

Press Connections.
1. Find "Access Point Names"

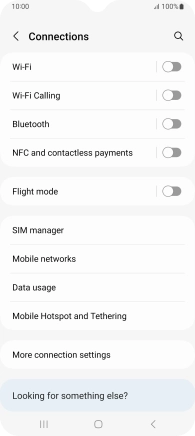

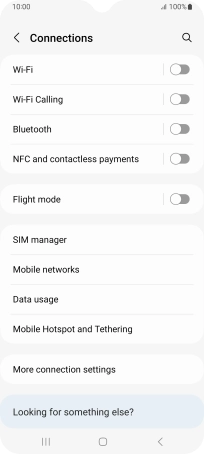

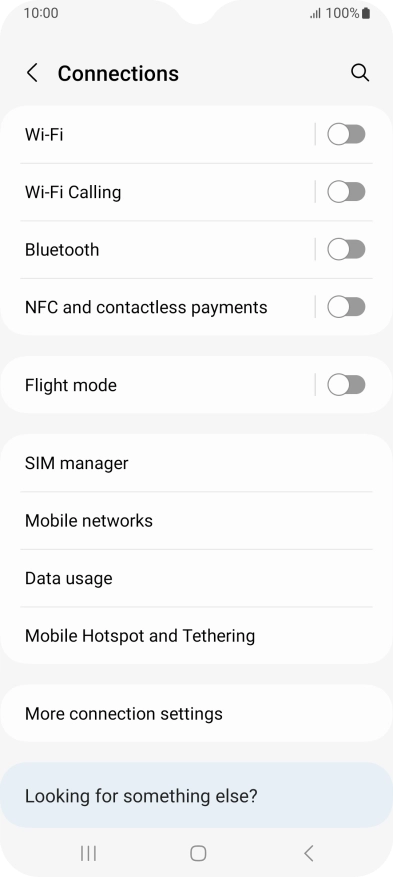

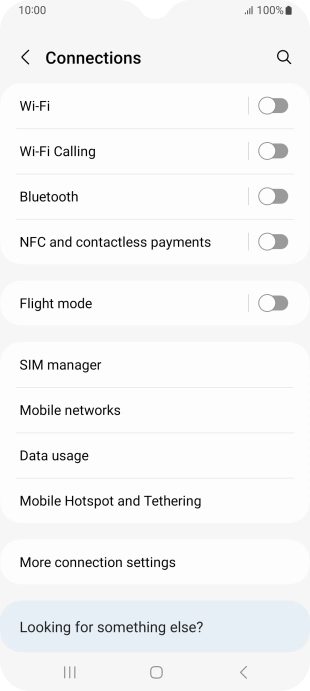

Press Mobile networks.
1. Find "Access Point Names"

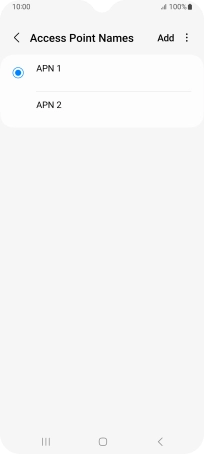

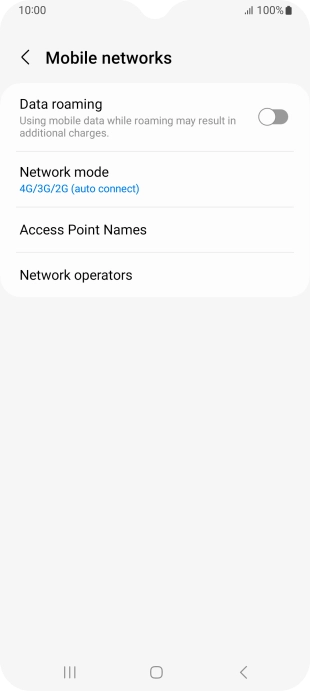

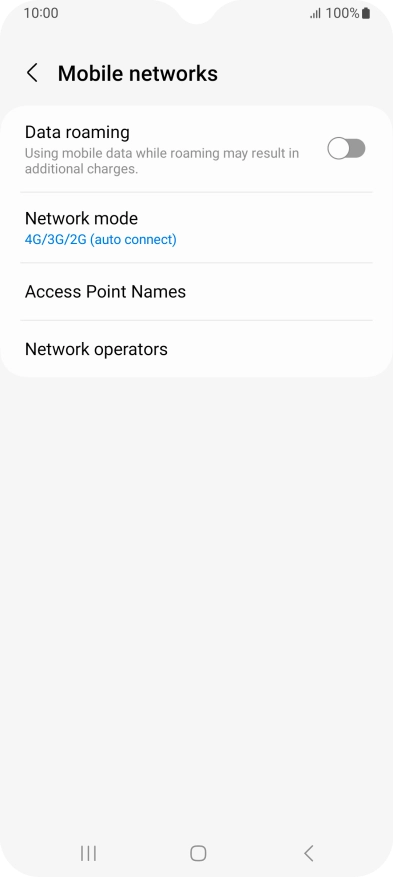

Press Access Point Names.
2. Create new data connection

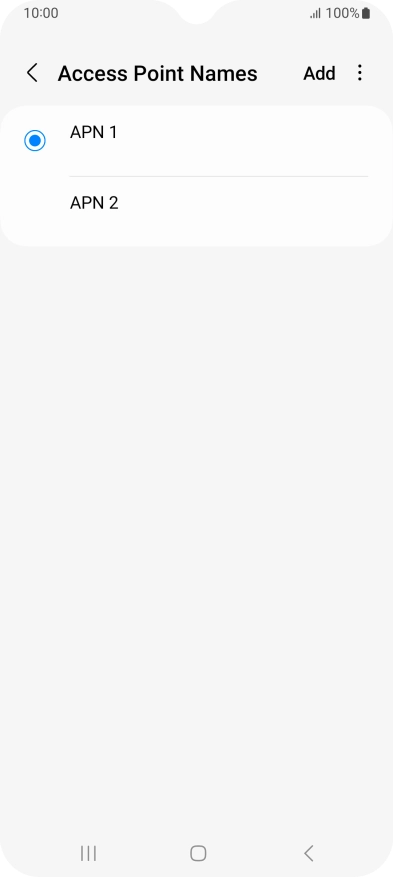

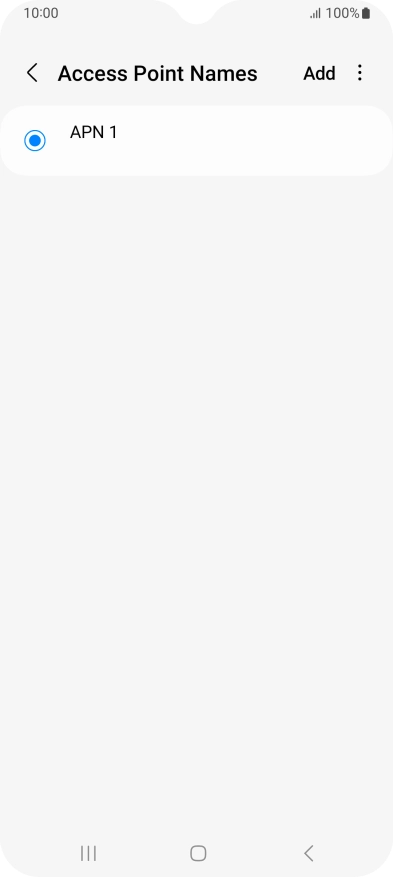

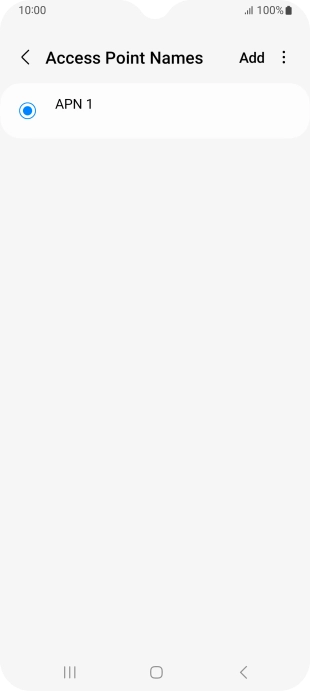

Press Add.
2. Create new data connection

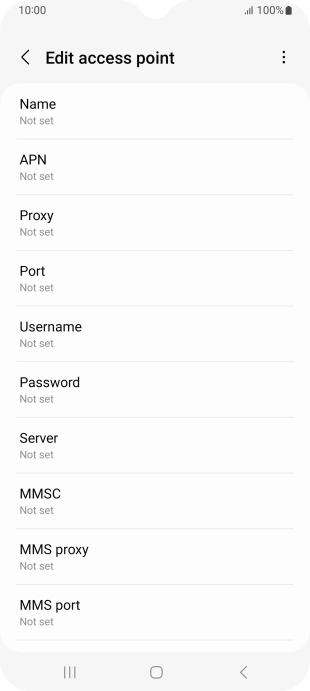

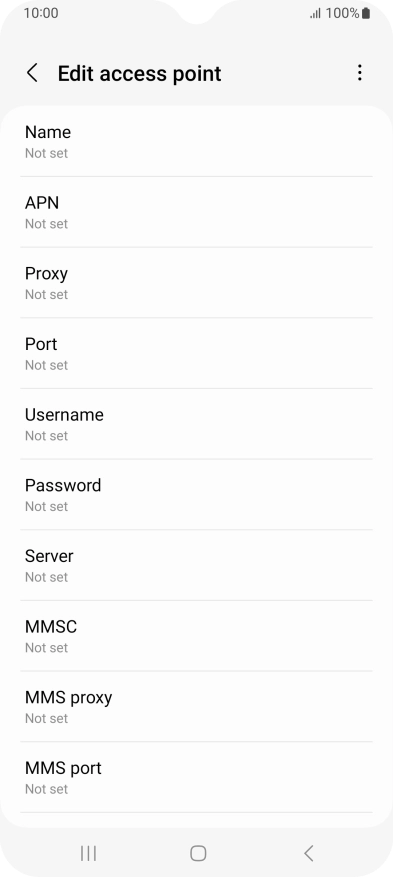

Press Name.
2. Create new data connection

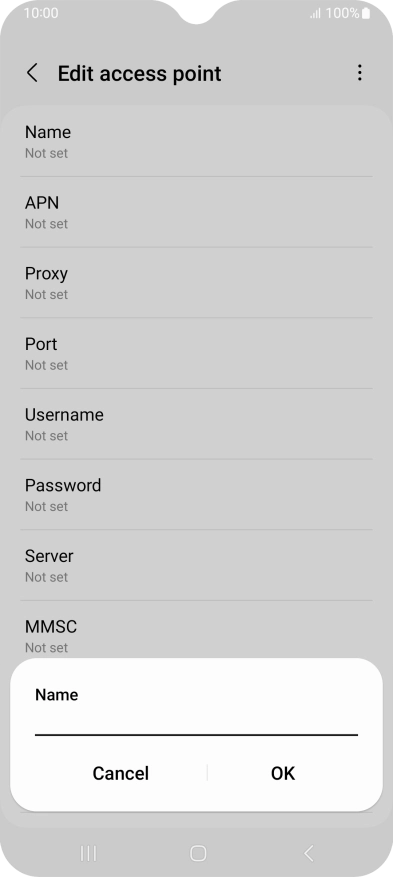

Key in Vodafone MMS and press OK.
3. Enter APN
Press APN.
3. Enter APN

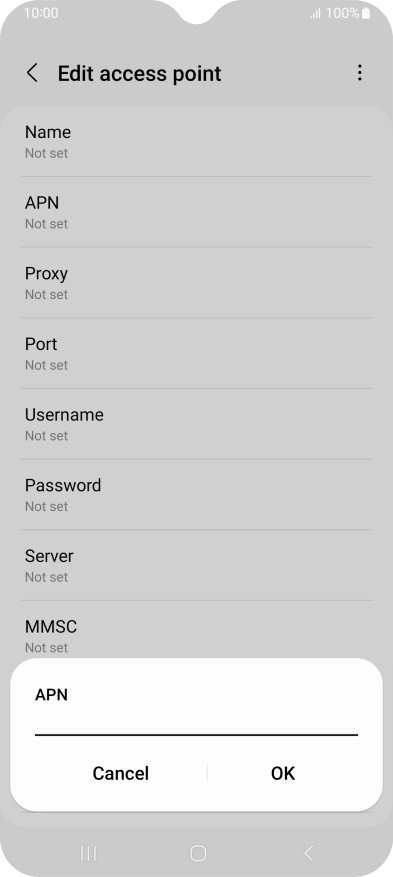

Key in wap.vodafone.co.uk and press OK.
4. Enter username
Press Username.
4. Enter username
Key in wap and press OK.
5. Enter password
Press Password.
5. Enter password
Key in wap and press OK.
6. Enter picture messaging server

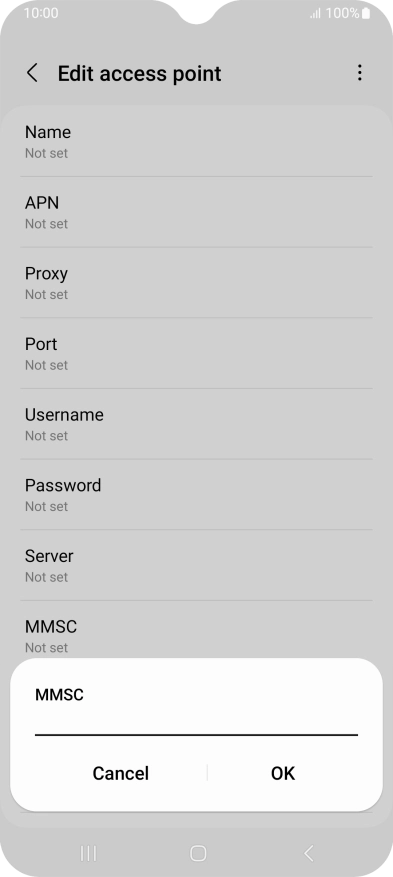

Press MMSC.
6. Enter picture messaging server
Key in http://mms.vodafone.co.uk/servlets/mms and press OK.
7. Enter IP address

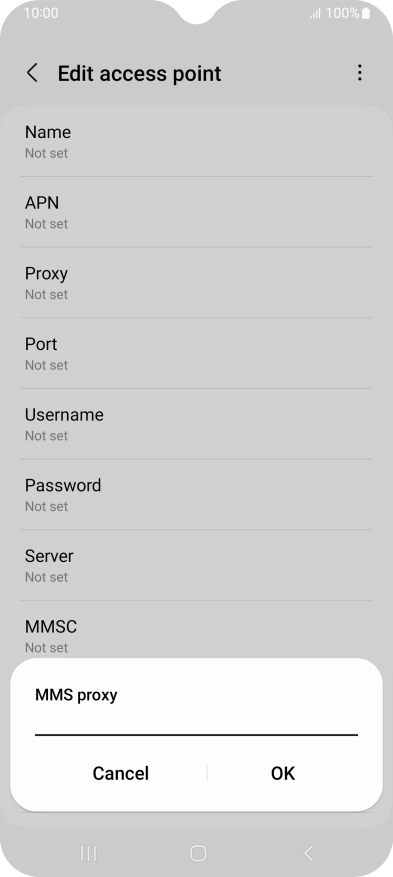

Press MMS proxy.
7. Enter IP address
Key in 212.183.137.012 and press OK.
8. Enter port number

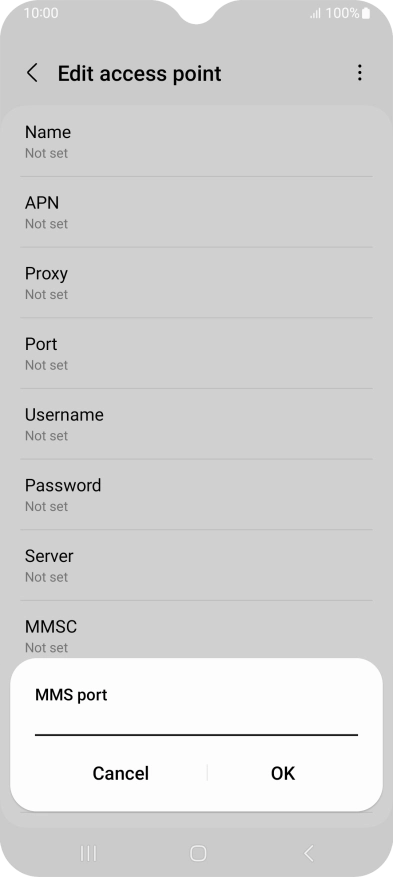

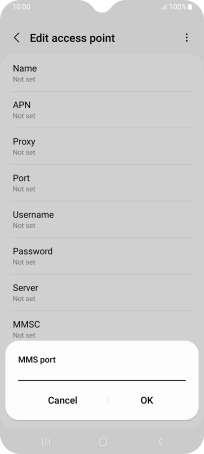

Press MMS port.
8. Enter port number
Key in 8799 and press OK.
9. Enter country code

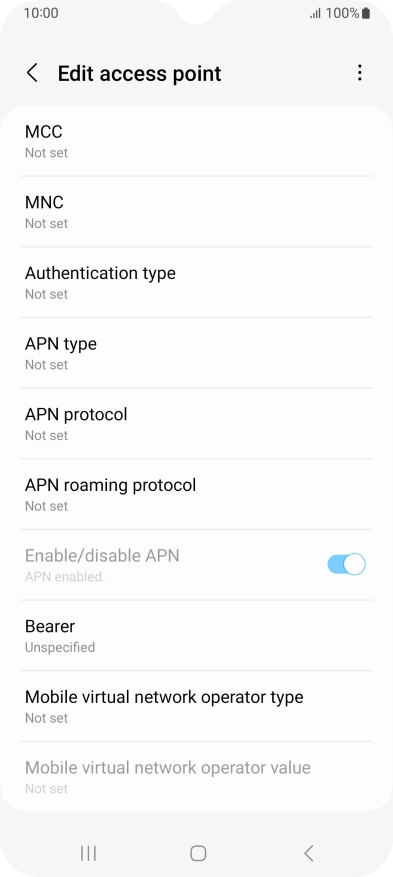

Press MCC.
9. Enter country code
Key in 234 and press OK.
10. Enter network code
Press MNC.
10. Enter network code

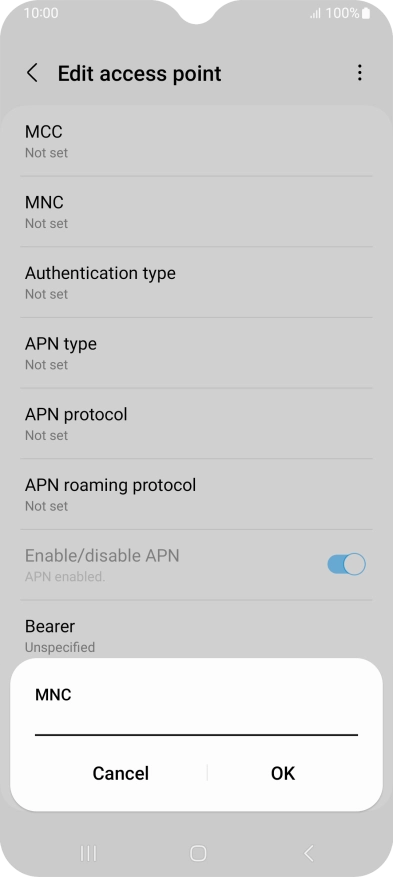

Key in 15 and press OK.
11. Select authentication type
Press Authentication type.
11. Select authentication type

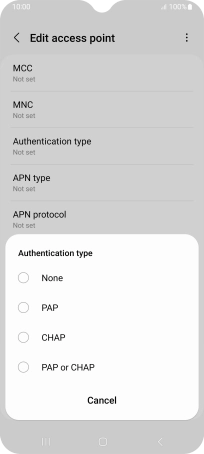

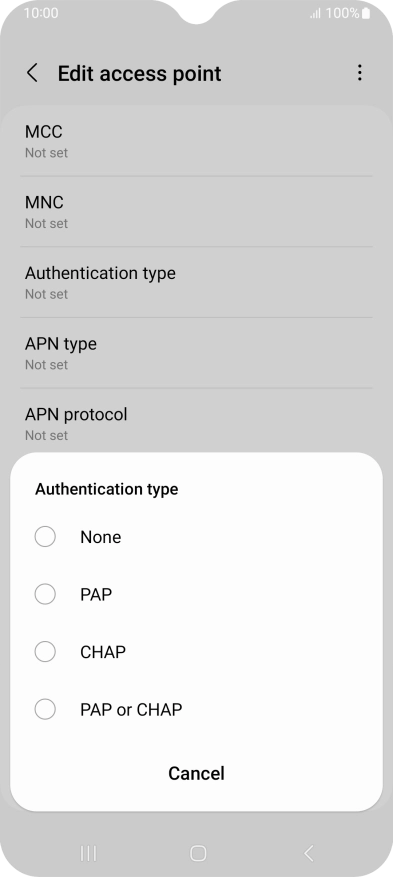

Press None.
12. Enter APN type
Press APN type.
12. Enter APN type

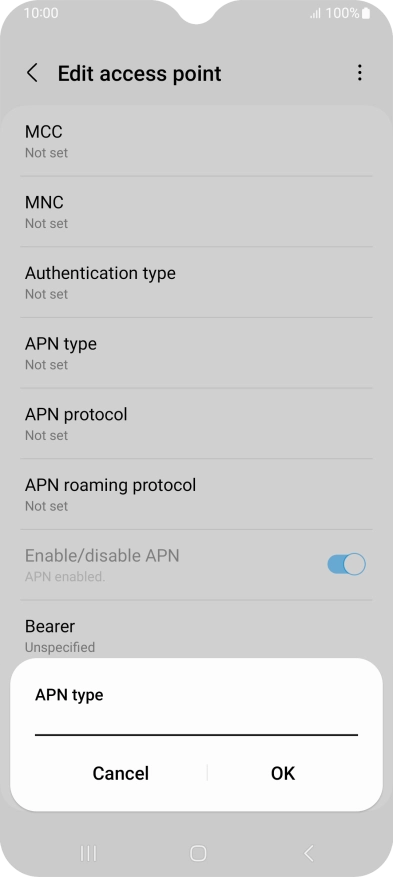

Key in mms and press OK.
13. Save data connection
Press the menu icon.
13. Save data connection

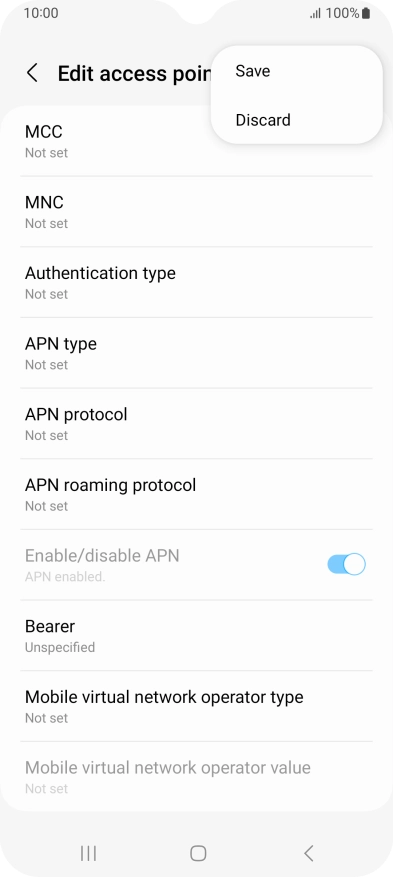

Press Save.
14. Return to the home screen
Press the Home key to return to the home screen.
