![Xiaomi 12](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-04e35542-04f5-4aa8-ad99-7b3a203eb4f2.png?width=150&height=320)
Xiaomi 12
Android 12.0
1. Find "Access point names"
Press Settings.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-359f4746-f5e5-4414-a314-b86cd9e0495f.png?width=206&height=456)
Press SIM cards & mobile networks.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-b80d71c2-6fcf-441f-b931-35dec75474fc.png?width=206&height=456)

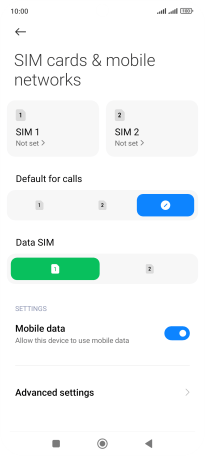

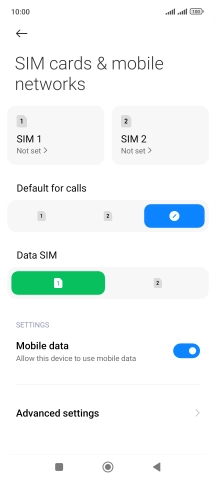

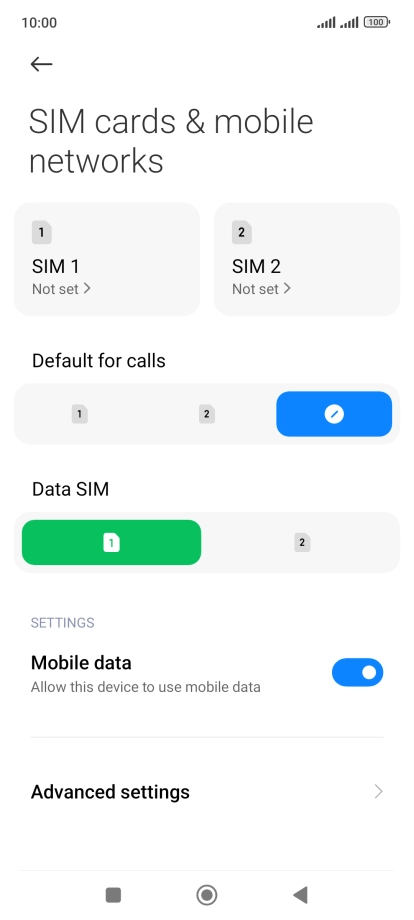

Press the required SIM.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-e298096d-aa46-4ada-8a24-6acc58ed8737.png?width=206&height=456)

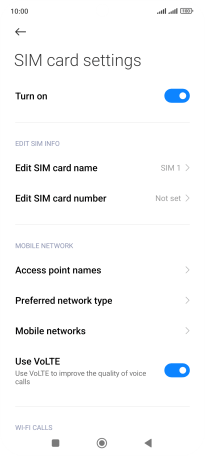

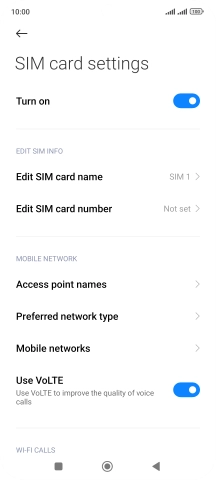

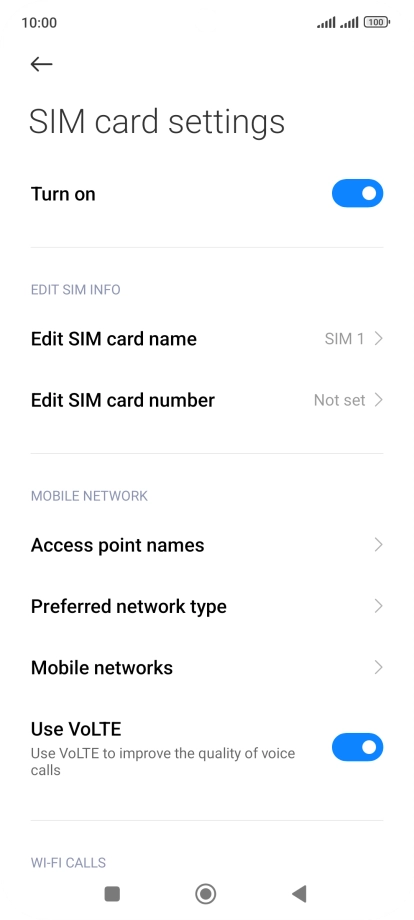

Press Access point names.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-ed0f6271-b048-4a53-b558-a19afc4a701d.png?width=206&height=456)
2. Create new data connection

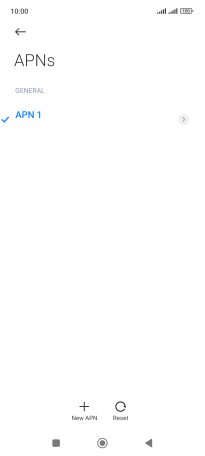

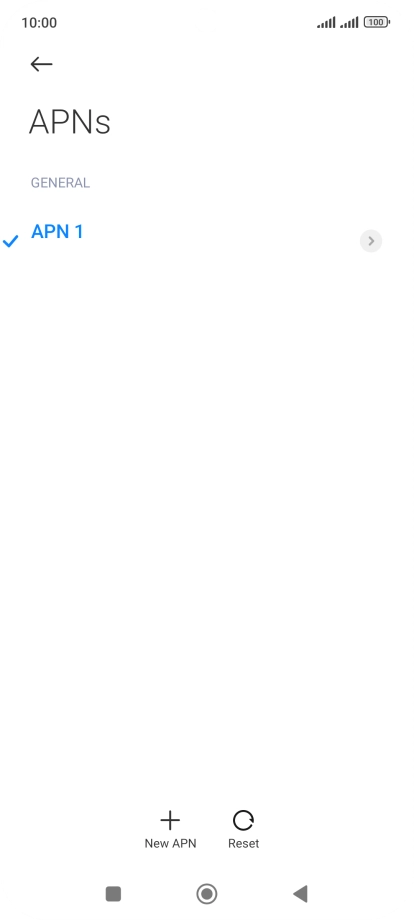

Press New APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-d96b2d0e-7a93-4cf1-98f7-bd66e1803473.png?width=206&height=456)
3. Enter a name for the connection

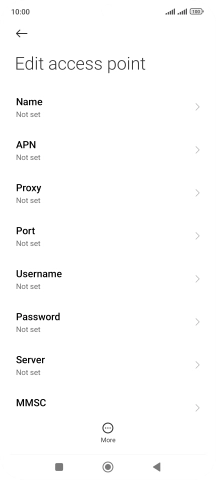

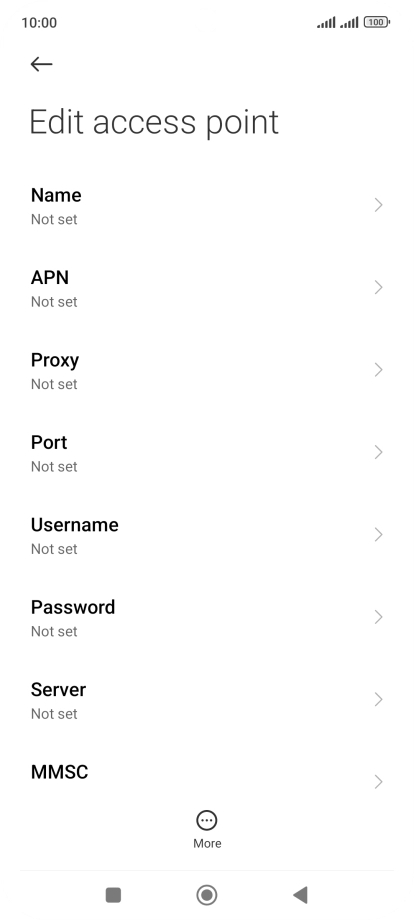

Press Name.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-5922c491-49ce-4efa-85a1-33abebfdeed5.png?width=206&height=456)

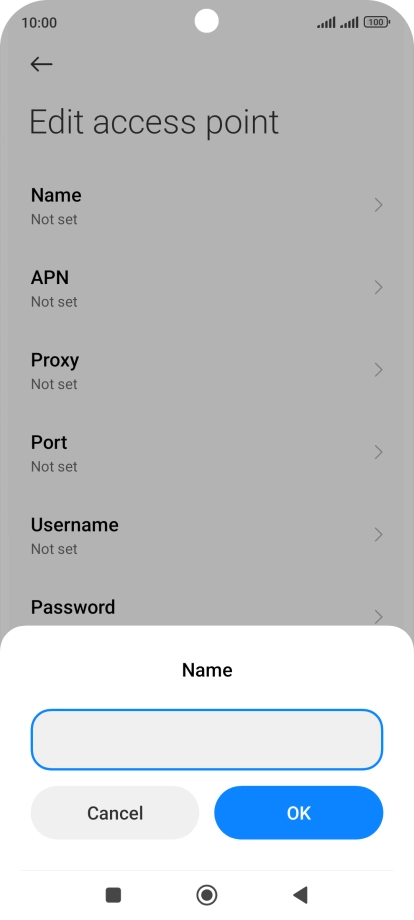

Key in Vodafone MMS and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-09cf7deb-468c-4ac2-ae02-d8ddd489ddb9.png?width=206&height=456)
Vodafone MMS
4. Enter APN
Press APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-5922c491-49ce-4efa-85a1-33abebfdeed5.png?width=206&height=456)

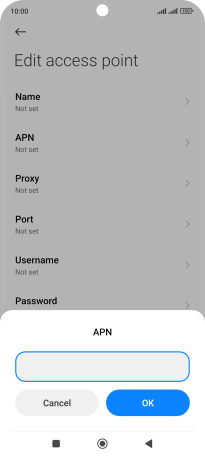

Key in wap.vodafone.co.uk and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-303958a1-1315-43e8-b5aa-52c293856a00.png?width=206&height=456)
wap.vodafone.co.uk
5. Enter username
Press Username.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-5922c491-49ce-4efa-85a1-33abebfdeed5.png?width=206&height=456)

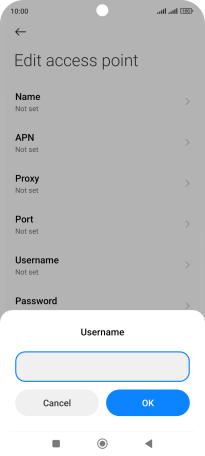

Key in wap and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-903d54c5-545b-424d-8162-58c369459dcf.png?width=206&height=456)
wap
6. Enter password
Press Password.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-5922c491-49ce-4efa-85a1-33abebfdeed5.png?width=206&height=456)

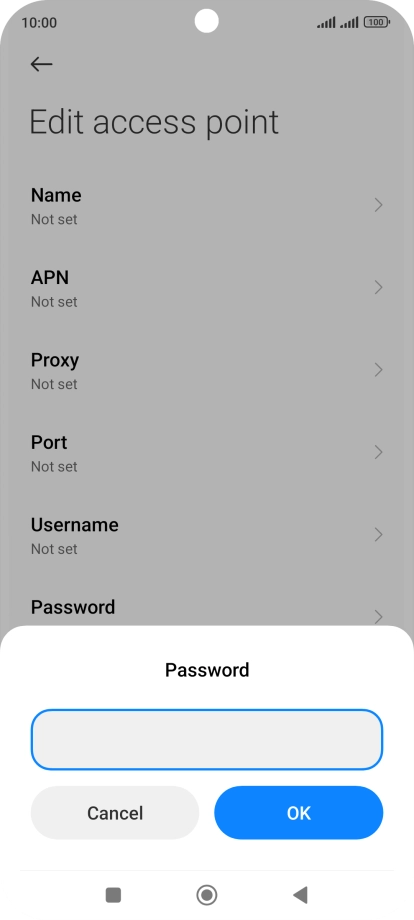

Key in wap and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-818a80de-1b54-4fb4-ac72-2e1734c4b2c4.png?width=206&height=456)
wap
7. Enter picture messaging server
Press MMSC.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-5922c491-49ce-4efa-85a1-33abebfdeed5.png?width=206&height=456)
Key in http://mms.vodafone.co.uk/servlets/mms and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-6e2b2531-1556-4497-a88e-fbc634cd16e9.png?width=206&height=456)
http://mms.vodafone.co.uk/servlets/mms
8. Enter IP address

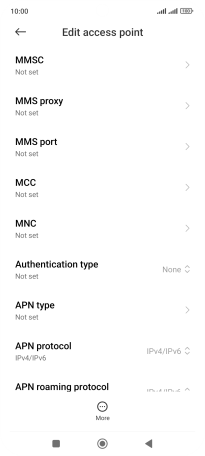

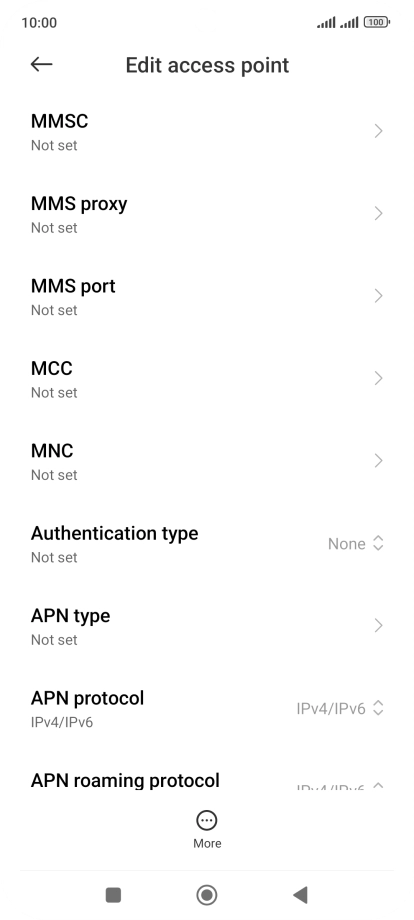

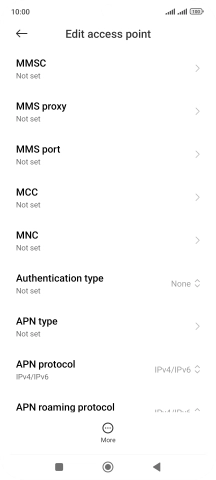

Press MMS proxy.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-0d86566c-8d93-4fa9-8d8f-54fca9b2eb08.png?width=206&height=456)

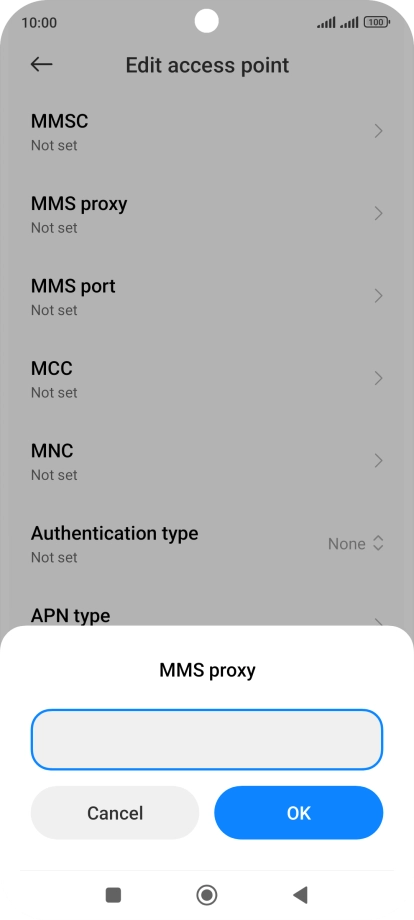

Key in 212.183.137.012 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-2d5e3442-7b52-46eb-8905-957faeafecef.png?width=206&height=456)
212.183.137.012
9. Enter port number
Press MMS port.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-0d86566c-8d93-4fa9-8d8f-54fca9b2eb08.png?width=206&height=456)

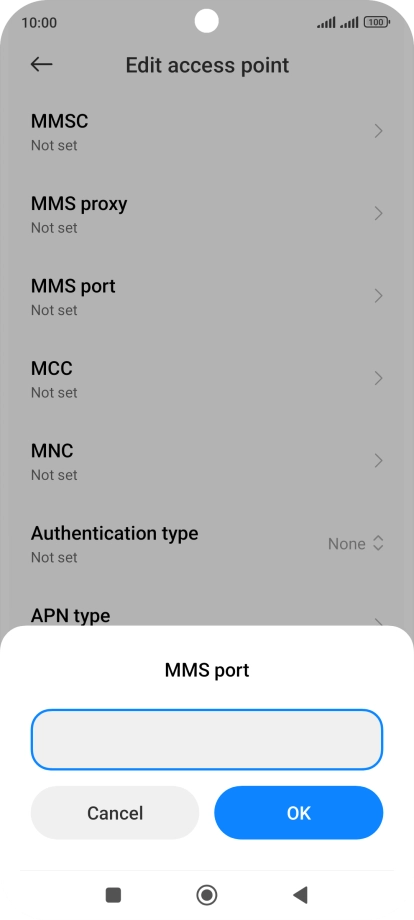

Key in 8799 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-b7b4ed30-0db4-48d1-97c4-3e2087fdfe0a.png?width=206&height=456)
8799
10. Enter country code
Press MCC.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-0d86566c-8d93-4fa9-8d8f-54fca9b2eb08.png?width=206&height=456)
Key in 234 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-2069a3a4-cb15-4133-ab10-e31f8db08c1d.png?width=206&height=456)
234
11. Enter network code
Press MNC.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-0d86566c-8d93-4fa9-8d8f-54fca9b2eb08.png?width=206&height=456)

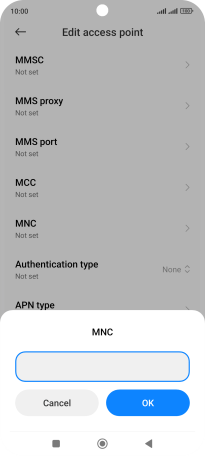

Key in 15 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-537c92b6-4b84-43aa-b859-5a1045d98e38.png?width=206&height=456)
15
12. Select authentication type
Press Authentication type.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-0d86566c-8d93-4fa9-8d8f-54fca9b2eb08.png?width=206&height=456)

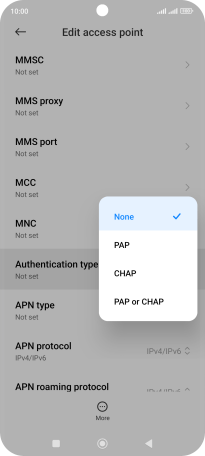

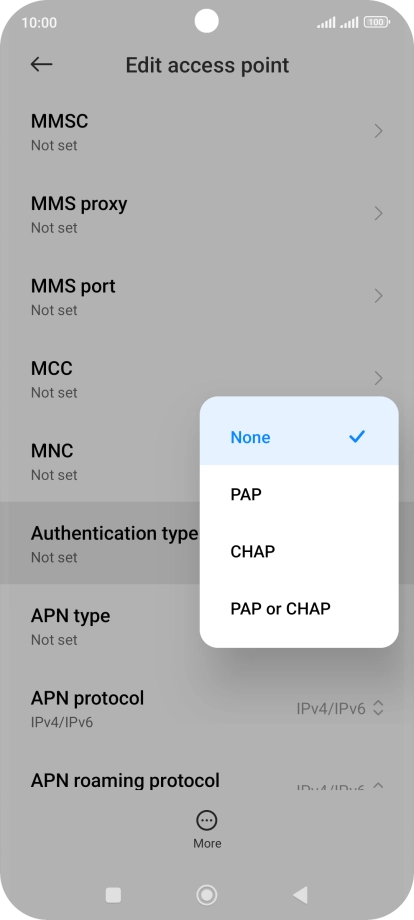

Press None.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-fe6b32ee-f9ef-403d-af35-77b49a0aea88.png?width=206&height=456)
13. Enter APN type
Press APN type.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-0d86566c-8d93-4fa9-8d8f-54fca9b2eb08.png?width=206&height=456)
Key in mms and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-43a6a2e6-9772-4ef8-9c38-83c9566ae04d.png?width=206&height=456)
mms
14. Save data connection
Press More.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-0d86566c-8d93-4fa9-8d8f-54fca9b2eb08.png?width=206&height=456)

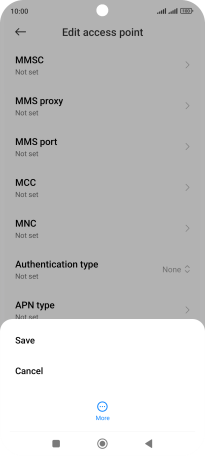

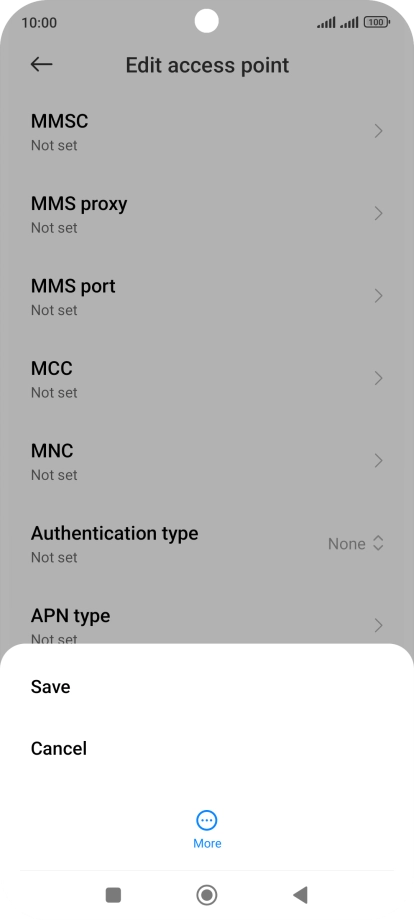

Press Save.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-f21fadff-b8c0-4f4e-8a25-781e7f97e5f8.png?width=206&height=456)
15. Return to the home screen

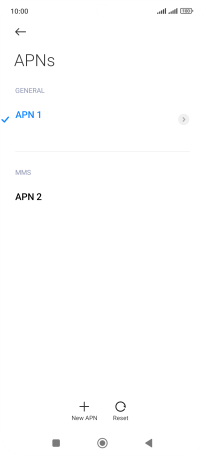

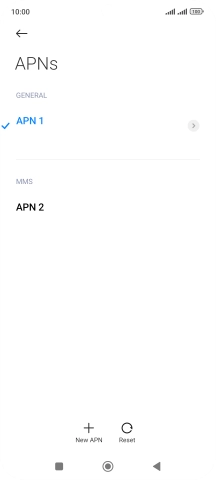

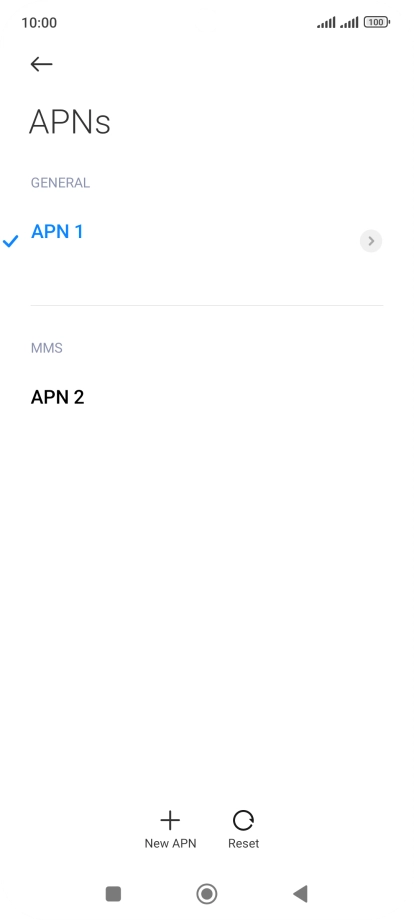

Press the Home key to return to the home screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-3762424d-b7ad-4a55-a930-c653a99f3a19.png?width=206&height=456)
