![Xiaomi Redmi 9AT](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-02d03c06-1caa-43c1-9a74-9694bf2e9824.png?width=150&height=320)
Xiaomi Redmi 9AT
Android 10.0
1. Find "Access point names"
Press Settings.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-18b882b8-ed6f-4486-99e2-d6db67febf57.png?width=198&height=440)
Press SIM cards & mobile networks.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-2f7920e4-ba7c-45ee-915c-cfebb2e5c3dc.png?width=198&height=440)
Press the required SIM.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-f62ae806-e474-42fd-beb0-2ee88cf5ba7f.png?width=198&height=440)

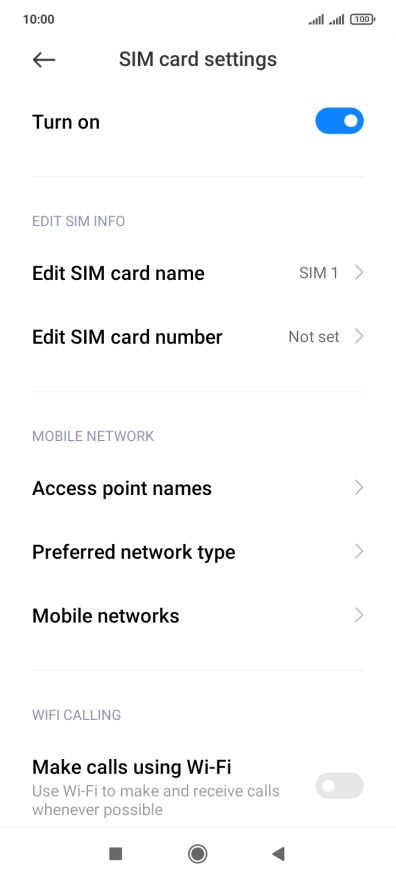

Press Access point names.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-0c2b44f2-abe0-4d12-a940-b45b0b3c21d6.png?width=198&height=440)
2. Create new data connection

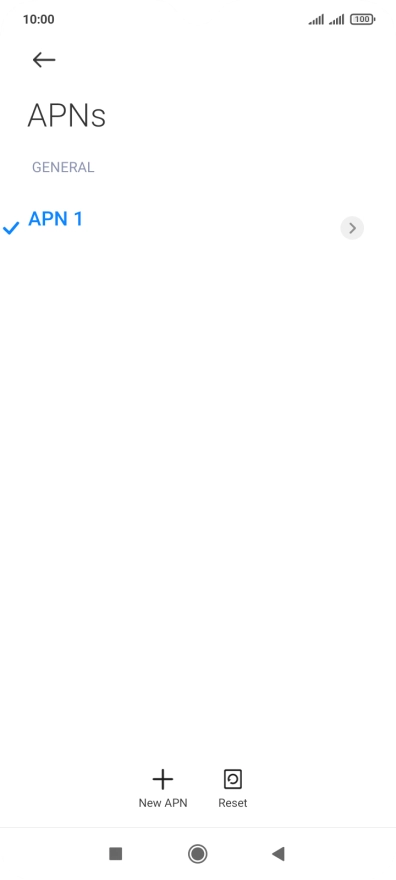

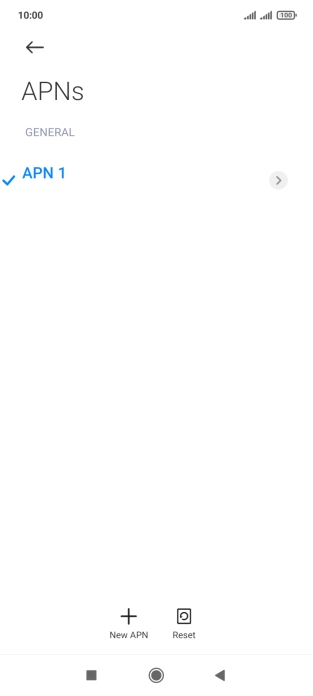

Press New APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-c94c5f80-f645-4619-8ece-00cc2151e376.png?width=198&height=440)
3. Enter a name for the connection

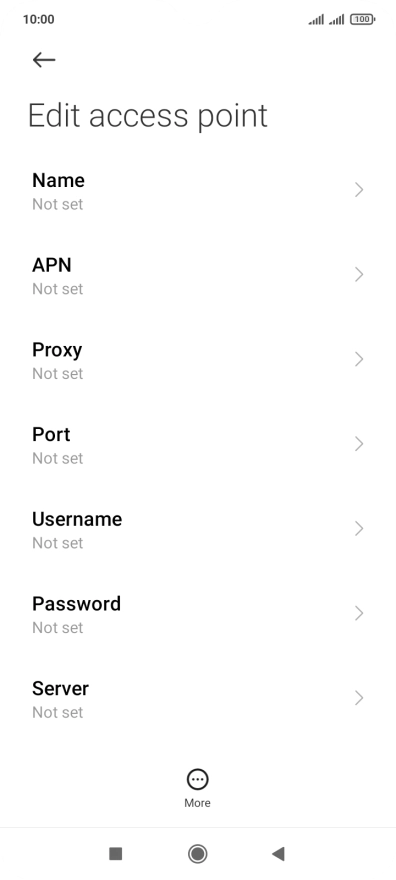

Press Name.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-87676c8e-43b9-4b08-aa36-bf20f83aa0a0.png?width=198&height=440)
Key in Vodafone Internet and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-9115bf5f-fcad-47d5-8336-70f9299351db.png?width=198&height=440)
Vodafone Internet
4. Enter APN
Press APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-87676c8e-43b9-4b08-aa36-bf20f83aa0a0.png?width=198&height=440)
Key in wap.vodafone.co.uk and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-6da18f28-19c2-4378-befe-93528aa39660.png?width=198&height=440)
wap.vodafone.co.uk
5. Enter username
Press Username.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-87676c8e-43b9-4b08-aa36-bf20f83aa0a0.png?width=198&height=440)

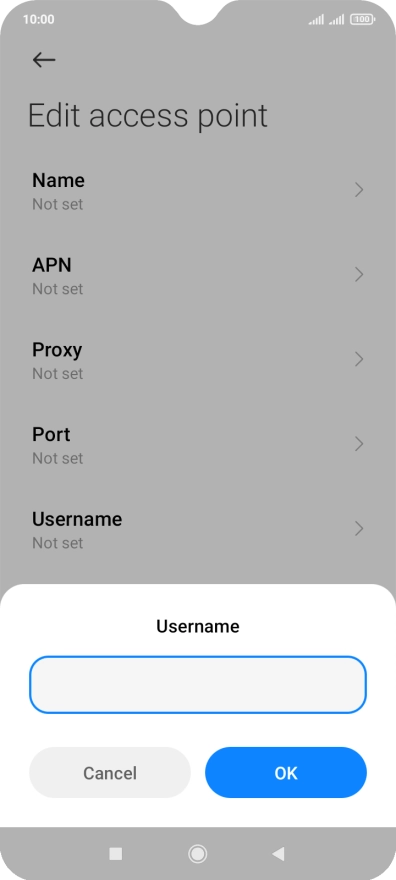

Key in wap and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-4fda3f09-0467-4772-9589-63eeb757a60f.png?width=198&height=440)
wap
6. Enter password
Press Password.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-87676c8e-43b9-4b08-aa36-bf20f83aa0a0.png?width=198&height=440)
Key in wap and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-8f7007b1-228c-44e1-b5c1-9f3561755c4b.png?width=198&height=440)
wap
7. Enter country code

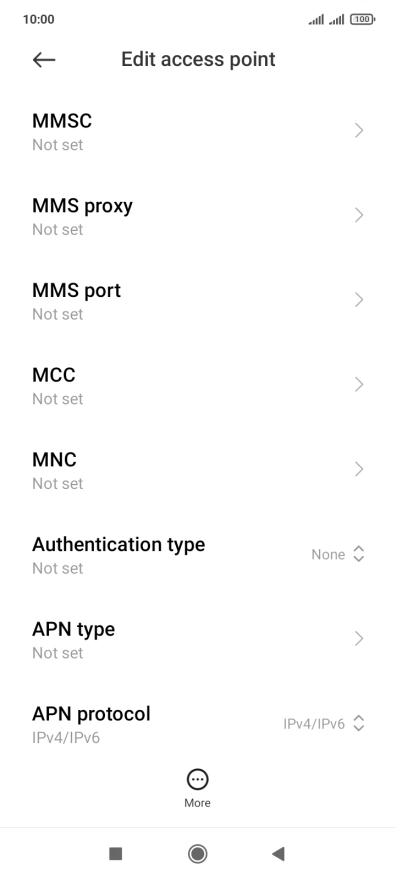

Press MCC.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-abde436f-be5a-4429-a067-ceef45aa49ea.png?width=198&height=440)

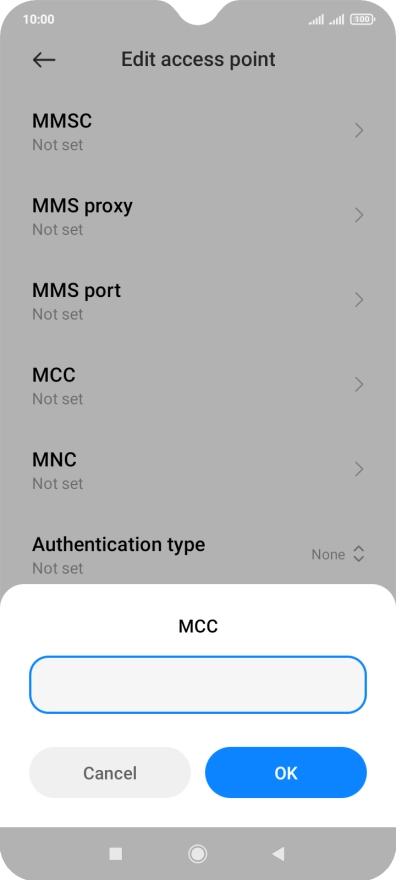

Key in 234 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-069edc56-b359-4ff5-b433-fad90bb2ee5a.png?width=198&height=440)
234
8. Enter network code
Press MNC.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-abde436f-be5a-4429-a067-ceef45aa49ea.png?width=198&height=440)
Key in 15 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-19b5b5bd-da5d-4b37-9fd8-508e83f6c2d8.png?width=198&height=440)
15
9. Select authentication type
Press Authentication type.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-abde436f-be5a-4429-a067-ceef45aa49ea.png?width=198&height=440)

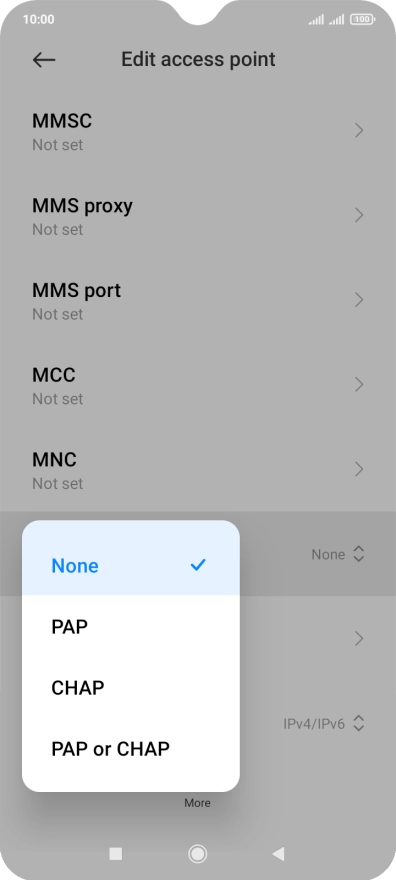

Press None.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-c95a922d-2b70-4987-a58b-6fc52b8e4add.png?width=198&height=440)
10. Enter APN type
Press APN type.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-abde436f-be5a-4429-a067-ceef45aa49ea.png?width=198&height=440)

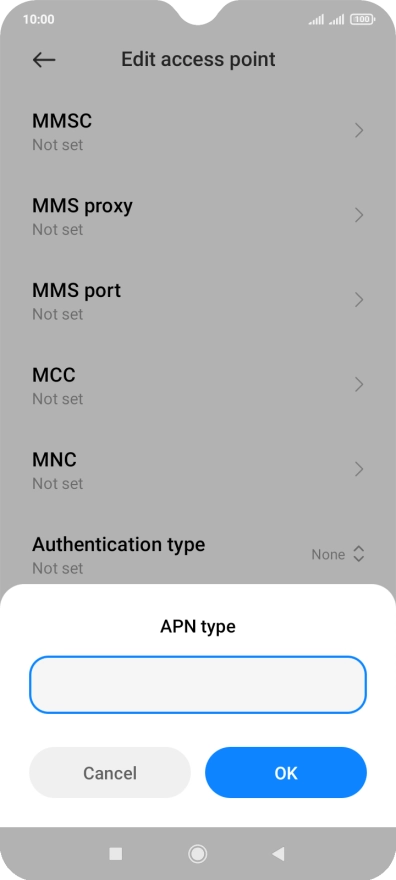

Key in default and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-56a48420-8cbb-443a-b1b6-2a7e355d2a60.png?width=198&height=440)
default
11. Save data connection
Press More.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-abde436f-be5a-4429-a067-ceef45aa49ea.png?width=198&height=440)

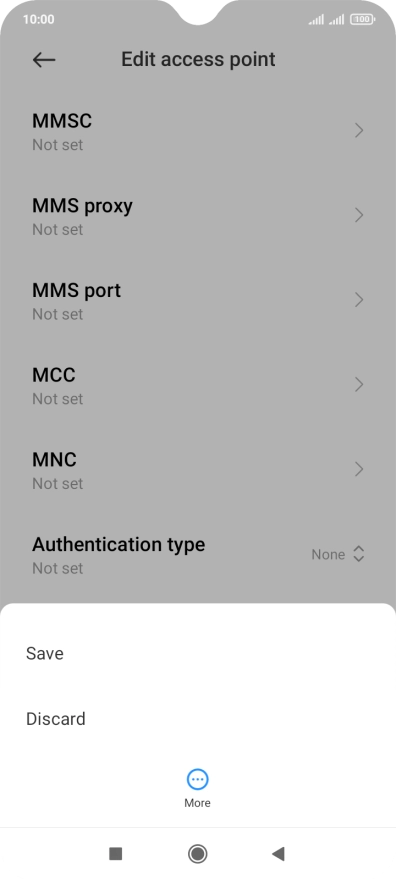

Press Save.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-e3105221-0056-40f4-aae8-70f2b65b3440.png?width=198&height=440)

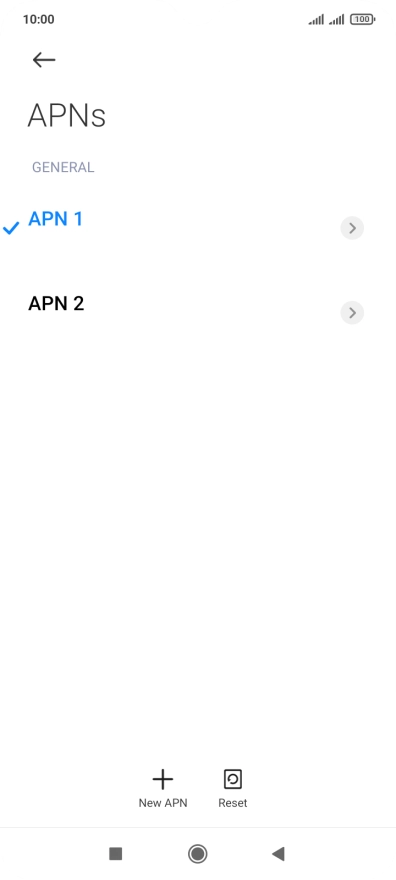

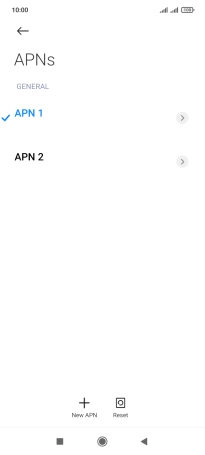

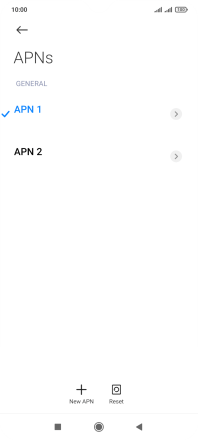

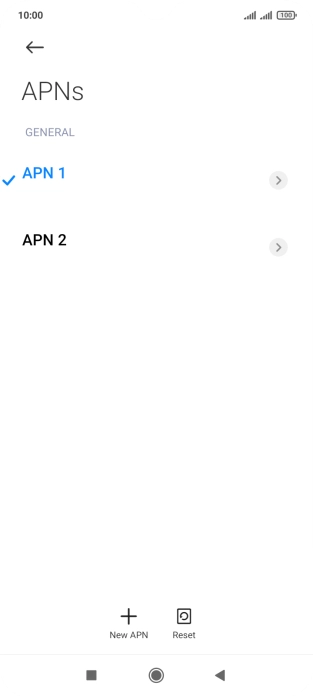

Press the required data connection to activate it.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-6d641c4f-28f9-4cc1-97e6-6aa3208e5d3d.png?width=198&height=440)
12. Return to the home screen

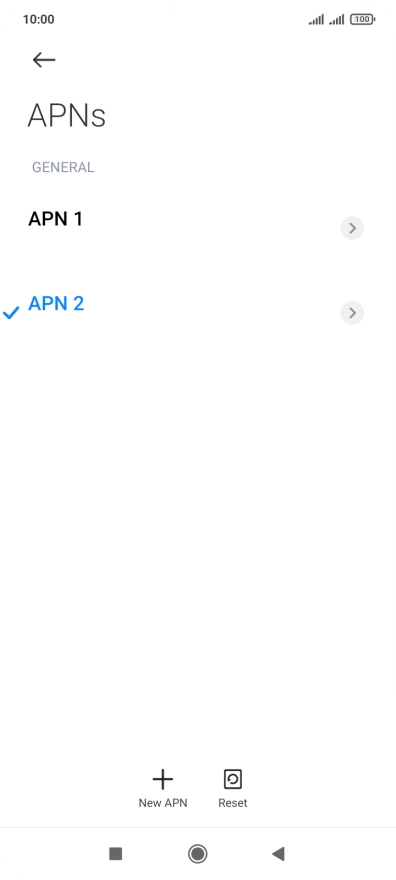

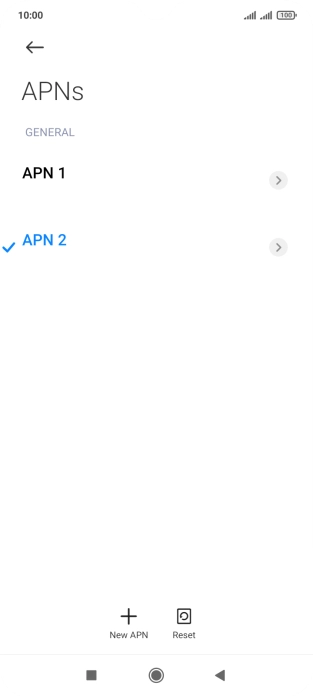

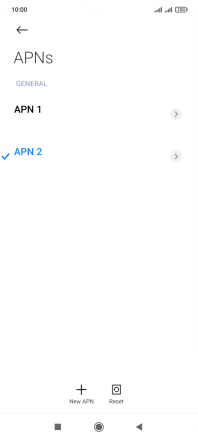

Press the Home key to return to the home screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-ffb5e5af-2971-4510-a785-b745e90041f3.png?width=198&height=440)
