Google Pixel 5
Android 11.0
1. Find "Access point names"
Slide two fingers downwards starting from the top of the screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-3a1aa658-bdb6-4d01-ae2f-c5fb8ff4773c.png?width=210&height=458)

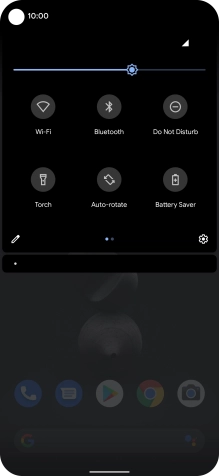

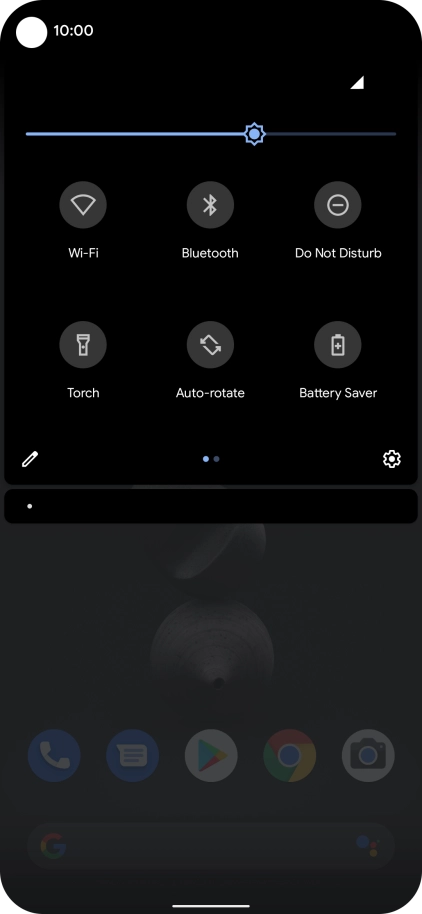

Press the settings icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-7609ebc9-24f6-45e4-8fbf-59605f6be8a9.png?width=210&height=458)

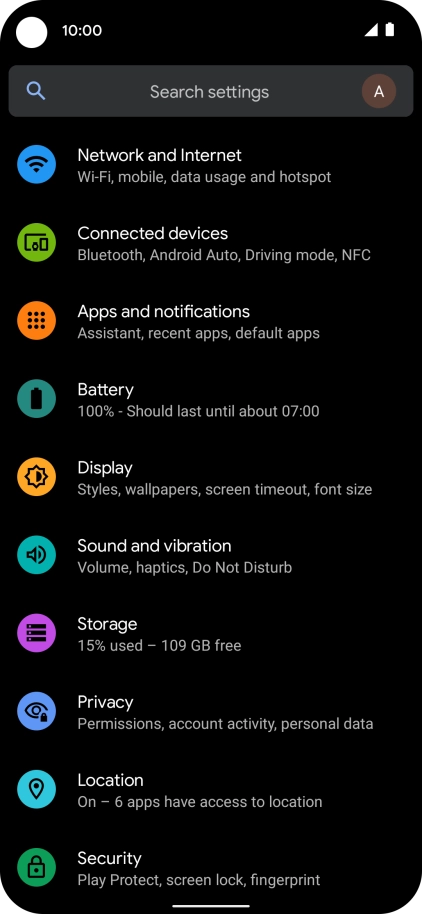

Press Network and Internet.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-113d4875-7640-4237-bf7e-a88c8bdfd591.png?width=210&height=458)

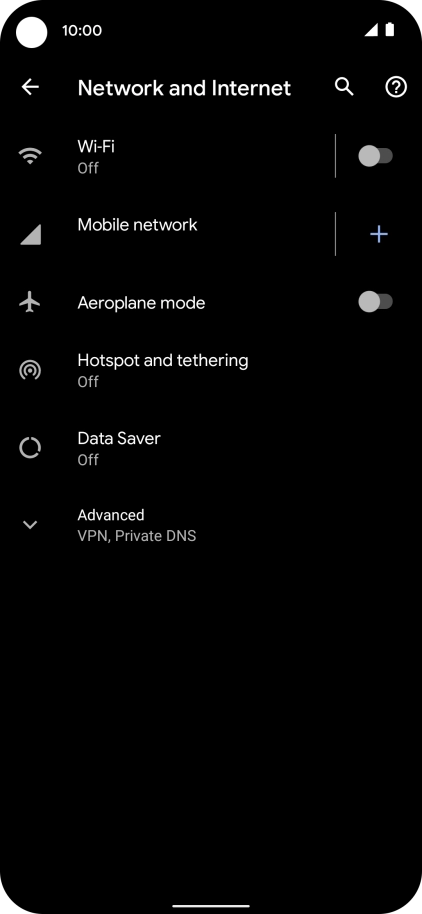

Press Mobile network.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-0ef52173-c74f-438c-a2dd-eb644b76c5c4.png?width=210&height=458)

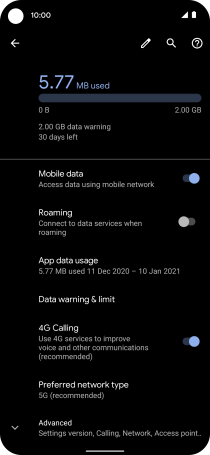

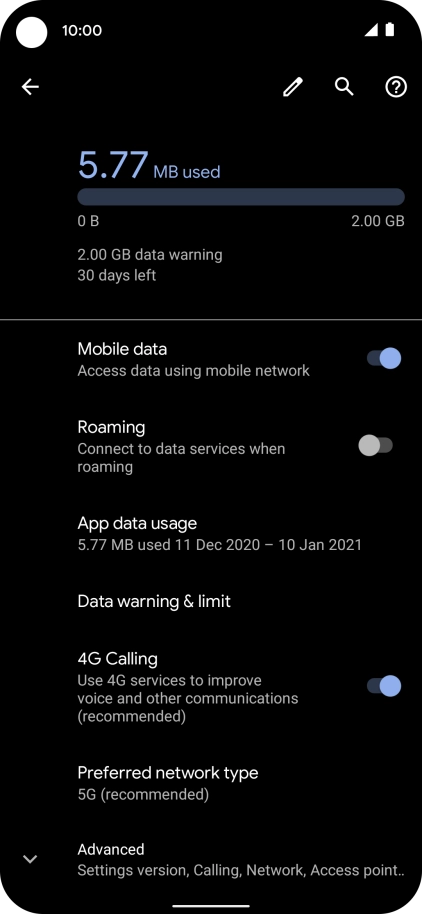

Press Advanced.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-283db412-3120-4af6-8428-5b67dff7bd14.png?width=210&height=458)

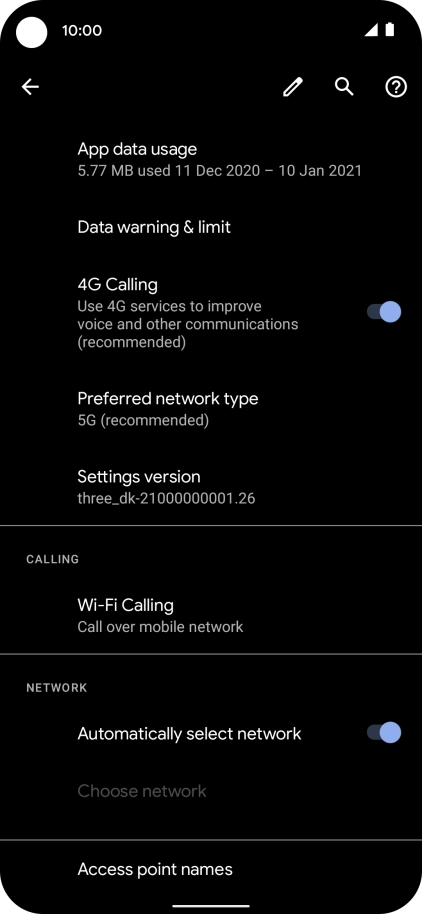

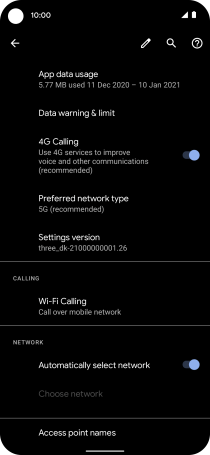

Press Access point names.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-36fa46c6-6729-4474-aab5-6e8135128b50.png?width=210&height=458)
2. Create new data connection

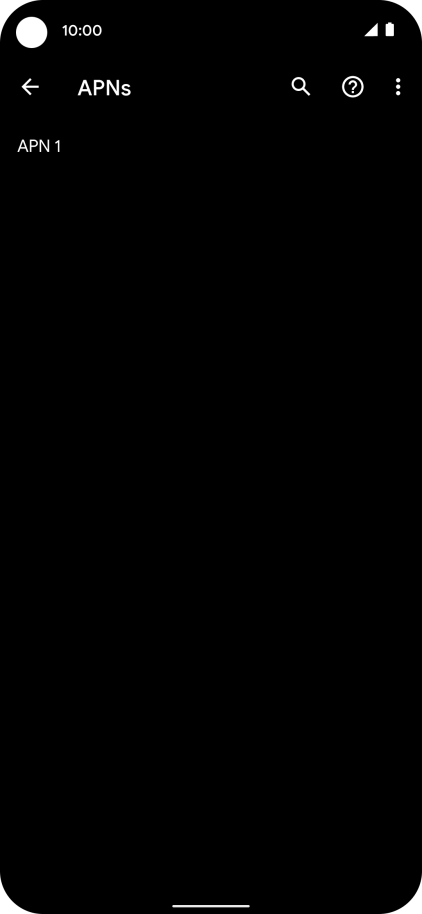

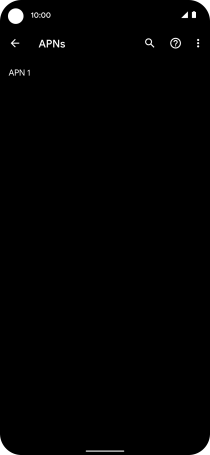

Press the menu icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-5635a170-f778-4952-a52b-fc6e5d4774bf.png?width=210&height=458)

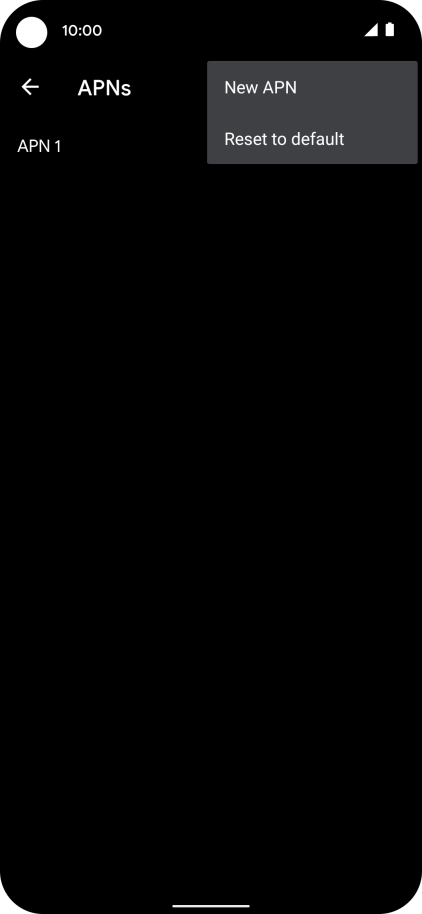

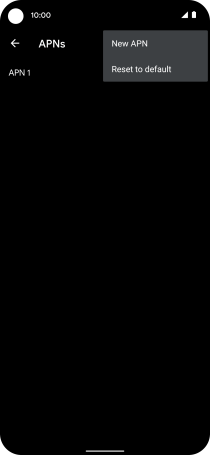

Press New APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-c0e0a5f1-5889-4a40-8a27-2f669ed83c3e.png?width=210&height=458)
3. Enter a name for the connection

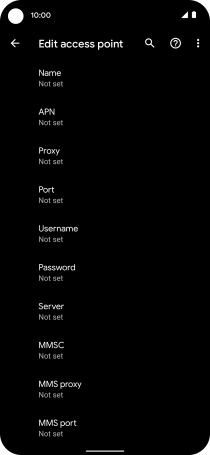

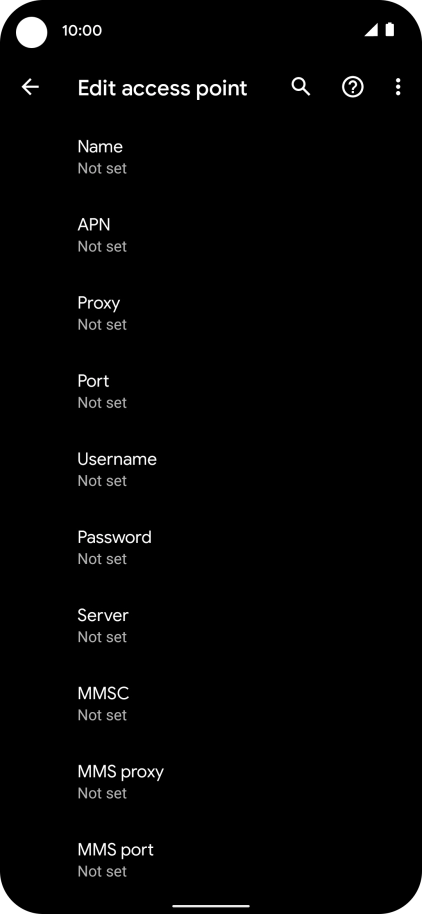

Press Name.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-2d95ea01-50c4-43cf-8f05-80ada9119f8e.png?width=210&height=458)

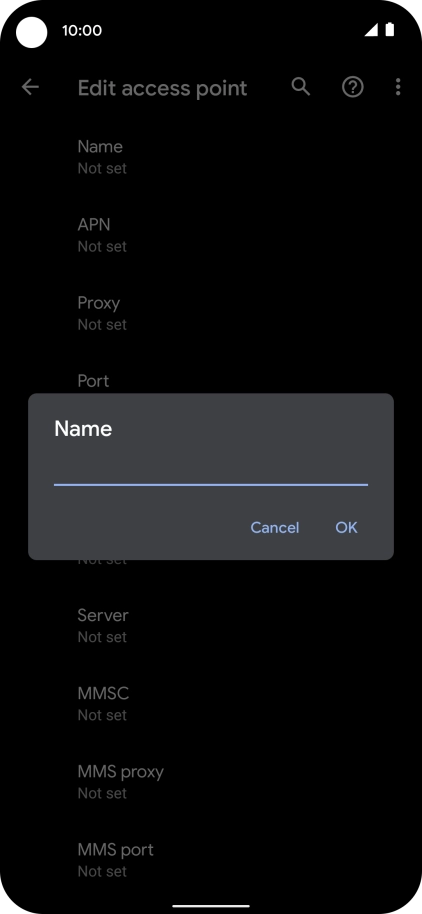

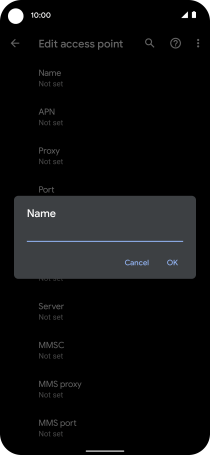

Key in Vodafone MMS and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-be44d8cf-4d2e-4c3f-91a0-559957ab9719.png?width=210&height=458)
Vodafone MMS
4. Enter APN
Press APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-2d95ea01-50c4-43cf-8f05-80ada9119f8e.png?width=210&height=458)

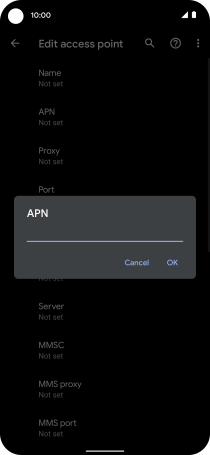

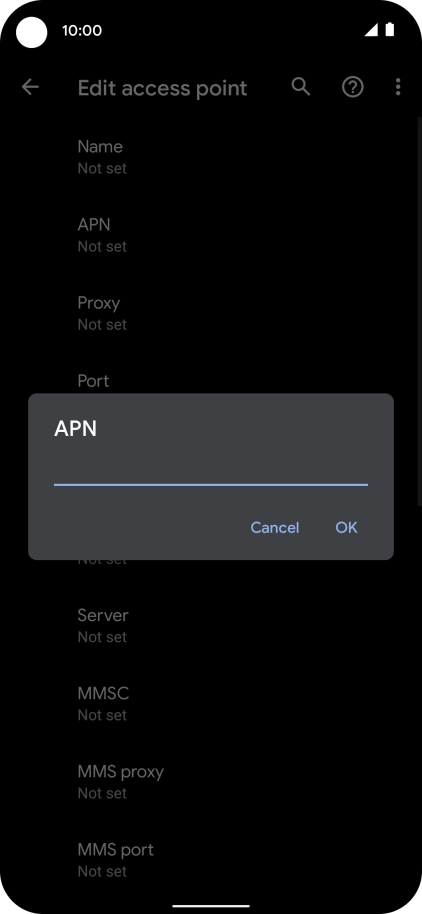

Key in wap.vodafone.co.uk and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-4aeb290b-cc91-41ba-8098-f08b7492baee.png?width=210&height=458)
wap.vodafone.co.uk
5. Enter username
Press Username.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-2d95ea01-50c4-43cf-8f05-80ada9119f8e.png?width=210&height=458)

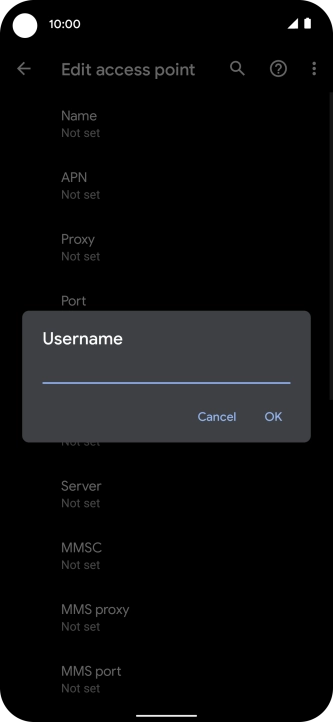

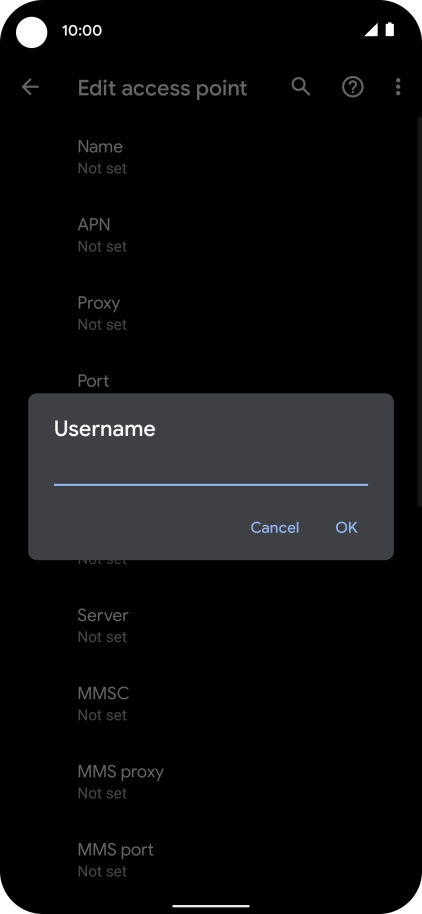

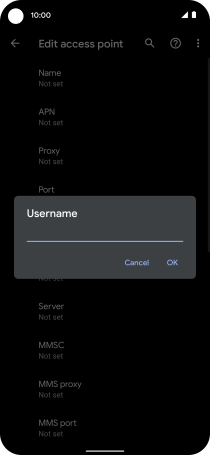

Key in wap and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-cd1d1395-cfbf-4b2e-bcd0-53a7caa0a397.png?width=210&height=458)
wap
6. Enter password
Press Password.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-2d95ea01-50c4-43cf-8f05-80ada9119f8e.png?width=210&height=458)

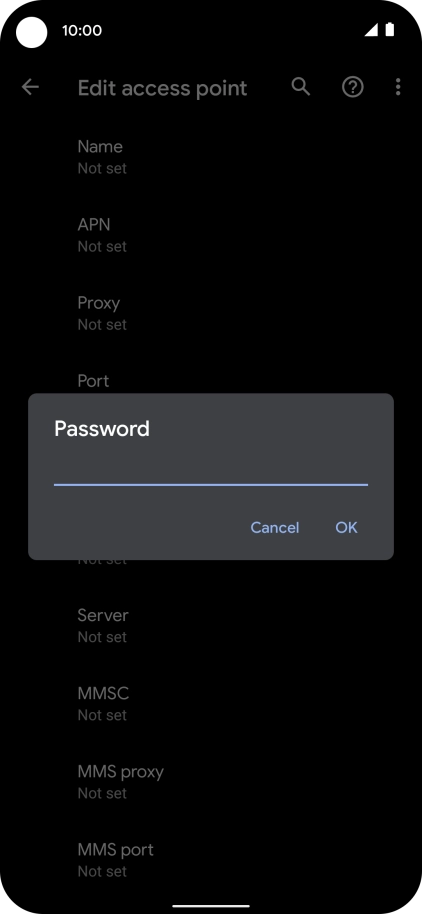

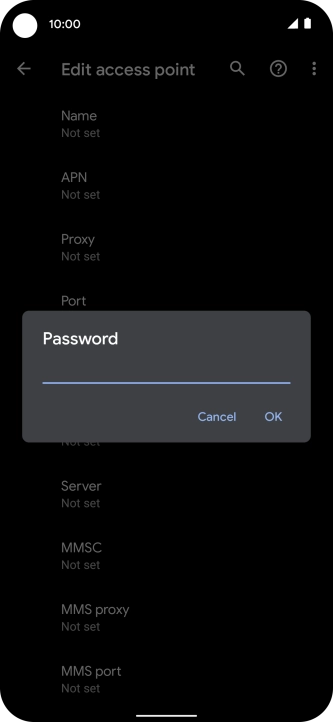

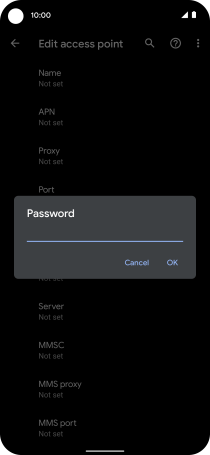

Key in wap and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-dc449fb2-2d7d-450c-94df-ae8c1d1bda3a.png?width=210&height=458)
wap
7. Enter picture messaging server
Press MMSC.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-2d95ea01-50c4-43cf-8f05-80ada9119f8e.png?width=210&height=458)
Key in http://mms.vodafone.co.uk/servlets/mms and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-d139fc7c-36e8-46be-87d6-6dfcce4d4fe3.png?width=210&height=458)
http://mms.vodafone.co.uk/servlets/mms
8. Enter IP address
Press MMS proxy.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-2d95ea01-50c4-43cf-8f05-80ada9119f8e.png?width=210&height=458)

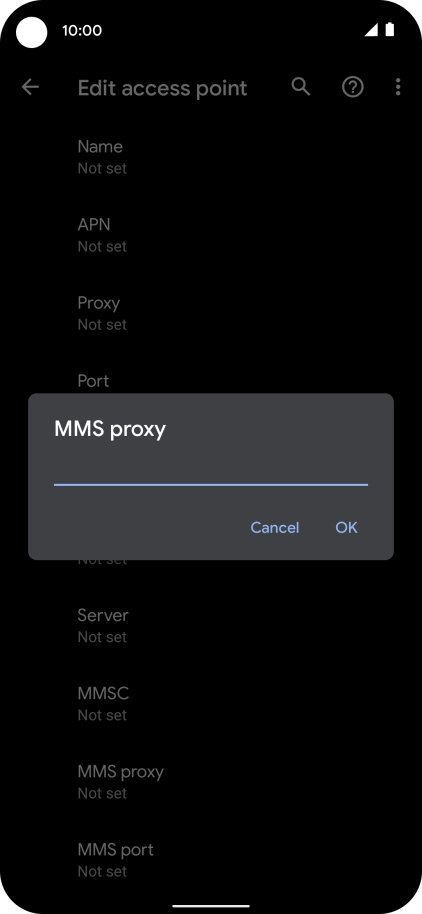

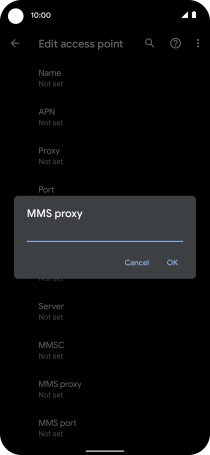

Key in 212.183.137.012 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-a1a06640-4435-4df4-9e5a-9f972cd77a67.png?width=210&height=458)
212.183.137.012
9. Enter port number
Press MMS port.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-2d95ea01-50c4-43cf-8f05-80ada9119f8e.png?width=210&height=458)

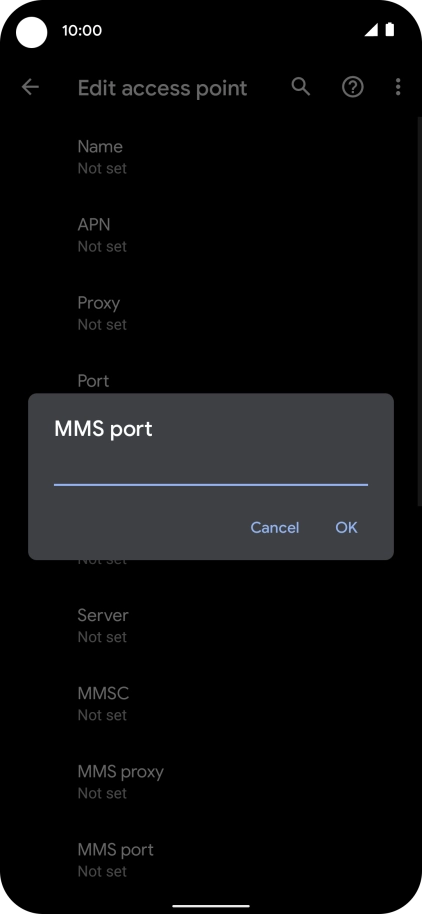

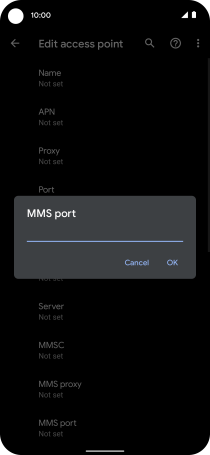

Key in 8799 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-55bd5797-c851-4bec-9639-1826437e54ca.png?width=210&height=458)
8799
10. Enter country code

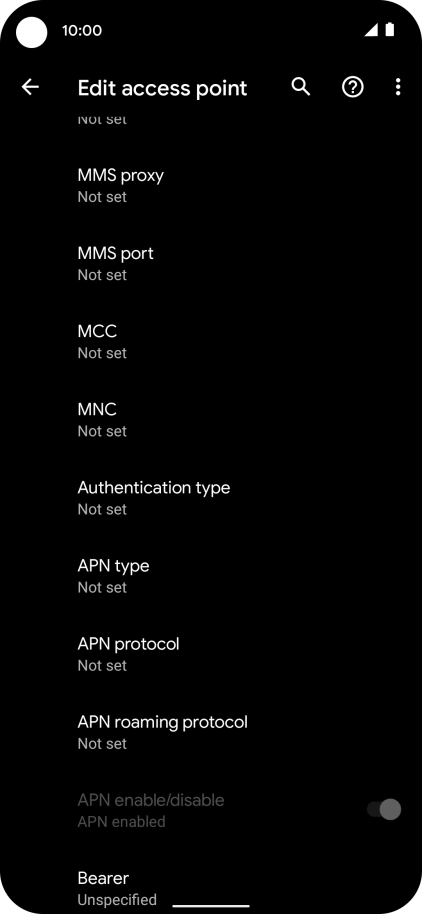

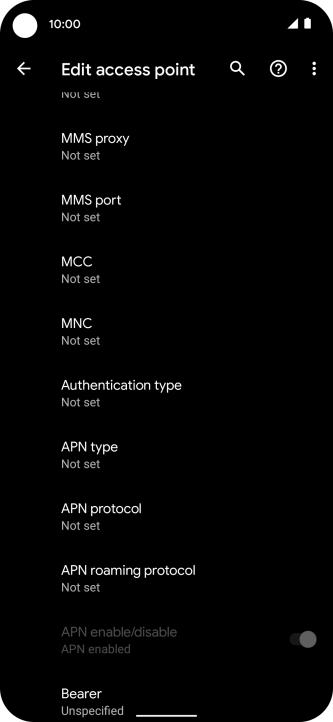

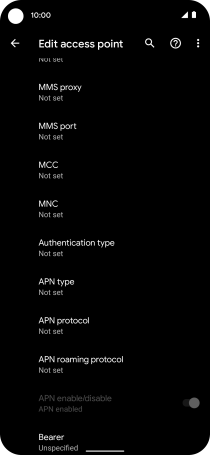

Press MCC.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-e2cfc66f-ba66-48cf-9d6f-bc3bbfc808a2.png?width=210&height=458)

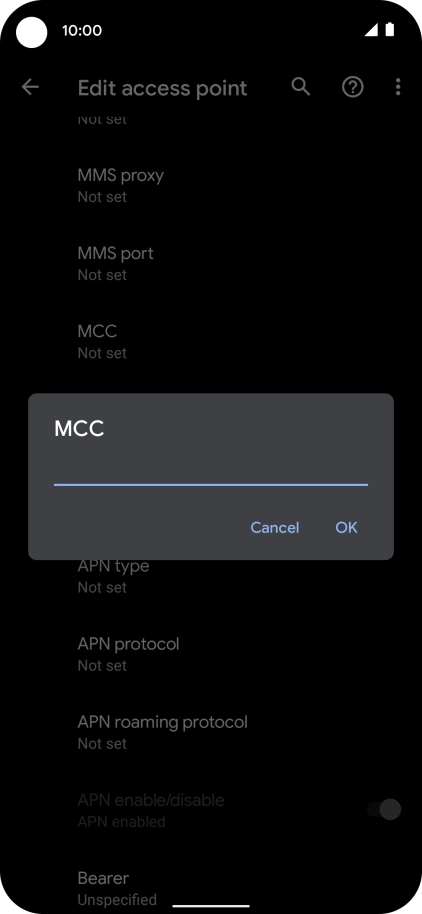

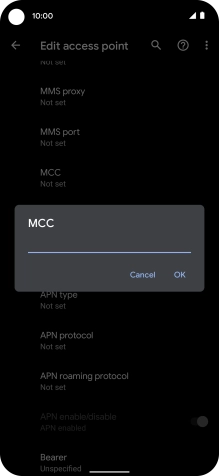

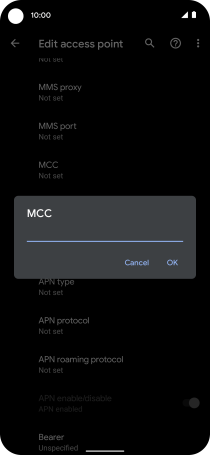

Key in 234 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-5f5440d9-fa19-4716-8d80-d1072fb9c221.png?width=210&height=458)
234
11. Enter network code
Press MNC.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-e2cfc66f-ba66-48cf-9d6f-bc3bbfc808a2.png?width=210&height=458)

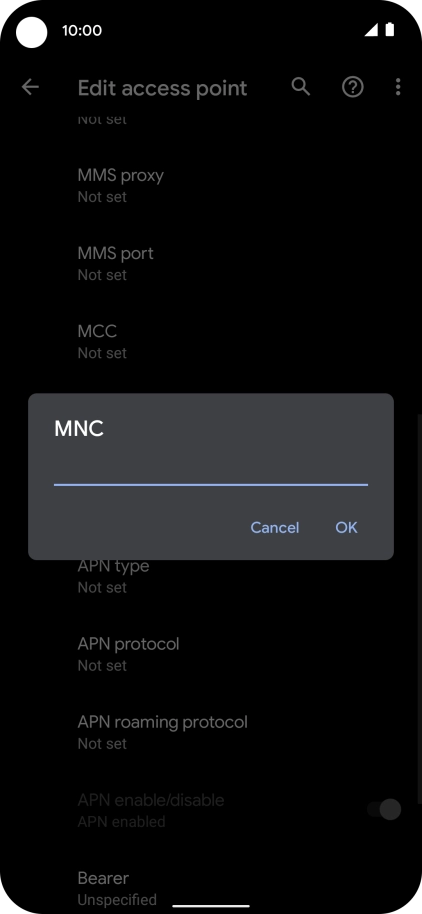

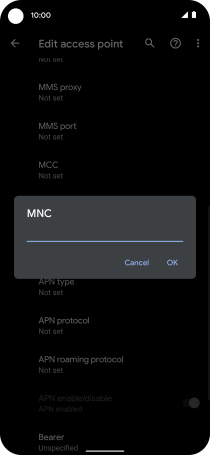

Key in 15 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-8cb427ee-951c-4e51-bfc8-55b786f00754.png?width=210&height=458)
15
12. Select authentication type
Press Authentication type.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-e2cfc66f-ba66-48cf-9d6f-bc3bbfc808a2.png?width=210&height=458)

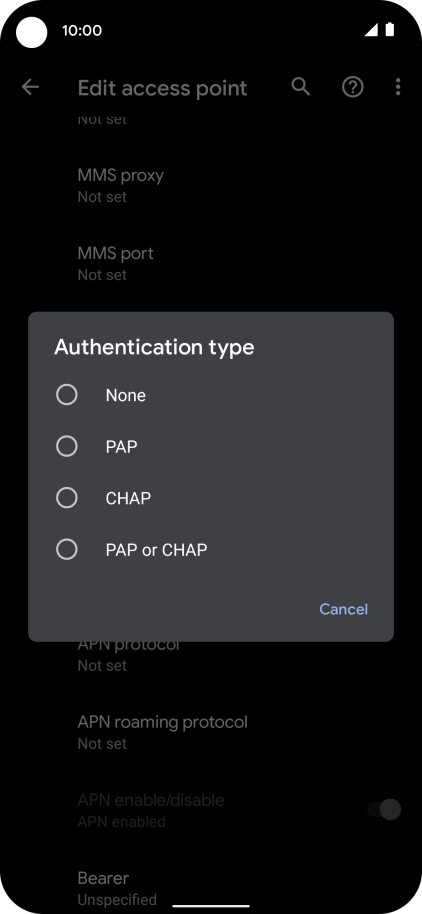

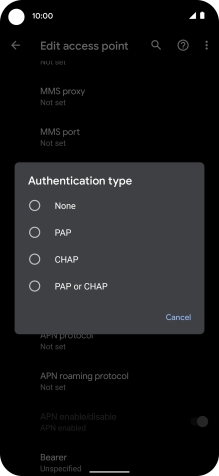

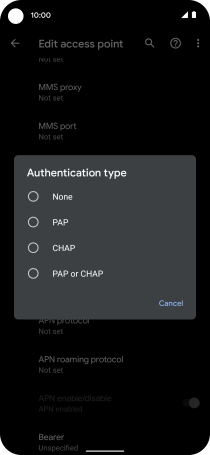

Press None.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-ae0071be-e384-4ff5-adcc-6ed0ef4d35ab.png?width=210&height=458)
13. Enter APN type
Press APN type.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-e2cfc66f-ba66-48cf-9d6f-bc3bbfc808a2.png?width=210&height=458)

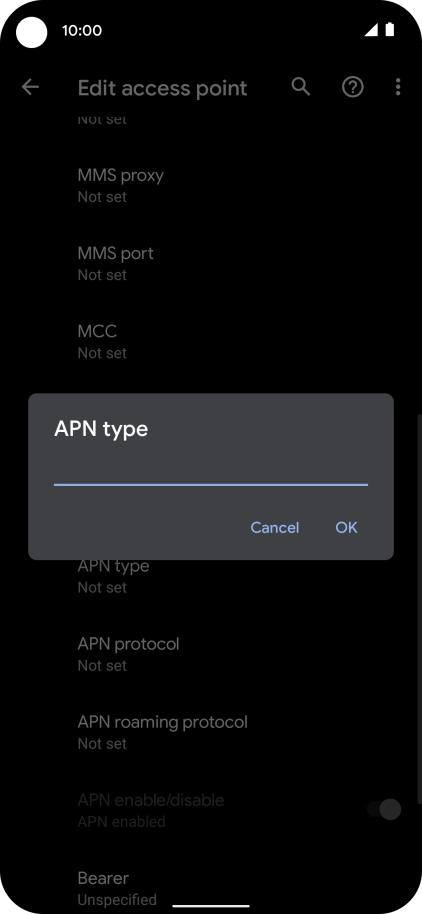

Key in mms and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-250a9165-8c43-4d4f-a5ad-ec66242cc564.png?width=210&height=458)
mms
14. Save data connection
Press the menu icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-e2cfc66f-ba66-48cf-9d6f-bc3bbfc808a2.png?width=210&height=458)

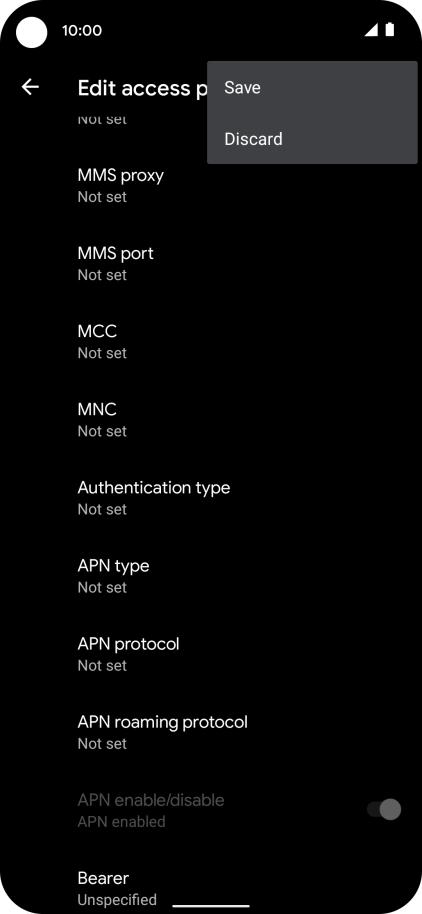

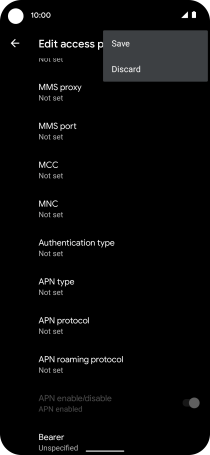

Press Save.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-50472cf4-9060-4c2c-ae88-ed8cb417cf3b.png?width=210&height=458)
15. Return to the home screen

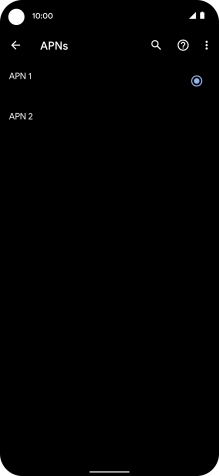

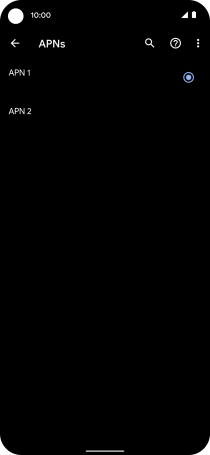

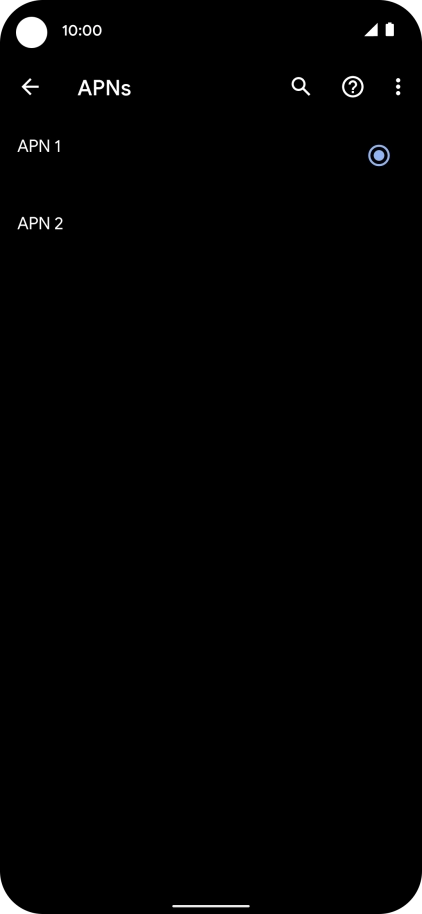

Slide your finger upwards starting from the bottom of the screen to return to the home screen.
