![Samsung Galaxy A14 5G](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-7df481db-ef68-4351-9d02-9acc48e48f26.png?width=150&height=320)
Samsung Galaxy A14 5G
Android 13
1. Find "Access Point Names"
Slide two fingers downwards starting from the top of the screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-4e1b280b-4d69-4fb9-a87a-aefdd06eee60.png?width=196&height=436)
Press the settings icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-b386696e-7401-49d9-a022-3a7f7a83330b.png?width=196&height=436)
Press Connections.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-282f36ca-34f9-4df3-910b-291c9d9ddc86.png?width=196&height=436)
Press Mobile networks.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-0961143e-7cd6-495b-bf33-390bb492b334.png?width=196&height=436)

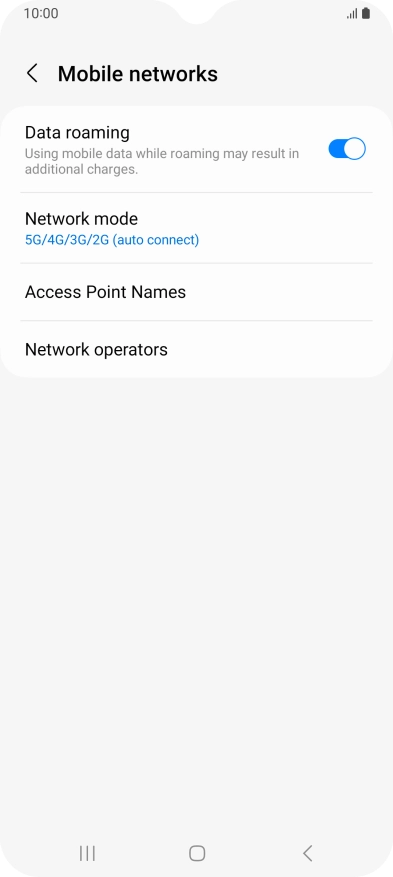

Press Access Point Names.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-6e0ed6de-4d84-44a3-b334-bfa9811e6861.png?width=196&height=436)
2. Create new data connection

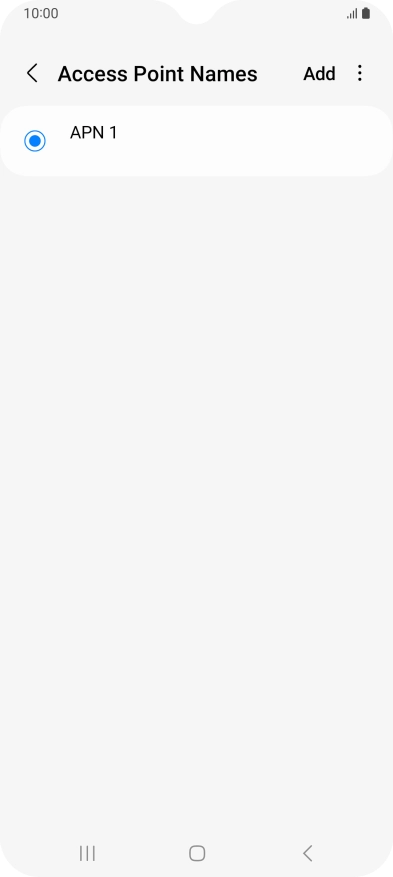

Press Add.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-a1ed207e-576d-4b3a-84be-251998be5e6a.png?width=196&height=436)

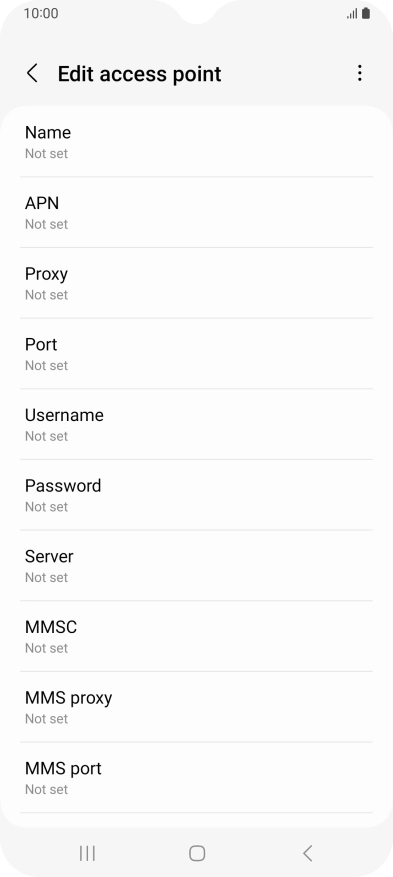

Press Name.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-71ea2423-038a-43e2-beff-bc50c40f35f1.png?width=196&height=436)

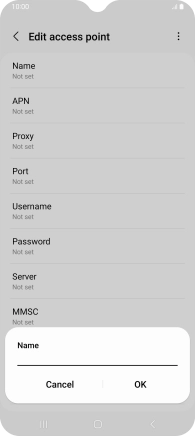

Key in Vodafone MMS and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-d9c9a97b-aba7-48a7-97a3-a3edb1986bec.png?width=196&height=436)
Vodafone MMS
3. Enter APN
Press APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-71ea2423-038a-43e2-beff-bc50c40f35f1.png?width=196&height=436)

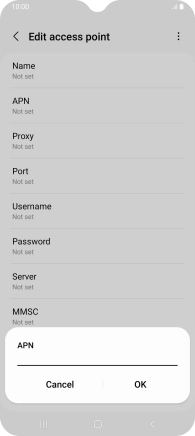

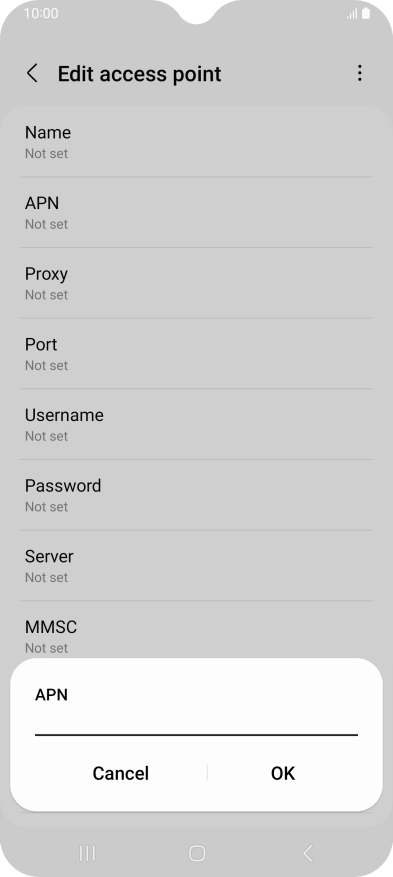

Key in wap.vodafone.co.uk and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-8ad77ec2-0f70-4440-b53d-31f10a51f84a.png?width=196&height=436)
wap.vodafone.co.uk
4. Enter username
Press Username.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-71ea2423-038a-43e2-beff-bc50c40f35f1.png?width=196&height=436)
Key in wap and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-f3429abe-144e-439d-822c-6f0a165003ce.png?width=196&height=436)
wap
5. Enter password
Press Password.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-71ea2423-038a-43e2-beff-bc50c40f35f1.png?width=196&height=436)
Key in wap and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-8ddb8acc-9dac-4f54-a46f-d5ffa2fa5424.png?width=196&height=436)
wap
6. Enter picture messaging server
Press MMSC.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-71ea2423-038a-43e2-beff-bc50c40f35f1.png?width=196&height=436)

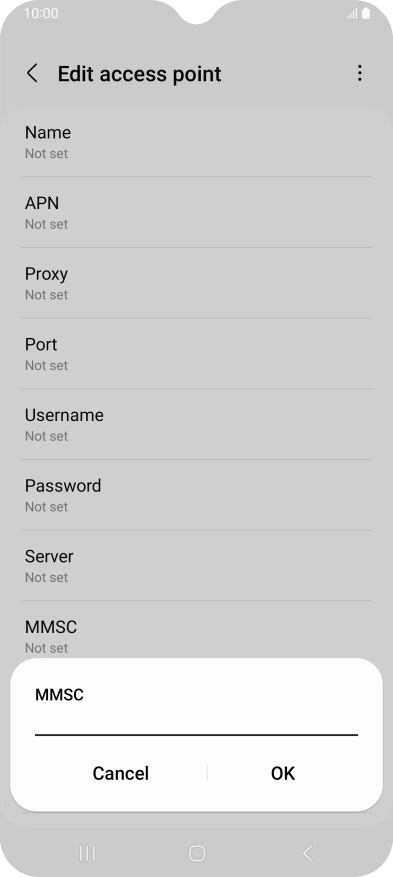

Key in http://mms.vodafone.co.uk/servlets/mms and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-e23c1c8c-06d4-404e-be9a-8c22042b67ba.png?width=196&height=436)
http://mms.vodafone.co.uk/servlets/mms
7. Enter IP address
Press MMS proxy.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-71ea2423-038a-43e2-beff-bc50c40f35f1.png?width=196&height=436)

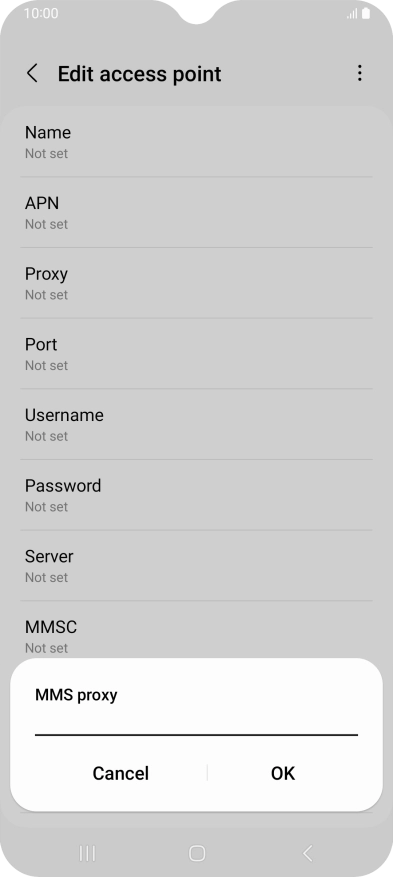

Key in 212.183.137.012 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-e90c4ab6-747f-4082-a2cc-ce622a78f455.png?width=196&height=436)
212.183.137.012
8. Enter port number
Press MMS port.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-71ea2423-038a-43e2-beff-bc50c40f35f1.png?width=196&height=436)

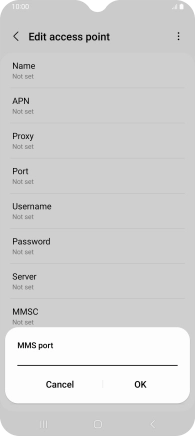

Key in 8799 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-10e59007-293e-4524-92a4-eac935014fdb.png?width=196&height=436)
8799
9. Enter country code

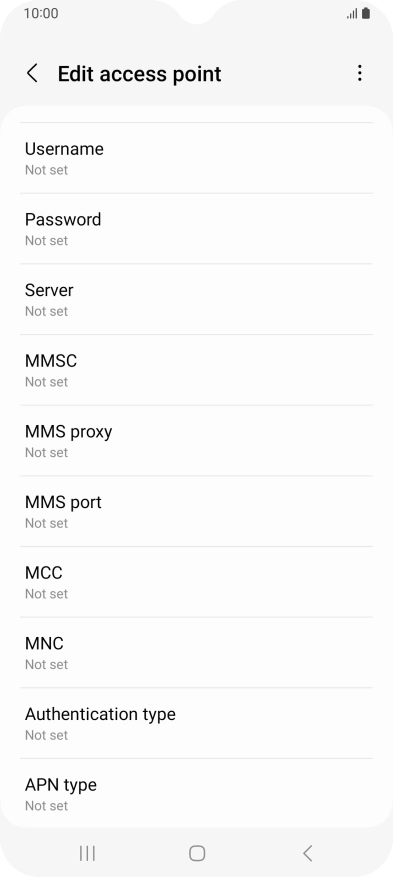

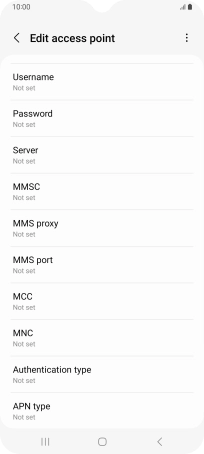

Press MCC.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-100160b6-a6af-4962-9b78-d8efaa70da90.png?width=196&height=436)
Key in 234 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-8f1d4e9f-0e7d-486c-a588-9372dc53d275.png?width=196&height=436)
234
10. Enter network code
Press MNC.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-100160b6-a6af-4962-9b78-d8efaa70da90.png?width=196&height=436)

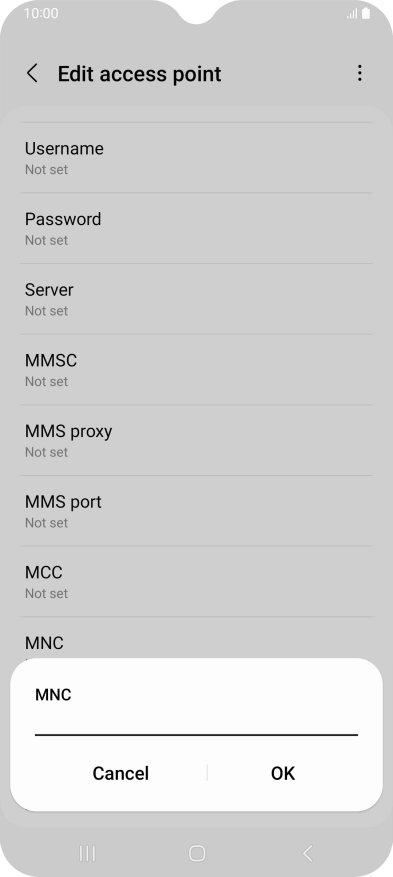

Key in 15 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-e7cb5622-d8e1-47f0-b7d0-c4b00dedb537.png?width=196&height=436)
15
11. Select authentication type
Press Authentication type.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-100160b6-a6af-4962-9b78-d8efaa70da90.png?width=196&height=436)

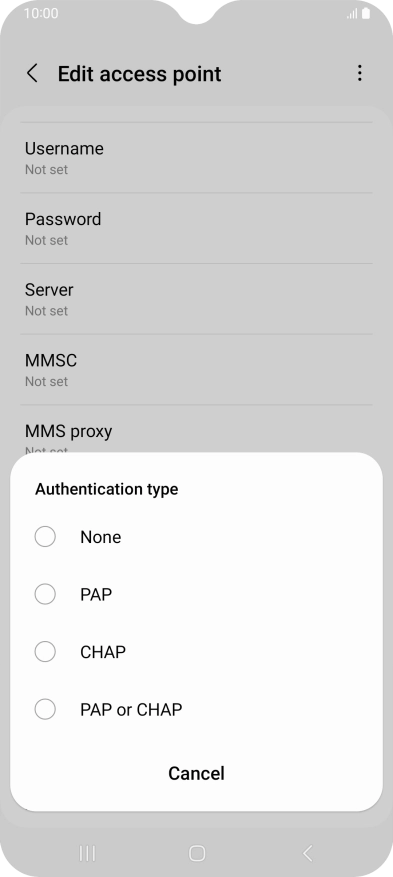

Press None.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-23feda70-78c5-4366-86c9-01cb7830eaac.png?width=196&height=436)
12. Enter APN type
Press APN type.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-100160b6-a6af-4962-9b78-d8efaa70da90.png?width=196&height=436)

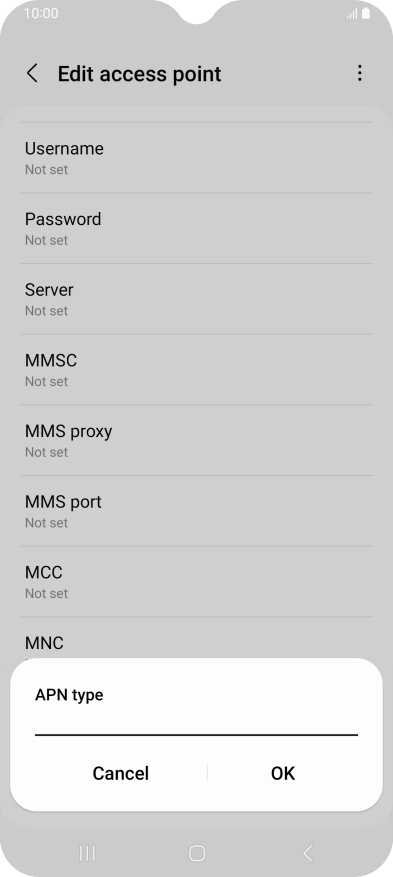

Key in mms and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-5c7da529-18b9-4b8f-8114-64bf008b788b.png?width=196&height=436)
mms
13. Save data connection
Press the menu icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-100160b6-a6af-4962-9b78-d8efaa70da90.png?width=196&height=436)

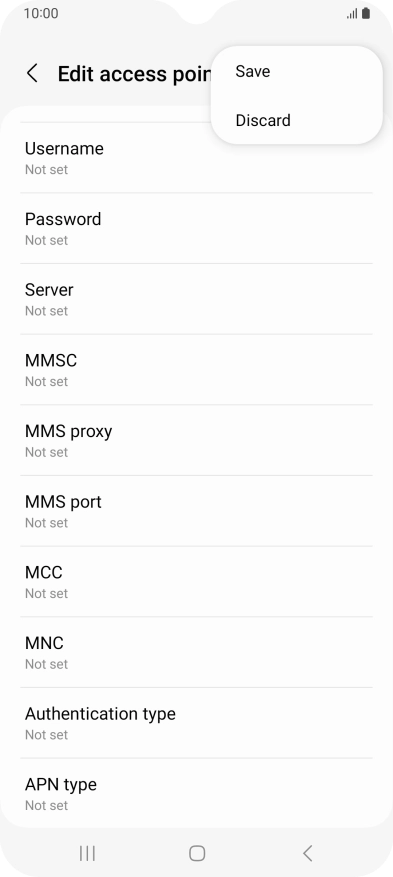

Press Save.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-7f6c271d-c227-4ec3-b42d-21ac9ef31c44.png?width=196&height=436)
14. Return to the home screen

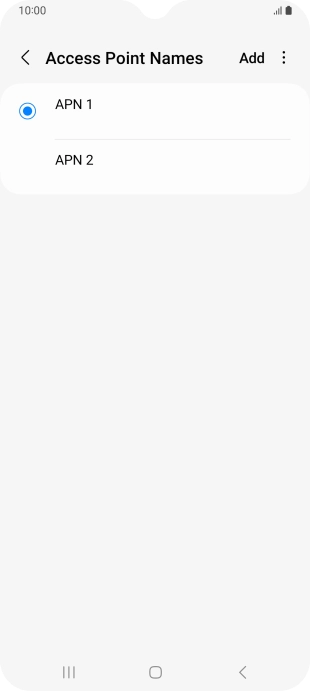

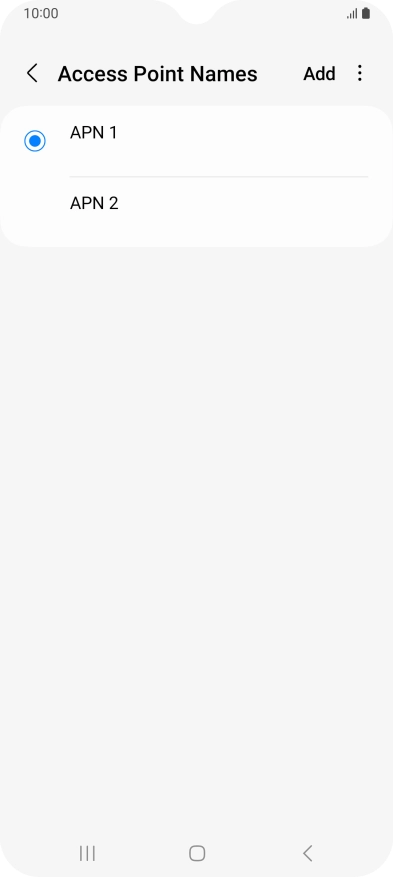

Press the Home key to return to the home screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-bdf96fdf-e480-4e9f-9078-6504959fe4ac.png?width=196&height=436)
