Samsung Galaxy A22 5G
Android 11.0
1. Find "Access Point Names"
Slide two fingers downwards starting from the top of the screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-cb77762e-fe16-40a2-8291-1e4764721890.png?width=198&height=440)

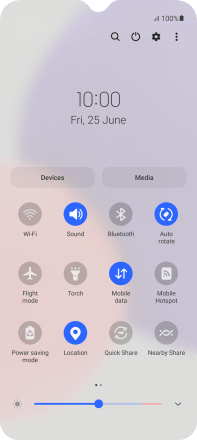

Press the settings icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-29a4ea3f-9947-4333-8a95-13a3cc7e0d5e.png?width=198&height=440)

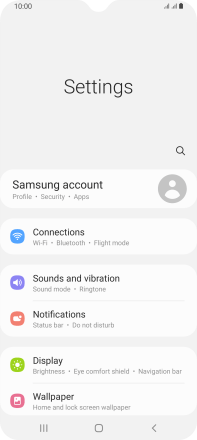

Press Connections.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-2bffbc47-70c0-4ba8-9682-85896bfa642f.png?width=198&height=440)

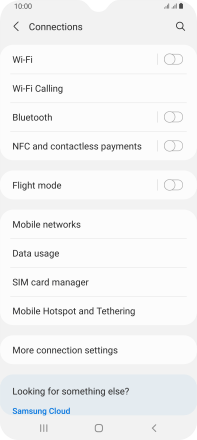

Press Mobile networks.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-bd5a67fa-7334-43af-9211-3d8894da8834.png?width=198&height=440)

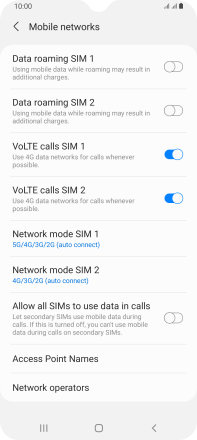

Press Access Point Names.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-35849a9f-a5c1-4e38-93e9-4fb4bc568a1b.png?width=198&height=440)
2. Create new data connection

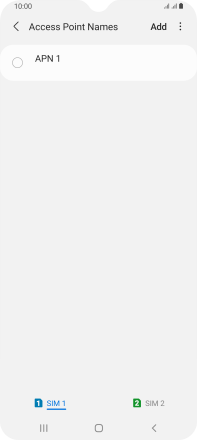

Press the required SIM.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-84007b50-f745-488d-bc5f-218dd1febb92.png?width=198&height=440)
Press Add.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-84007b50-f745-488d-bc5f-218dd1febb92.png?width=198&height=440)
3. Enter a name for the connection

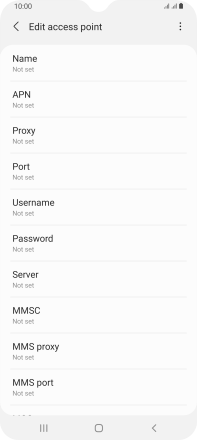

Press Name.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-7b6a8a42-a5dd-4f8c-8074-2a020752d464.png?width=198&height=440)
Key in Vodafone MMS and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-f46310bb-b33c-46d3-944f-040bea2dbab0.png?width=198&height=440)
Vodafone MMS
4. Enter APN
Press APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-7b6a8a42-a5dd-4f8c-8074-2a020752d464.png?width=198&height=440)

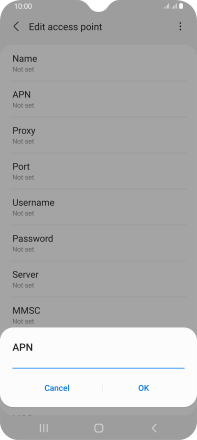

Key in wap.vodafone.co.uk and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-b3296d70-9368-4d41-a1d8-953c5f6611cc.png?width=198&height=440)
wap.vodafone.co.uk
5. Enter username
Press Username.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-7b6a8a42-a5dd-4f8c-8074-2a020752d464.png?width=198&height=440)
Key in wap and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-64484794-864d-419f-a5db-a9e712176dc0.png?width=198&height=440)
wap
6. Enter password
Press Password.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-7b6a8a42-a5dd-4f8c-8074-2a020752d464.png?width=198&height=440)
Key in wap and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-025b119a-b709-4836-abe2-704dfae4ff4e.png?width=198&height=440)
wap
7. Enter MMSC
Press MMSC.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-7b6a8a42-a5dd-4f8c-8074-2a020752d464.png?width=198&height=440)

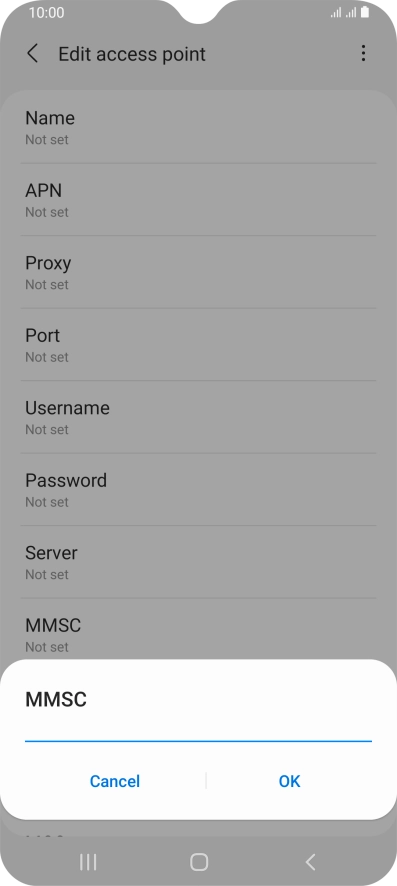

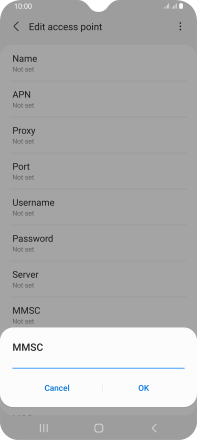

Key in http://mms.vodafone.co.uk/servlets/mms and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-308ec6cf-35d1-4ecb-ab59-ad7fa131abf5.png?width=198&height=440)
http://mms.vodafone.co.uk/servlets/mms
8. Enter IP address
Press MMS proxy.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-7b6a8a42-a5dd-4f8c-8074-2a020752d464.png?width=198&height=440)

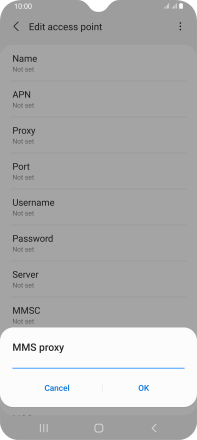

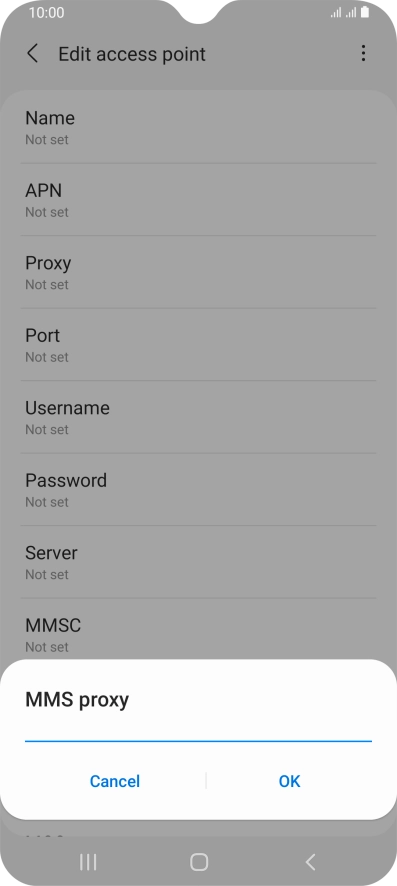

Key in 212.183.137.012 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-145cc0a4-5e4f-4d72-8cfd-b87e995a04f0.png?width=198&height=440)
212.183.137.012
9. Enter port number
Press MMS port.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-7b6a8a42-a5dd-4f8c-8074-2a020752d464.png?width=198&height=440)

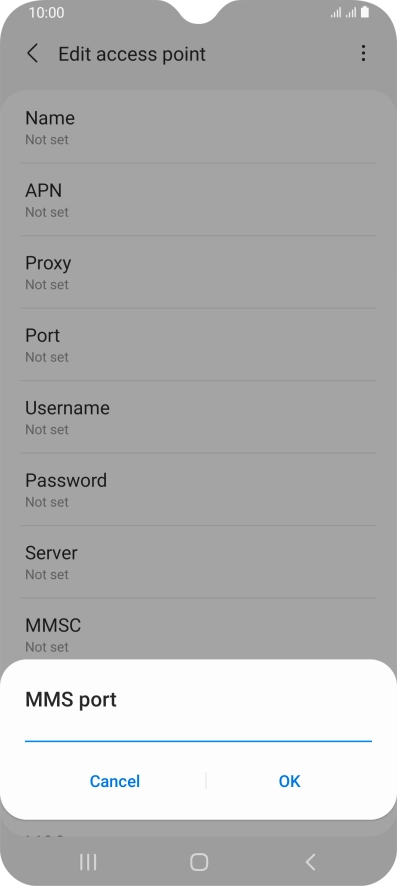

Key in 8799 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-4cad3f13-b7d4-40f0-b098-316bb1bda300.png?width=198&height=440)
8799
10. Enter country code

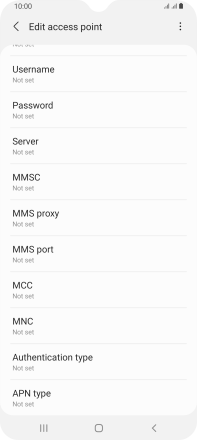

Press MCC.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-1c2bf782-cdd4-4793-9875-c7e38563f940.png?width=198&height=440)

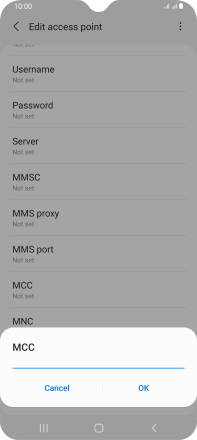

Key in 234 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-411b3b0e-bb27-4a6e-a202-36a5799467d9.png?width=198&height=440)
234
11. Enter network code
Press MNC.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-1c2bf782-cdd4-4793-9875-c7e38563f940.png?width=198&height=440)
Key in 15 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-295b9939-a662-4c77-b034-70ac70895e72.png?width=198&height=440)
15
12. Select authentication type
Press Authentication type.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-1c2bf782-cdd4-4793-9875-c7e38563f940.png?width=198&height=440)

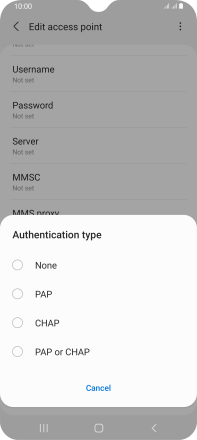

Press None.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-58bf93b6-df07-402a-8317-d8eb786303b4.png?width=198&height=440)
13. Enter APN type
Press APN type.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-1c2bf782-cdd4-4793-9875-c7e38563f940.png?width=198&height=440)

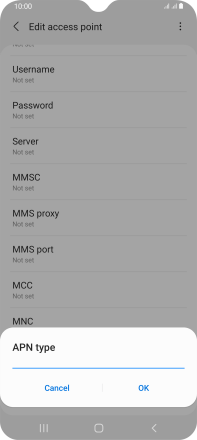

Key in mms and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-3562caa5-e634-498e-9b83-f9ced6c9d66d.png?width=198&height=440)
mms
14. Save data connection
Press the menu icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-1c2bf782-cdd4-4793-9875-c7e38563f940.png?width=198&height=440)

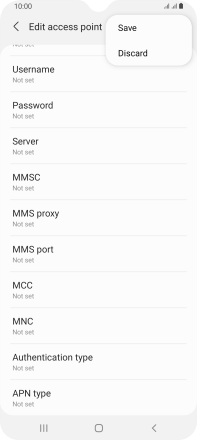

Press Save.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-04e1394a-ec35-4f8b-a239-7b14ffdc0b22.png?width=198&height=440)
15. Return to the home screen

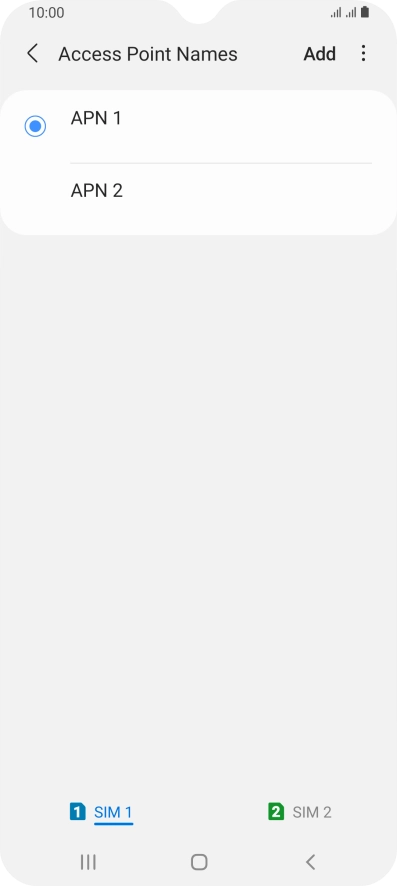

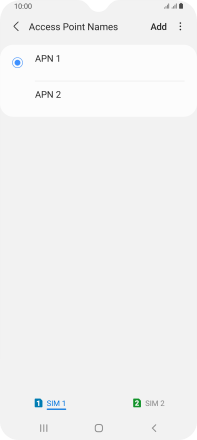

Press the Home key to return to the home screen.
