![Samsung Galaxy A23 5G](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-30455faa-f58a-4c7a-9a6c-db91db18de7b.png?width=150&height=320)
Samsung Galaxy A23 5G
Android 12.0
1. Find "Access Point Names"
Slide two fingers downwards starting from the top of the screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-59abd2ad-7ceb-43b5-b7c1-87ecc0ae5ea2.png?width=198&height=440)
Press the settings icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-2bee53c4-0a07-415a-b909-093bba87ce28.png?width=198&height=440)

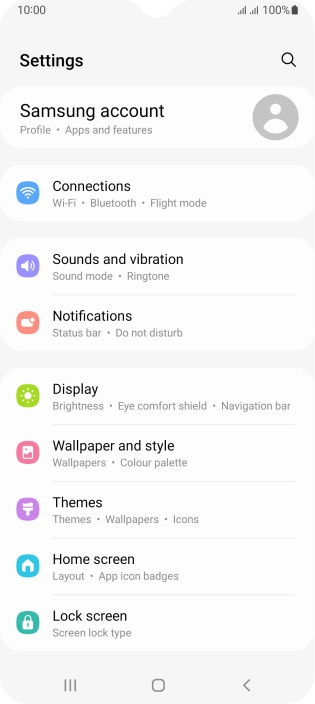

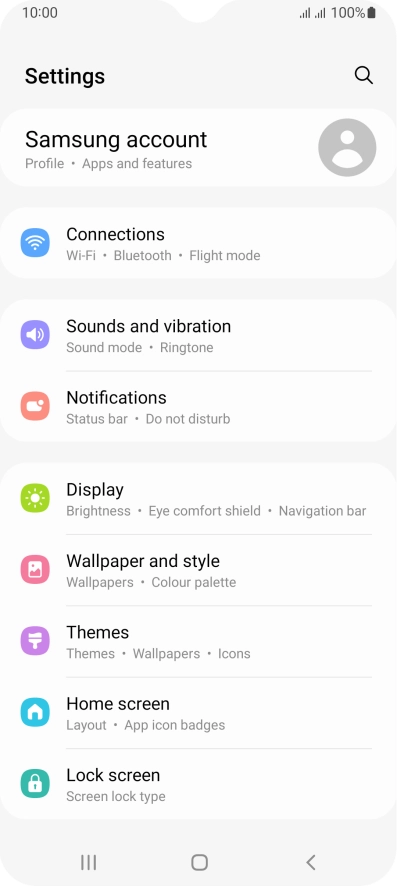

Press Connections.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-f75f18e9-950b-44a7-a44f-30ae9562ee10.png?width=198&height=440)

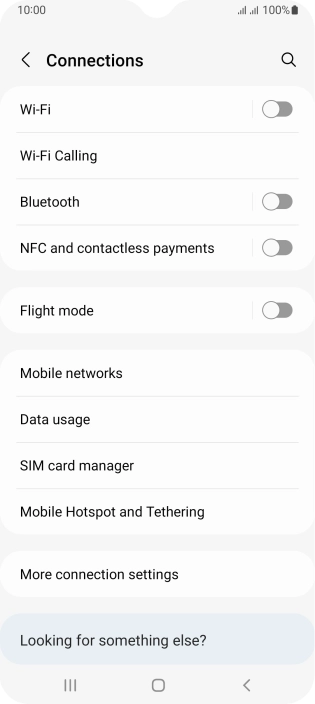

Press Mobile networks.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-f583afca-42a4-495c-abb7-1610f192388a.png?width=198&height=440)

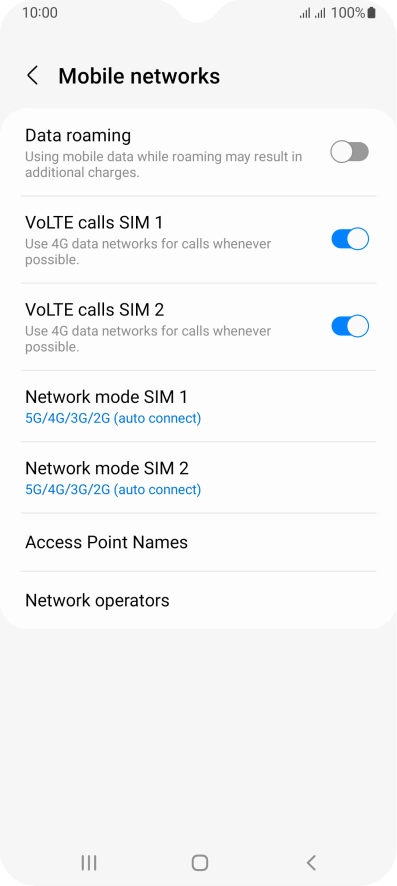

Press Access Point Names.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-b51b7bc5-ced8-4e6b-b1f9-36d2a283ef62.png?width=198&height=440)
2. Create new data connection

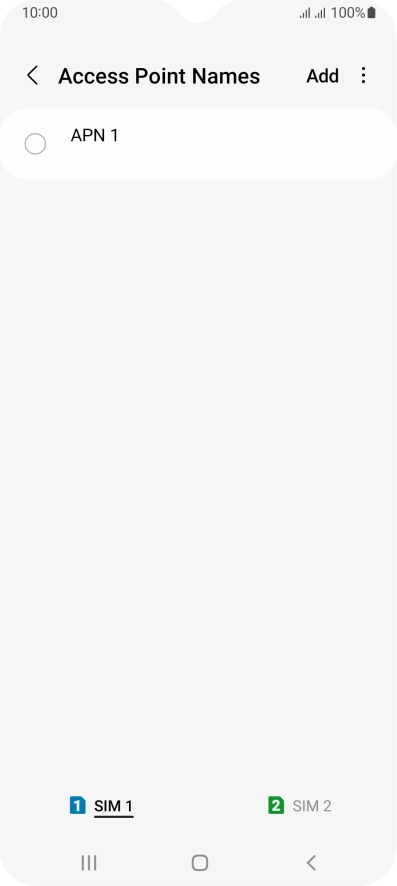

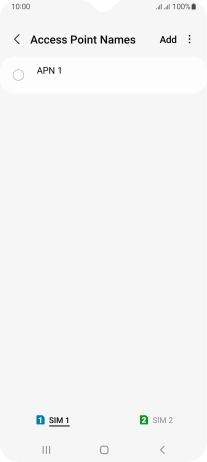

Press Add.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-fcab79bb-ff7b-4f14-9939-2f992070e480.png?width=198&height=440)

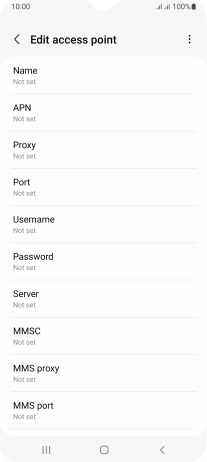

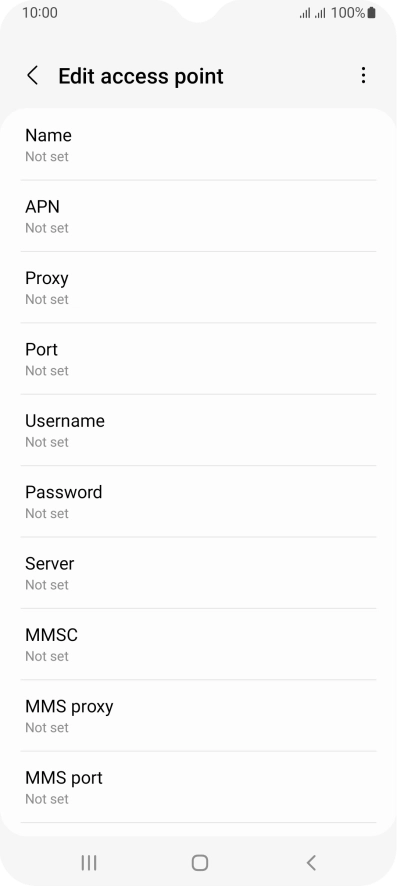

Press Name.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-01652b5c-3f85-4142-9e65-3faf8632b050.png?width=198&height=440)

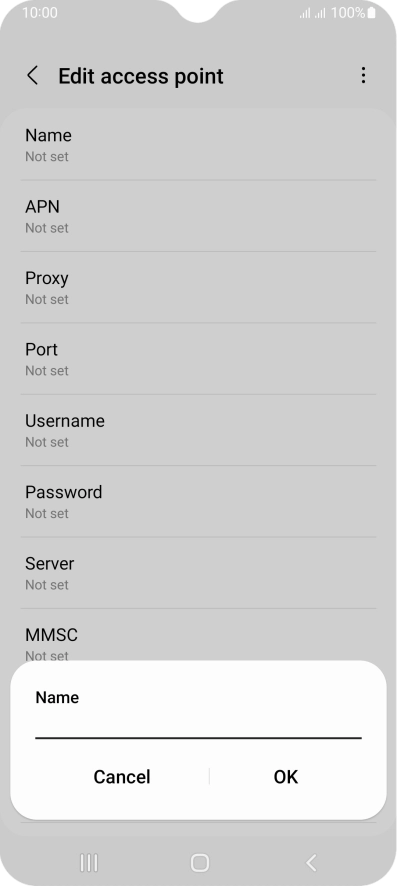

Key in Vodafone MMS and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-218882df-a950-4d60-a23b-529a6f7665f4.png?width=198&height=440)
Vodafone MMS
3. Enter APN

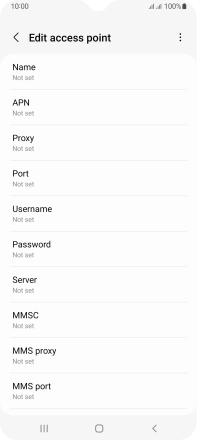

Press APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-01652b5c-3f85-4142-9e65-3faf8632b050.png?width=198&height=440)
Key in wap.vodafone.co.uk and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-cb29904b-3c35-47bd-8482-67a5d4874604.png?width=198&height=440)
wap.vodafone.co.uk
4. Enter username
Press Username.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-01652b5c-3f85-4142-9e65-3faf8632b050.png?width=198&height=440)
Key in wap and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-07dbb80c-05ee-4fc5-bd3b-af98f1045e57.png?width=198&height=440)
wap
5. Enter password
Press Password.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-01652b5c-3f85-4142-9e65-3faf8632b050.png?width=198&height=440)
Key in wap and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-016b040b-c87a-4a7b-9ff8-64acf313ee8d.png?width=198&height=440)
wap
6. Enter MMSC
Press MMSC.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-01652b5c-3f85-4142-9e65-3faf8632b050.png?width=198&height=440)

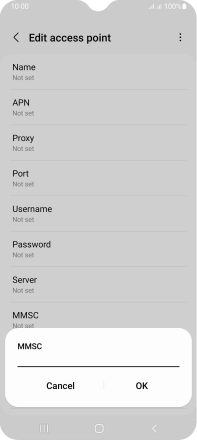

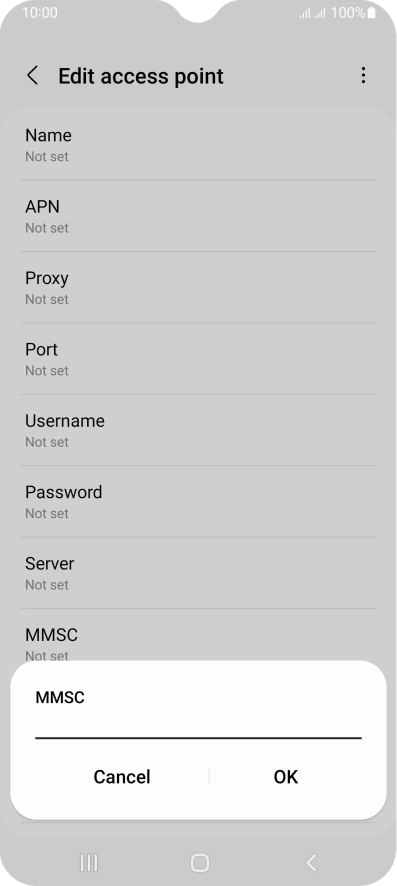

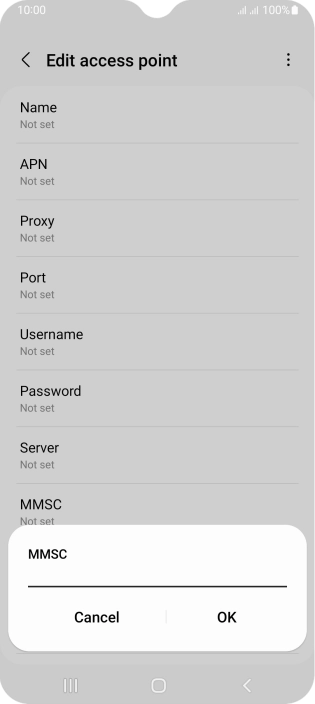

Key in http://mms.vodafone.co.uk/servlets/mms and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-ad99cba5-e94d-4480-81d7-2ac02fba6a5e.png?width=198&height=440)
http://mms.vodafone.co.uk/servlets/mms
7. Enter IP address
Press MMS proxy.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-01652b5c-3f85-4142-9e65-3faf8632b050.png?width=198&height=440)

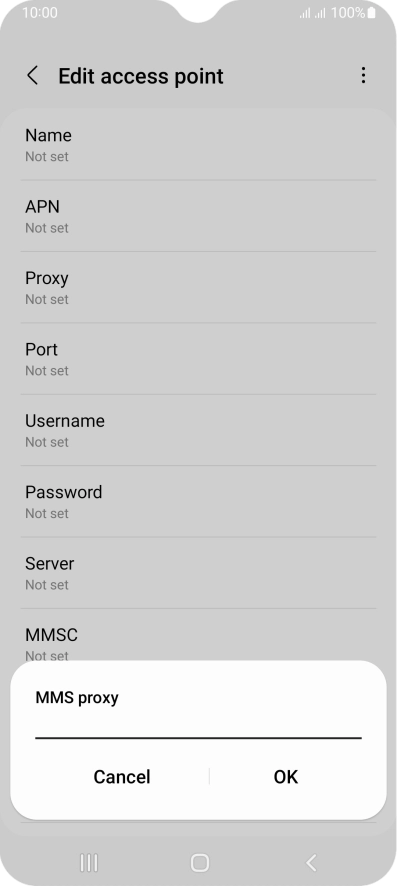

Key in 212.183.137.012 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-ba227ff9-dfbb-4139-83ac-559ce55a321b.png?width=198&height=440)
212.183.137.012
8. Enter port number
Press MMS port.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-01652b5c-3f85-4142-9e65-3faf8632b050.png?width=198&height=440)

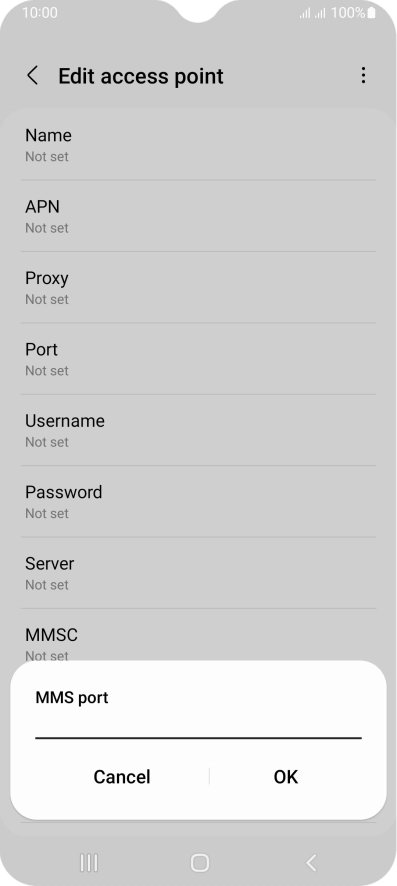

Key in 8799 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-e71f83ba-fd41-4aa2-a62d-0652c0d07c76.png?width=198&height=440)
8799
9. Enter country code

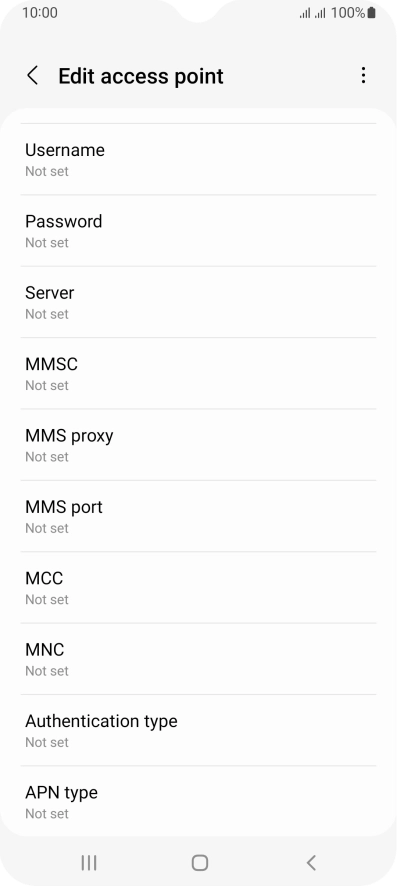

Press MCC.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-0c65ec6f-e554-4d31-b91c-f7082b8b400d.png?width=198&height=440)

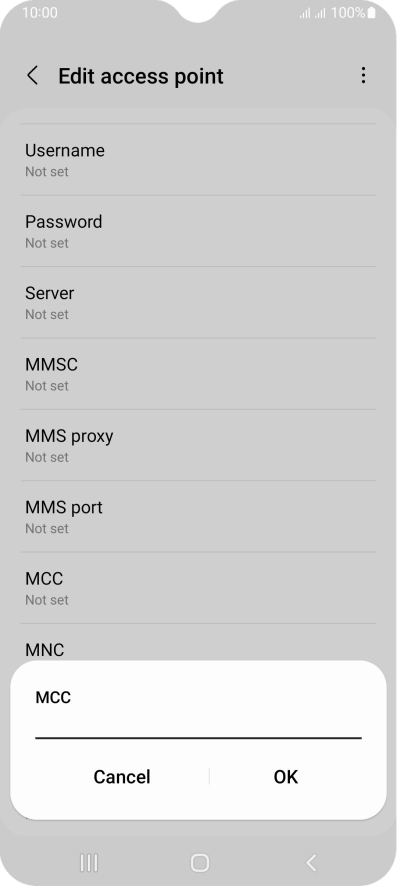

Key in 234 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-0ce6cfdc-fc3b-4f67-855f-d89f1c74476a.png?width=198&height=440)
234
10. Enter network code
Press MNC.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-0c65ec6f-e554-4d31-b91c-f7082b8b400d.png?width=198&height=440)

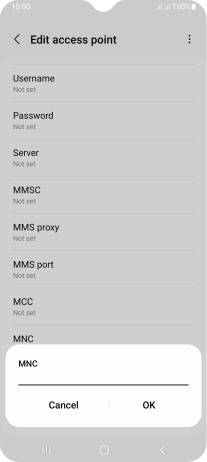

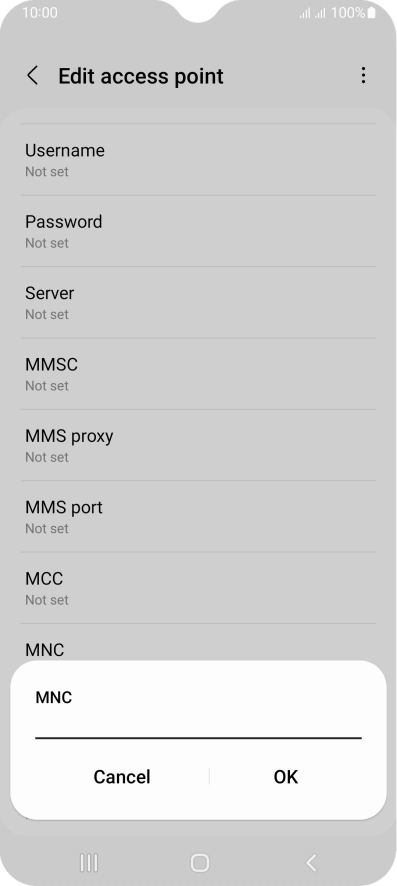

Key in 15 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-18626b8d-1f25-415f-b01f-4b9f35f9c765.png?width=198&height=440)
15
11. Select authentication type
Press Authentication type.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-0c65ec6f-e554-4d31-b91c-f7082b8b400d.png?width=198&height=440)

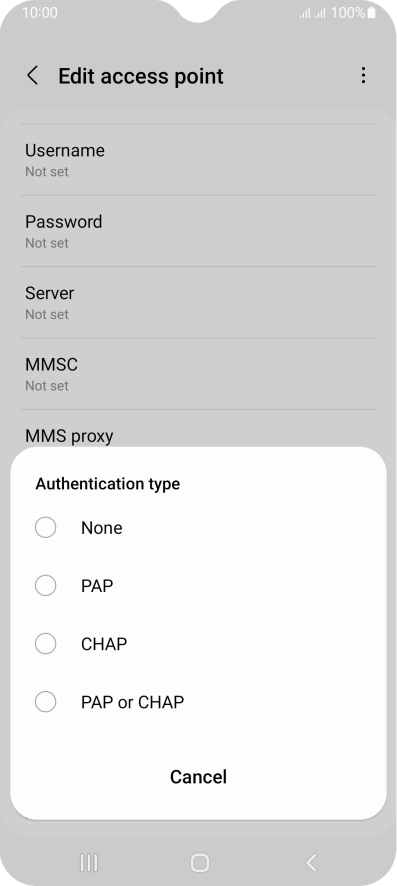

Press None.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-561c6221-0b61-44ef-91dc-550311d7bb61.png?width=198&height=440)
12. Enter APN type
Press APN type.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-0c65ec6f-e554-4d31-b91c-f7082b8b400d.png?width=198&height=440)

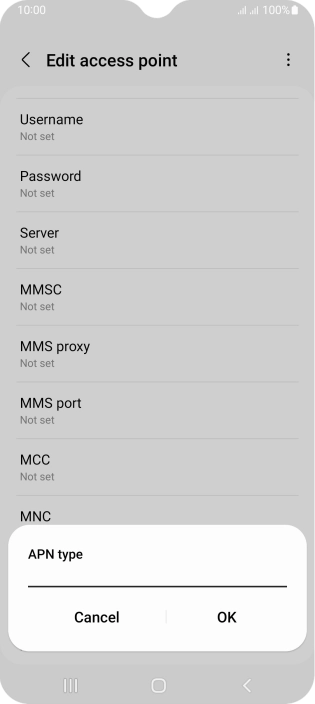

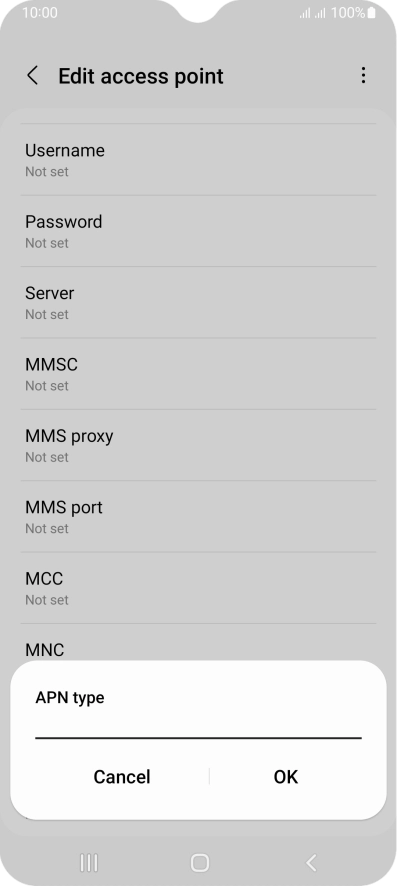

Key in mms and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-699d7f27-4fd1-4abb-8f35-38c737908ae1.png?width=198&height=440)
mms
13. Save data connection
Press the menu icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-0c65ec6f-e554-4d31-b91c-f7082b8b400d.png?width=198&height=440)

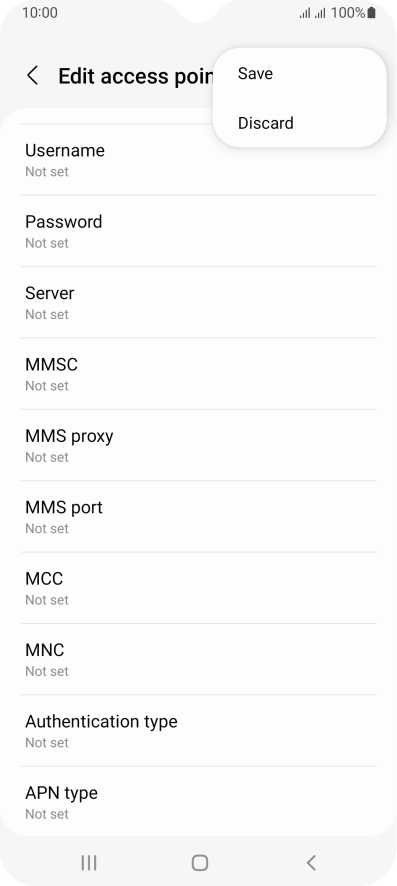

Press Save.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-ce238a83-49ef-49ae-907c-b9a2a5496bfb.png?width=198&height=440)
14. Return to the home screen

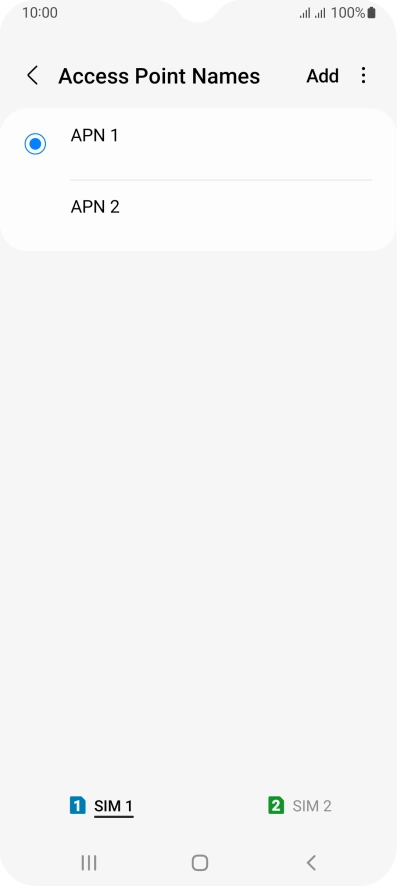

Press the Home key to return to the home screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-9d103ef7-fa49-4a0c-b5a5-9a0ca77c5f3e.png?width=198&height=440)
