![Samsung Galaxy S23](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-2f2641b0-aac3-4a05-8500-a8890b0a3b9d.png?width=150&height=320)
Samsung Galaxy S23
Android 13
1. Find "Access Point Names"
Slide two fingers downwards starting from the top of the screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-2ed196e7-8a61-4b6b-8e56-42ec52aa7af5.png?width=212&height=458)
Press the settings icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-31b1bafa-bf45-4431-9f5d-3fd90f91a6ea.png?width=212&height=458)
Press Connections.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-37d55fe2-9cb8-4ecc-bbdb-2d8115ece148.png?width=212&height=458)
Press Mobile networks.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-9e4daa42-173c-49f2-8c0b-603e76adcf4c.png?width=212&height=458)
Press Access Point Names.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-41e4878a-e820-4339-9031-ce0f3eb1ba3e.png?width=212&height=458)
2. Create new data connection
Press Add.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-e064ee40-2041-46ae-9b97-a5a2171df937.png?width=212&height=458)
Press Name.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-0aa2727e-0fcd-444e-a673-f243cbfb40ea.png?width=212&height=458)
Key in Vodafone MMS and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-c3e6b12a-31e2-421a-b206-e241b089e5a7.png?width=212&height=458)
Vodafone MMS
3. Enter APN
Press APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-0aa2727e-0fcd-444e-a673-f243cbfb40ea.png?width=212&height=458)
Key in wap.vodafone.co.uk and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-a4c7c062-63cd-457f-9135-ddea97684e16.png?width=212&height=458)
wap.vodafone.co.uk
4. Enter username
Press Username.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-0aa2727e-0fcd-444e-a673-f243cbfb40ea.png?width=212&height=458)
Key in wap and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-22404731-2194-4171-8094-55cf6e8d9511.png?width=212&height=458)
wap
5. Enter password
Press Password.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-0aa2727e-0fcd-444e-a673-f243cbfb40ea.png?width=212&height=458)
Key in wap and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-ffe76c95-696e-43c7-baf3-30c0d516083a.png?width=212&height=458)
wap
6. Enter picture messaging server
Press MMSC.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-0aa2727e-0fcd-444e-a673-f243cbfb40ea.png?width=212&height=458)

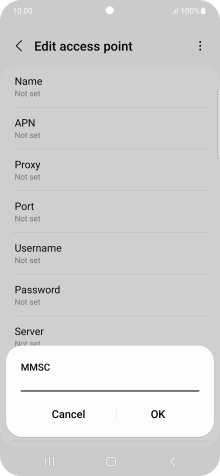

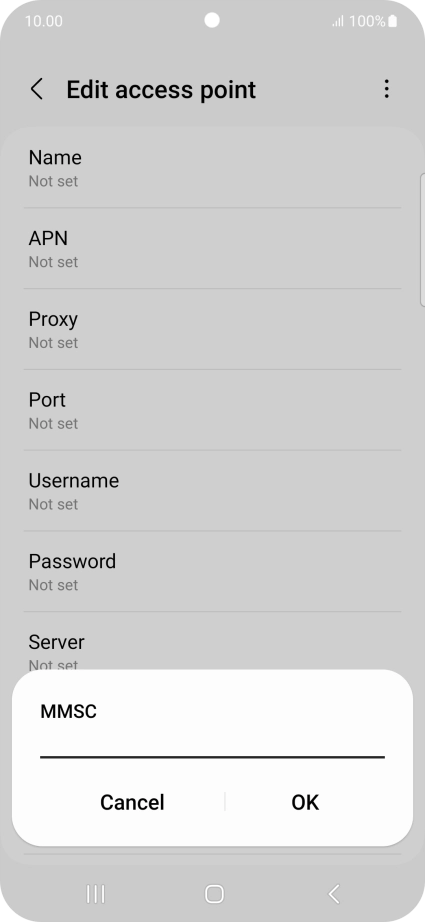

Key in http://mms.vodafone.co.uk/servlets/mms and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-386209d8-60ac-432e-8398-e41f96ad040b.png?width=212&height=458)
http://mms.vodafone.co.uk/servlets/mms
7. Enter IP address
Press MMS proxy.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-0aa2727e-0fcd-444e-a673-f243cbfb40ea.png?width=212&height=458)

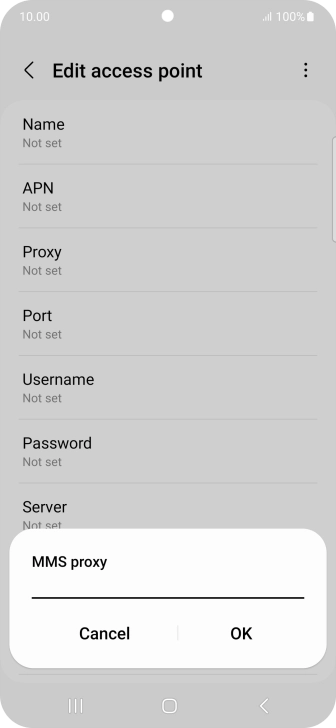

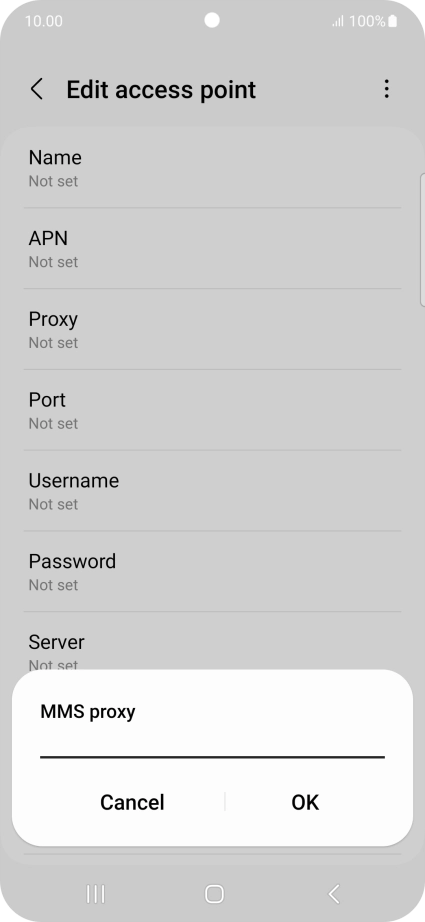

Key in 212.183.137.012 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-f694aba9-acd6-4ff8-b27e-b87e1dec9a6e.png?width=212&height=458)
212.183.137.012
8. Enter port number
Press MMS port.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-54d53f4a-67cf-4ee5-9051-13533b92fafa.png?width=212&height=458)

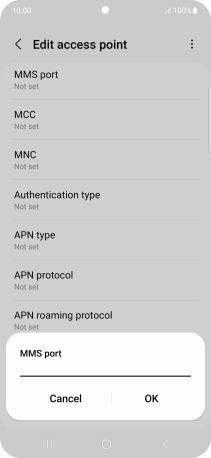

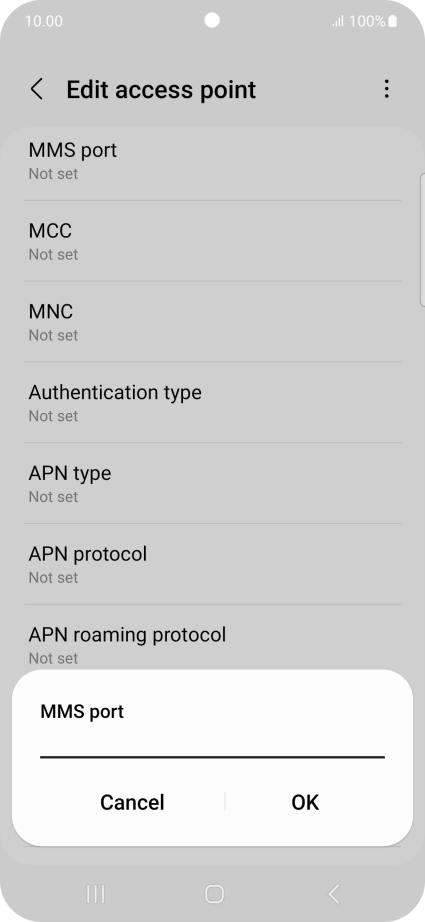

Key in 8799 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-33c950c7-e09d-44aa-a6cc-20e0e71b9b86.png?width=212&height=458)
8799
9. Enter country code
Press MCC.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-54d53f4a-67cf-4ee5-9051-13533b92fafa.png?width=212&height=458)
Key in 234 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-1b236525-0867-45a1-b223-842d2a367439.png?width=212&height=458)
234
10. Enter network code
Press MNC.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-54d53f4a-67cf-4ee5-9051-13533b92fafa.png?width=212&height=458)
Key in 15 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-e2885792-cb65-4813-a95a-75706d325570.png?width=212&height=458)
15
11. Select authentication type
Press Authentication type.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-54d53f4a-67cf-4ee5-9051-13533b92fafa.png?width=212&height=458)
Press None.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-ef61b9ca-c627-47c5-8067-c5a53b8468f8.png?width=212&height=458)
12. Enter APN type
Press APN type.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-54d53f4a-67cf-4ee5-9051-13533b92fafa.png?width=212&height=458)
Key in mms and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-2fce1c20-cb5c-48a8-86cf-45a7c3a7e643.png?width=212&height=458)
mms
13. Save data connection
Press the menu icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-54d53f4a-67cf-4ee5-9051-13533b92fafa.png?width=212&height=458)
Press Save.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-099a6931-72a5-4c56-94fd-1a54f9778437.png?width=212&height=458)
14. Return to the home screen

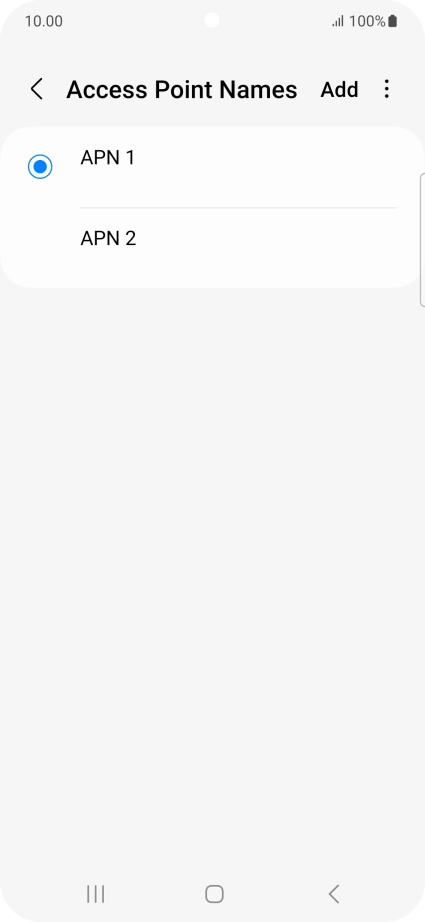

Press the Home key to return to the home screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-71ebe66d-0e8e-44ce-a1cd-ab2bde02119e.png?width=212&height=458)
